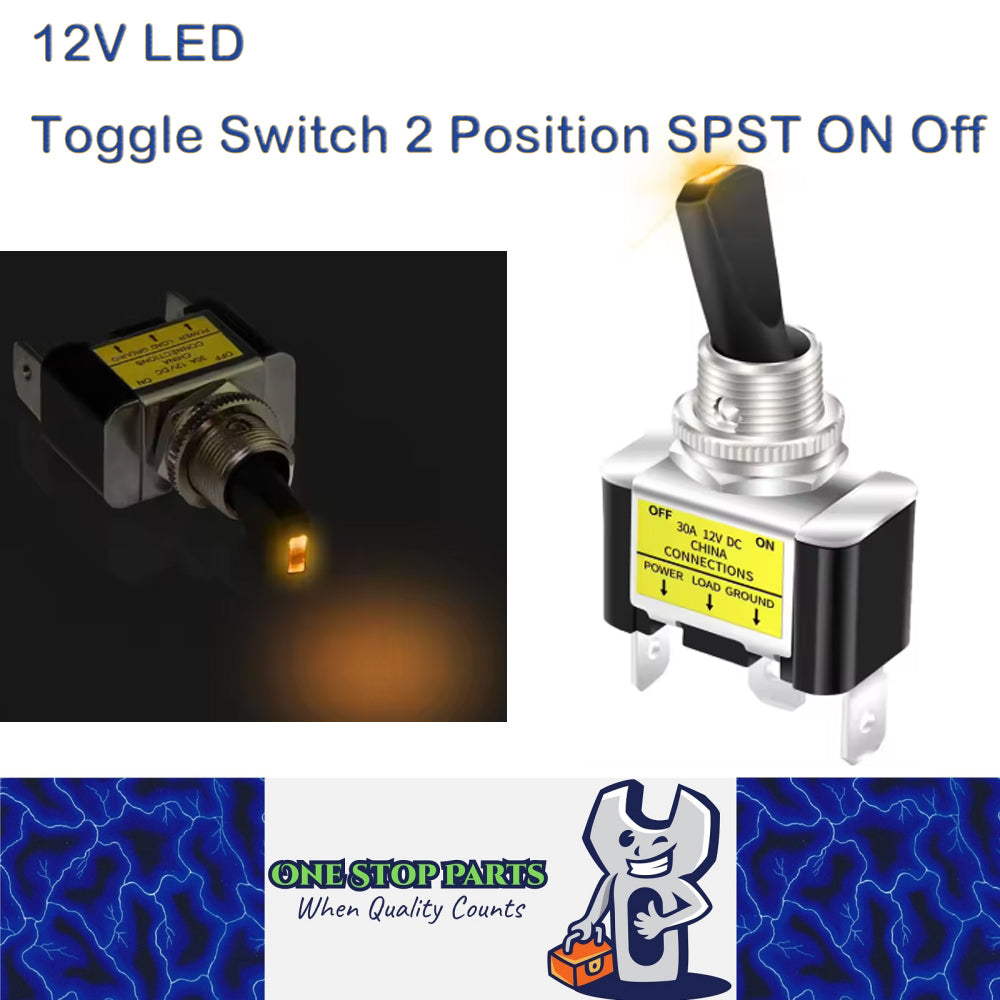

Yellow LED 30A 12V Toggle Switch 2 Position SPST ON Off Car Boat Toggle Switch

About the item

• Function: LED toggle switch with 3 pins, SPST design(single pole single throw), designed with rocker style easy to turn ON/OFF.
• Feature: The rating is 30A 12VDC LED .The LED will illuminated when the switch is turned on. Illuminated Toggle Switch.

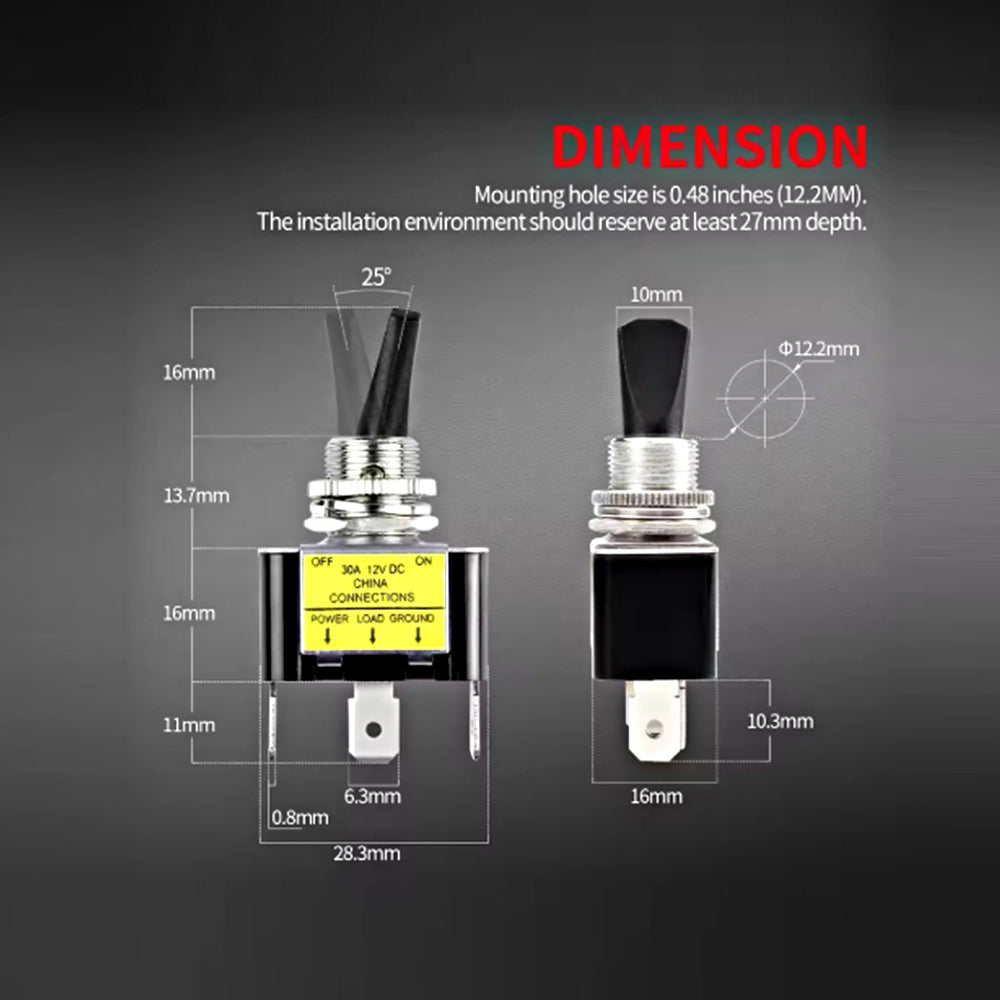

• Size: 12V toggle switch Overall size is 28.3*16*56 MM.
• Mounting hole size is 12.2 MM.
• Color:  Yellow

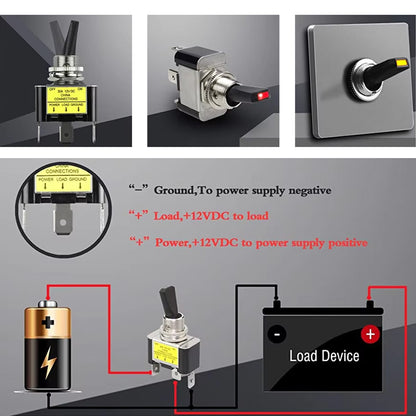

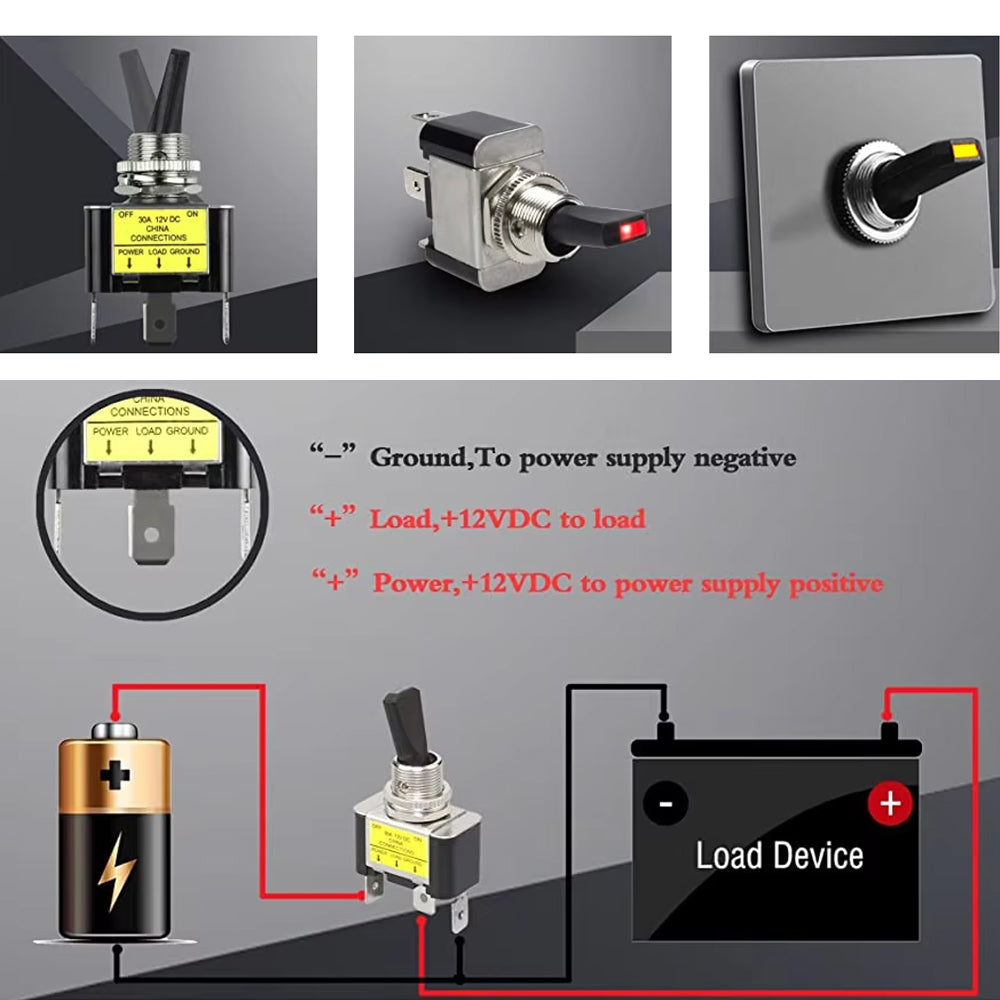

• Terminal: ON/OFF toggle switch with 250 Quick-connect Terminals and 0.8 MM thickness.
• SPST toggle switch is widely applied to various additional electric equipment inside and outside the car, such as lights, chassis lamp,fog lamps, dome light etc.

Speciflcation

Rating: 30A 12VDC

Contact Resistance: ≤50mΩ

Insulated Resistance: ≥100MΩ

Operating Temperature: -25℃~+85℃

Electrical Life: ≥10,000 Cycles

Panel Cut-Out Size: 12mm

Panel Thickness: 10mm Max

Waterpoof Degree: IP40

LED Rating: 20mA

LED Endurance: ≥20,000 Hours
