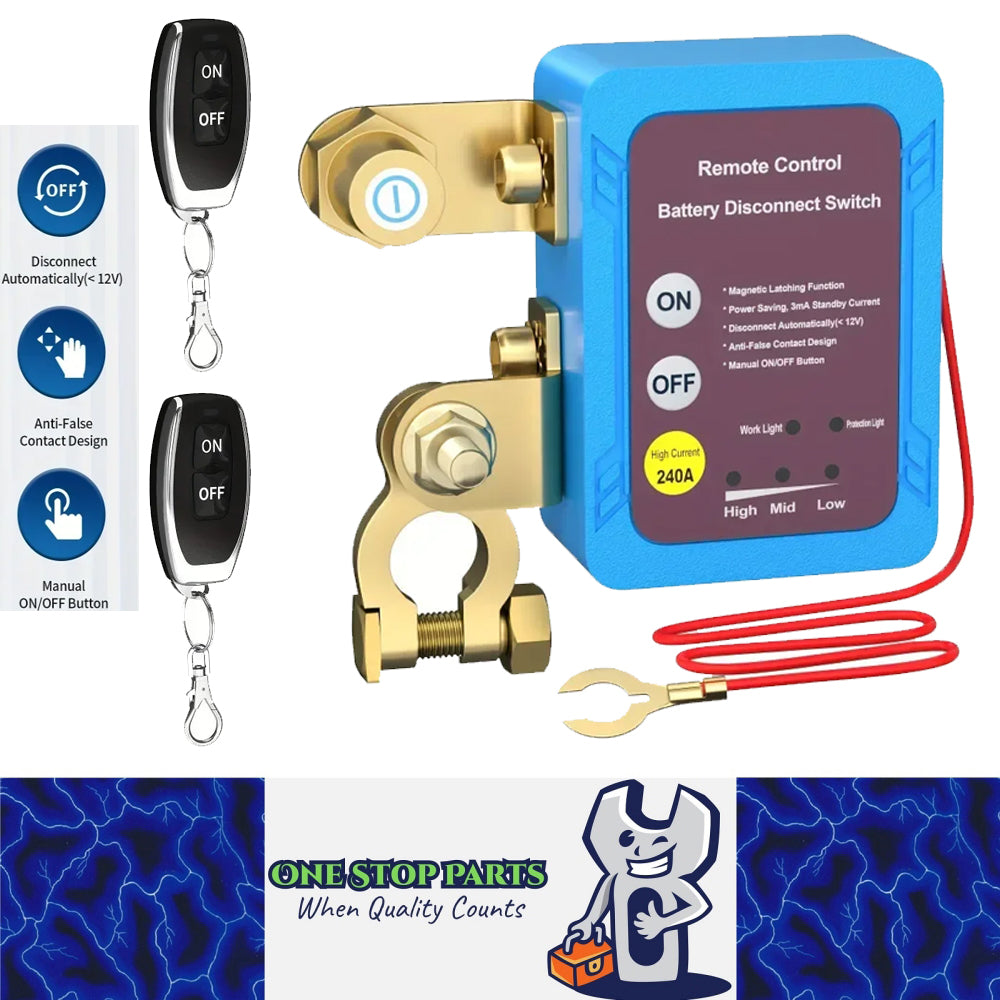

Wireless Battery Isolator Disconnect Relay Master Kill Cut-Off Switch 12V Car Kill Switch
Magnetic Latching Function
This kill switch for car uses a new type of relay that controls circuit disconnection and cut-off by magnetic principle, with a standby current of 3mA, which is more energy-saving.
Automatic Cut Off
If the voltage is lower than 11.8V, the remote kill switch will automatically cut off the power supply after 120s to save electricity, if the voltage is higher than 13.2V, the remote control will be disabled to prevent accidental action to shut off the power while driving, and the power supply can only be controlled by the button on the switch.
Easy Installation

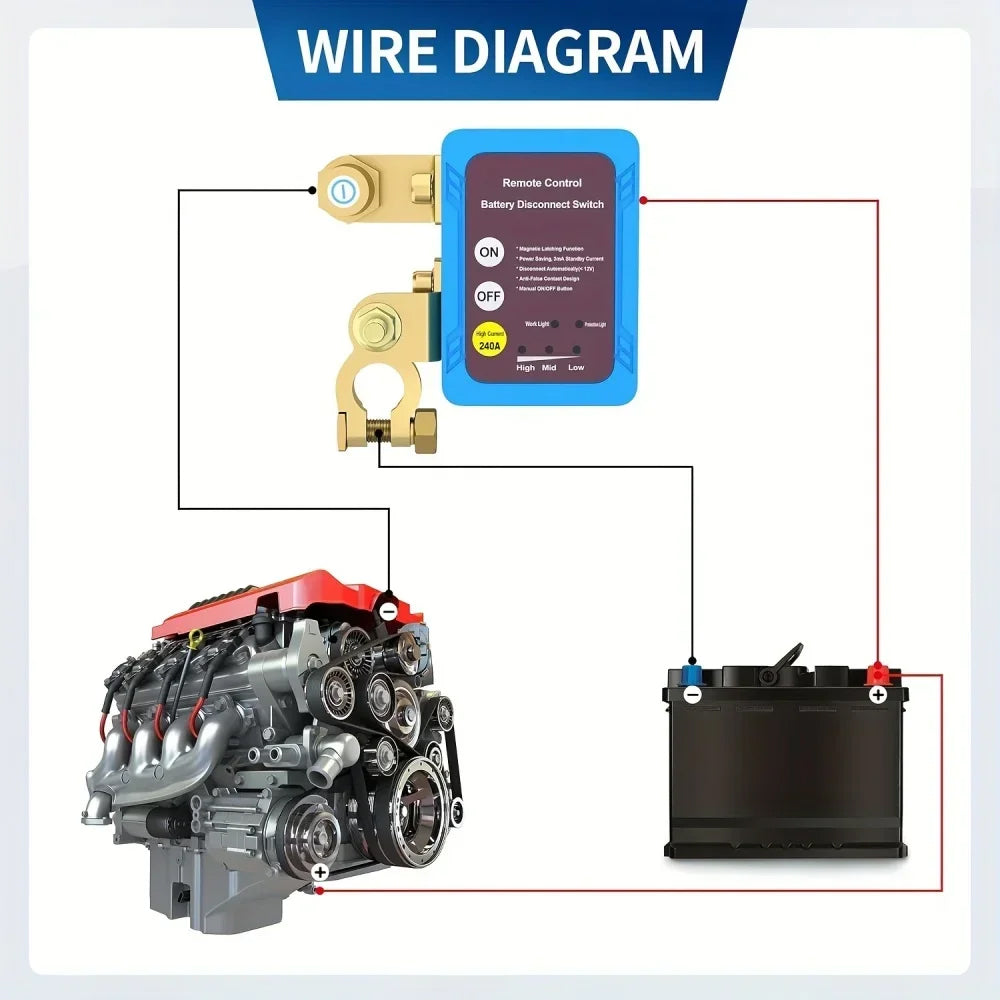

The power shut off switch uses a negative connection to ensure stable performance. Please remember to turn off the power before installation.
Protect the Battery
Using this car battery kill switch can avoid power consumption due to long-term parking, good point of electronic equipment, line aging, forgetting to turn off the light, etc. It can effectively protect and prolong the life of car battery. It can effectively protect and prolong the life of car battery.

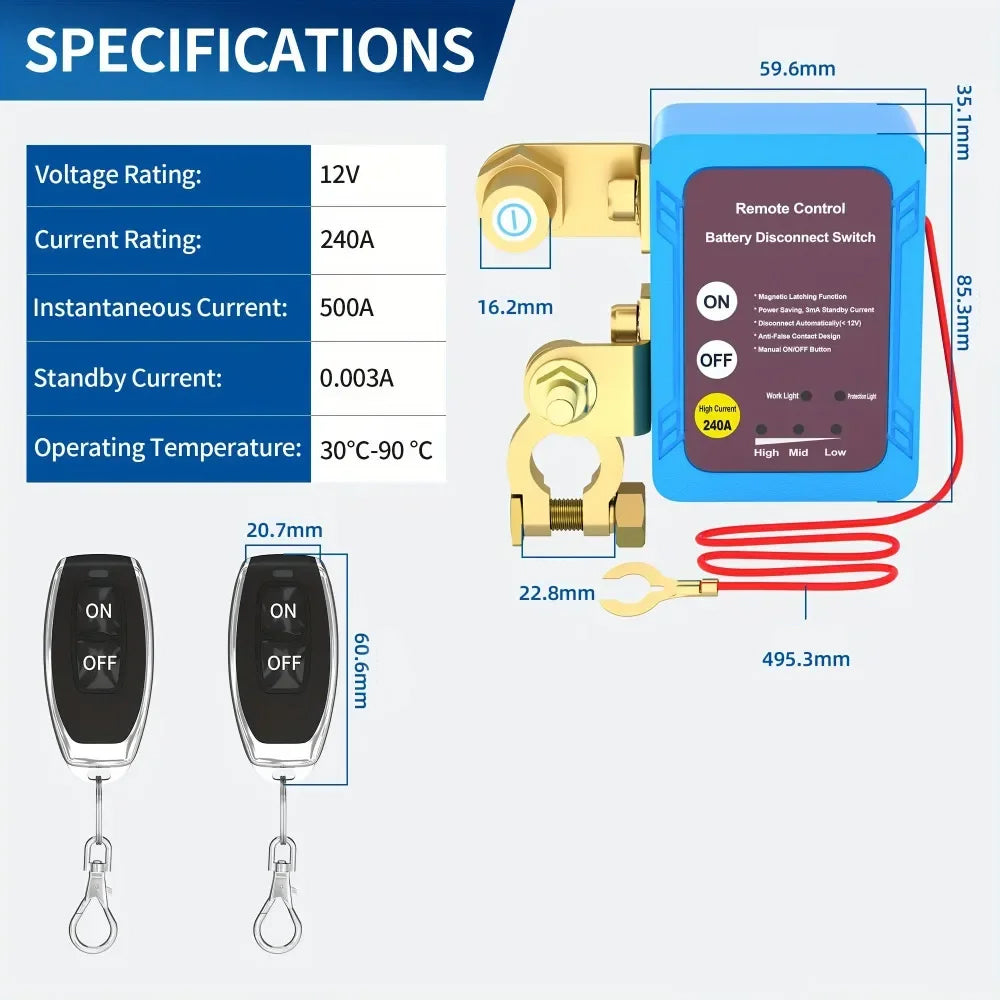

Specifications
Battery disconnect switch rated current: 240A,
rated voltage: 12V,
standby power consumption: 3mA,
power-off threshold: 11.8V±0.2V,
instantaneous current: 500A.
Operating Temperature: 30℃-90 ℃
Application:
Long-term parking, power consumption of electronic devices, line aging, forgetting to turn off lights, etc. Disconnect Switches can solve the power consumption caused by such problems, and can extend the battery power and service life of cars.
Advantages:
Magnetic Latching Function
Power Saving, 3mA Standby Current
Disconnect Automatically( 12V)
Anti-False Contact Design
Upgrade Remote Control
Note
Be sure to turn off the power before installation and perform an ignition test after installation.
