About this item
Momentary Switch: 7 pin (ON)-OFF-(ON) reverse polarity rocker switch with momentary DPDT design, rated at 12v 20amp and 24v 10amp.

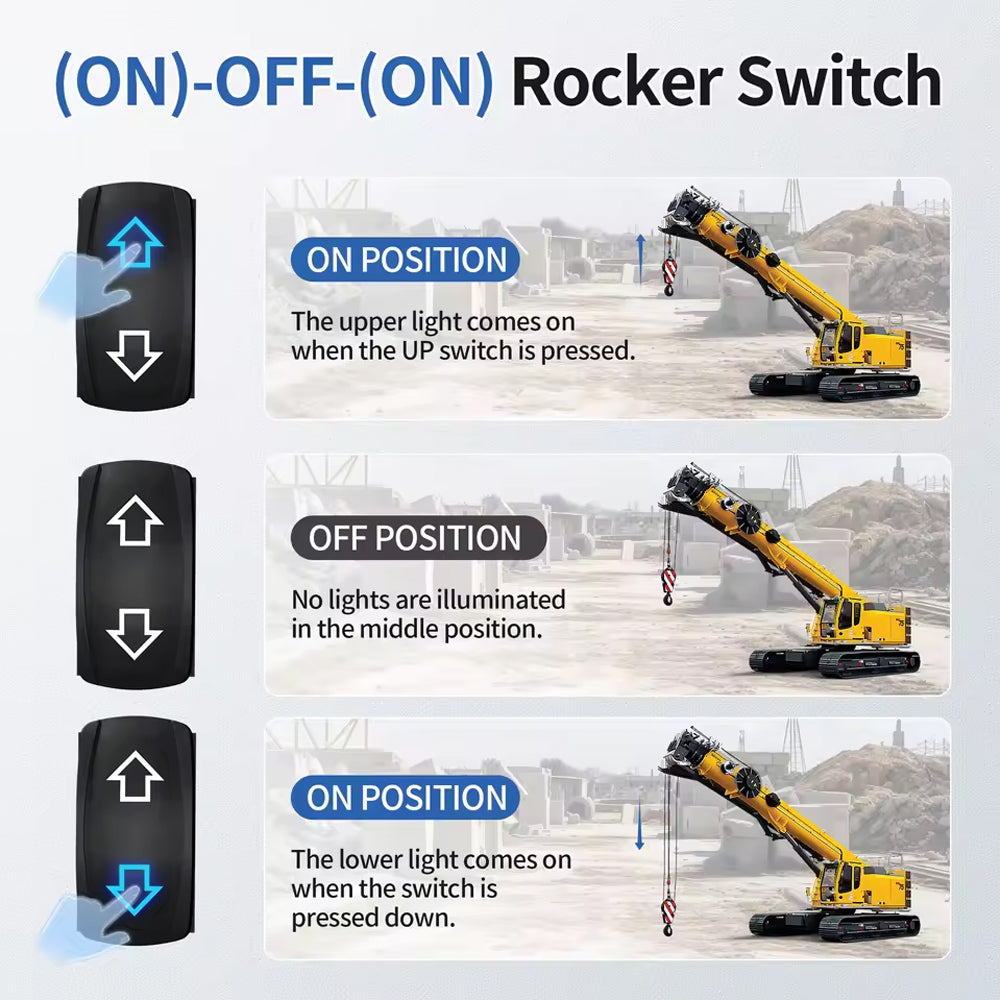

Indicator Light: This 12V momentary toggle switch features two built-in high-quality blue LEDs that illuminate the pattern. When connected to the corresponding 12V circuit, the lit pattern clearly shows the current state, ideal for reverse polarity applications.

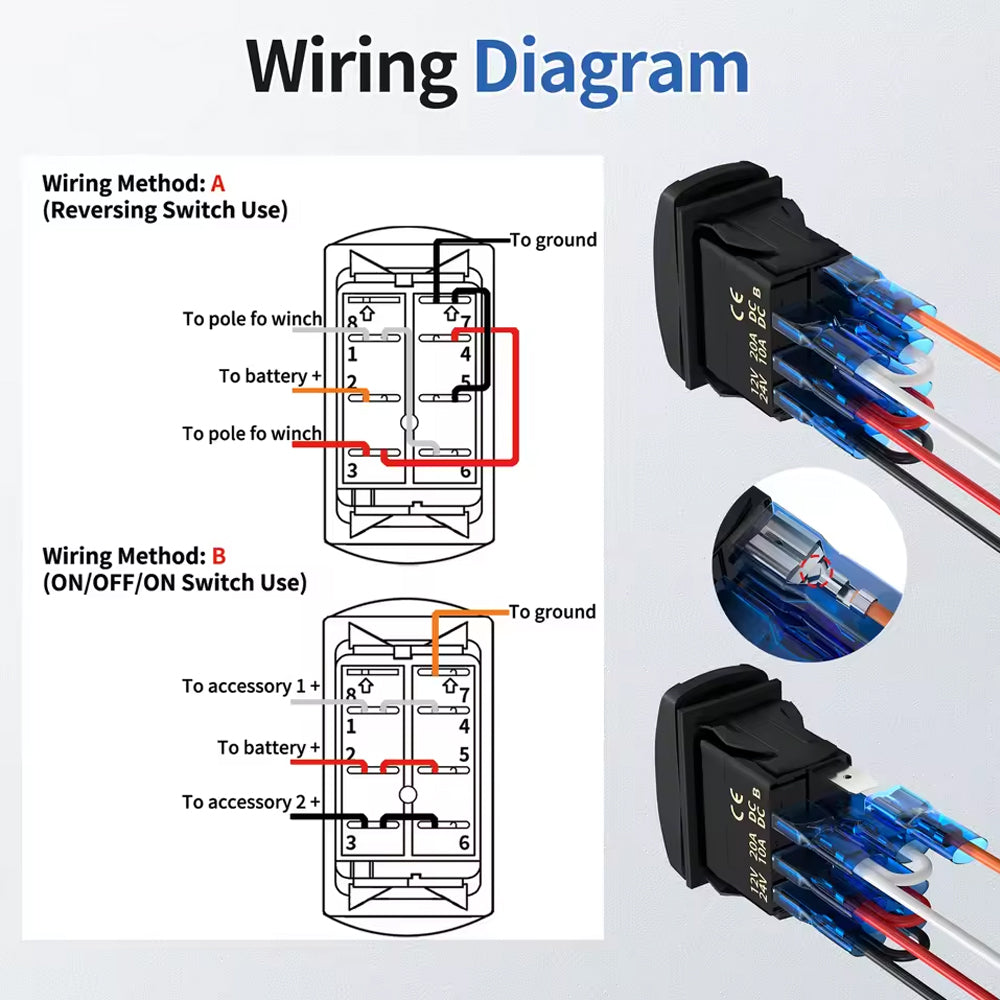

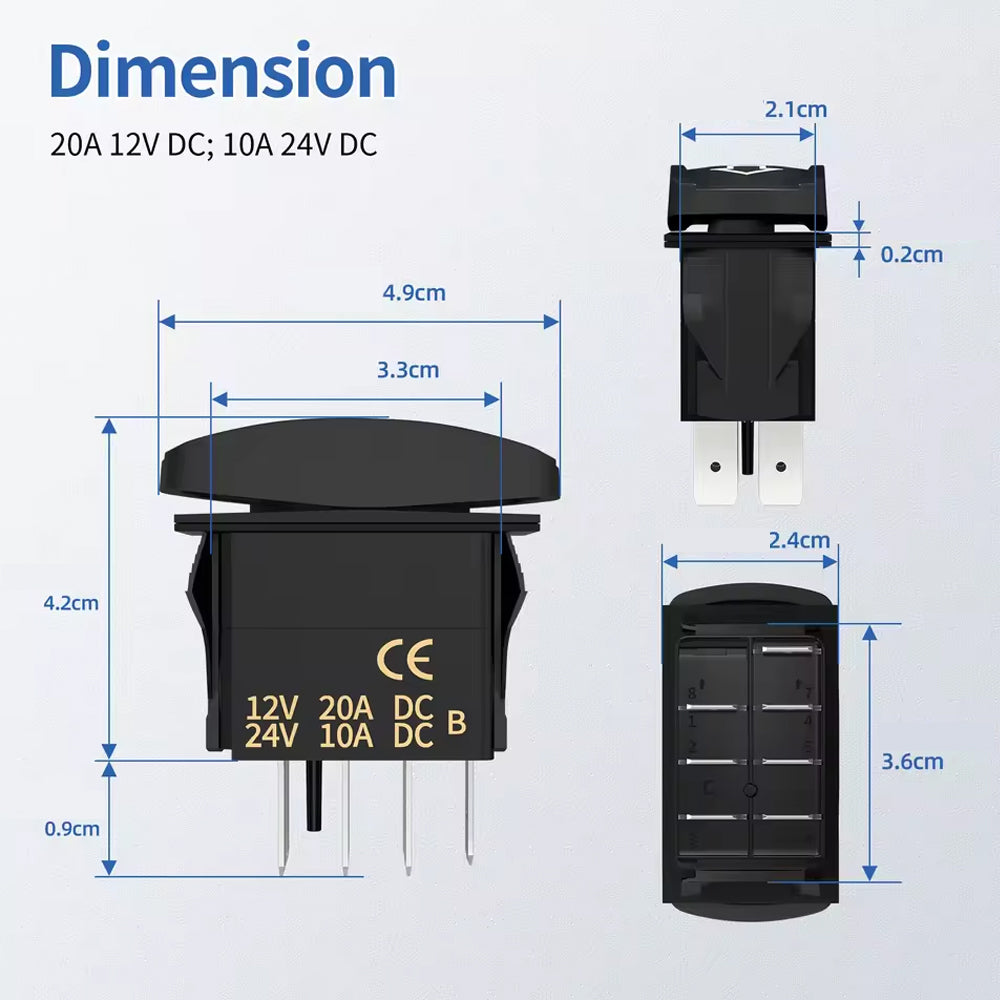

Easy Installation: This up down rocker switch is easy to install.The mounting hole size is 1.46" (37.2 mm) x 0.83" (21.2 mm). Meanwhile, wiring diagrams are included to help you complete the circuit diy.
Wide Application: This 12v forward and reverse switch is suitable for cars, RVs, SUVs, ATVs, UTVs, motorcycles, buses, boats, trailers, etc.

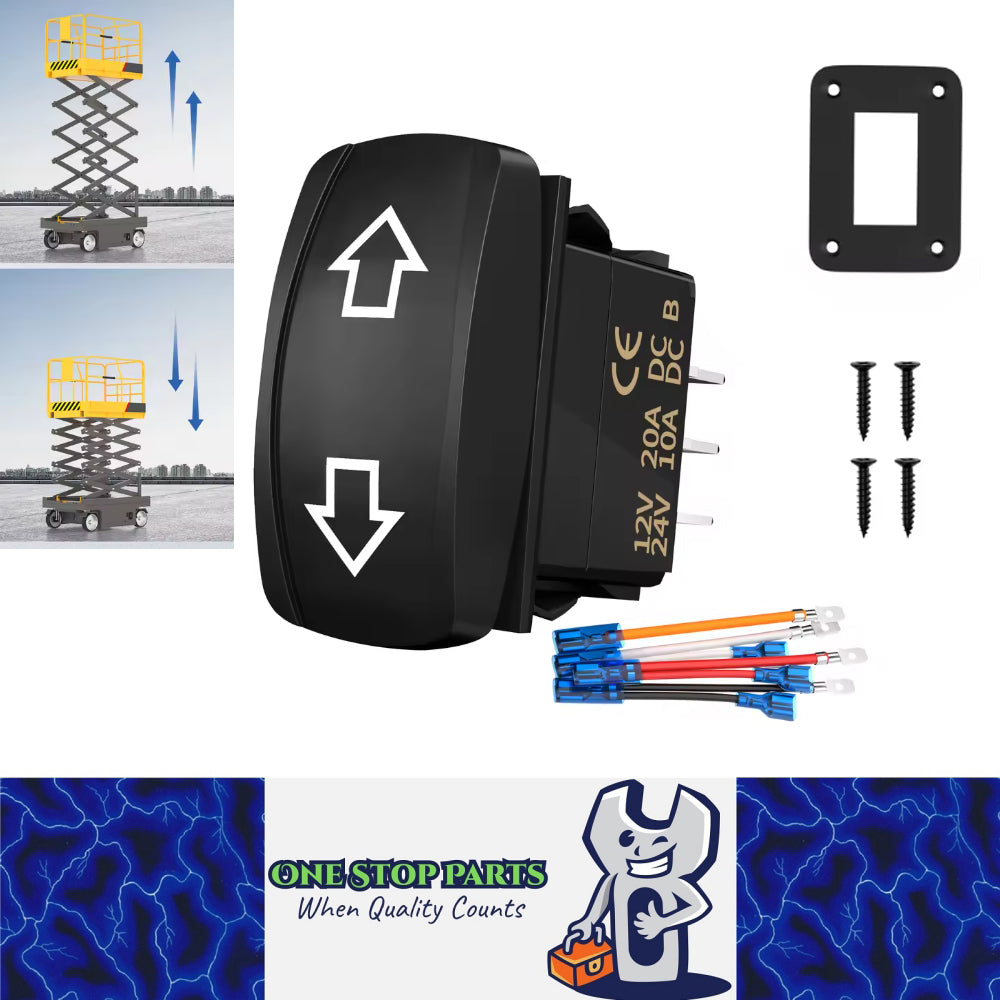

Package Include
The package of this arrow rocker switch includes, a set of jumpers, wiring diagram, mounting plate, and four screws.
