About this item

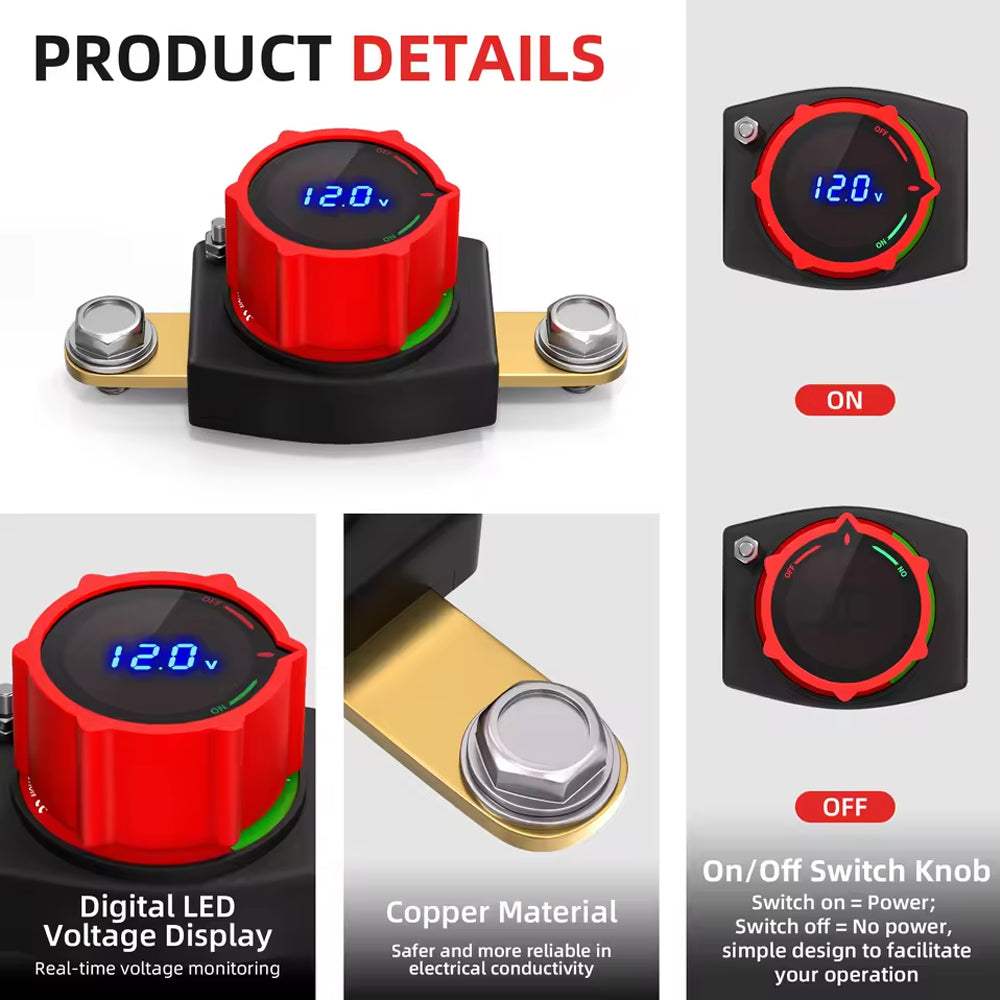

LED Digital Voltage Display: This side post battery disconnect switch 12v comes with LED digital voltage display, you can see your battery voltage as soon as you turn it on, and it will not drain your battery when turned off. It is more convenient for you to check your battery voltage in real time. The digital display function allows you to keep track of your battery status at any time and protect your battery.

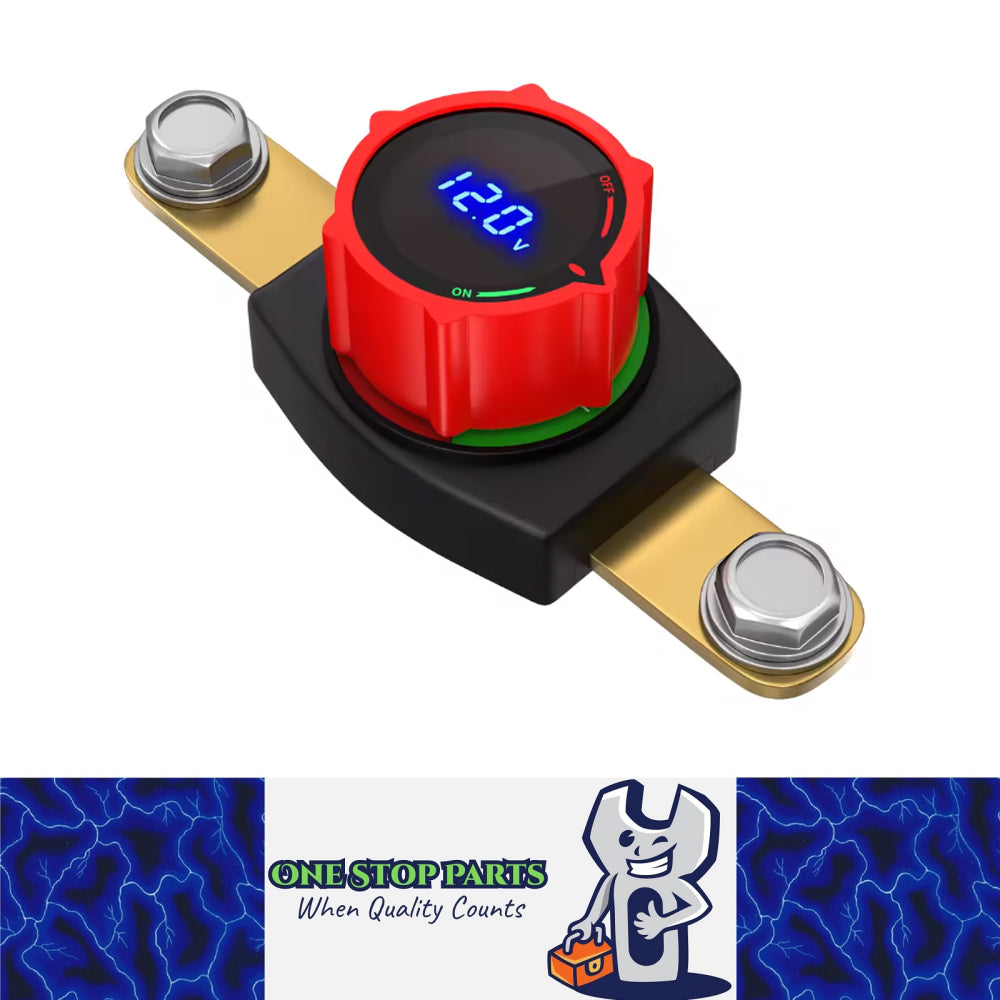

Side Post On Off Battery Switch: This side post battery disconnect switch features On/Off 2 Position; Rating: 275A DC Continuous (1hr), 455A DC Intermittent (5 min), 1250A DC Cranking (10 sec). Stud Size: 2 x 3/8" (M10). This battery kill switch is used for DC 5-60V systems to isolate and secure the electrical system.

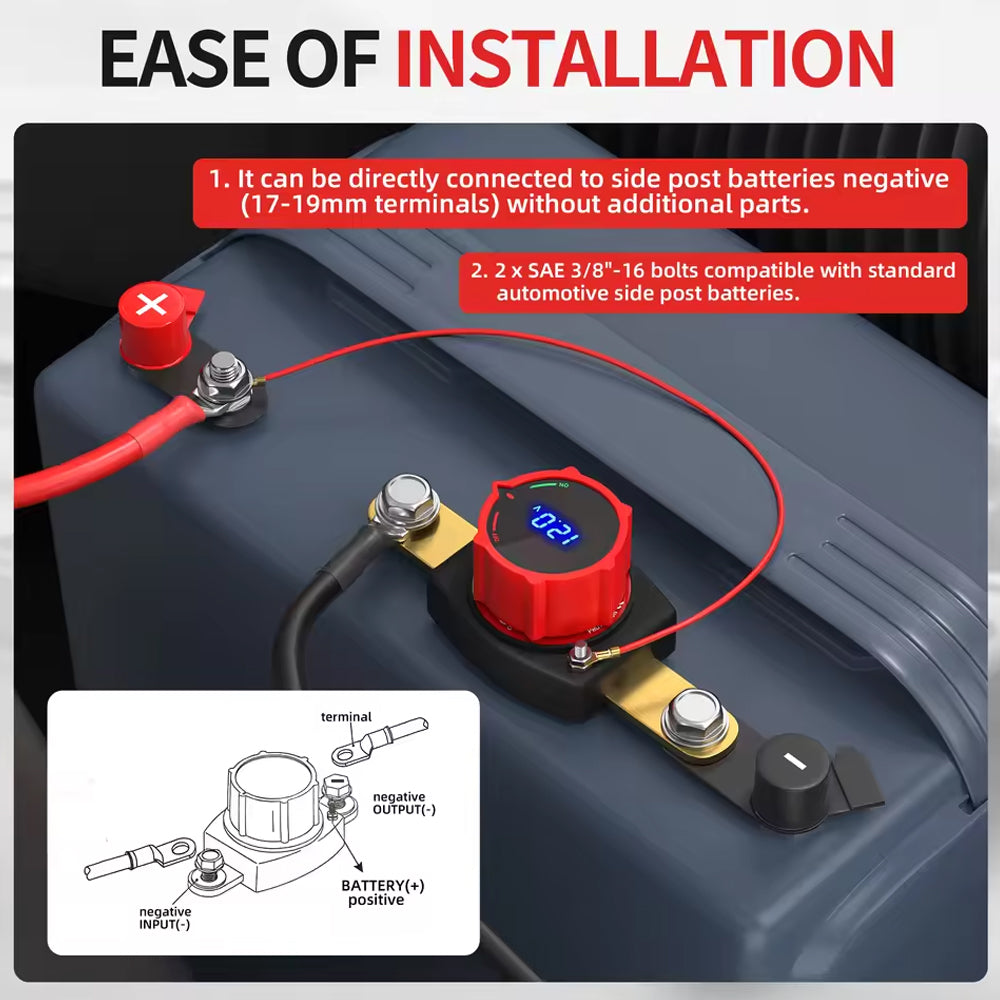

Easy to Install: This side post battery cut off switch 12v comes with copper conductive sheets mounting brackets, it can be directly connected to side post batteries without additional parts. It makes your installation easier and also saves you space for installation.
Superior Quality: The side post battery switch 12v is made of high quality ABS plastic, durable made for safety use, rear cover insulates terminals against any short of circuits. Compared with others, our battery disconnect switch is 3/8"(M10) tinned copper studs and comes with copper conductive sheet, which is safer and more reliable in electrical conductivity.

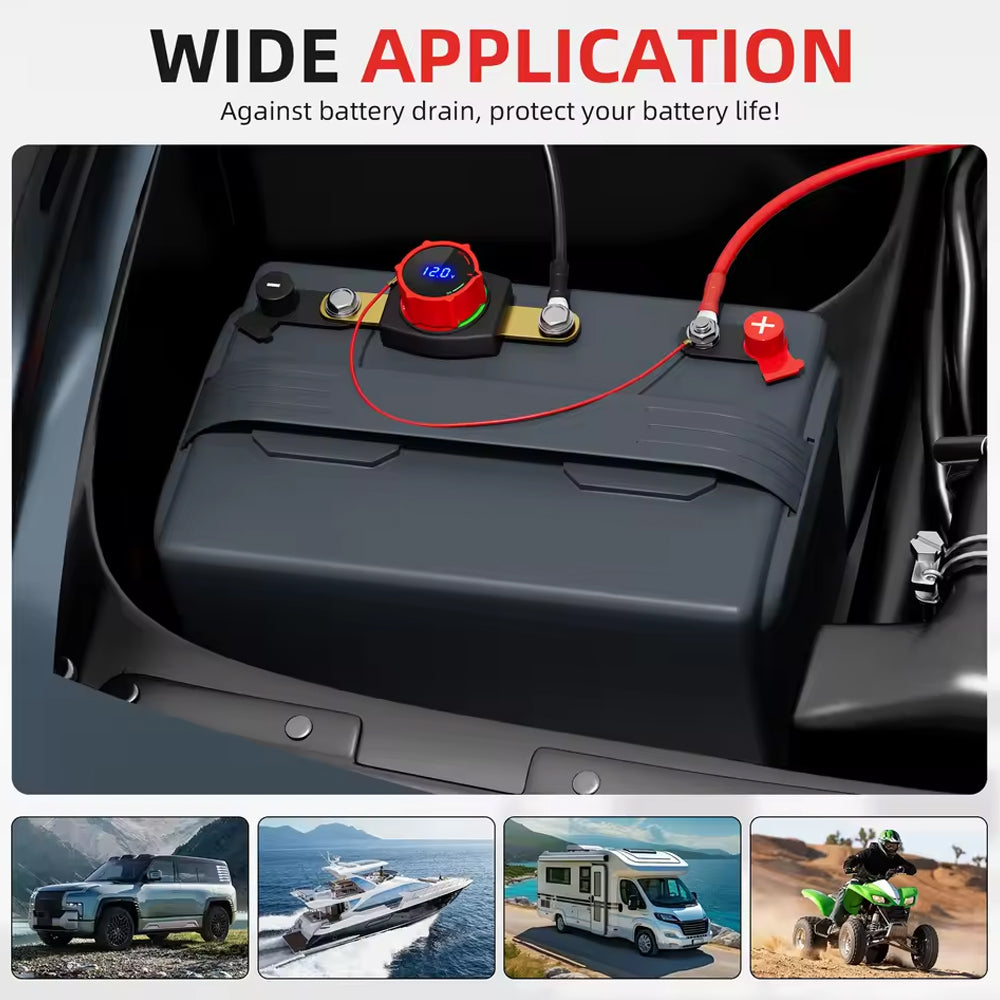

Protect Your Battery: When the vehicle or boat is not in use, the battery disconnect switch 12v eliminates any power consumption of the battery, safely disconnects the battery and protects your battery life. This battery shut off switch is widely used for Car, Marine, Boat, RV, Camper, Travel Trailer, Truck, ATV, UTV, Battery banks and other electrical equipment's switch.

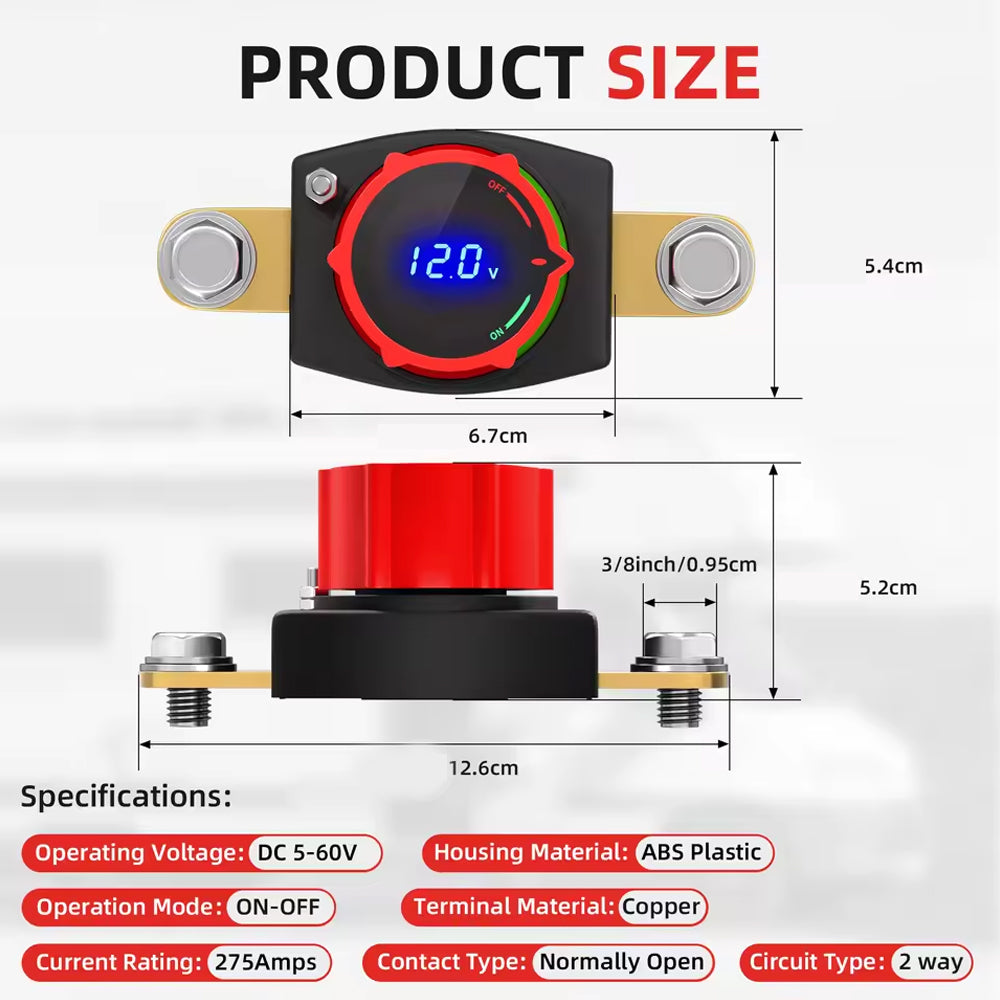

Specifications
Actuator Type: Rotary
Operation Mode：ON-OFF
Current Rating：275Amps, Interval 300A
Operating Voltage：12-48 Volts
Terminal Material: Copper + ABS Plastic
Package
1* Side Post Battery Disconnect Switch
