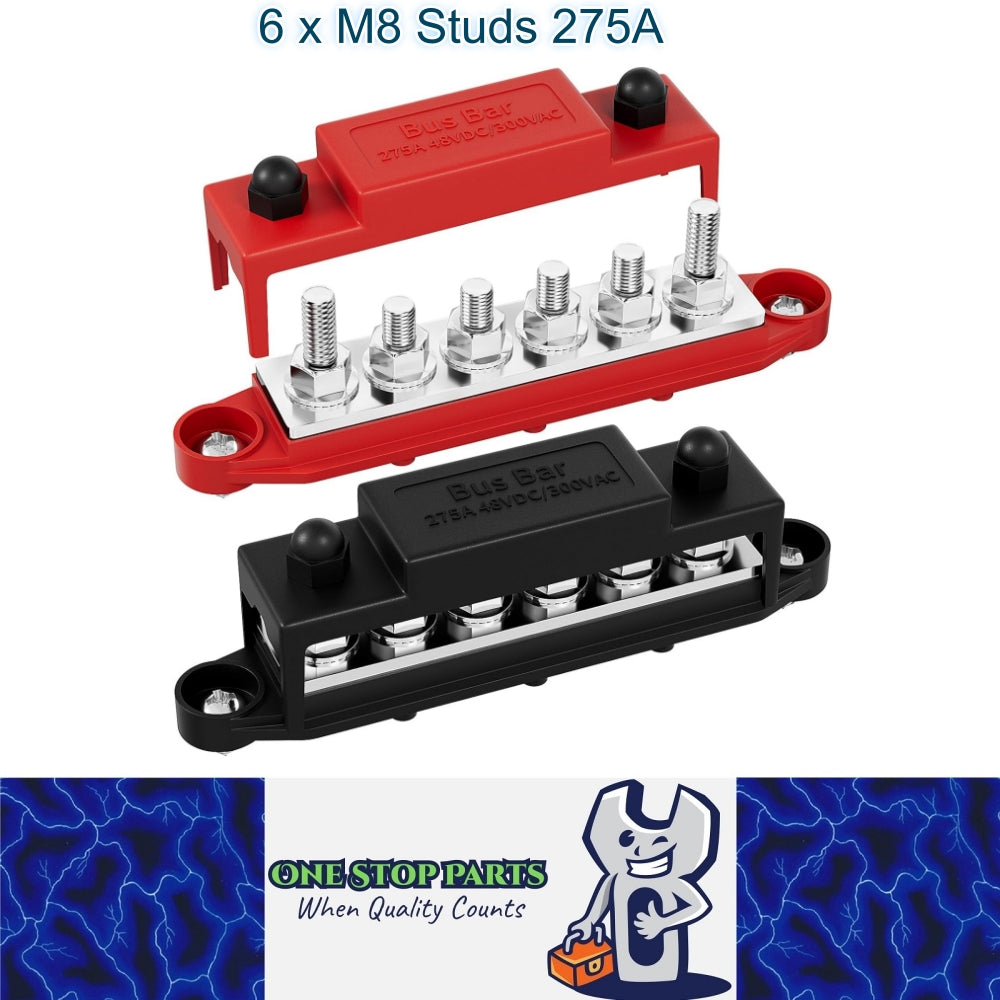

Here we have M8 Bus Bar 12V 275A Power Distribution Block Max 48V DC/300V AC with Cover 6 x M8 Posts Studs Terminals for Marine, Automotive, Boat etc.
【Heavy Duty】Power distribution block can deal with 275 Amp continuous amperage at Max 300V AC or 48V DC voltage.

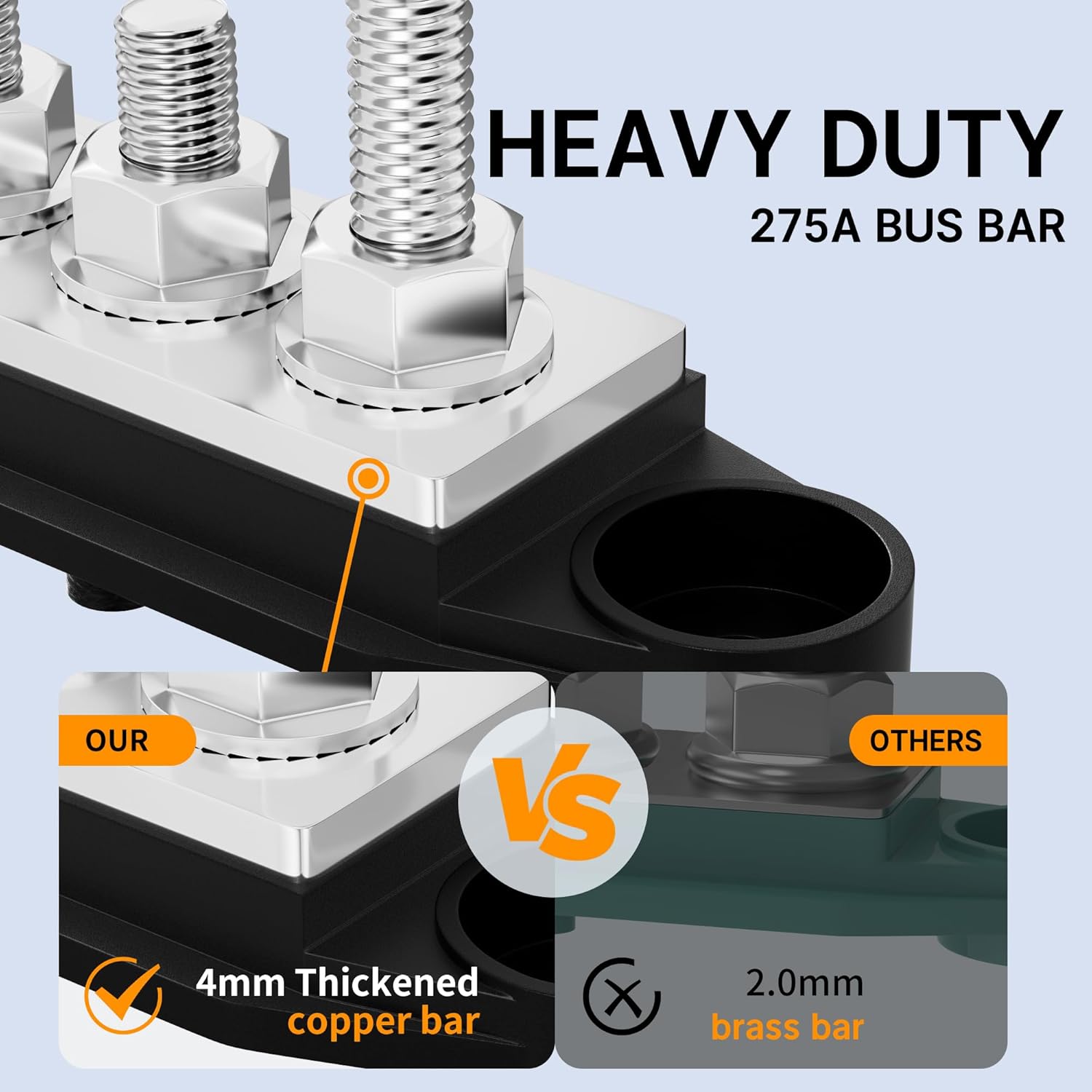

【Durable】The nickel-plated copper plate makes the marine bus bar have high conductivity and corrosion resistance performance, effectively extending the life of the bus bar.

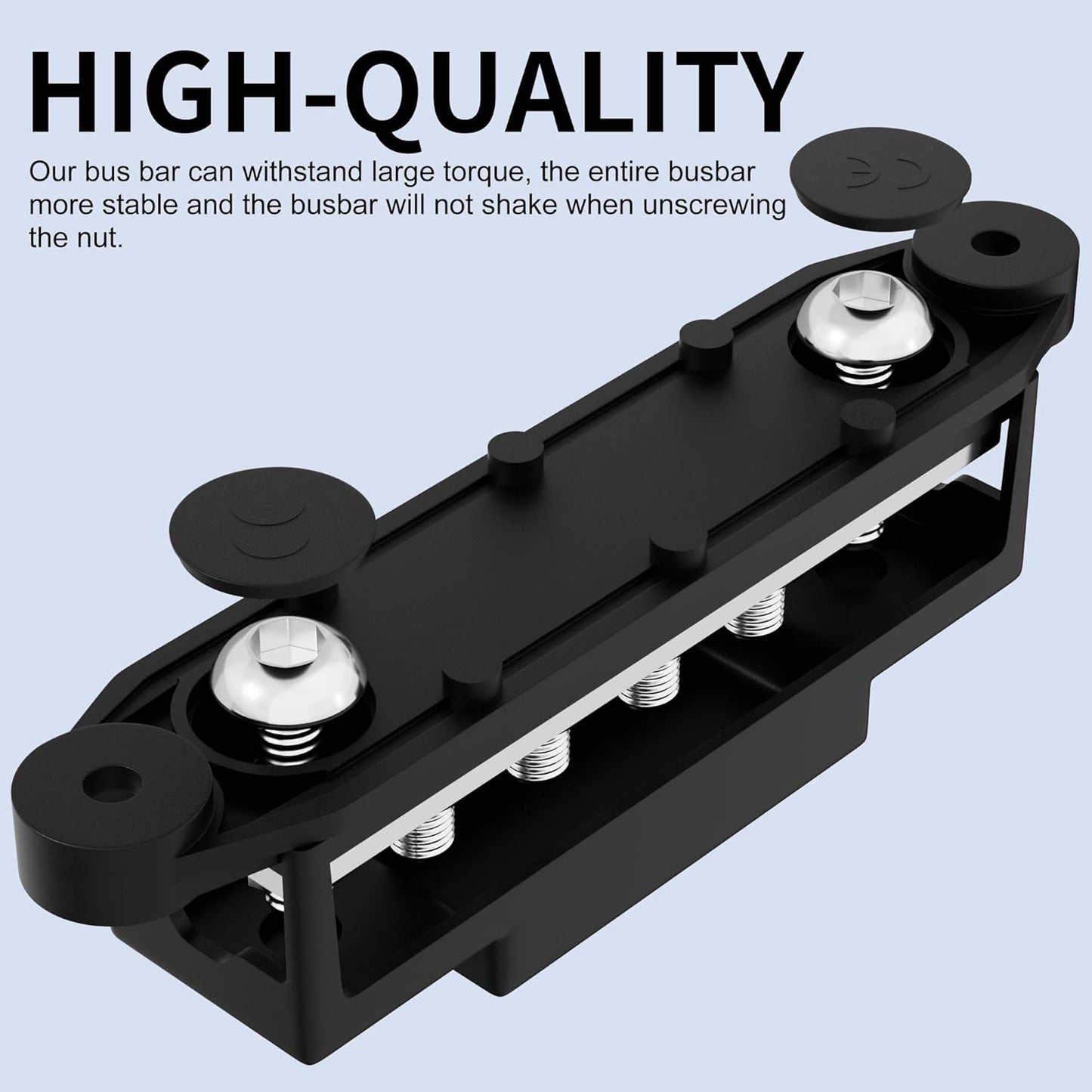

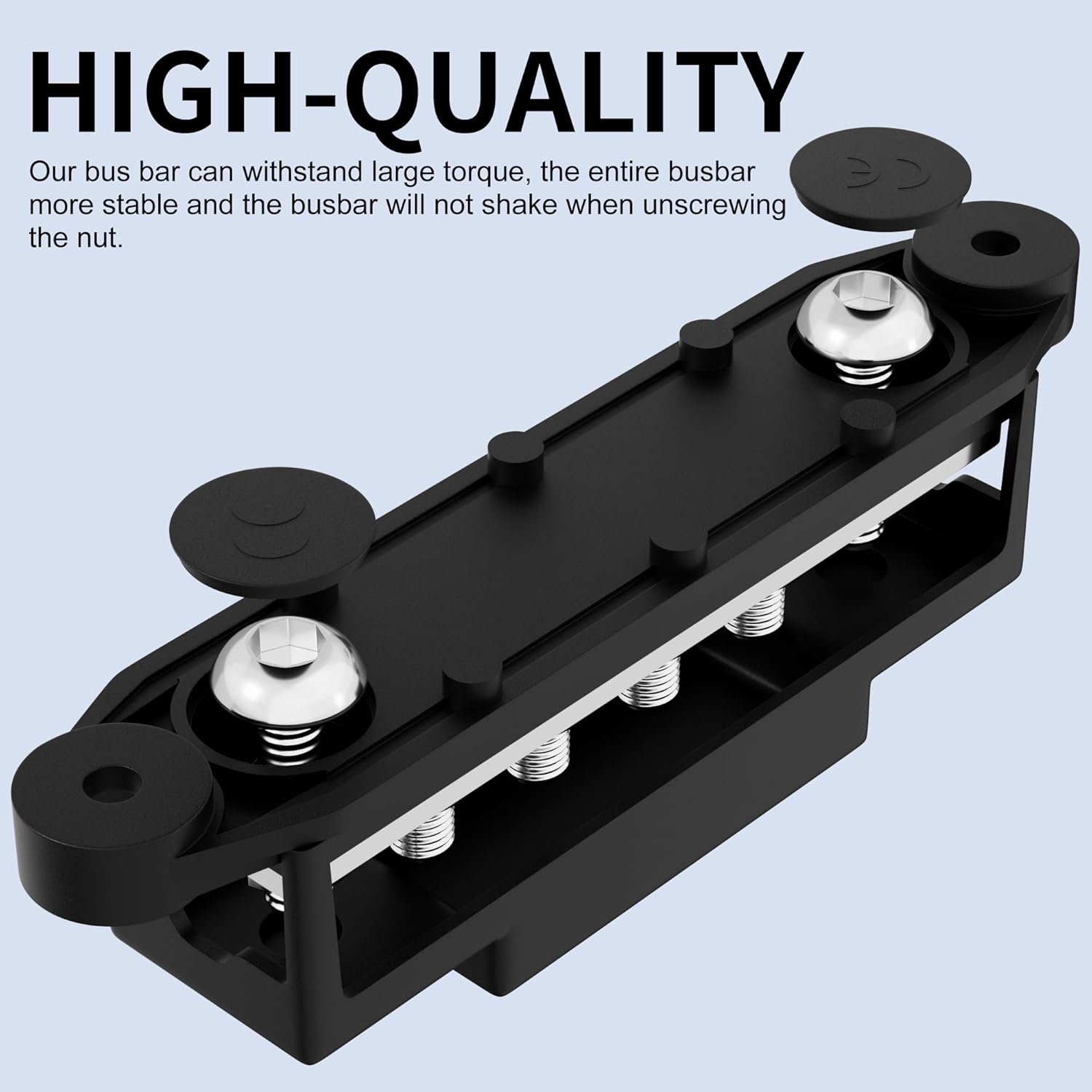

【Unique Design】The special fixing method of marine bus bar and base can withstand large torque, and the copper bar and base will not be easily separated.

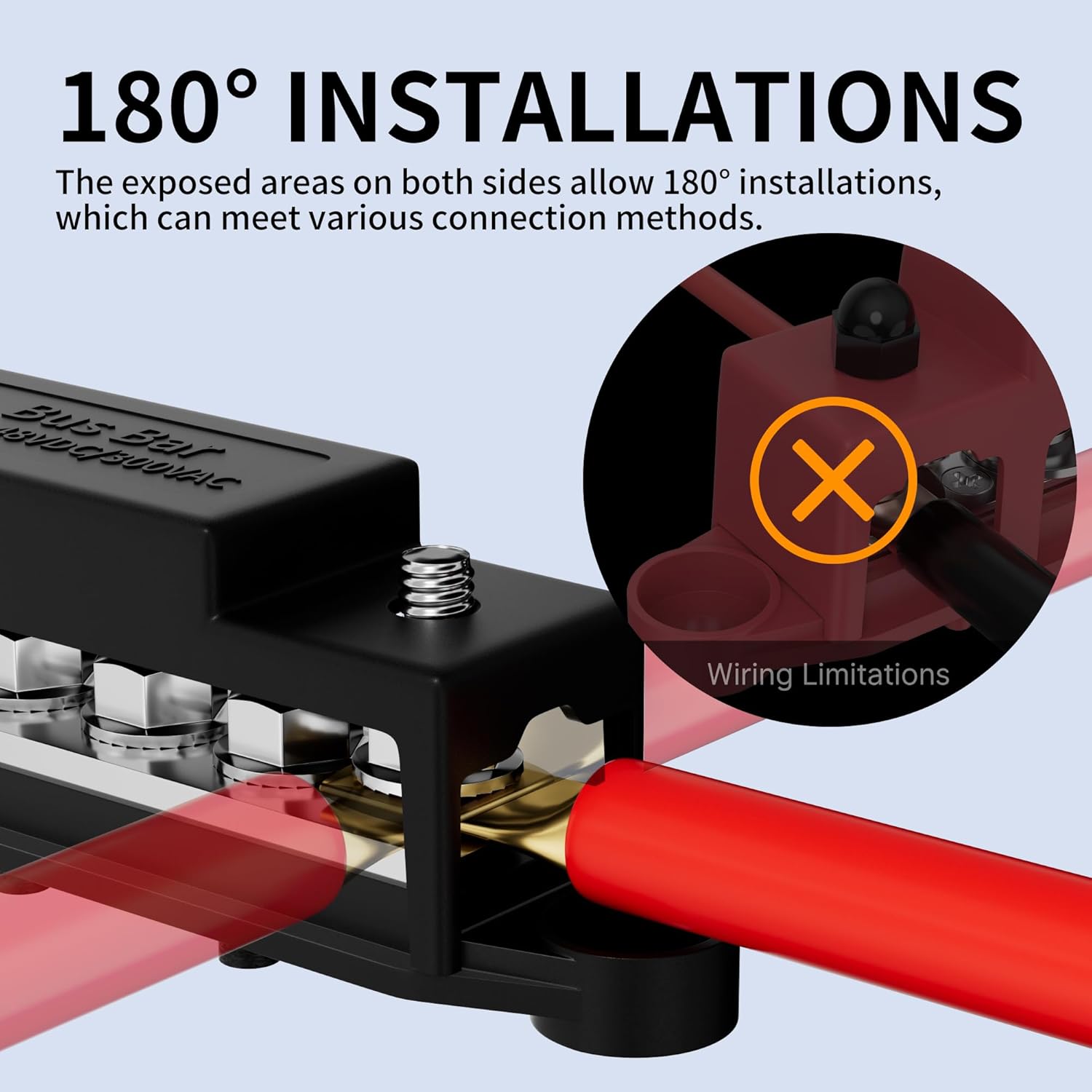

【Protect Cover】The heavy duty busbar cover can cover exposed areas to prevent accidental short circuits. The exposed areas on both sides allow 180° installations, which can meet various connection methods.

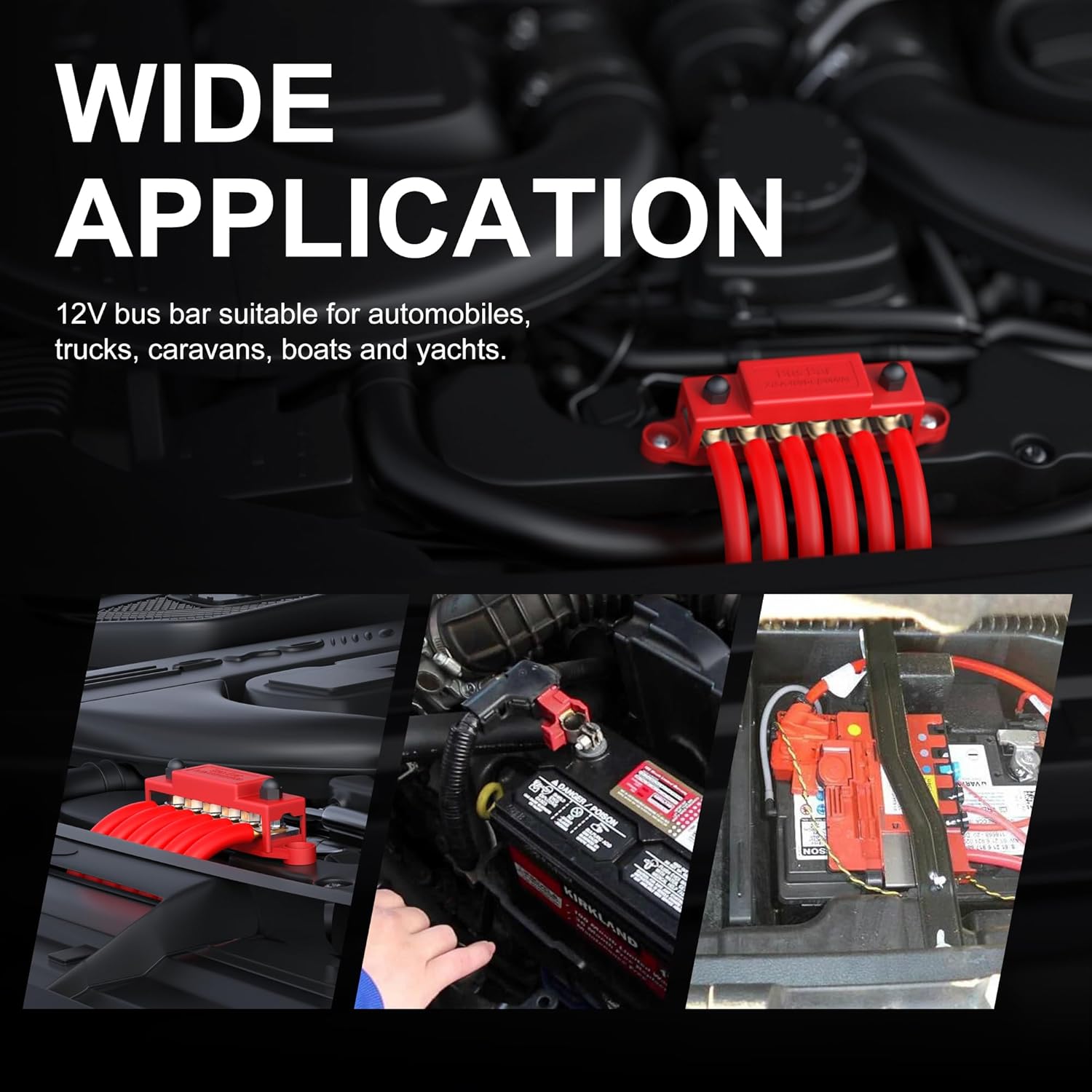

【Wide Application】Using a pair of black and red bus bar terminal blocks for wire management and wiring can keep the circuit neat and orderly, reducing the possibility of short circuits. Suitable for cars, trucks, caravans, boats, ships and and so on.

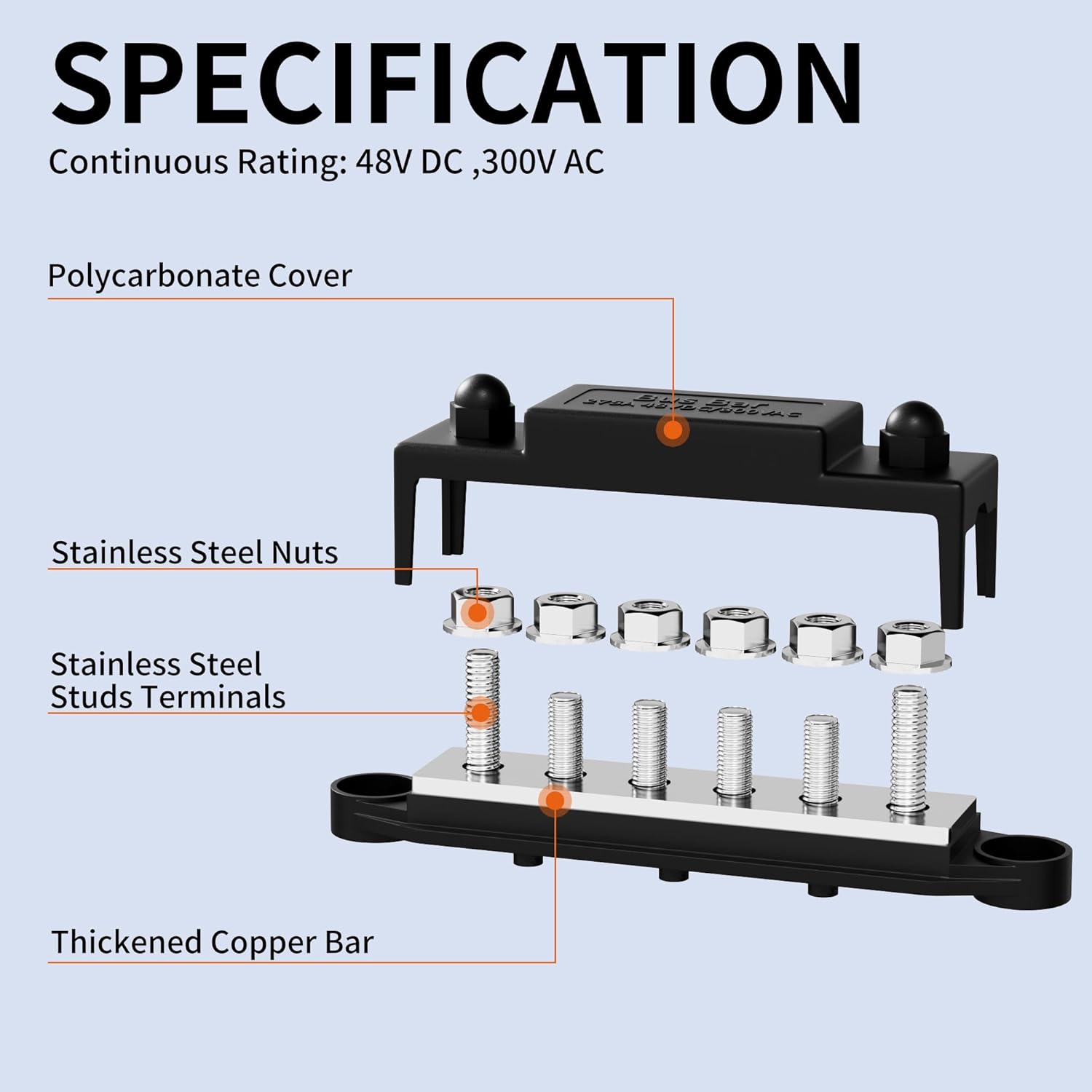

Specifications:
Max Voltage 300V AC, 48V DC
Terminal Studs M8 (5/16") * 6
Features Compact covered bus bar With washer nut design
Color Red and Black
Package Includes 1 x Positive Power Distribution Block, 1 x Ground Power Distribution Block, 4 x Mounting Screws
