Here we have M8 Black Insulated Double Stud Power Distribution Stud Terminal Block.
Specification:
Maximum current: 150A
Maximum voltage: DC 48V
Terminal Diameter: M8
Maximum current per circuit: determined by connecting wires
Color: Black
Material: Nylon+Brass+Stainless Steel
Applicable models: Suitable for trucks, RVs, coaches, ships, cars, etc.
Installation:
The surface of the electrical terminal block is screwed and installed, and the two mounting holes can be easily installed in any direction (the screws are packaged, no need to buy separately minus unnecessary trouble).
Heavy duty positive terminal M8 with mounting screws.
M8 stainless steel studs, lock washers and nuts.

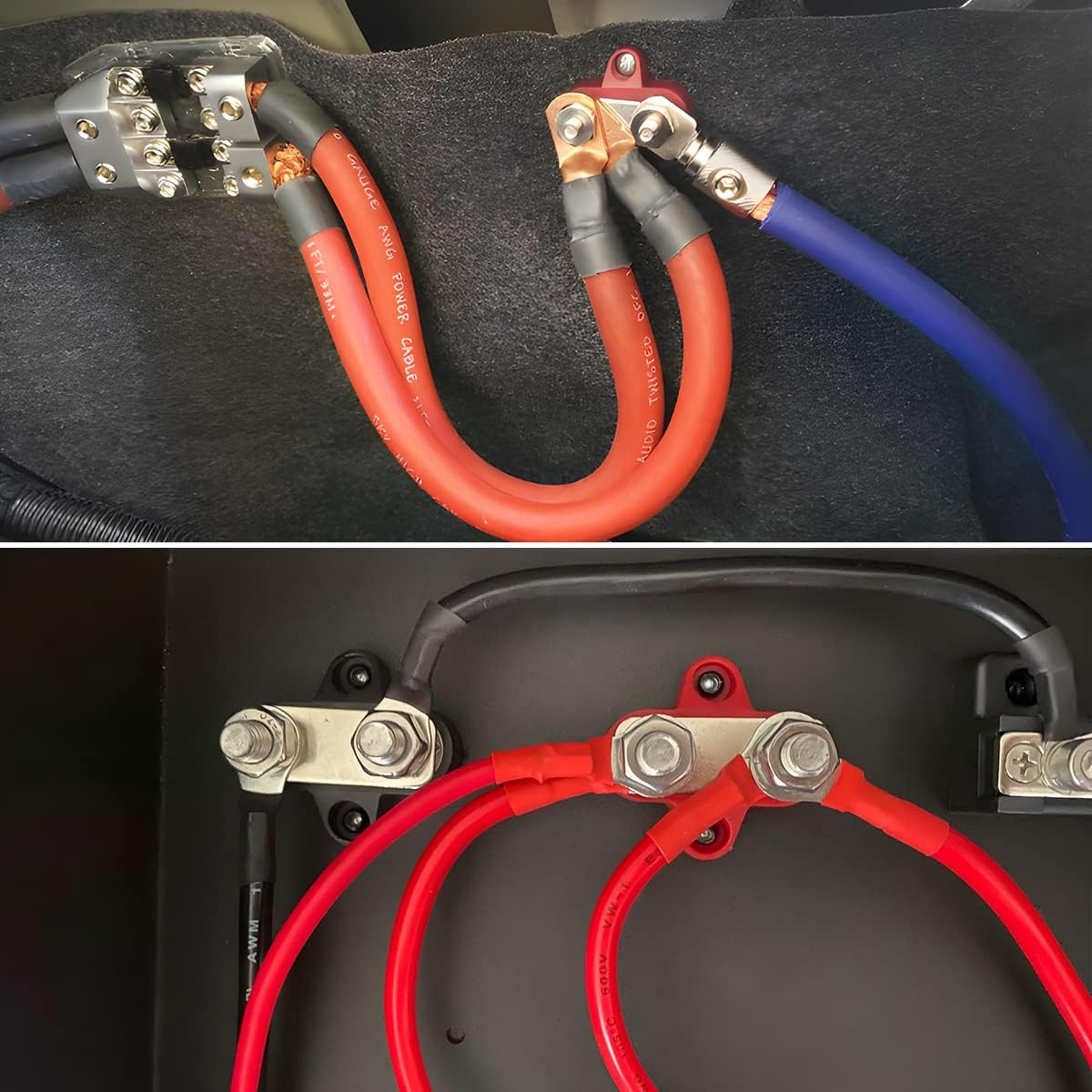

Heavy-duty terminal studs that allow heavy-duty cables to be terminated to one or more connections.

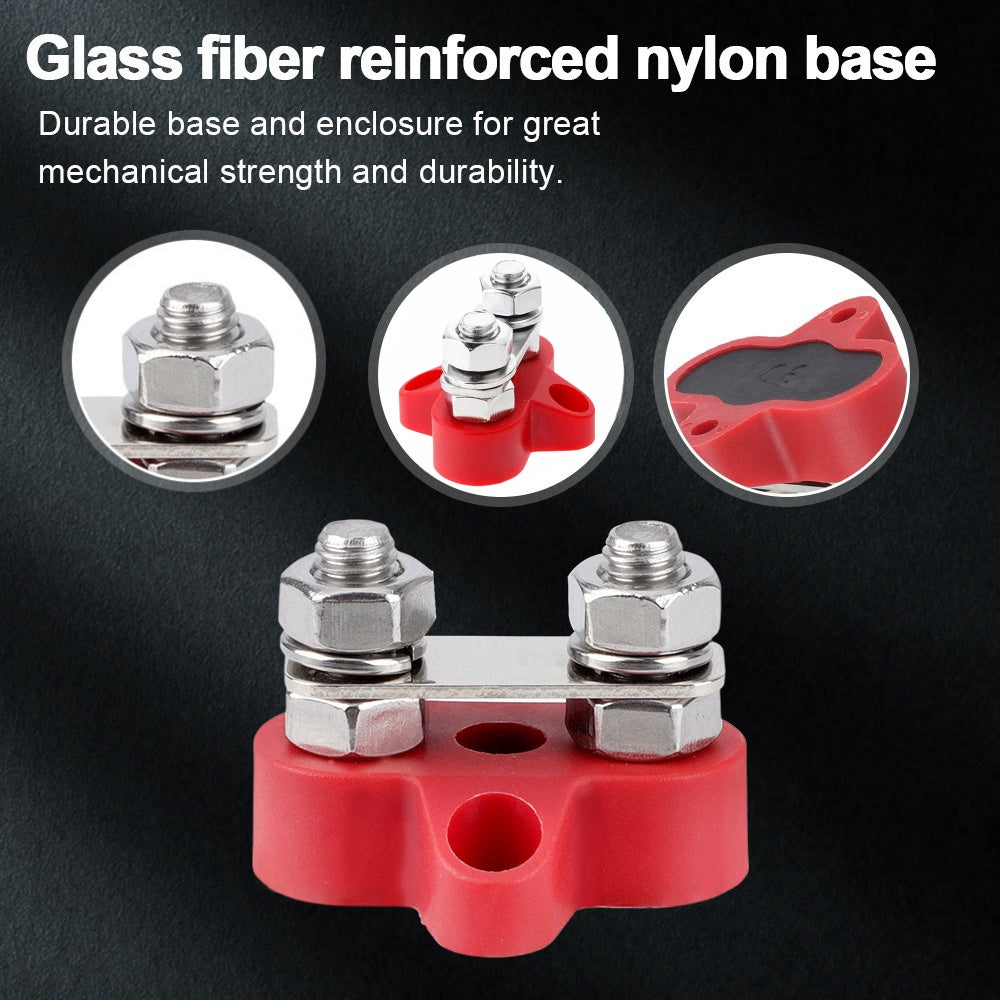

Fiberglass reinforced nylon base ensures excellent mechanical strength and durability Stainless steel terminals, good electrical insulation, good water resistance, good alkali resistance, good low temperature resistance.
The base is made of flame retardant plastic to keep you safe.
Quantity:

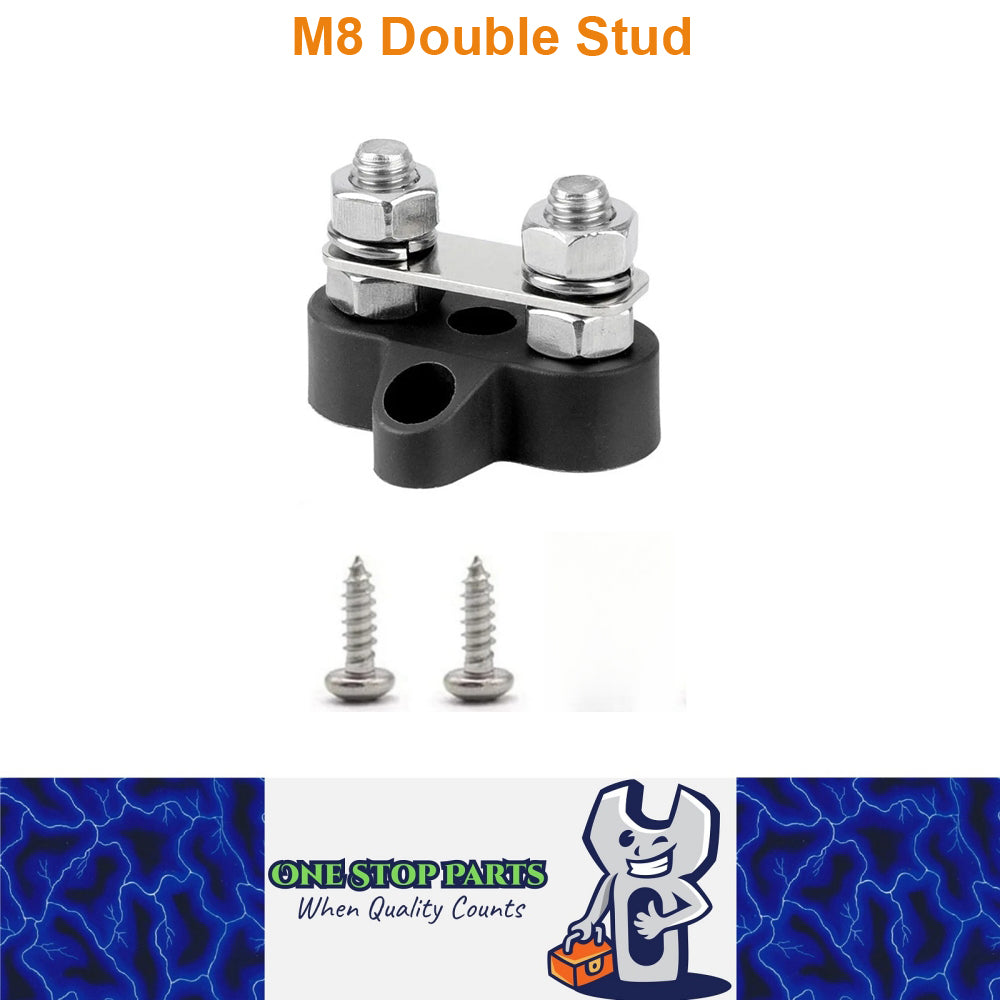

1 Black M8 double stud + 2 screws
