About this item

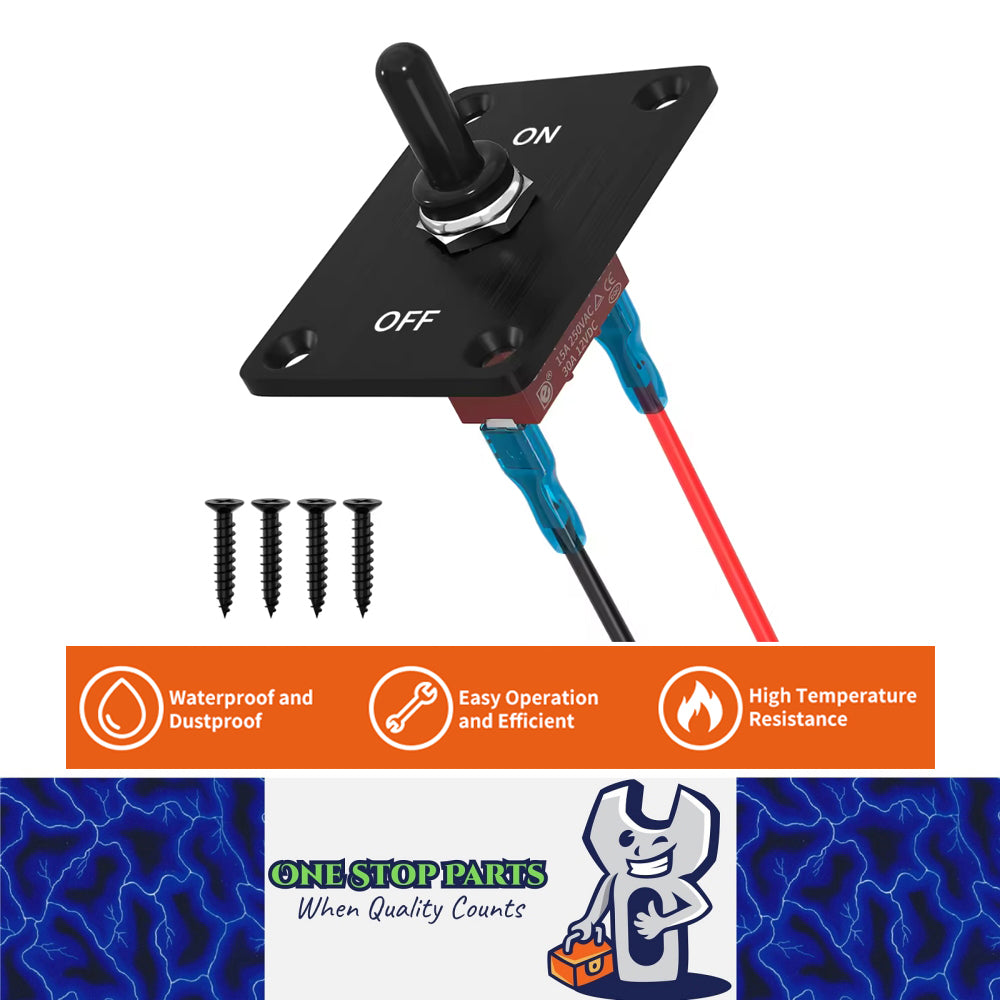

ON/OFF Switch: 2 pin SPST marine toggle switch, it is easy to turn on or off for various control requirements.
Heavy Duty: The rating of heavy duty toggle switch is 30A 12VDC; 15A 250VAC; 20A 125VAC.

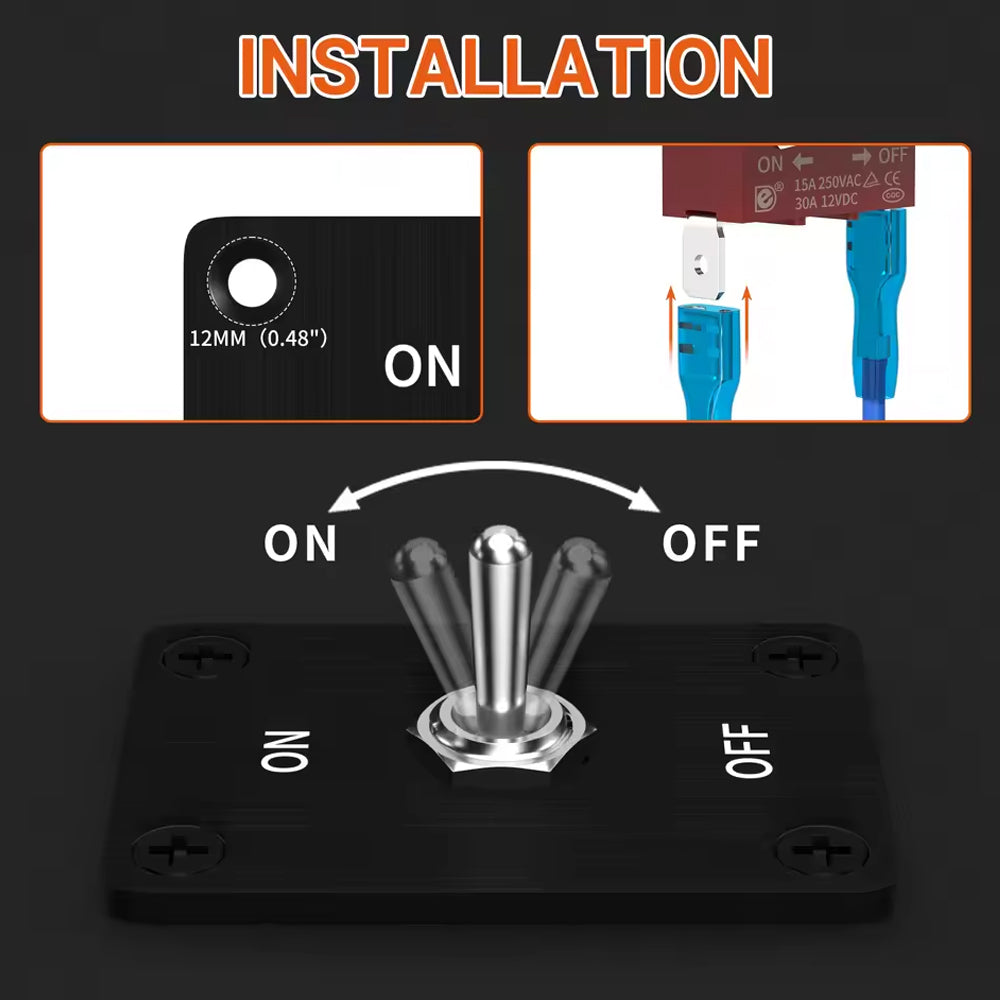

Easy to Install: The diameter of the 12V toggle switch mounting hole is 0.48 inch (12mm), and the toggle switch mounting plate can be installed in any suitable position for easy switch operation. The toggle switch comes with 2 wires, which greatly saves installation time.
Wide Application: 2 way toggle switch suitable for most cars, ships, yachts, jeeps, campers, caravans, household appliances, etc.

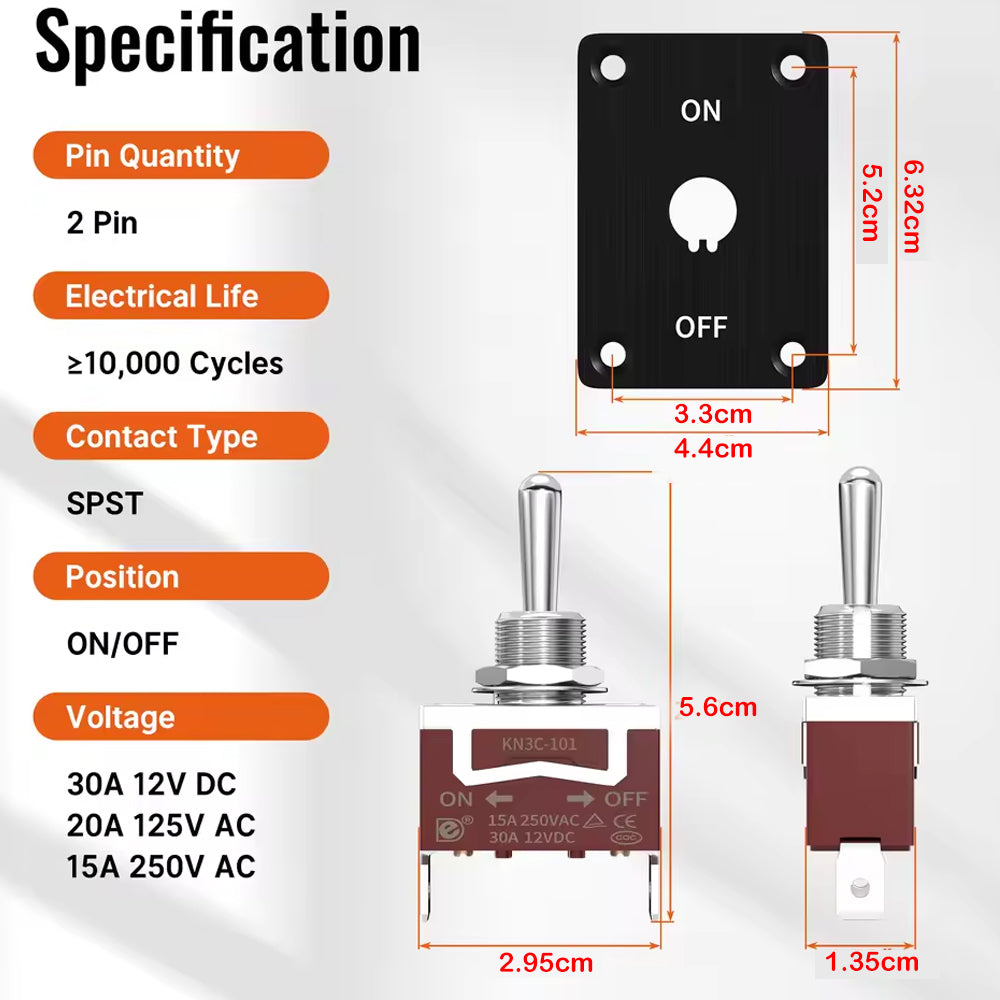

Specifications
Rated Load :30A 12VDC; 20A 125VAC; 15A 250VAC
Contact Type: SPST

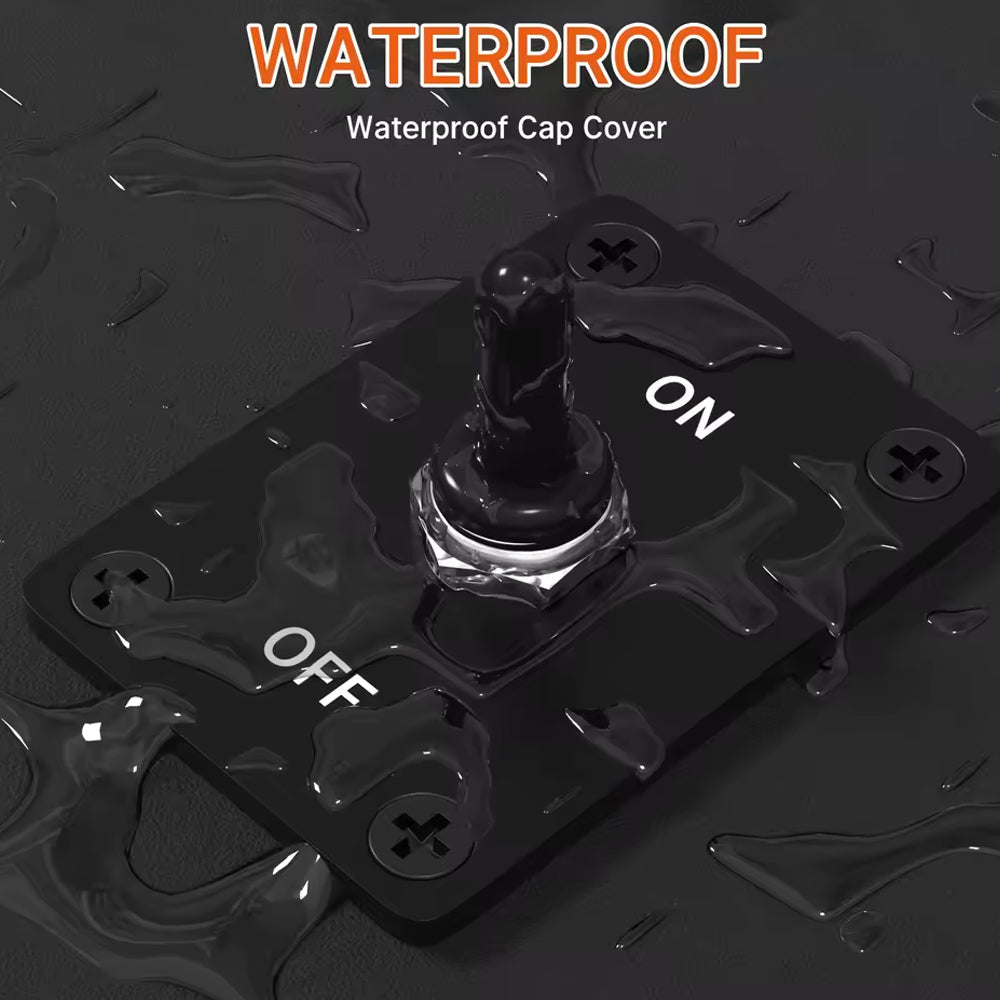

Waterproof: IP65
Insulated Resistance: ≥100 MΩ
Contact Resistance :≥100 MΩ
Electrical Life :≥10000 Cycles

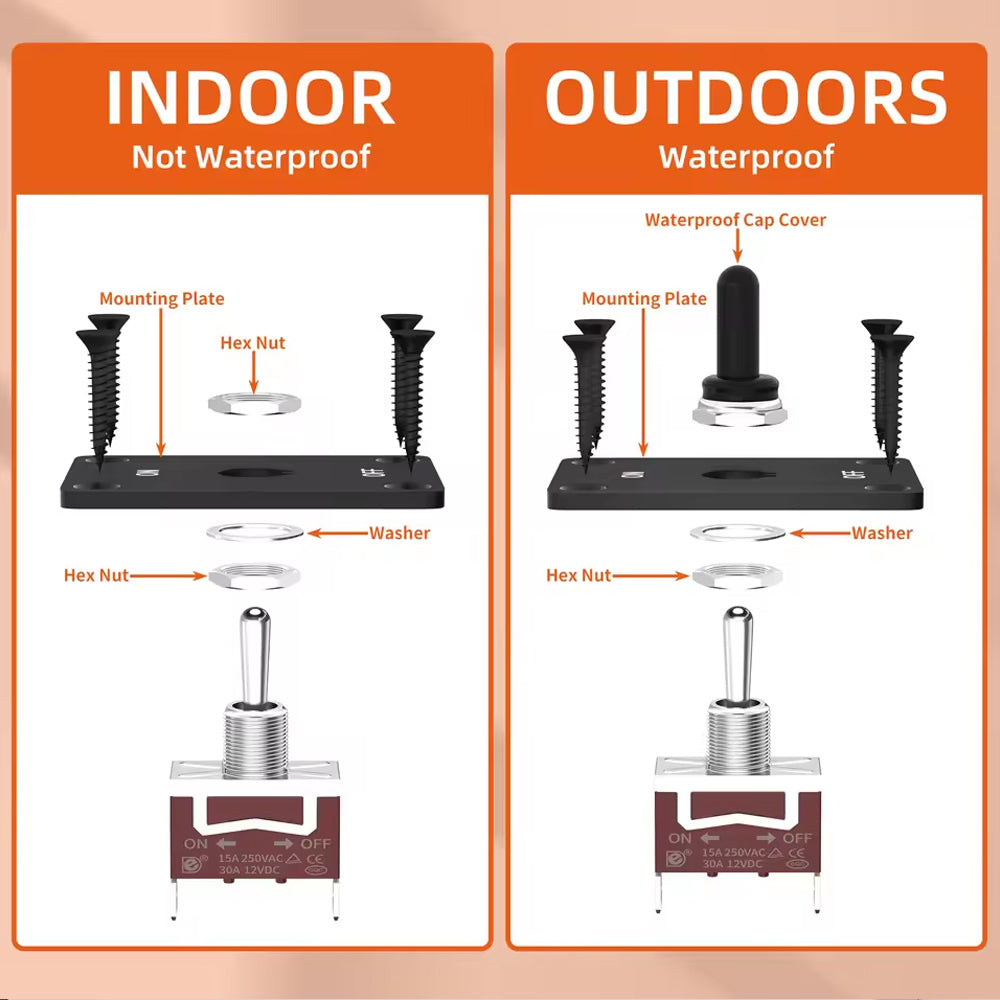

Package include
1 x ON/OFF toggle switch
1 x waterproof boot cap
1 x switch mounting panel
2 x wires
4 x screws
