About this item

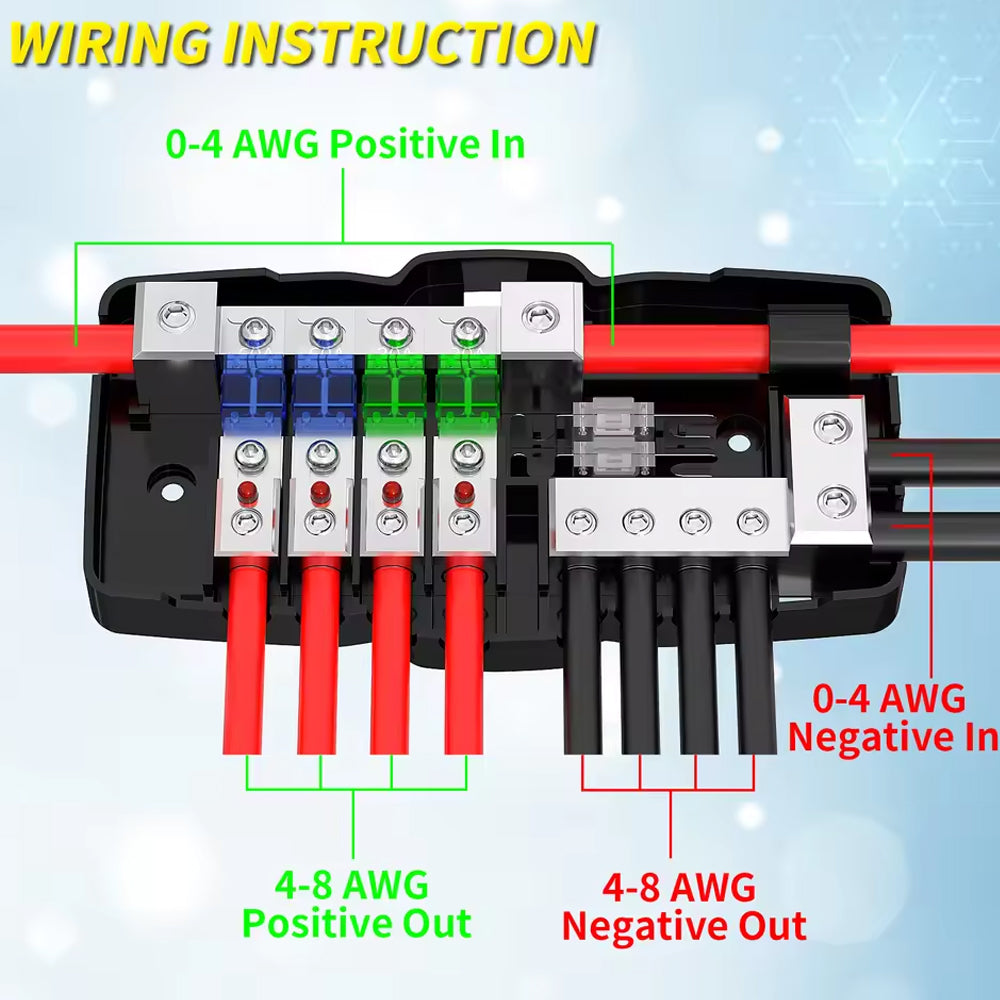

★ Multi-Function Hub ★ - This fused power distribution block is capable for both positive and ground, it allows 2 input and 4 output wires installation on each pole, in addition, each branch on positive side will allow MIDI (mini ANL) fuse installation to protect the circuits.

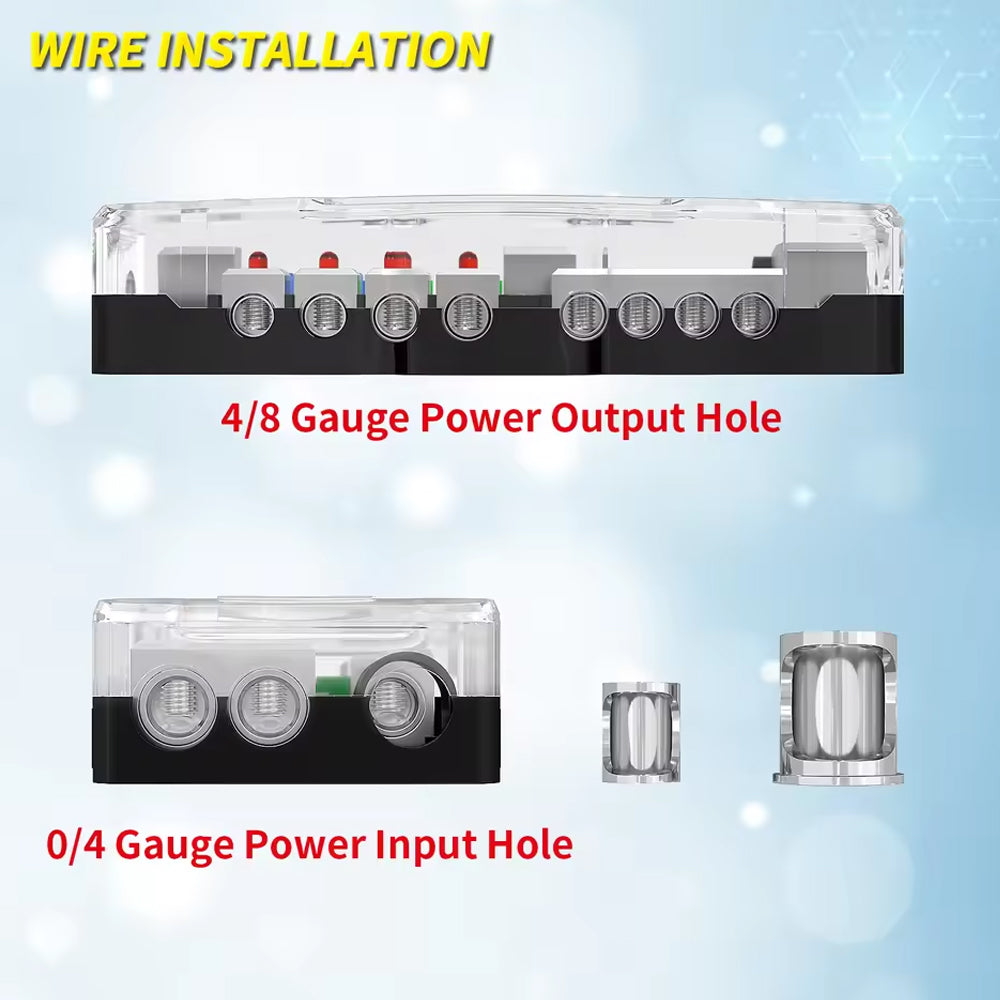

★ Ferrule ★ - The power distribution block car audio will come with ferrules to expand its capacity. As for input hole, it allows 0, 2, 4 gauge wires installation, and as for output hole, it allows 4, 6, 8 gauge wires installation.

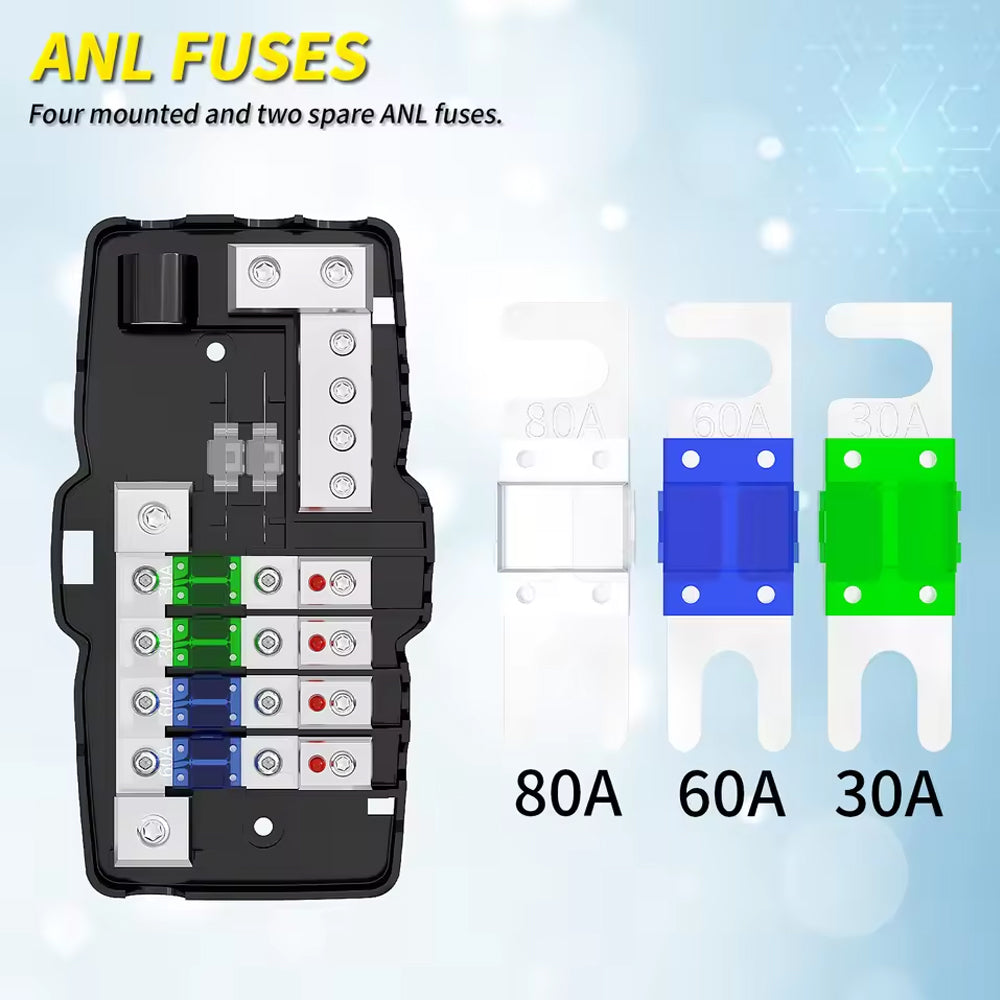

★ Mini-ANL Fuse ★ - The Mini ANL fuse block car audio will come with 6 pieces of MIDI fuses to provide more decisions for different situations, including 2 x 30A, 2 x 60A, 2 x 80A fuses.

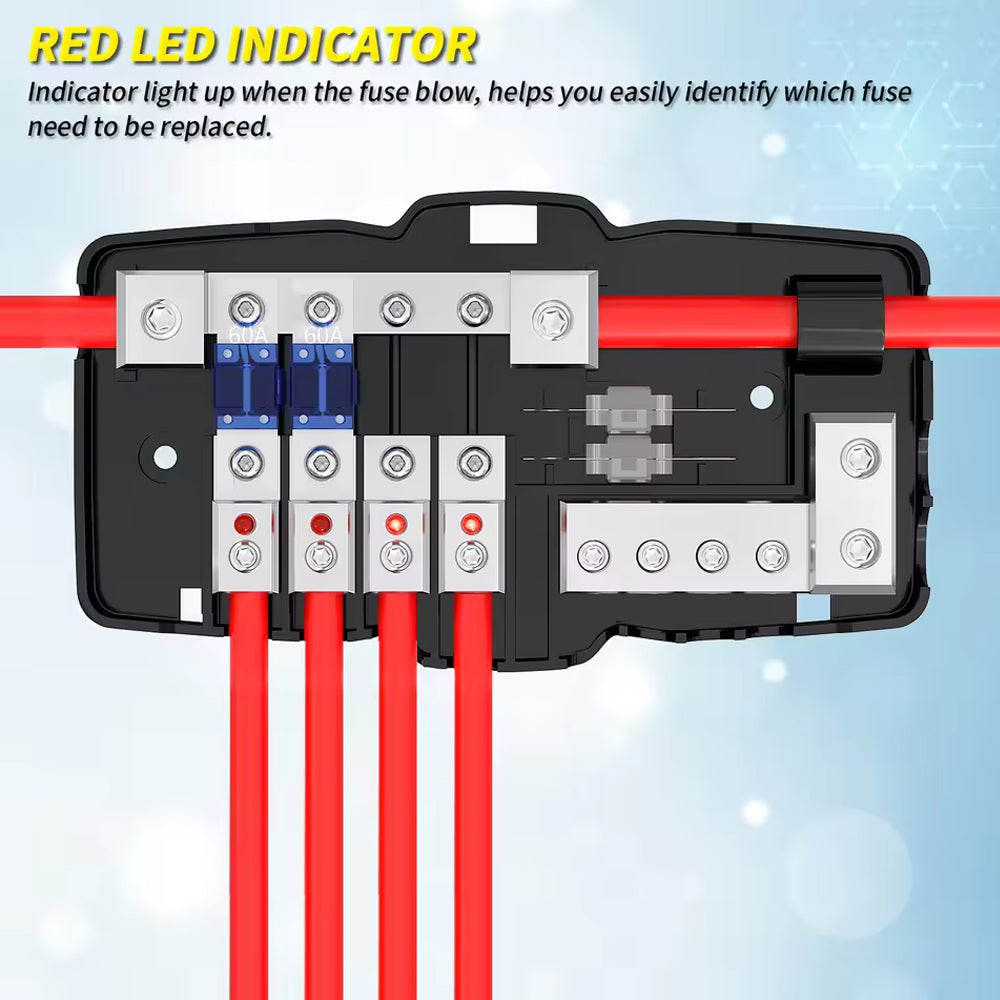

★ Red LED ★ - The MIDI fuse holder distribution block is red led indicator design, LED will light up when the fuse blows, helps you easily identify the status of fuses.
★ Application ★ - The MIDI fuse box distribution block is suitable for the amp or stereo audio system, Solar Panel, Battery of automotive, car, Camper, truck, Trailer, UTV, Marine, Boat, etc.
Input: 0-4 AWG
Output :4-8 AWG
Fuse Type: Mini ANL/MIDI Fuse, 2 x 30A, 2 x 60A, 2 x 80A
Feature :Red Indicator Design

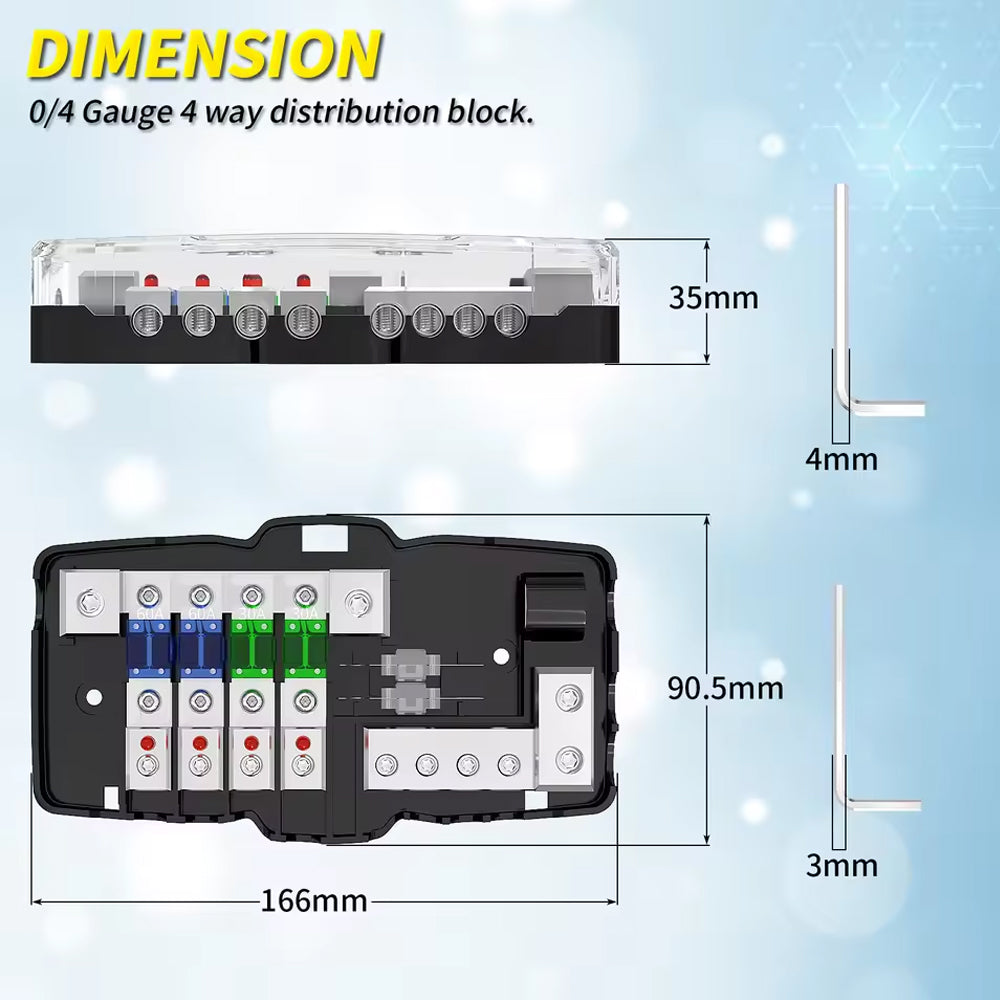

Dimension : 165mm x 91mm x 36mm(LxWxH)

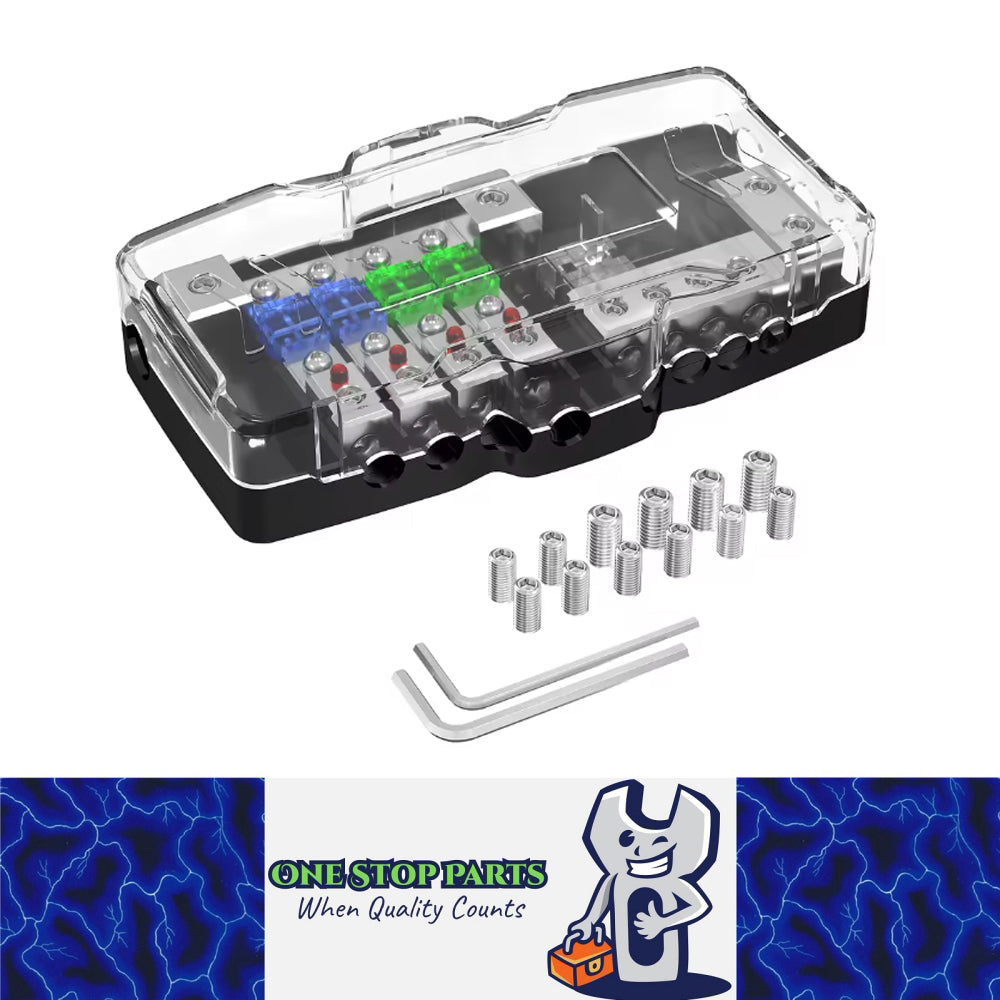

Package include
1 x Mini-ANL Fuse Block Car Audio
1 x Ground Distribution Block Cover
2 x 30A Mini ANL Fuse
2 x 60A Mini ANL Fuse
2 x Spare 80A Fuse
2 x Wrench
