About this item
Highest amperage rated bus bar (500A) withM8 (5/16") * 4+M10（3/8"）*2 terminal studs
Module box design for easy wiring configurations

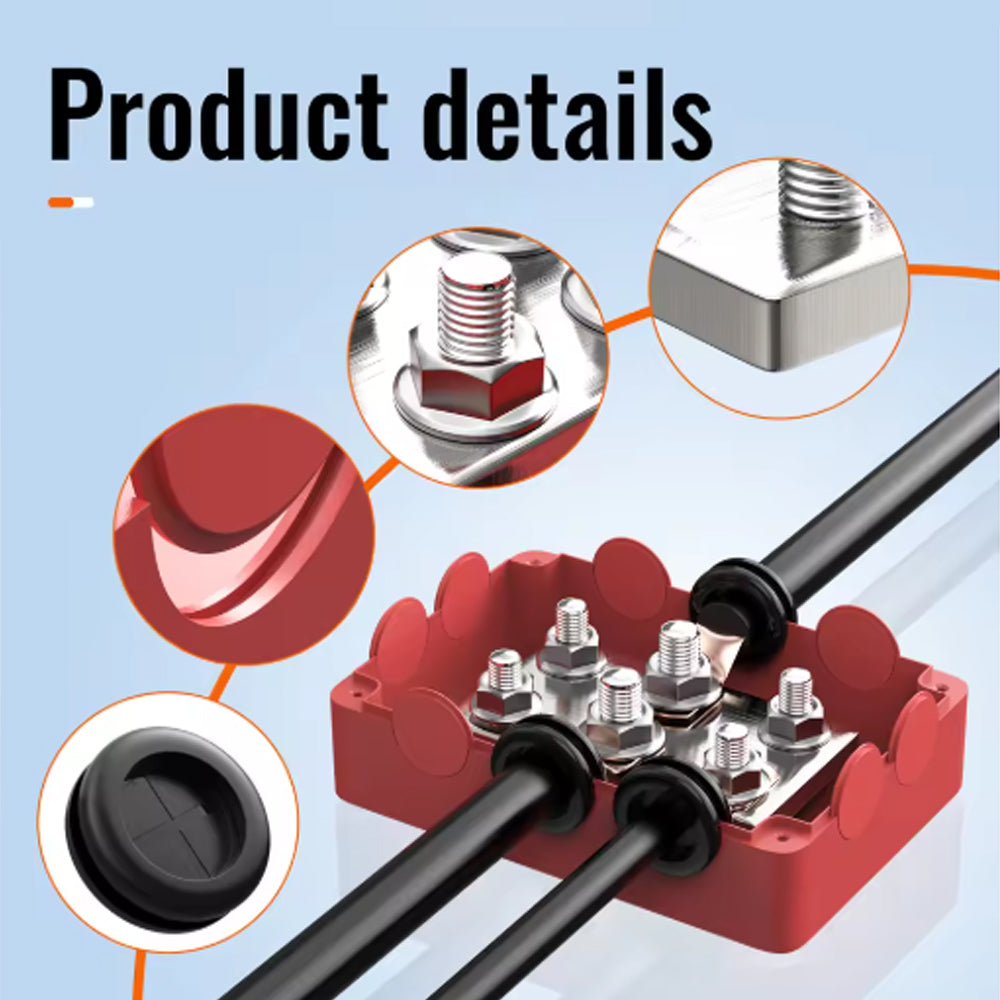

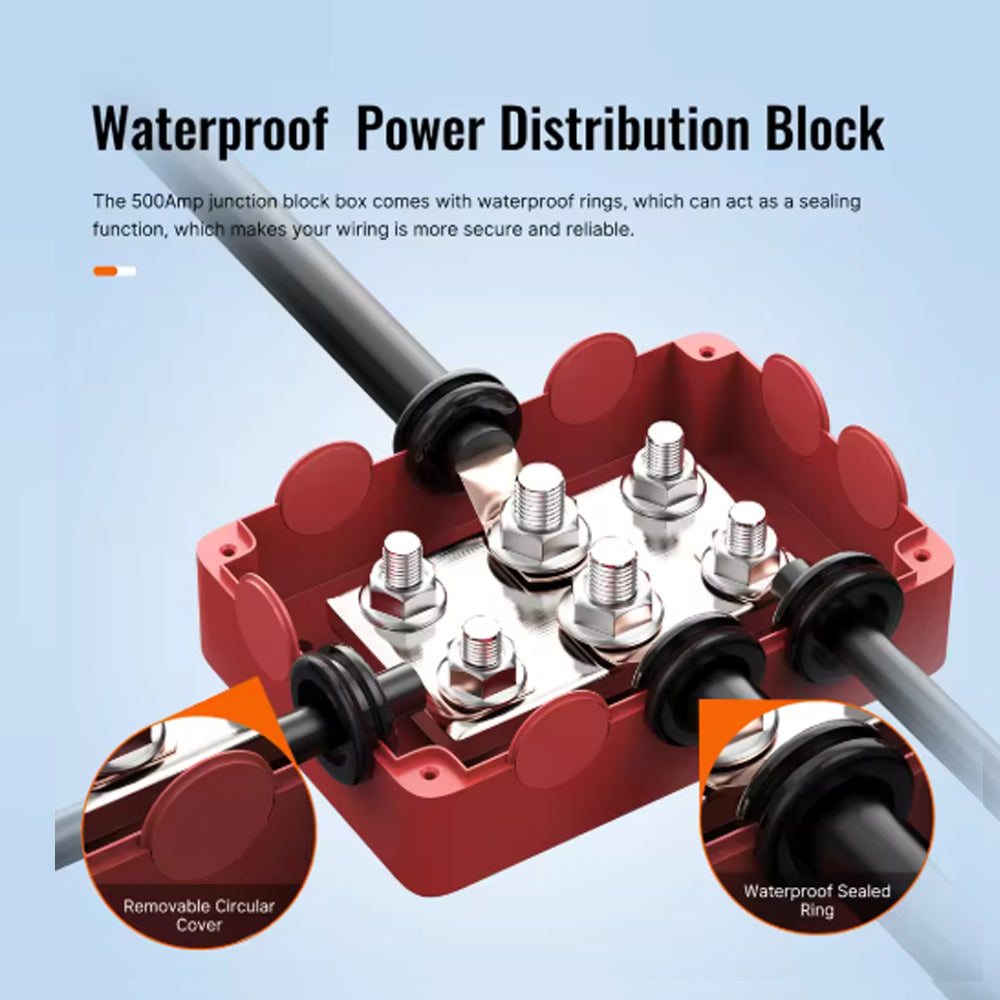

In addition, this Power Distribution Terminal Block comes with 4 M8 bolts and 2 M10 bolts, ensuring secure and reliable installation. The wire inlets and outlets are equipped with rubber gaskets to prevent accidental contact and provide dust and water protection, achieving a dust and waterproof function, which helps to safeguard the stability and safety of the wires and connectors.
The High Current busbar is also known for its durability and stability, making it ideal for various industrial and commercial applications. Its compact design and outstanding performance make it an excellent choice for electrical systems, especially in situations that require high current transmission and dust and water protection.
We believe that this new 500A bus bar will meet your needs and provide excellent performance and reliability for your automotive, car, marine, boat, etc.
Specifications
Continuous Rating Voltage：500A 300V AC/48V DC
Conductor Size：12-28AWG
Type： Screw

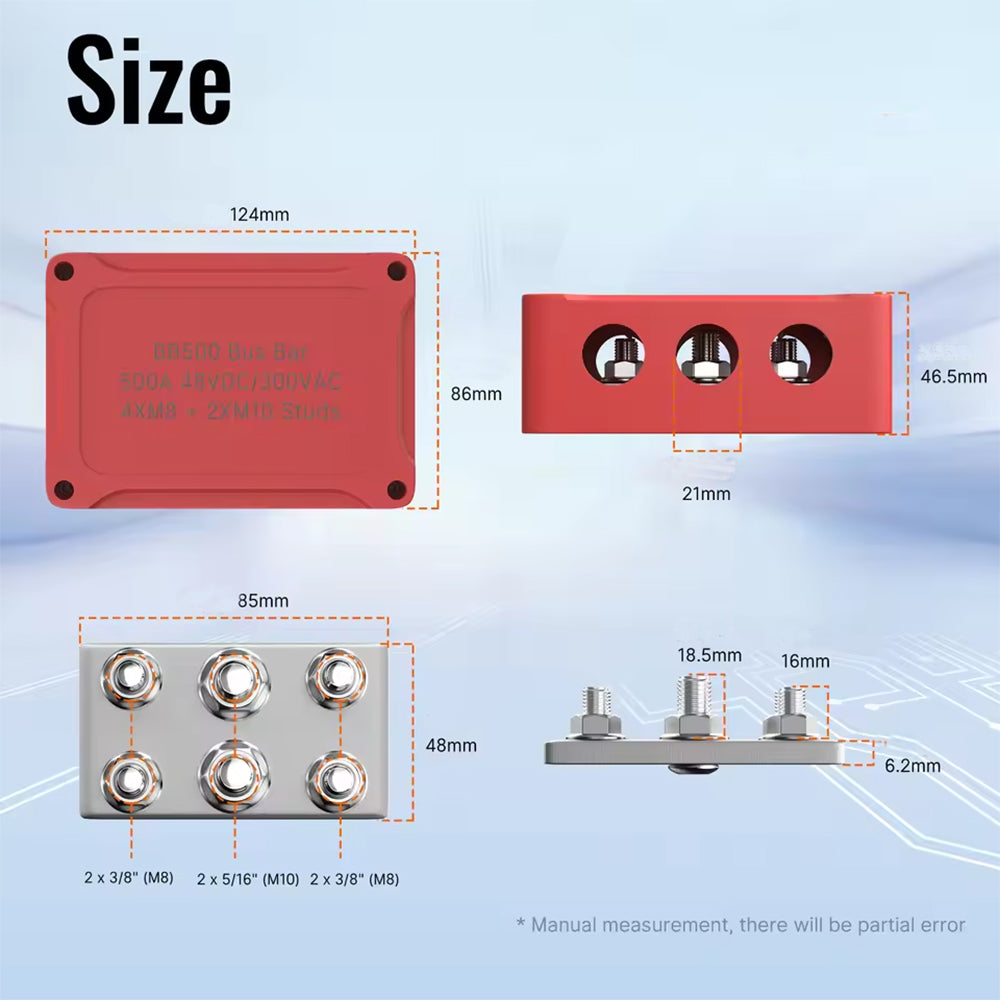

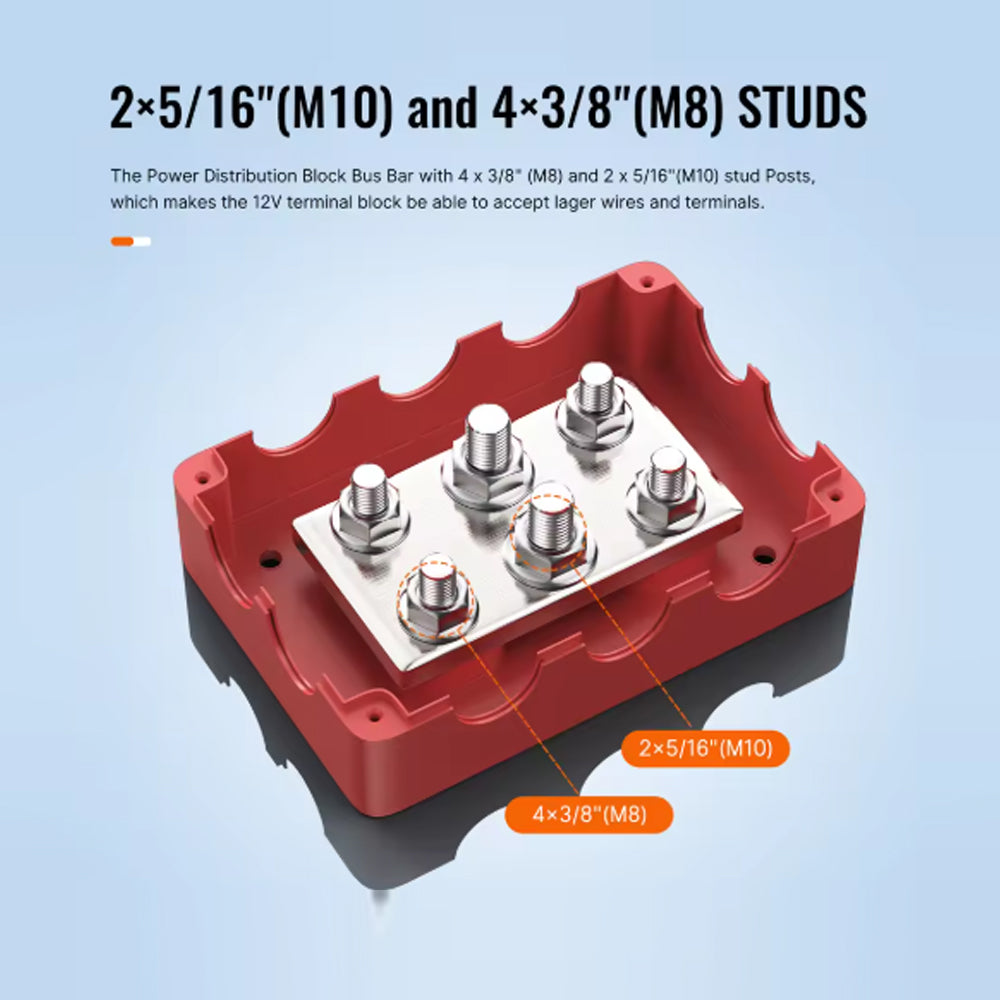

Terminal Studs：M8 (5/16") * 4+M10（3/8"）*2
Max Voltage：300V AC, 48V DC
Max Continuous Amperage：500A DC

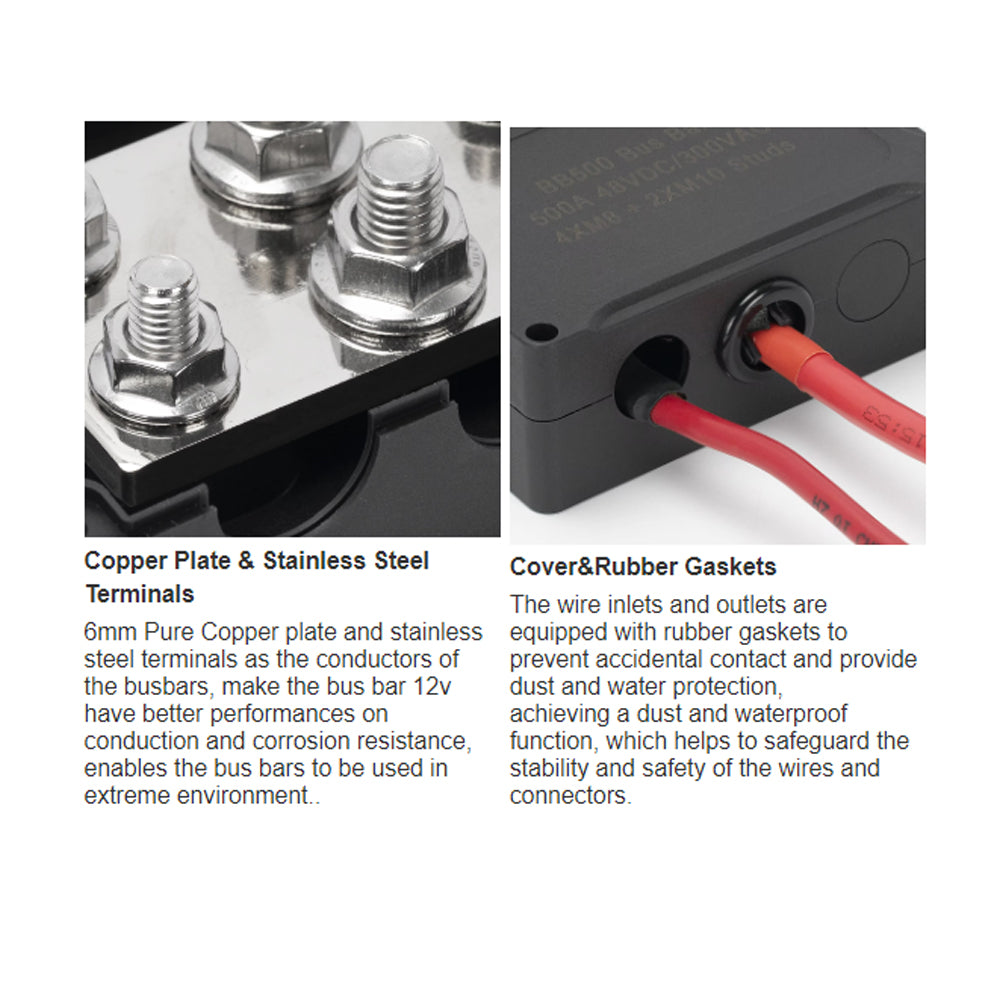

Material of terminal：6mm Pure Copper Plate
Base Material：UL94-VO Rated,Glass Reinforced Thermoplastics
Bus Material: Nickel Plated Brass

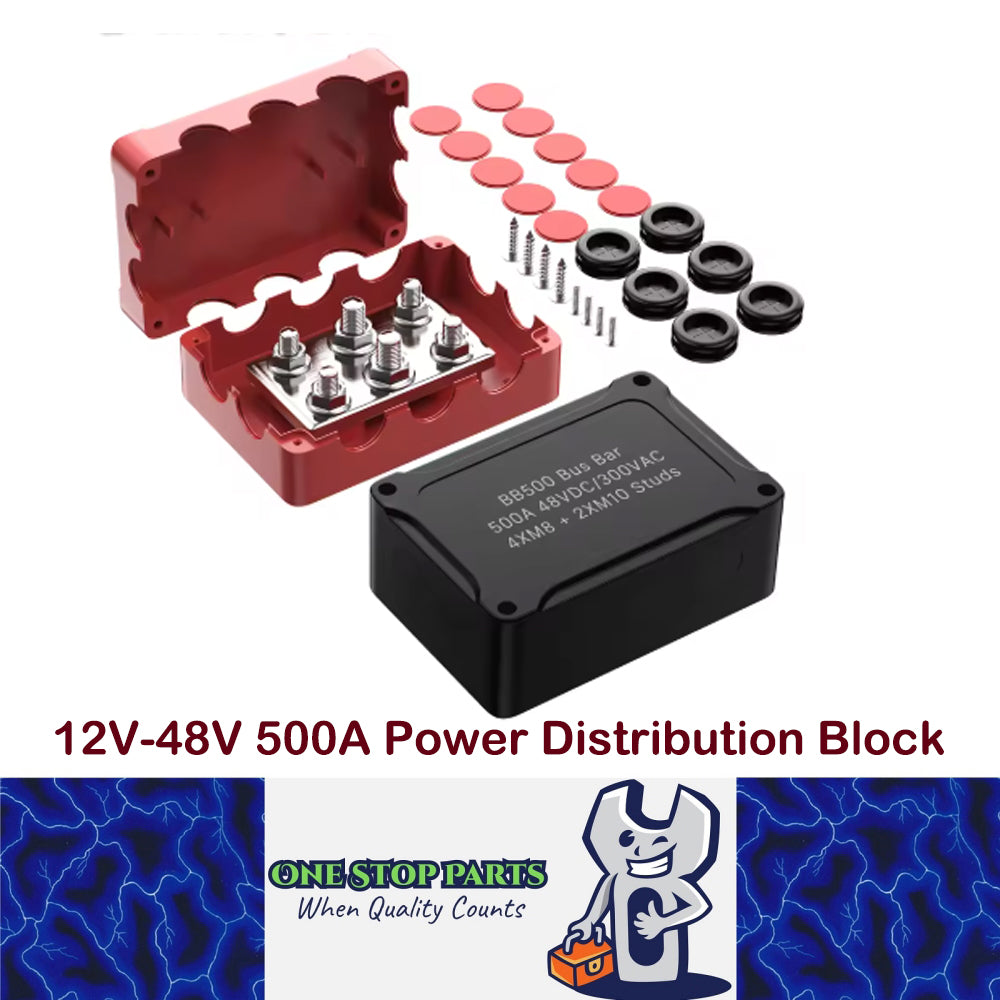

Package Includes
* 1 x Marine Bus Bar Box
* 6 x Rubber Gaskets
* 8 x Mounting Screws
