About the item

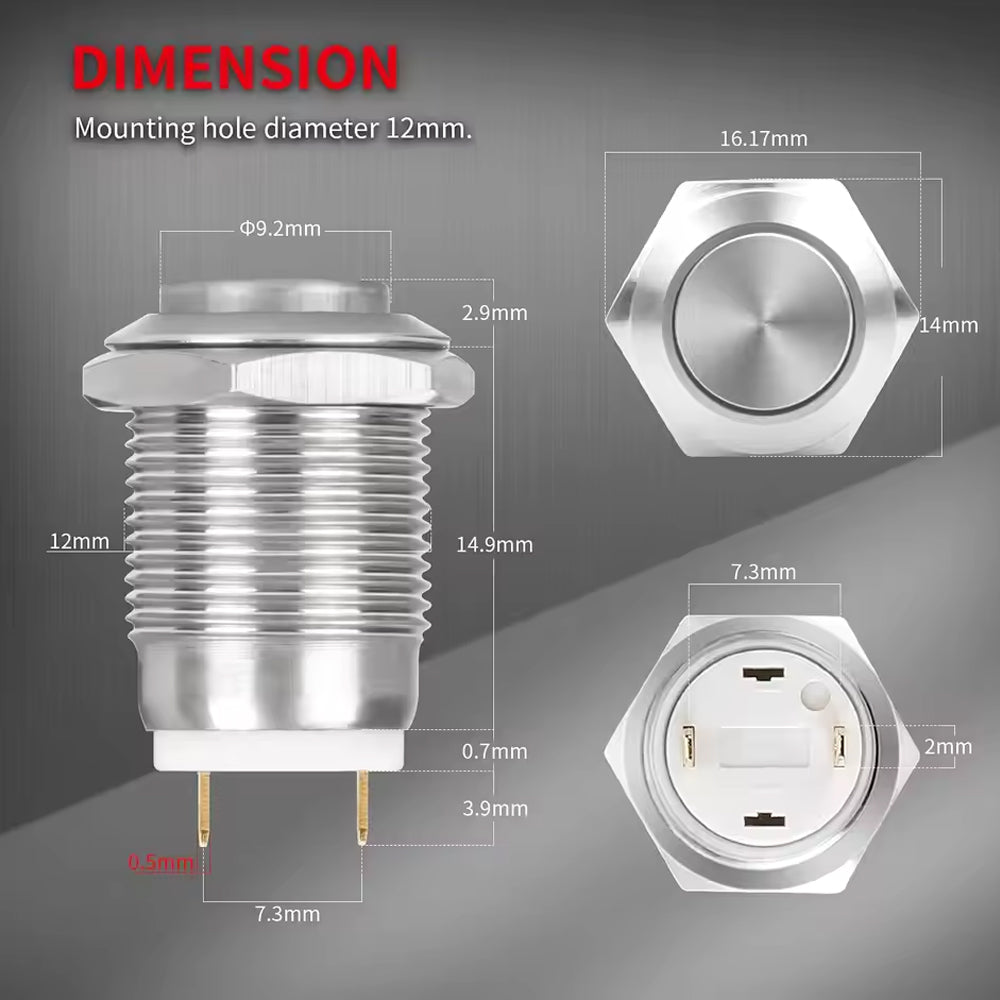

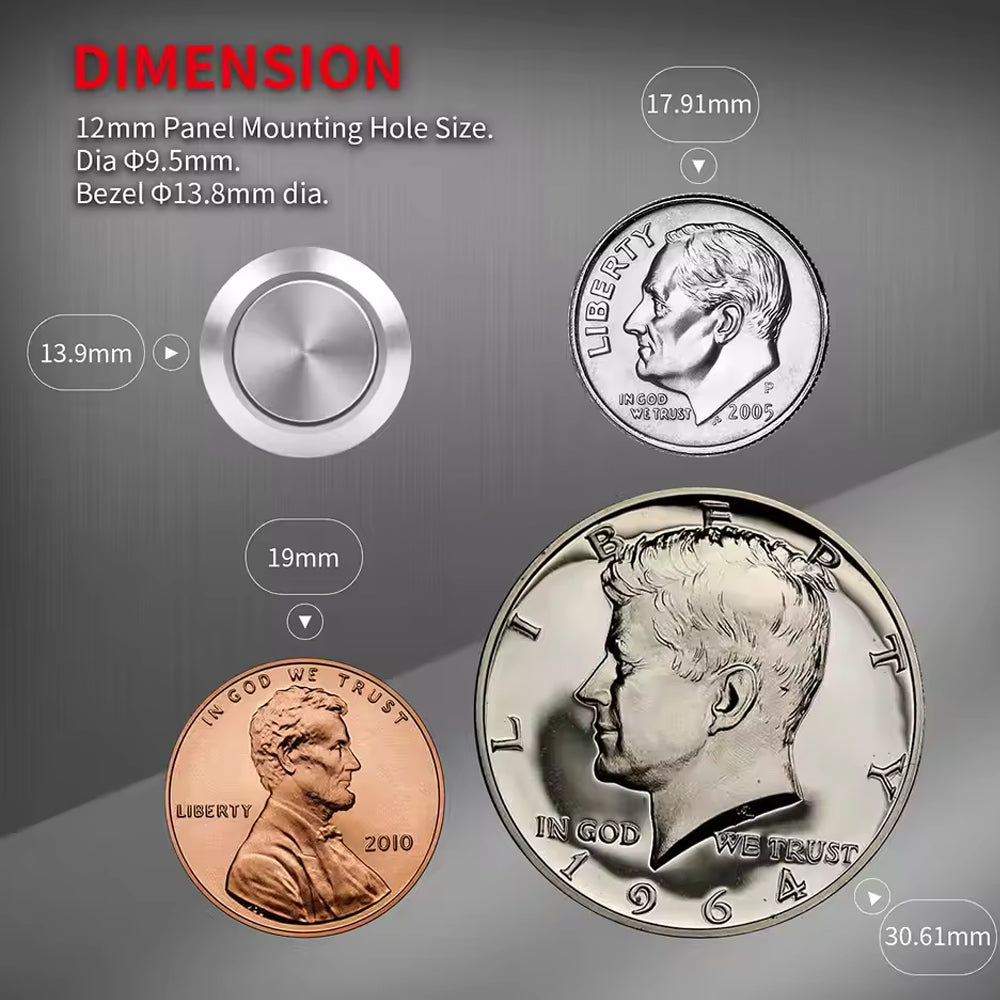

Push Button Switch Dimension: This pushbutton requires 12mm Panel Mounting Hole Size. The 1.5mm Raised Button for easy operating.
Momentary Push Button Switch rating: 3A 250V AC, 5A 120V AC; 5A 12V DC, with Solder Terminals. Durable: More than 50,000 Cycles Long electrical life.

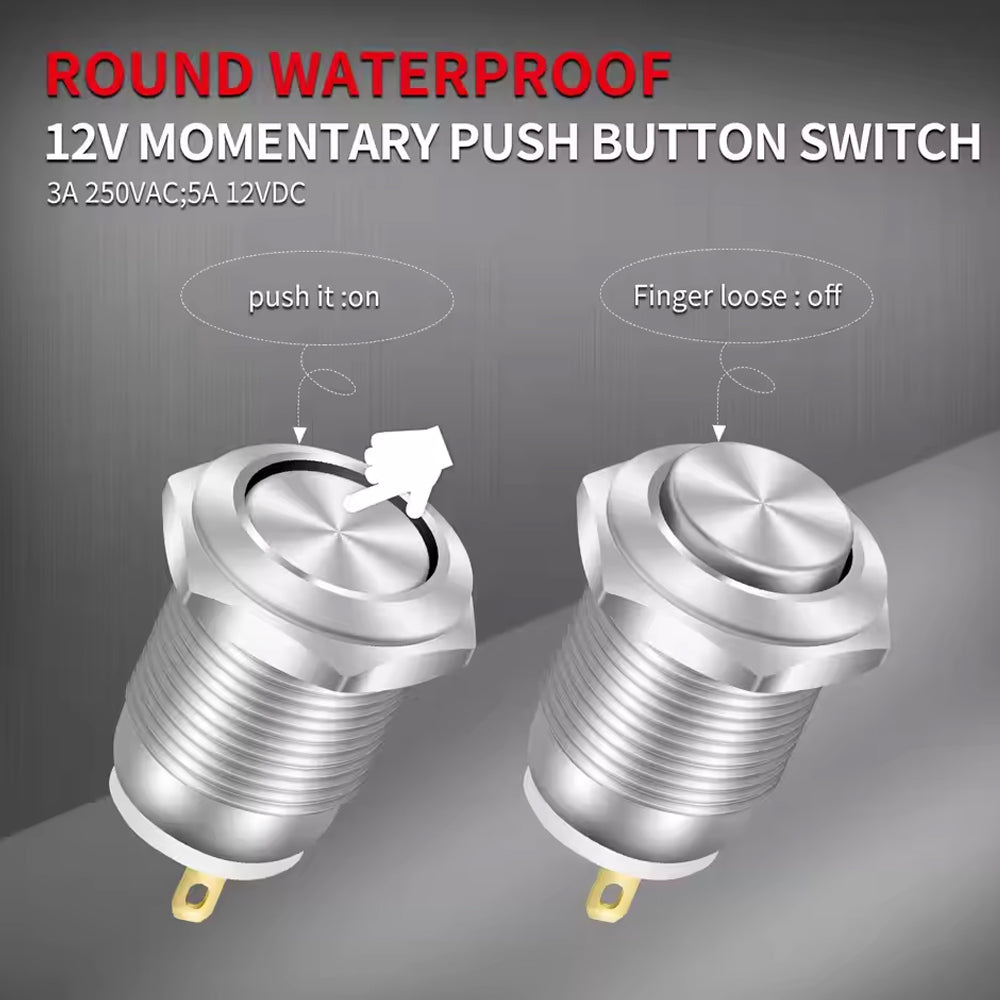

Stainless Push Button Switch Function: Push ON, Release OFF(Finger loose, OFF) Momentary Version, SPST(Single Pole Single Throw) 2 pin Normal Open.

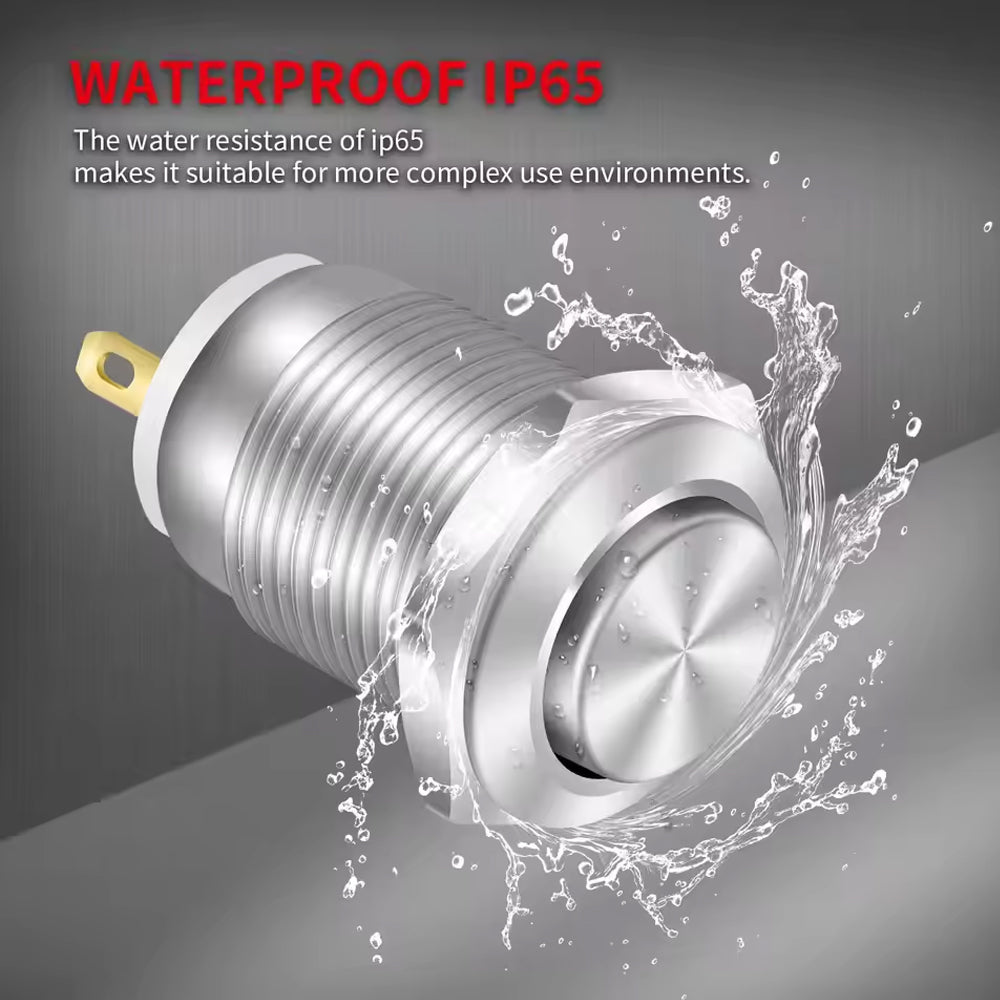

IP65 Waterproof Push button switch with Stainless Brass Shell, can be used in ourdoor, wet or dusty enviroment.
12V Micro Push Button Switch widely used on Car, Boat, Marine, Vehicle, Auto, Truck, Househood, Coffee Machine, industrial equipment, Medical Equipment to Control LEDs and Circuit.
Operating Temperature Range: -25℃ ~+55℃
Rating: 5A 12VDC；3A 250VAC
Contact Resistance: 50mΩ MAX
Insulation Resistance: 100MΩ MIN
Electrical Life: Operating ≥50,000 cycles
Waterproof Degree: IP65
Function: SPST 2 pin, OFF - Momentary ON
Package Include

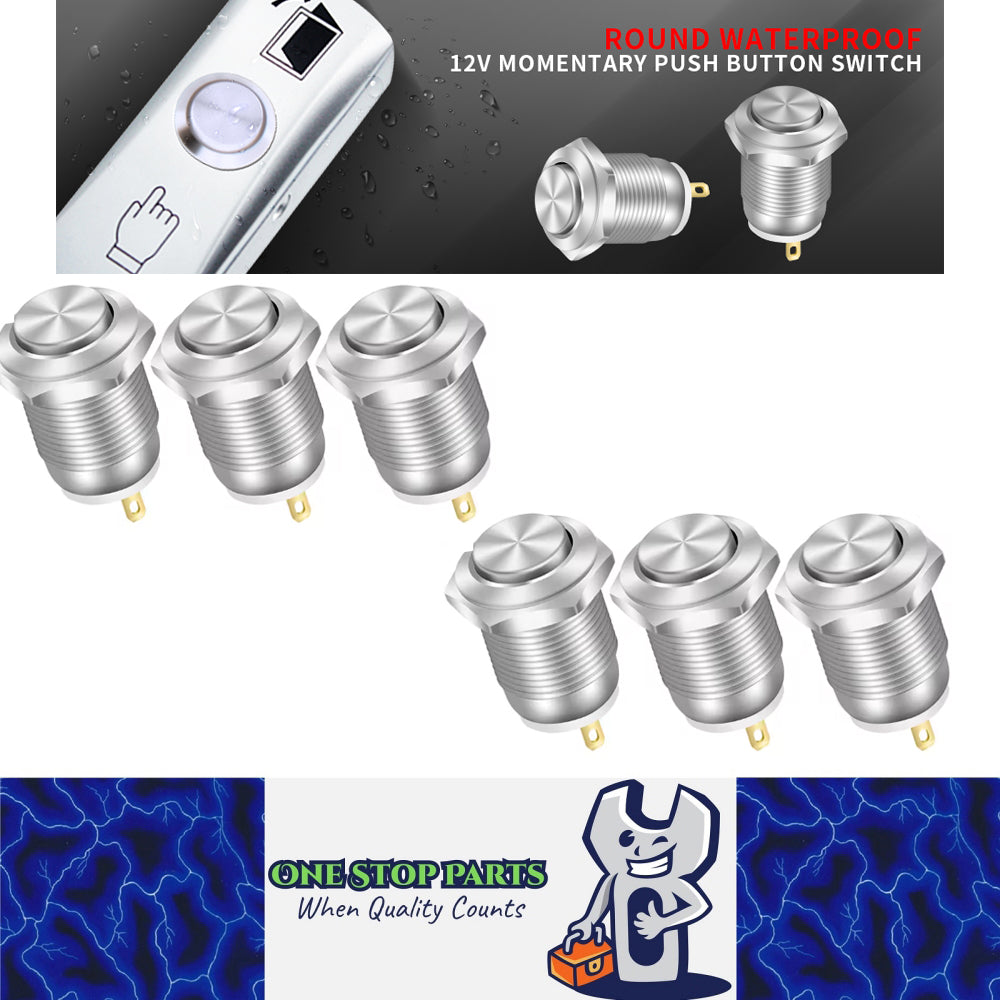

6* Momentary Push Button Switch
