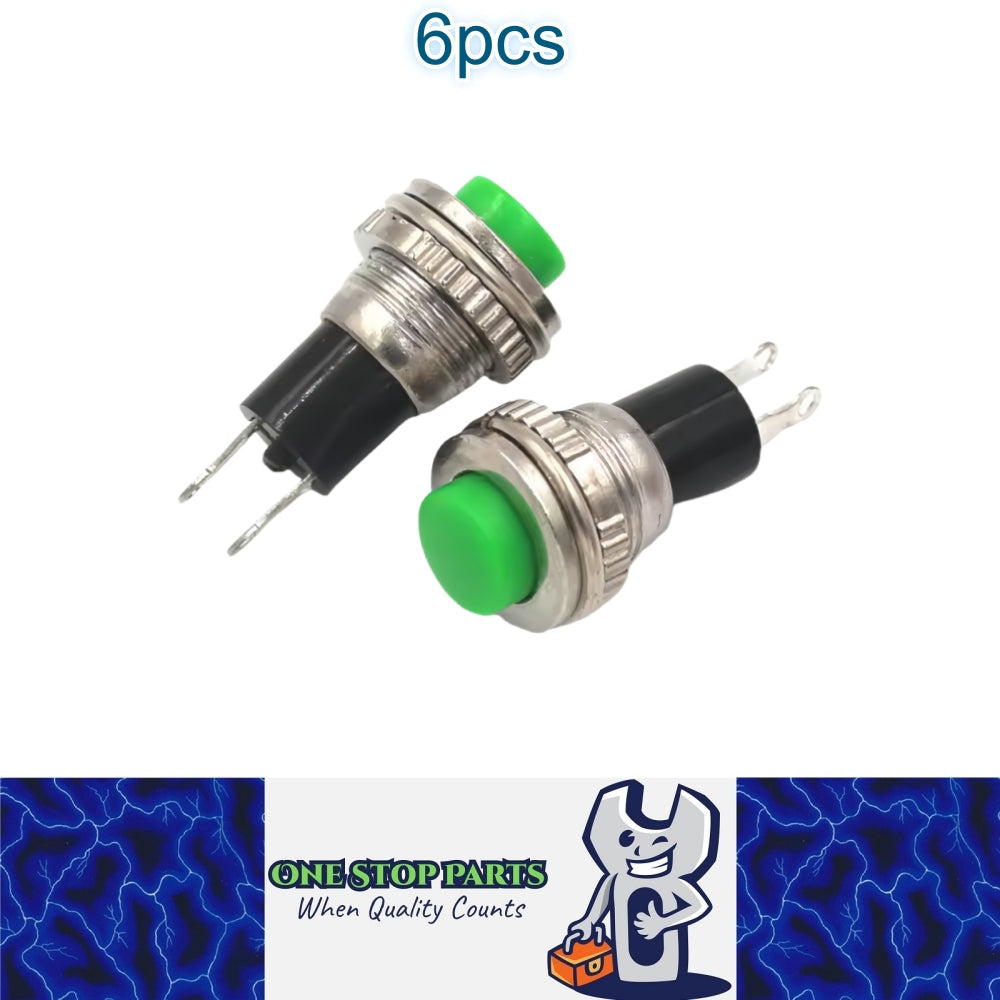

6 x Green Push Button Switches Panel Mount 10mm Momentary OFF/ON SPST Switches

Here we have 6 x Green Push Button Switches Panel Mount 10mm Momentary OFF/ON SPST Switches Bottom Screw Thread.

This Metal Push Button Switch is widely used in industrial controlling circuits for controlling in electromagnetic starter, contactor, relay and other electric circuits,various manual DIY electronic products.

Button Diameter : 8mm

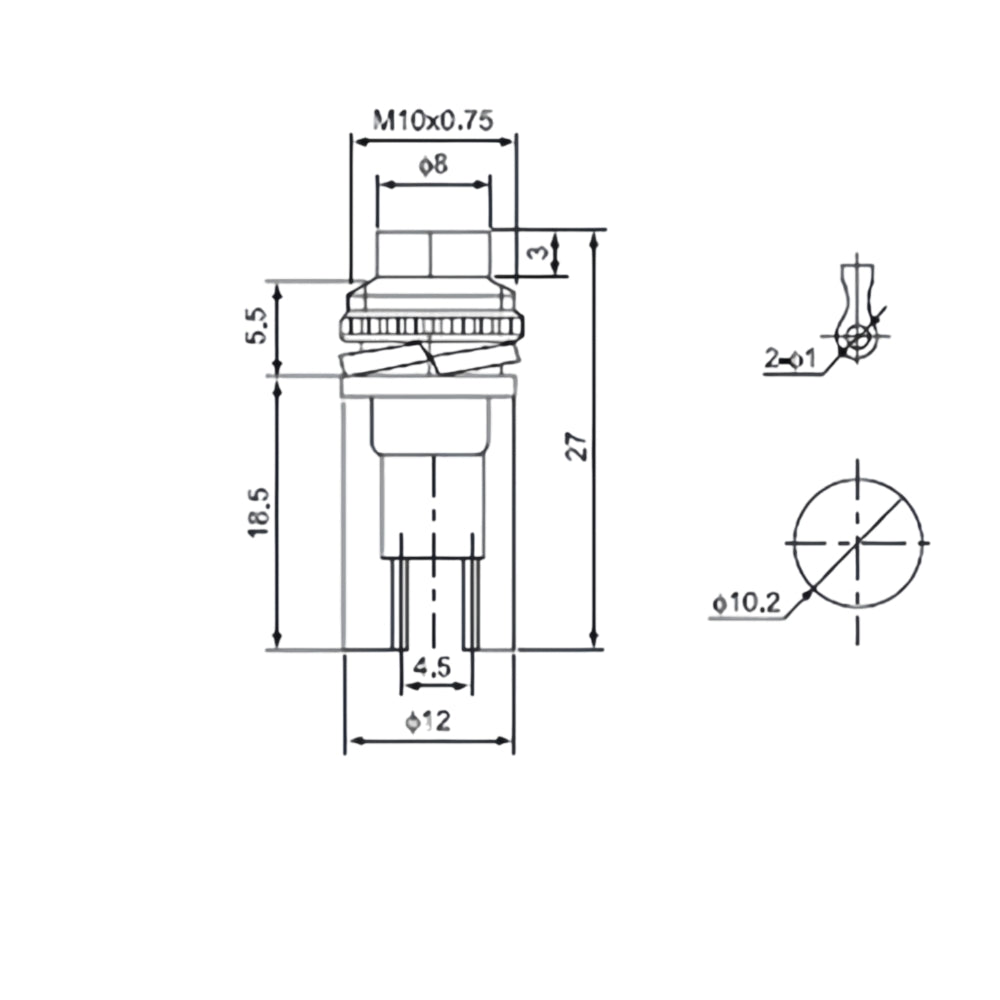

Mounting Thread Diameter : 10mm

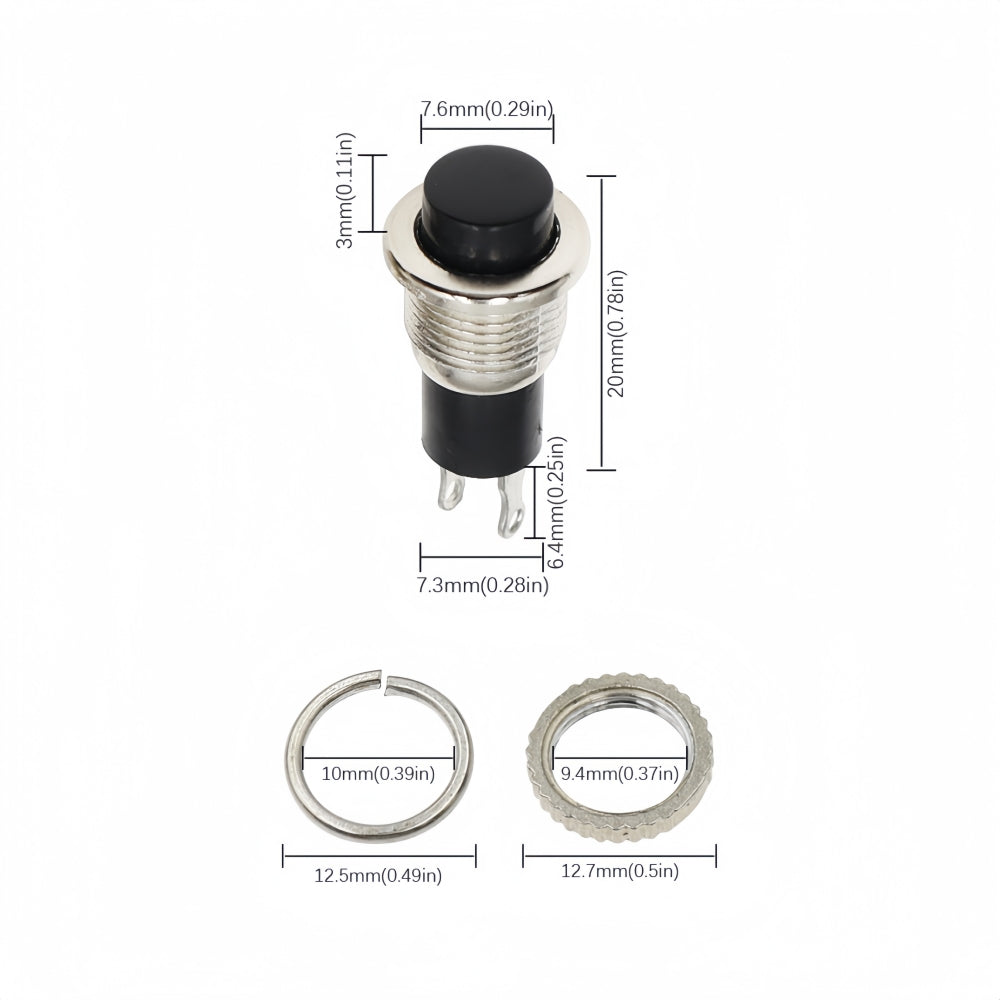

Total Size : 27 x 13mm (H* Max.D)

Action Type : Momentary

Contact Type: Normal Open

Poles: SPST

Pin Number : 2

Switch Rating : AC 125V, 3A; AC 250V, 1A

External Material : Plastic, Metal

Color : Green

Quantity: 6pcs
