About this item

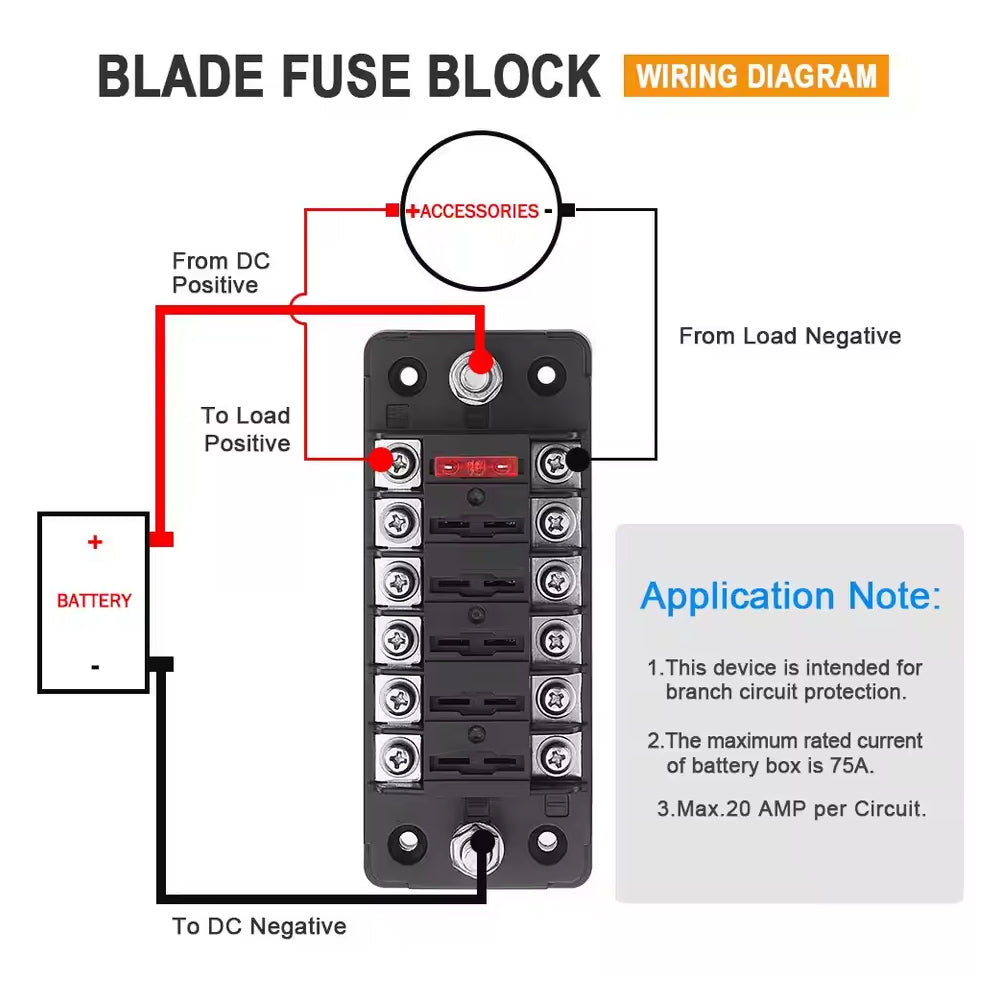

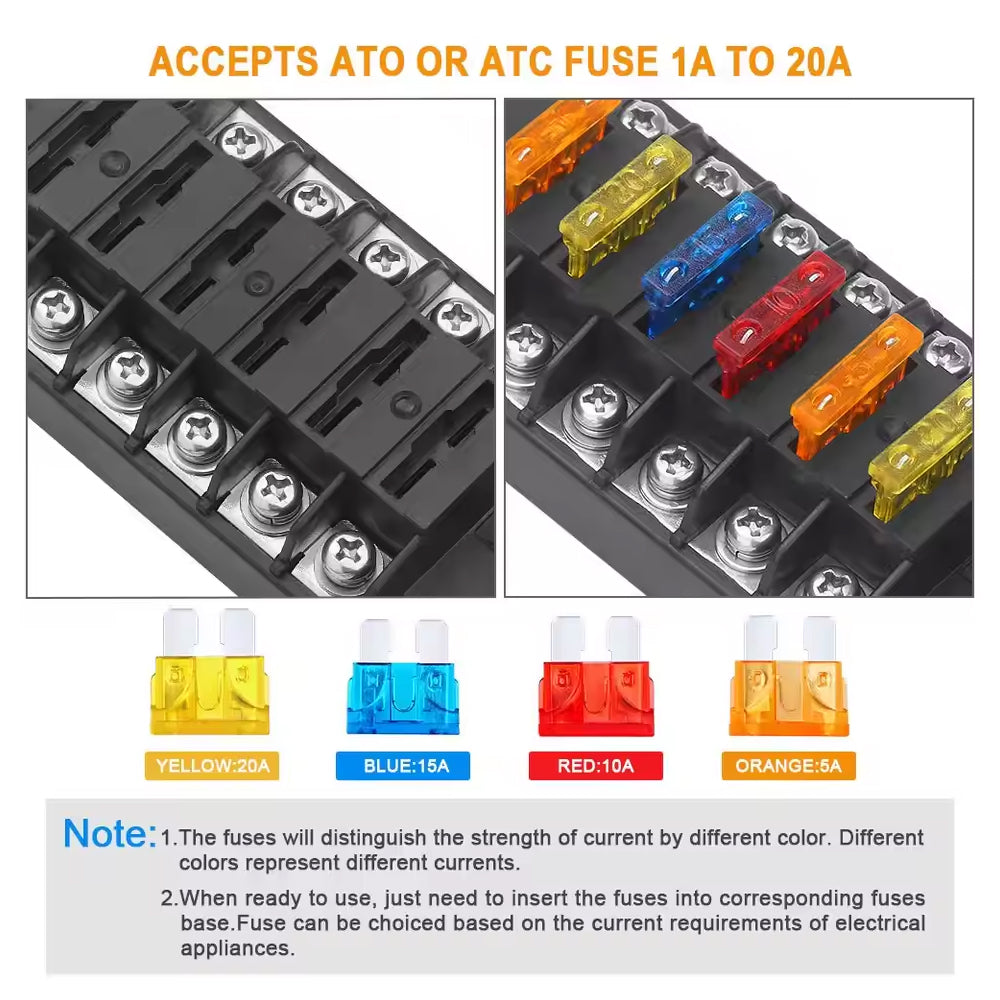

【NEW DESIGN 6 WAY FUSE BOX】 6-Way Blade Fuse Block accepts 1A to 20A ATC/ATO(middle size) fuses. It has positive and negative sides, which means that each positive terminal screw has a negative terminal screw to make your circuit clear at a glance. This device is intended for branch circuit protection and has good conductivity. Max. 32V DC operating voltage. Max. 20 Amp per circuit & 75 Amp per panel.
【PREMIUM QUALITY & SAFE MATERIAL】Made of environment friendly PBT material, this fuse holder meets all the standards of an ideal fuse box. It is mechanically strong, insulated, heat resistant and flame resistant. There will hardly cause any issue like produce fracture, deformation, combustion or short circuit phenomenon.

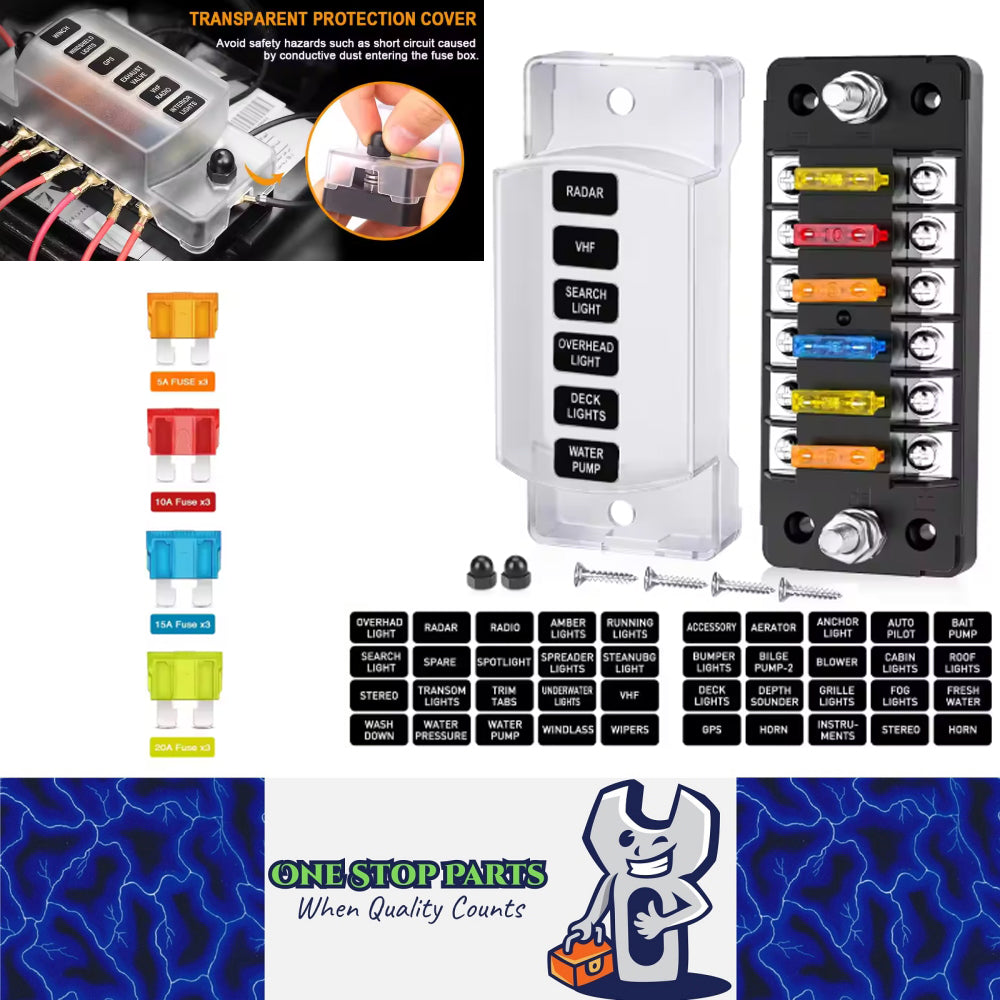

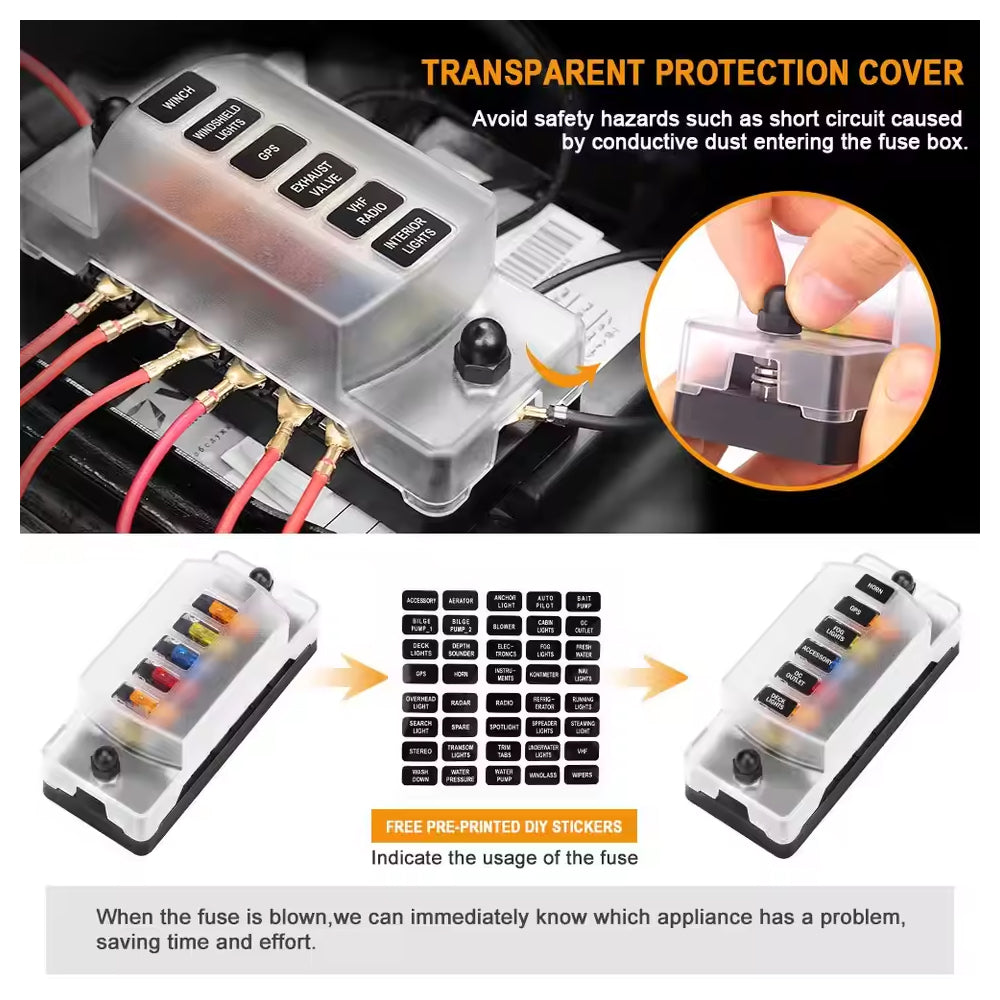

【PROTECTION COVER & PRE-PRINTED DIY STICKERS】Transparent plastic cover with screw nut, easy to operate, splash and dust-proof design. Adds extra protection to your fuse box & fuses. Come with multi-function stickers for DIY your specific need, convenient for examination and repair, easy to troubleshoot in outdoor.
【WIDE APPICATION】This 6 Circuit Fuse Block widely used in Car, Truck, Boat, Tankers, Marine, SUV, Yacht, RV, Van, Ships etc. Each fuse of fuses box can be connected to any circuit of electrical appliances. For example: car dome light, auto headlight, width lamp, fog lamp, warning lights, car refrigerator, car charger and car fan, car TV.etc.
Specifications
Max. 32V DC operating voltage
Max. 20 Amp per circuit & 75 Amp per panel
Made of high quality PBT material, this fuse holder meets all the standards of an ideal fuse box
6 circuits with negative bus, accept ATC/ATO(middle size) standard fuses

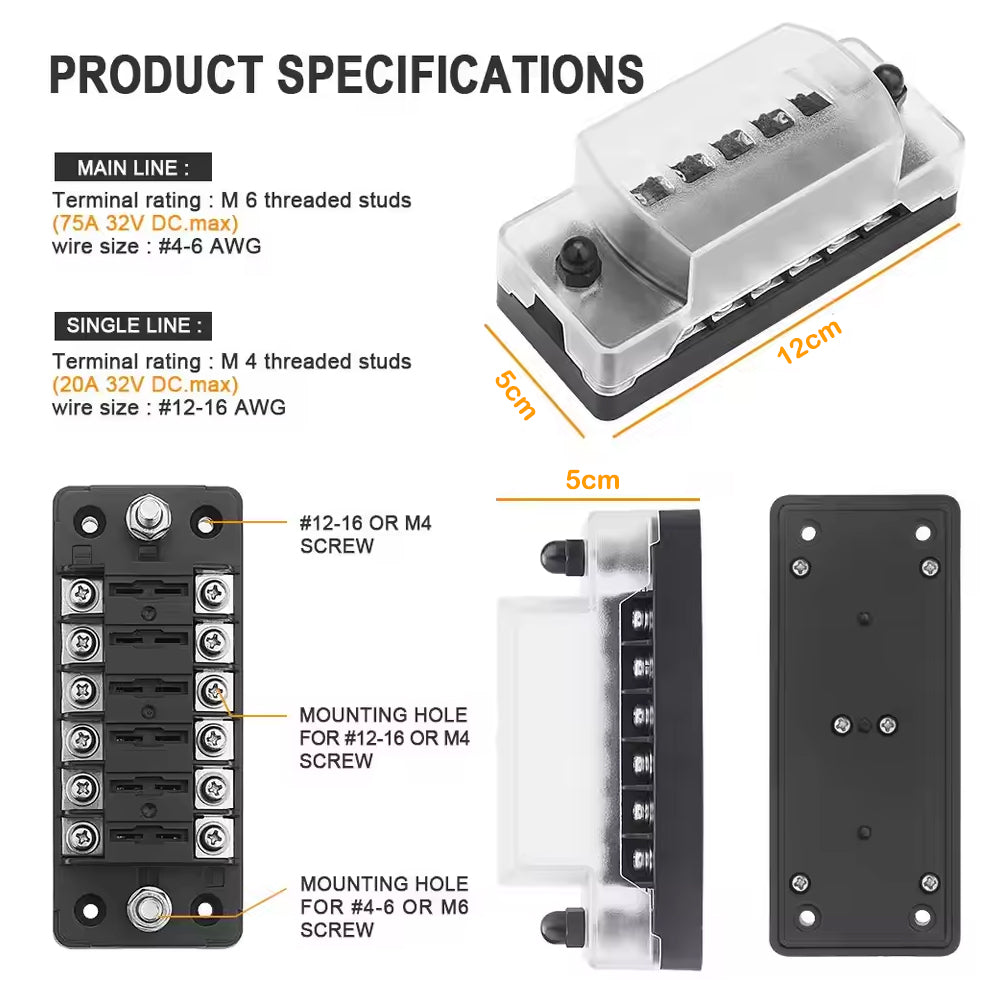

Product Size：120 * 50 * 52mm
Main Line
terminal rating : M6 threaded studs (75A 32V DC.max)
wire size : #4-6 AWG
Single Line
terminal rating : M4 threaded studs (20A 32V DC.max)
wire size : #12-16 AWG
SAFE Material
Base: PA66
Dust Cover: PC
Terminal: Nickel plated copper
Screw: Stainless steel

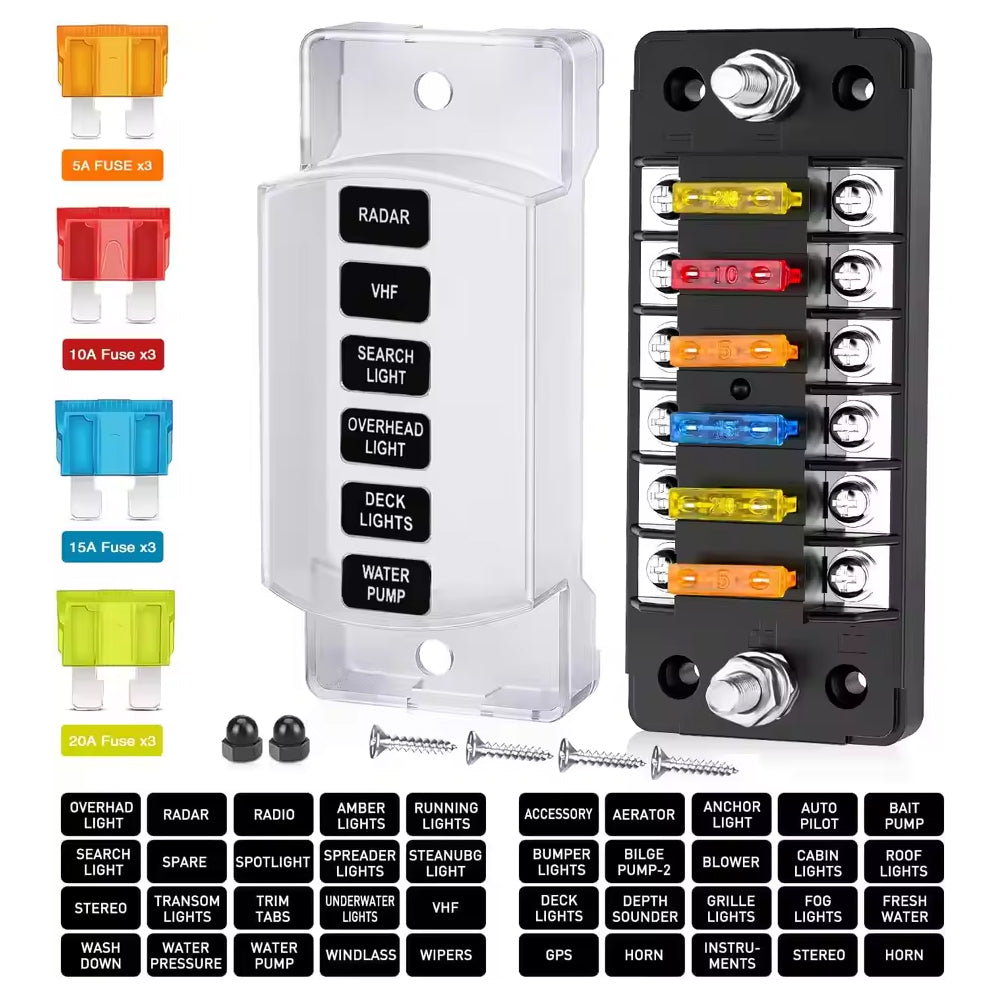

PACKAGE INCLUDES
1 x 6 Way Blade Fuse Block with Protection Cover
4 x 20A Fuse
2 x 15A Fuse
2 x 10A Fuse
4 x 5A Fuse
4 x Screw
2 x Sticker
