About the item
*Function: Red LED lighted toggle switch with 3 pins, SPST ON OFF design (single pole single throw), designed with rocker style, easy to turn ON/OFF.

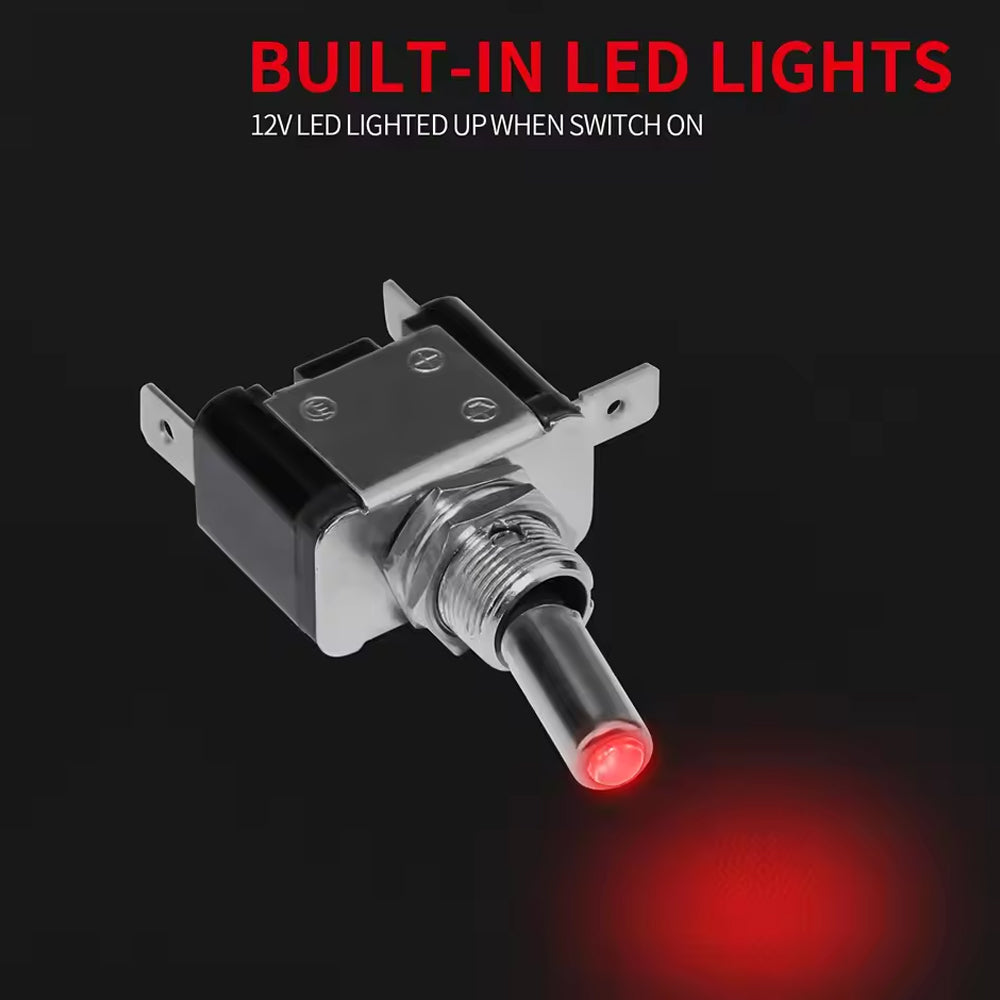

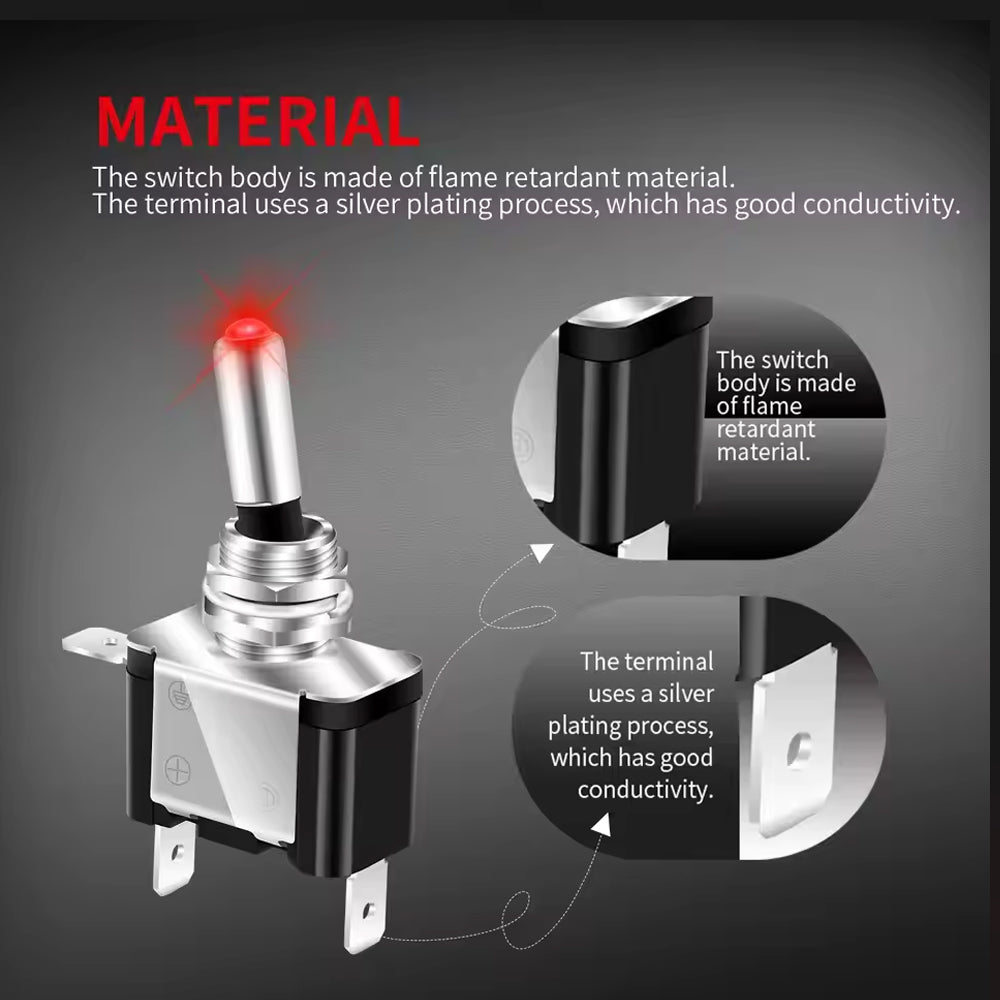

*Feature: This illuminated toggle switch is made of metal and Bakelite with 20A 12V DC Heavy Duty Rating. The RED LED will be illuminated when the switch is Turned ON.

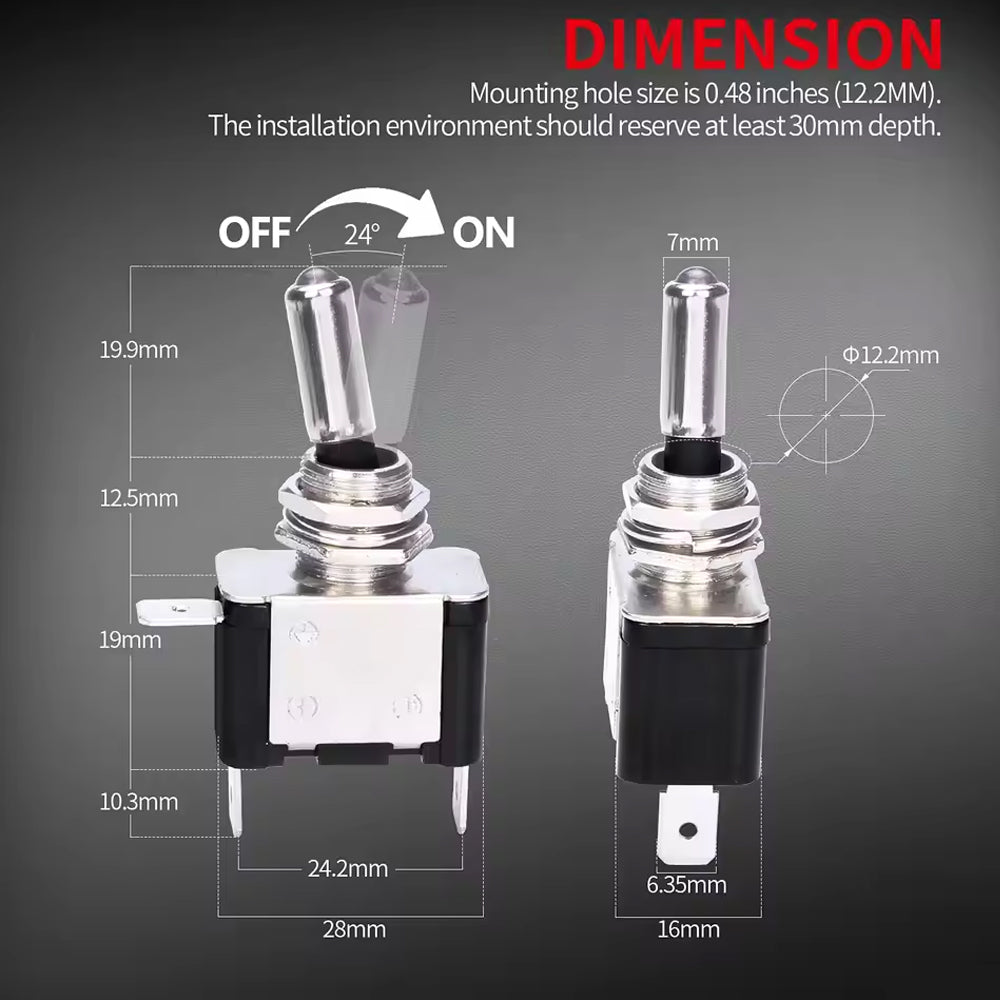

*Size: Panel Mount type switch, The mounting hole size of this 12 volt togggle switch is 0.48 inches (12.2MM), 6.35 X 0.8mm size Terminals for #250 Quick-Connect.

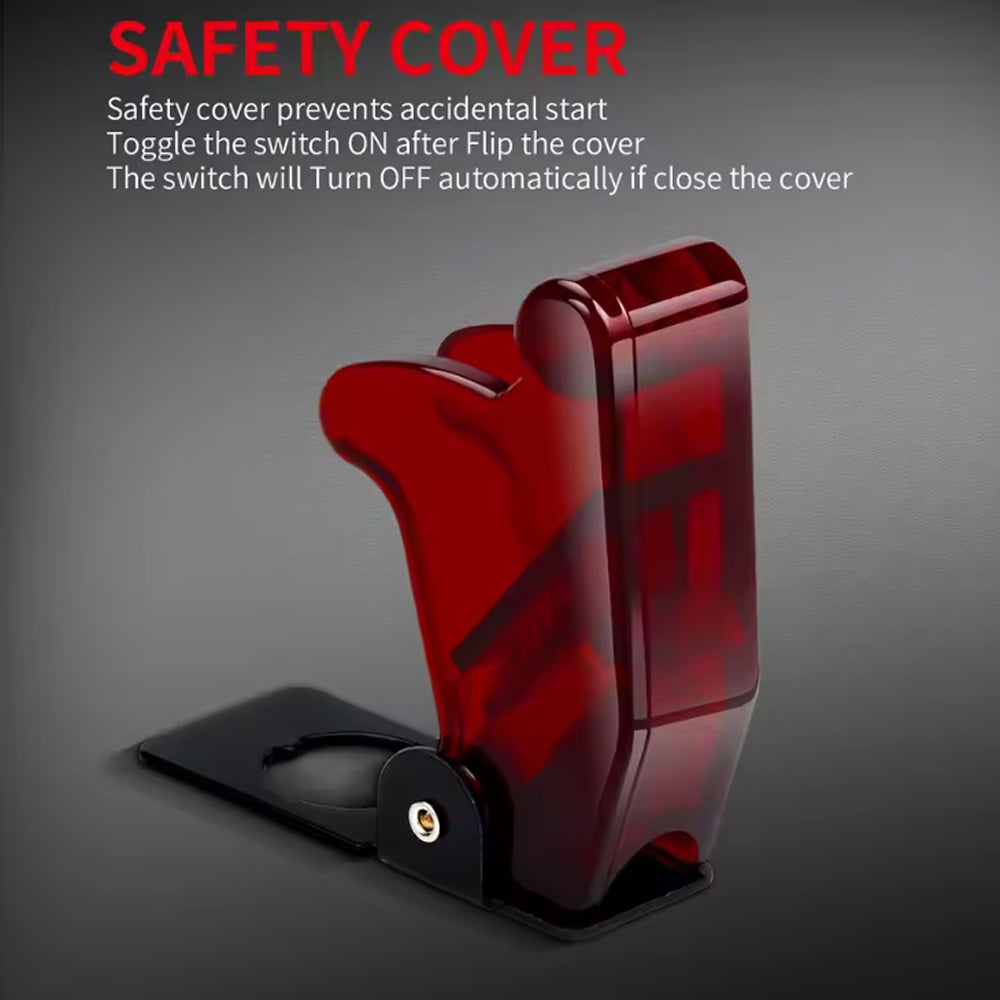

*Safety cover: Transparent Red aircraft safety cover guard prevents accidental start. Open the Red cover, toggle the switch to "ON"; Close the cover to OFF the switch automatically.

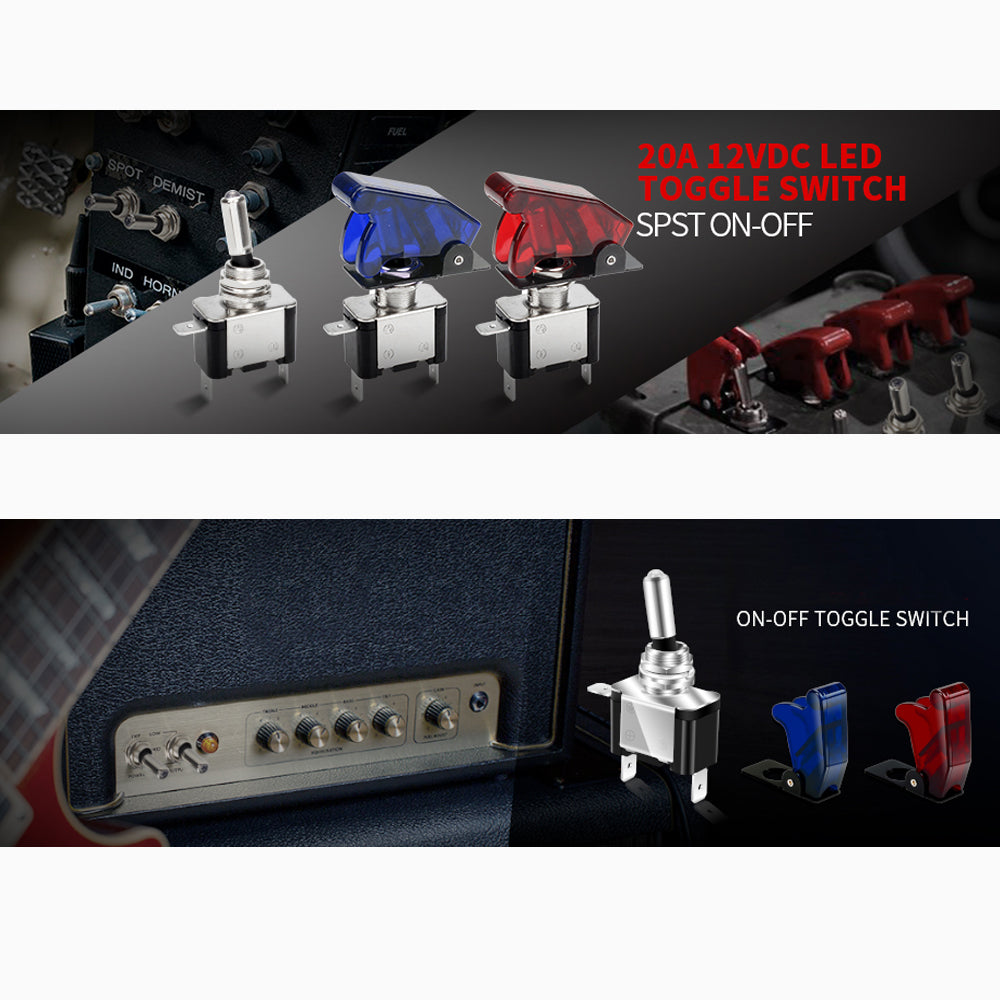

*Application: Suitable for almost any motorized vehicle such as Marine, Boat, Motorcycle, Racing Car, Automotive, RV, ATV, UTV, Truck, Golf Cart, Airplane.
Speciflcations
Rating: 20A 12VDC
Contact R: 50mΩ max
Insulation R: 500V DC 1000mΩ min
Electrical Life: 10,000 Cycles
Dielectric Strength: 1 Minute 1500V AC
Operating Temperature: -25℃ ~ +85℃
Package Includes

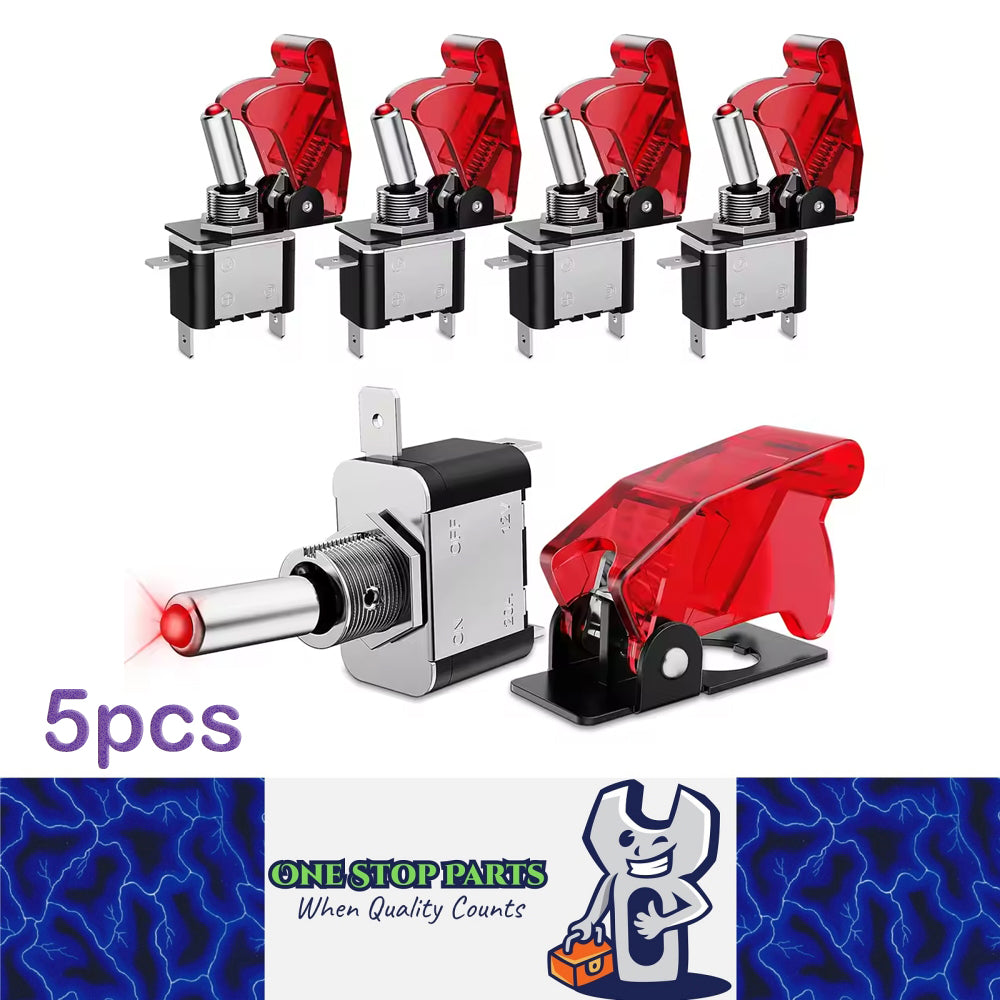

5 * LED Lighted Toggle Switch
