5 x Round Rocker Switch 2 PIN ON/OFF SPST 20mm Toggle Switch with Wire Switch
About this item
Features

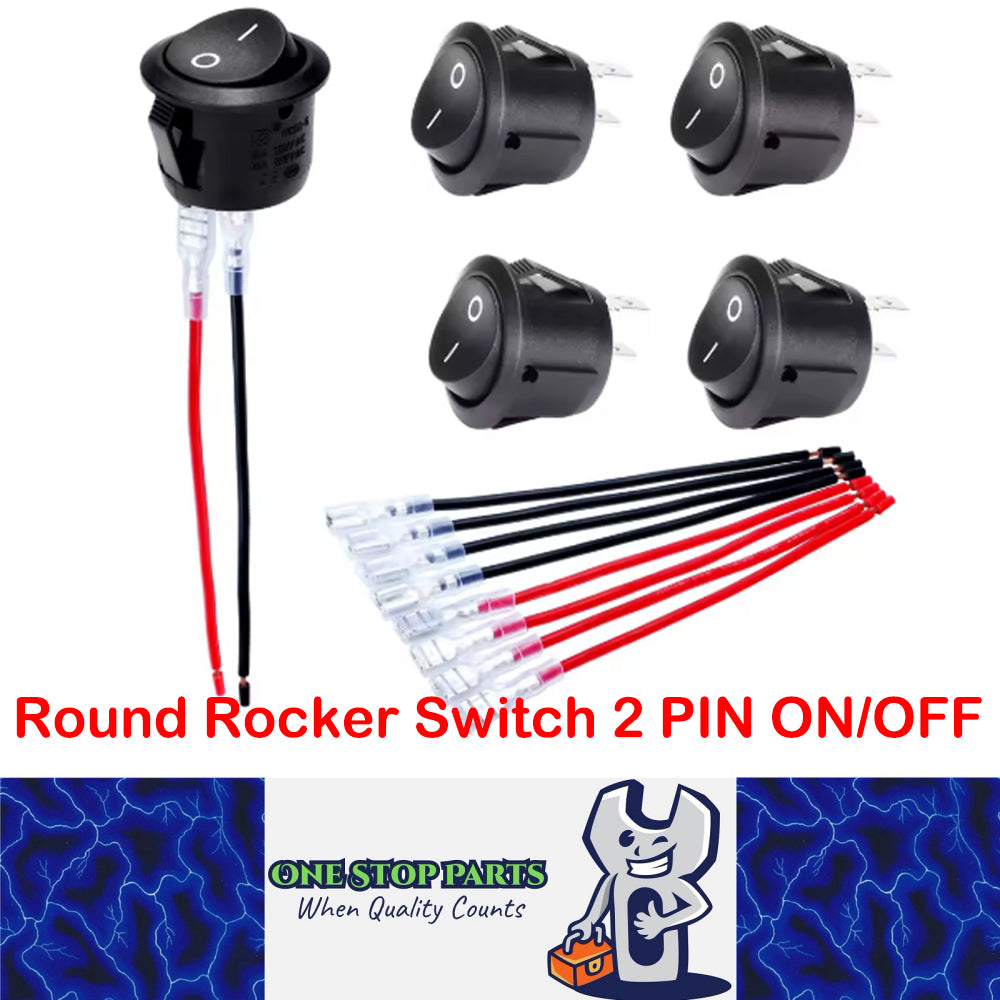

"O I" marked on black button 12V Rocker Switch with 5 sets of wires(#187 Lock Terminals on end) for switch easy connection.
Material: The KCD1 Small round rocker switch is made of nylon PA66. The terminals are made of brass with silver plated.
Function: The ON/OFF rocker switch is 2 pin SPST design (single pole single throw) ON OFF. The rating is 10A 120V AC and 20A 12V DC.

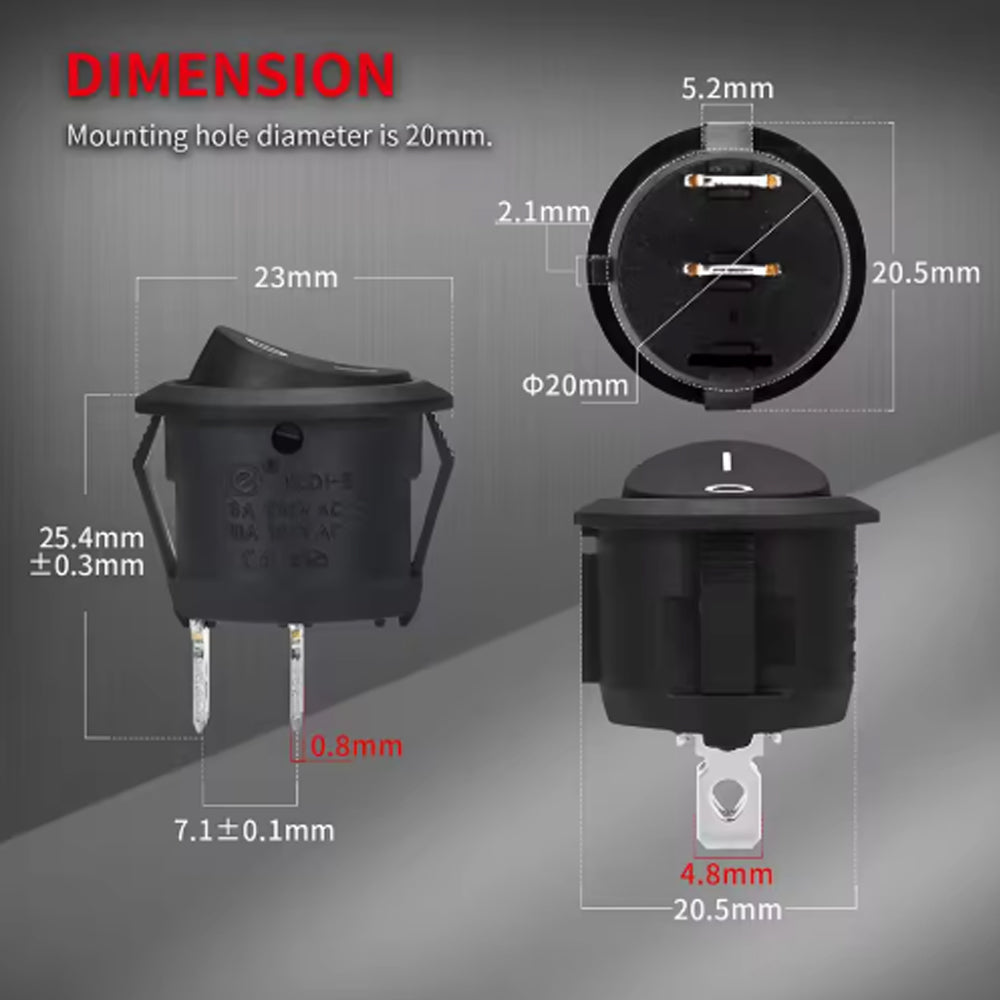

Installation: The mounting hole size of this Mini 12 Volt rocker switch is 0.787 inches (20mm). It adopts snap-in design, easy to install.

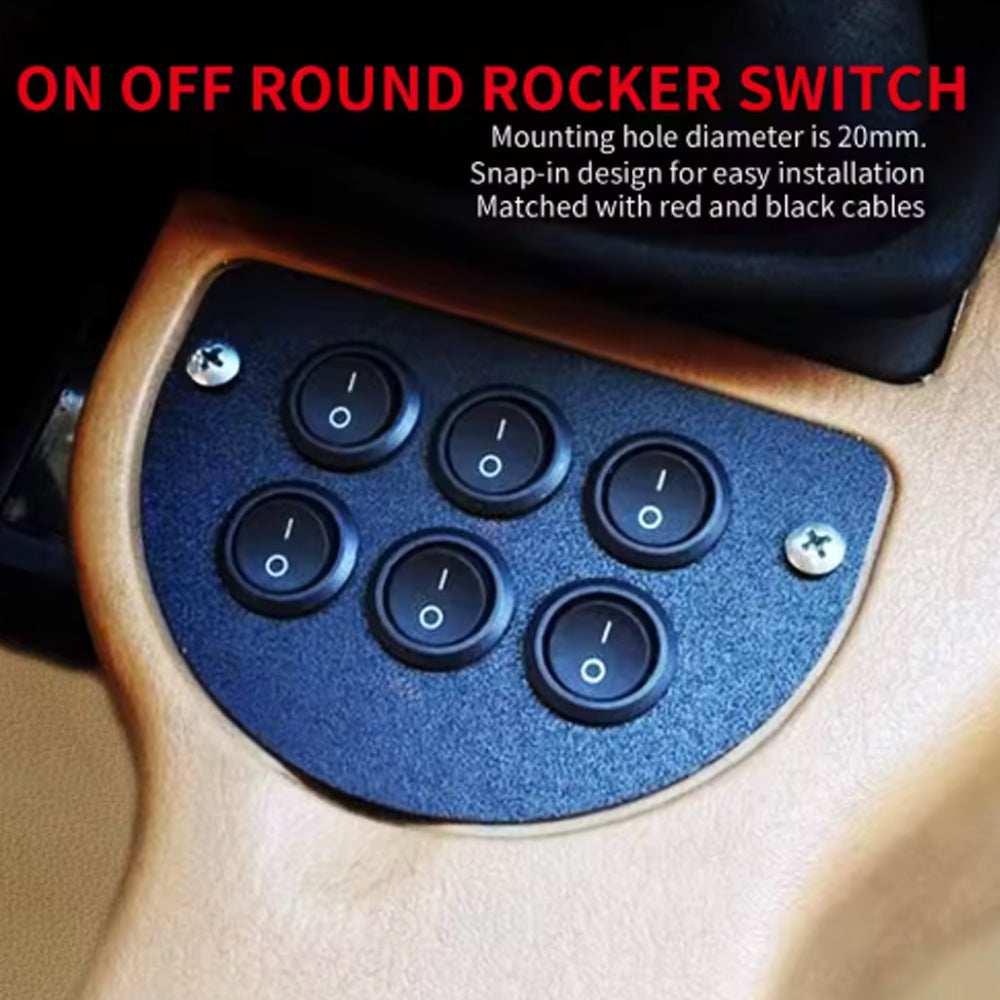

Application: The Circle round rocker toggle switch is widely applied to Car Automotive RV Household appliances, etc.
ON OFF Round Rocker Switch Spec:

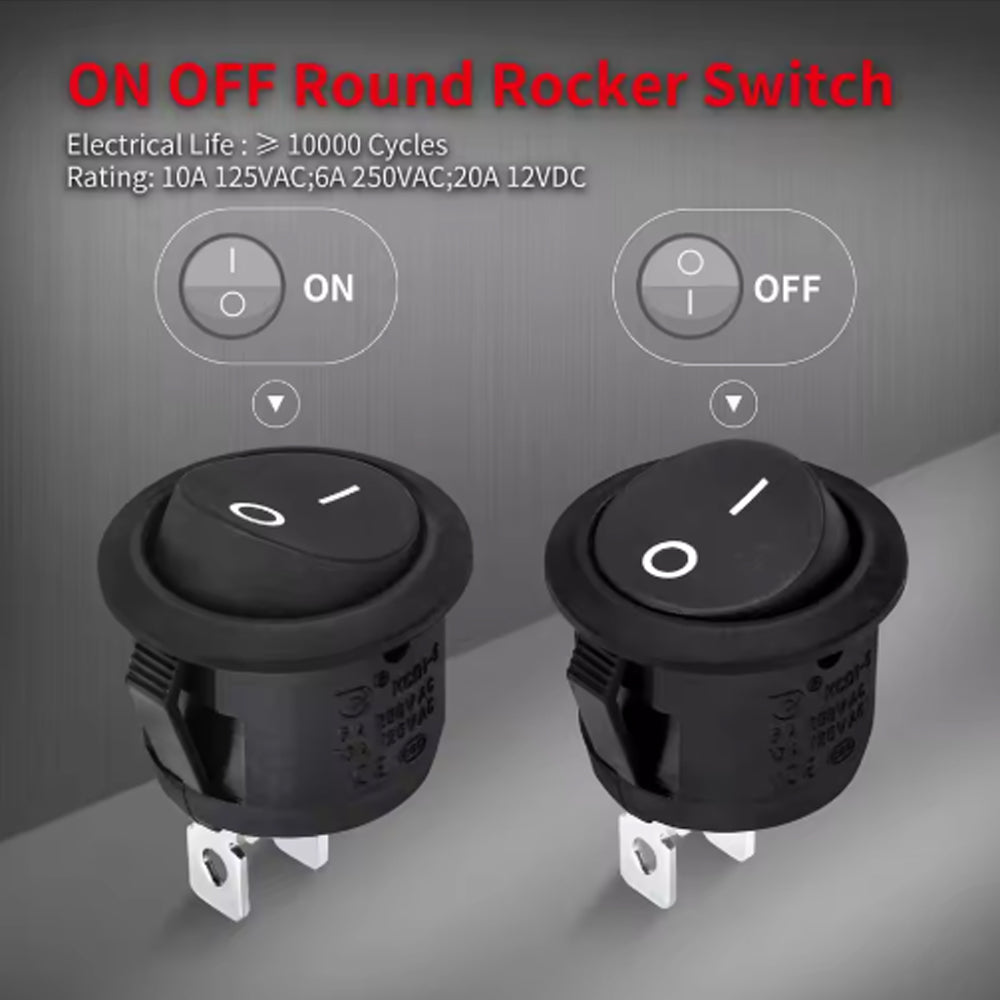

Rating: 10A 125VAC; 6A 250VAC; 20A 12VDC
Function: SPST 2 PIN ON/OFF
Shape: Round Shape, Black Color

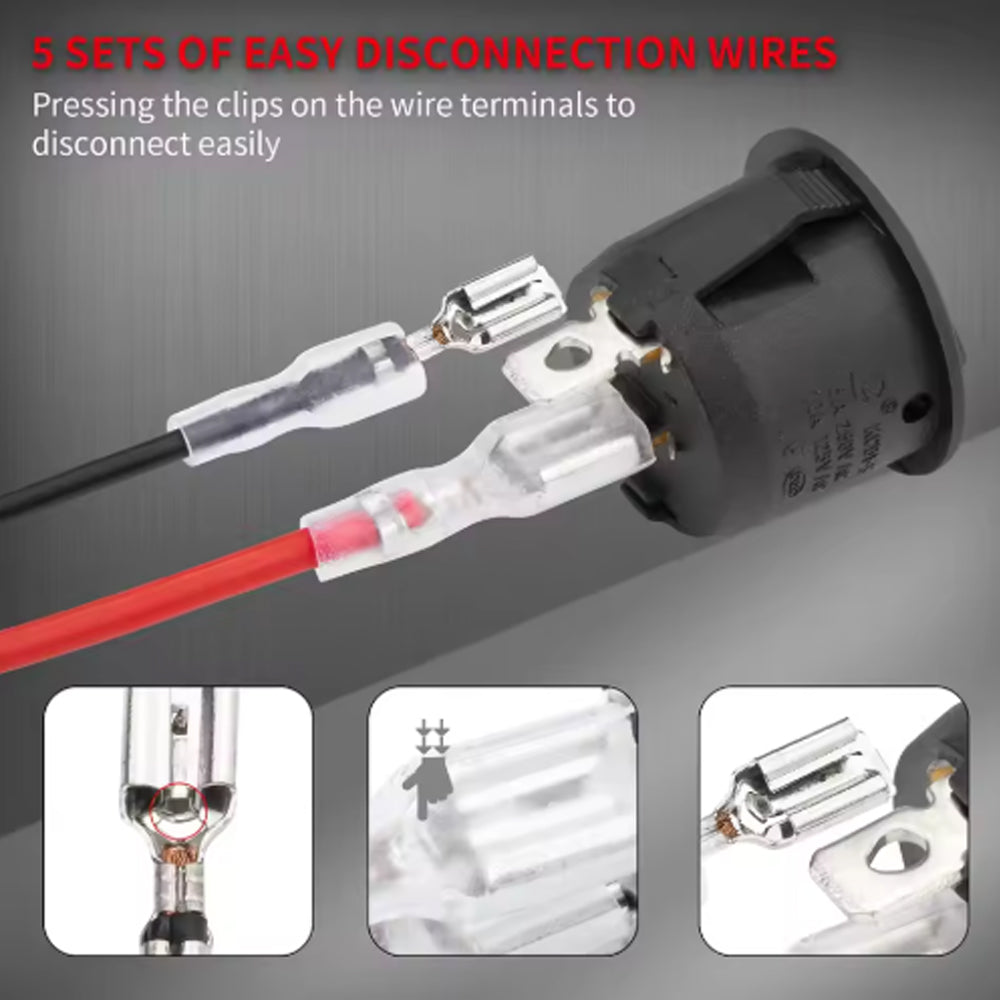

Features: with 5 sets of #187 Terminal Wires
Insulated Resistance : ≥ 100 MΩ
Contact Resistance : ≤50 mΩ
Dielectric Strength : ≥ 1500V AC/5S
Operating Temperature : T85
Electrical Life : ≥10000 Cycles
