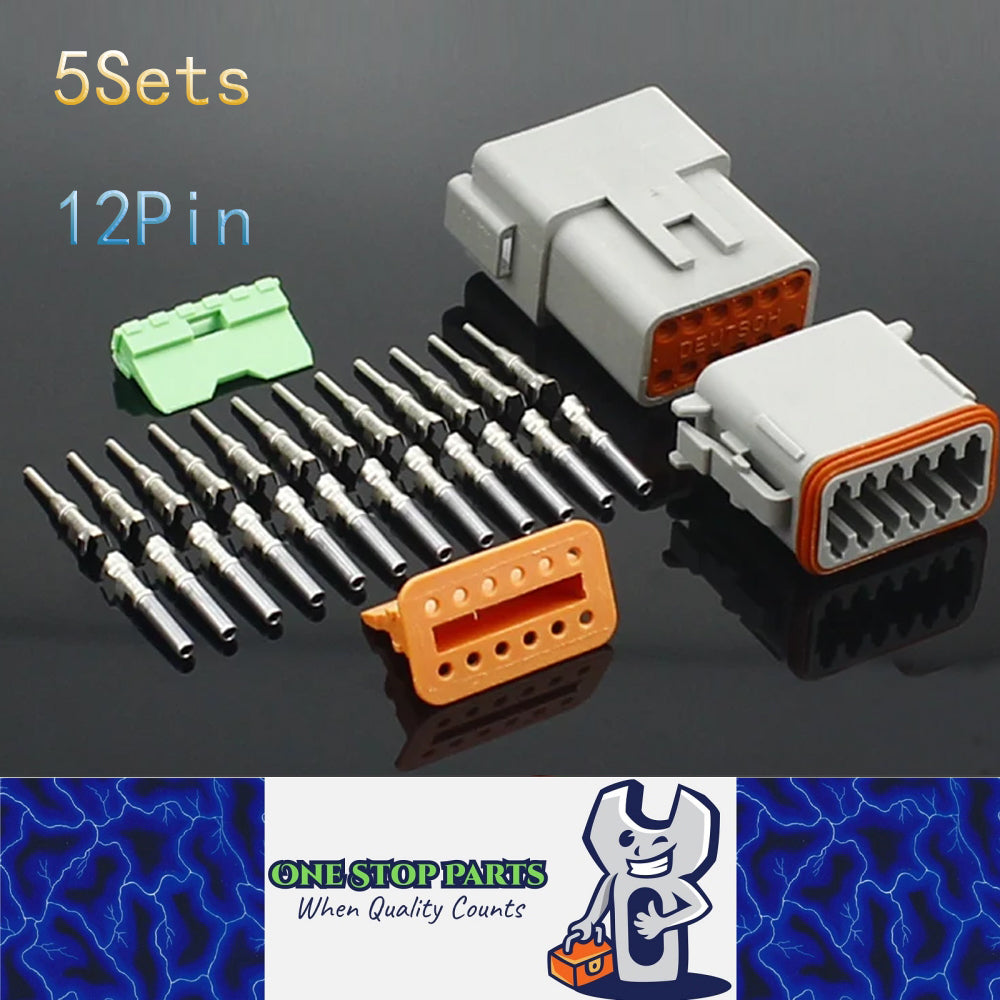

Deutsch DT 12 way connector includes all components of plugs, receptacles, stamped contacts and wedge locks necessary to complete the wire harness. Ideal for OEM pigtails.

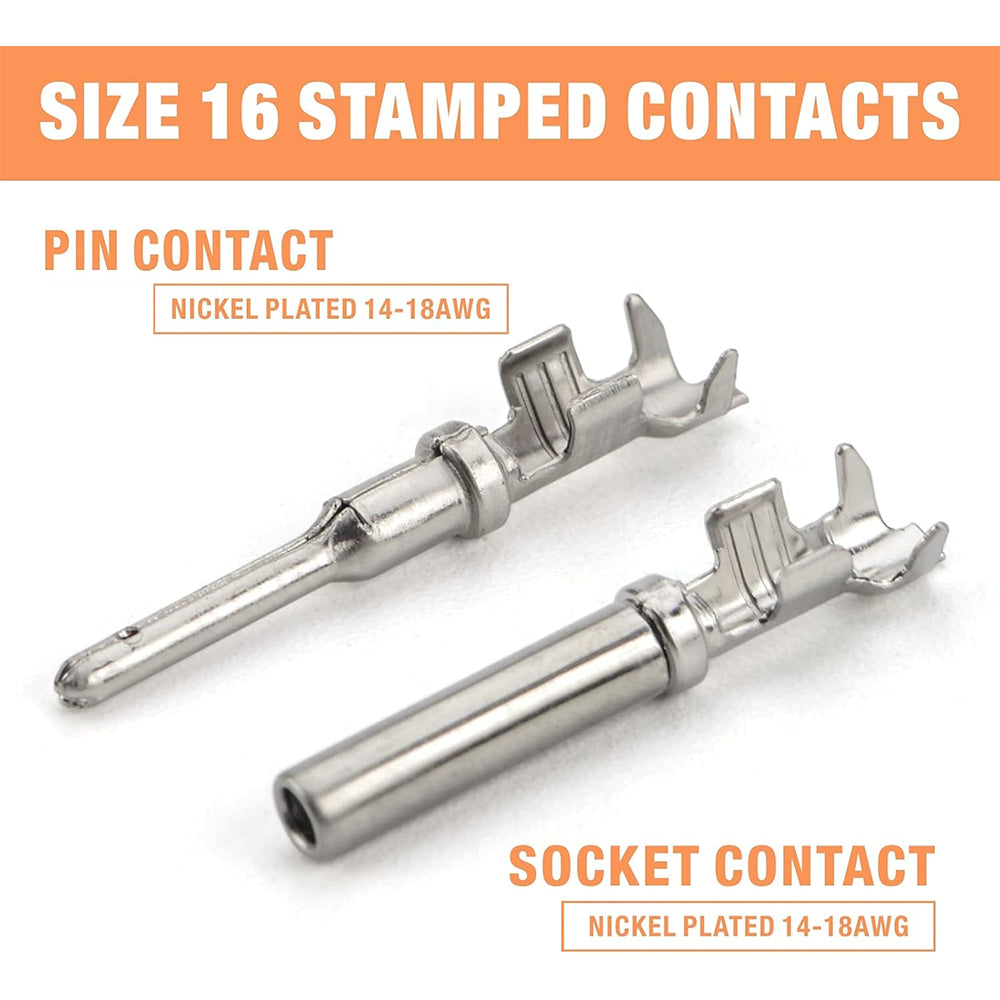

Size 16 Stamped & Formed Contacts:
Designed for use where wire termination costs are of primary concern without sacrificing reliability of electrical circuits. The stamped and formed contact series is made on a precision stamping machine using flat strip stock, then a durable and corrosion proof nickel plating is applied 14-18AWG.
Secure Connection:

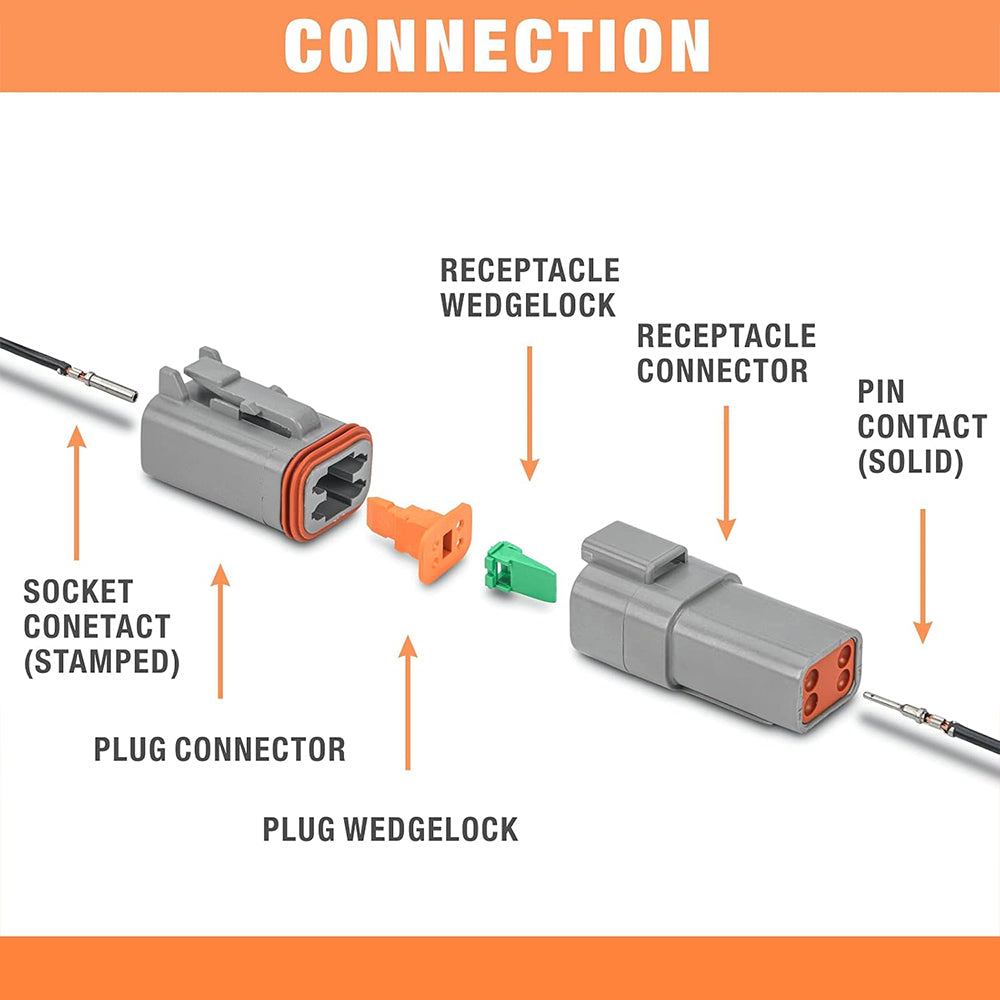

Wedge locks for plug and receptables serve a secondary lock for the contacts/terminals as well as acting as a retainer for the ribbed seal at the nose of the connector body. Wedgelocks are required components for all DT housings.
Applications:

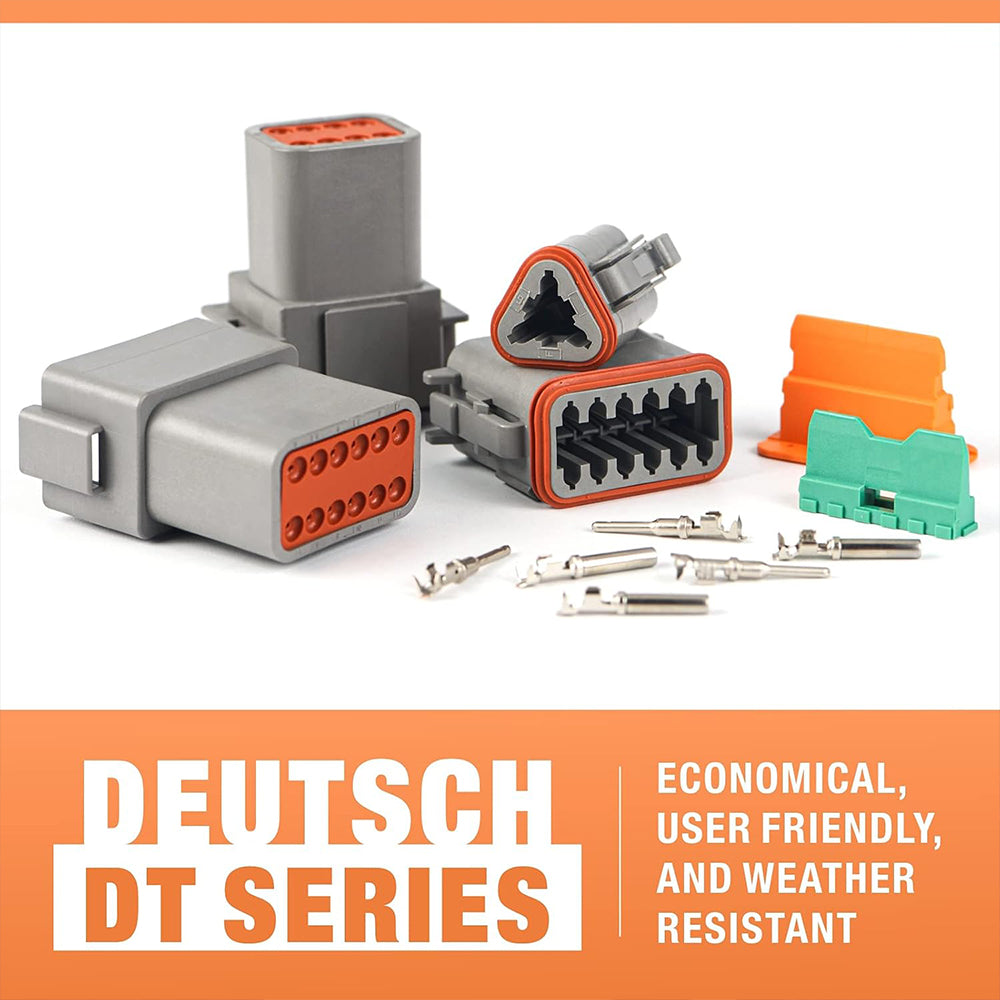

The Deutsch DT series connectors are by far the most popular connector used in many automotive, industrial and motorsports applications.
