About this item

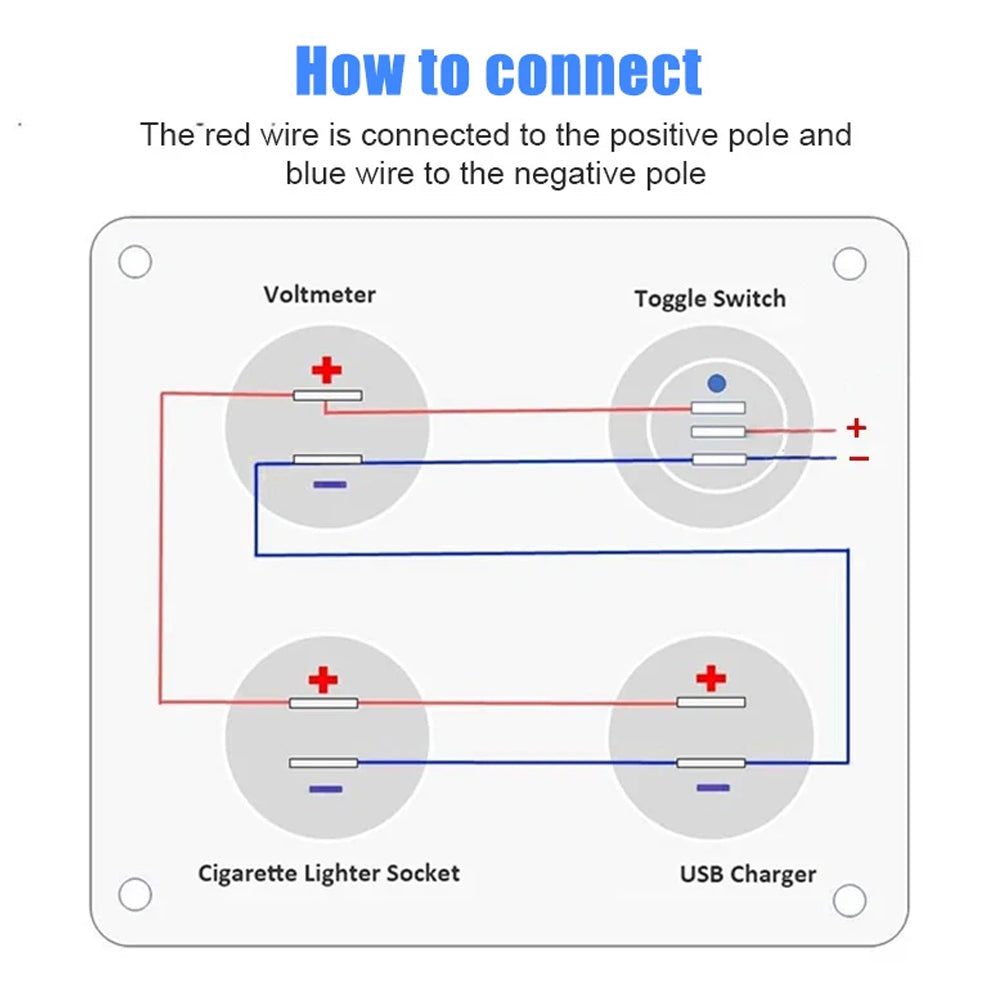

How to connect:
Connect the “+” to power positive pole, and connect “-” to ground or negative pole. For vehicle, it's better to choose power positive pole from ACC, than BATT+; For motorcycle, it's better to get power from key switch.
Special Features

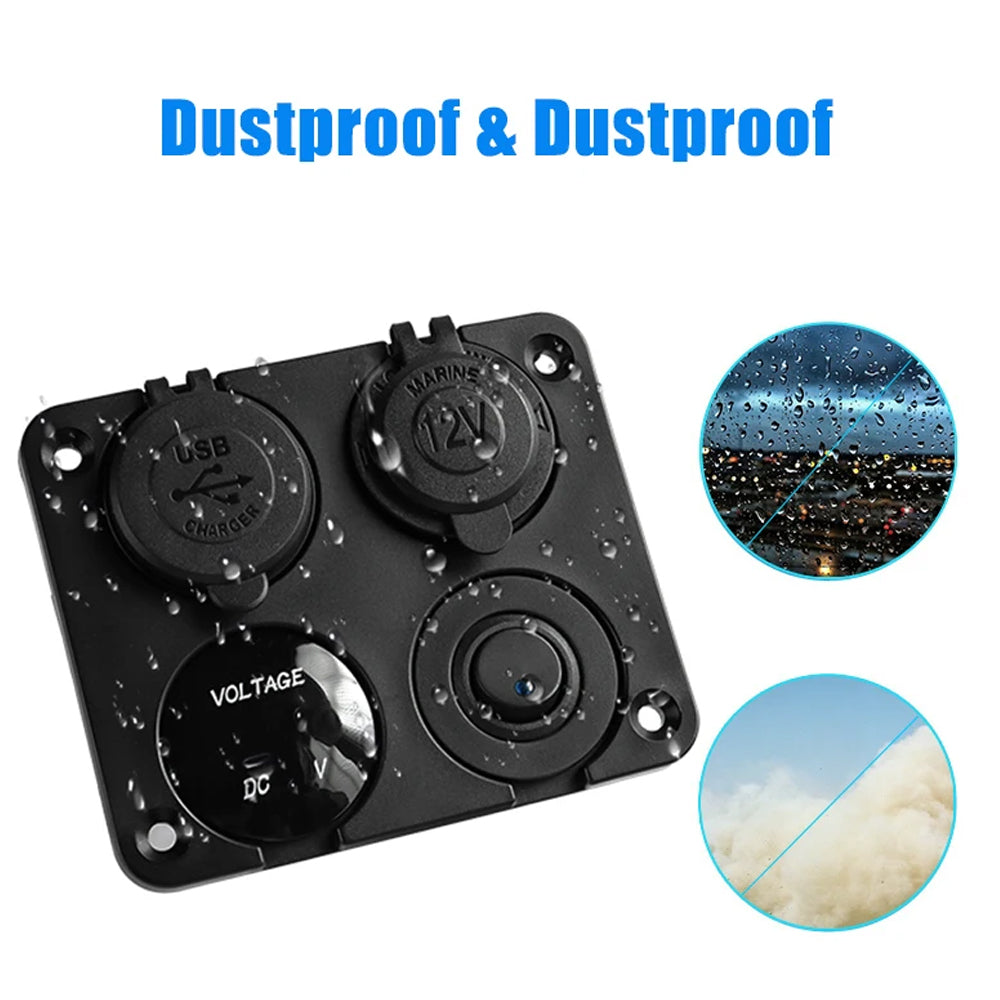

Waterproof USB Socket Cigarette Lighter Adapter
Specifications

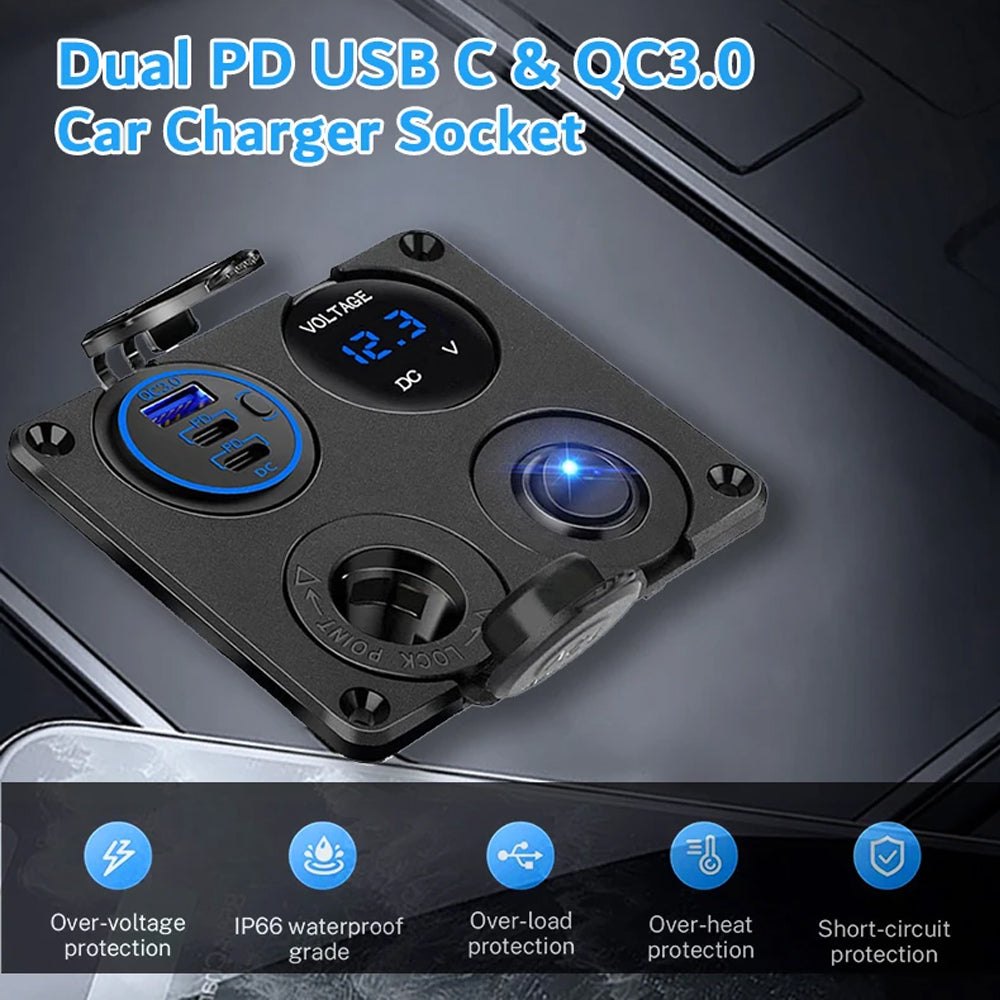

Type: 4 in 1 Charger Socket Panel
Material: ABS
Input Voltage: DC 12V-24V

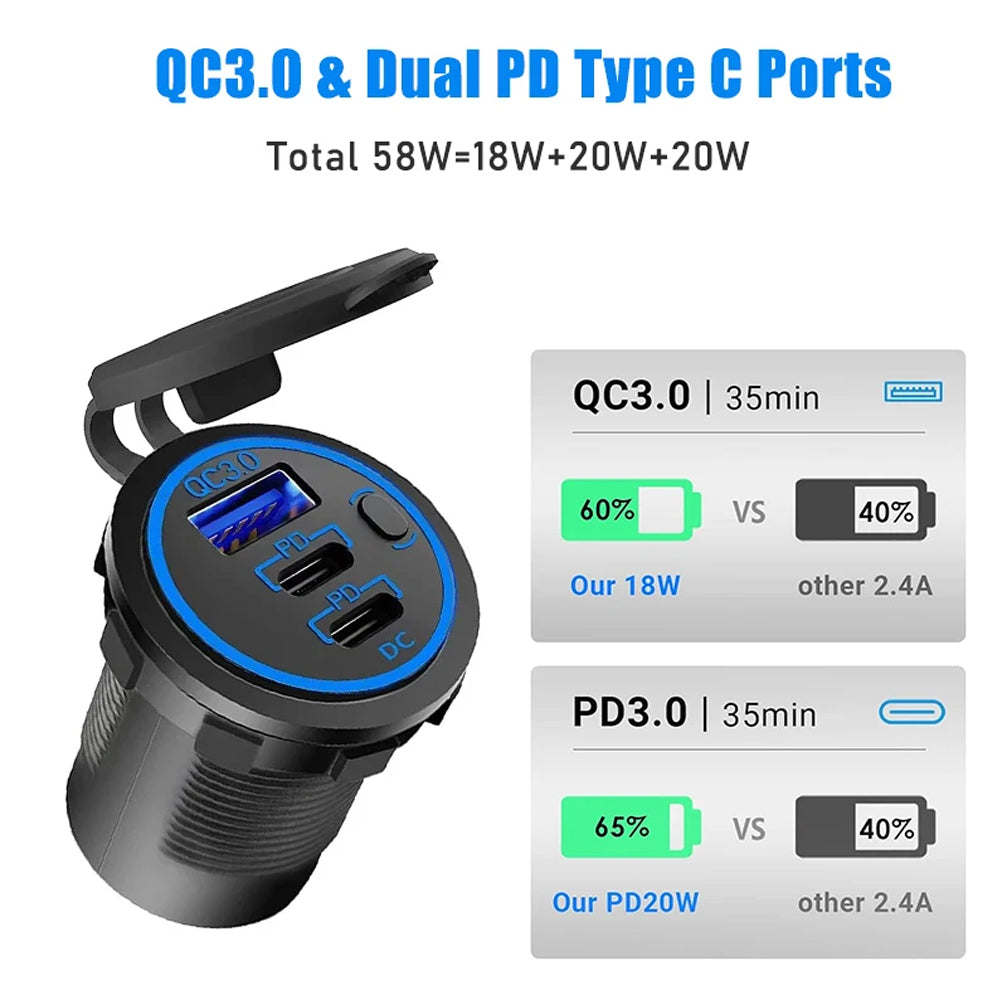

Each USB-C Port Power: 20W Max
Each USB-C PD Output: 5V=3A, 9V=2A-3A,12V=1.5-2.5A, 15V(20V)=1A-1.5A
QC3.0 Port Output: 5V/3A,9V/2A,12V/1.5A (18W Max)
Voltmeter Display Range: 6-28V
Rocker switch: 20A 12V DC

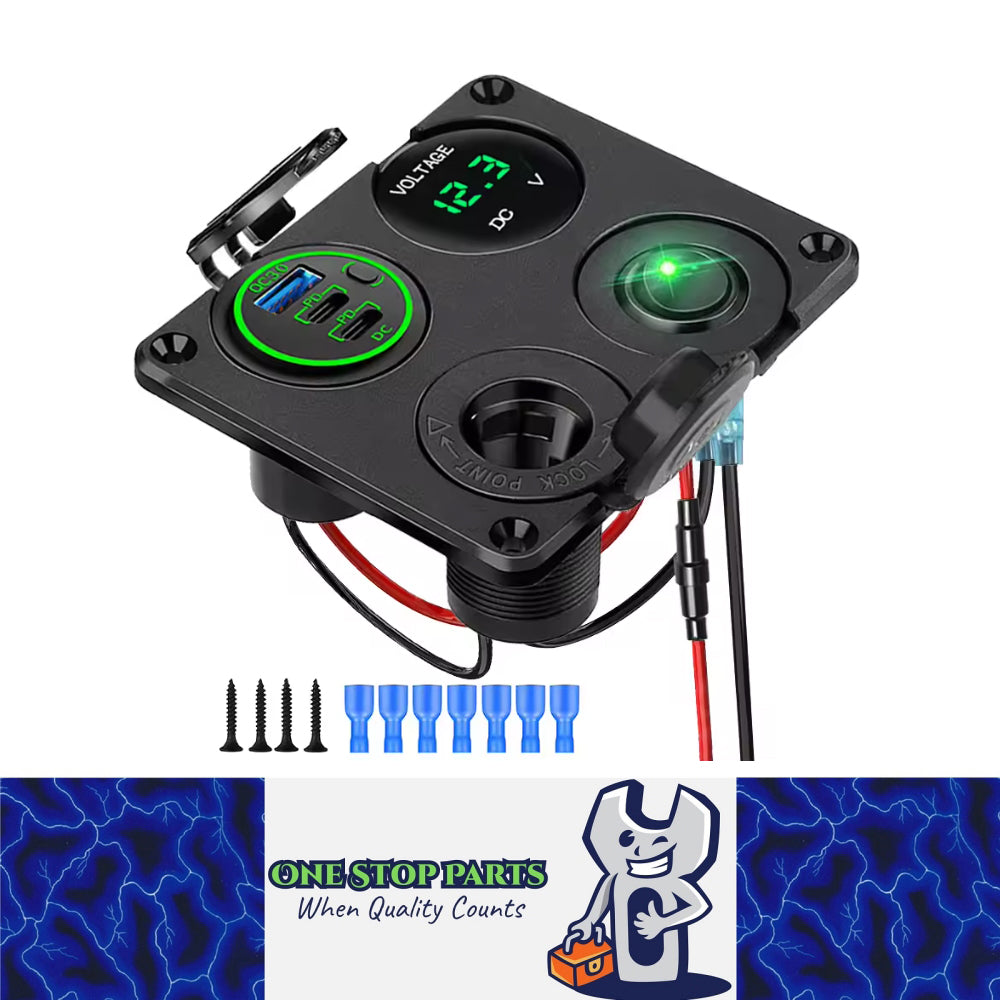

Package include
1 * Dual PD USB Car Socket
1 * 12V Cigarette Lighter Socket
1* LED Voltmeter
1 * ON-OFF Rocker Switch
1 * Four Holes Panel
4 * Stainless Steel Screws
7 * Blue Terminals
3 * Wires
