About this item

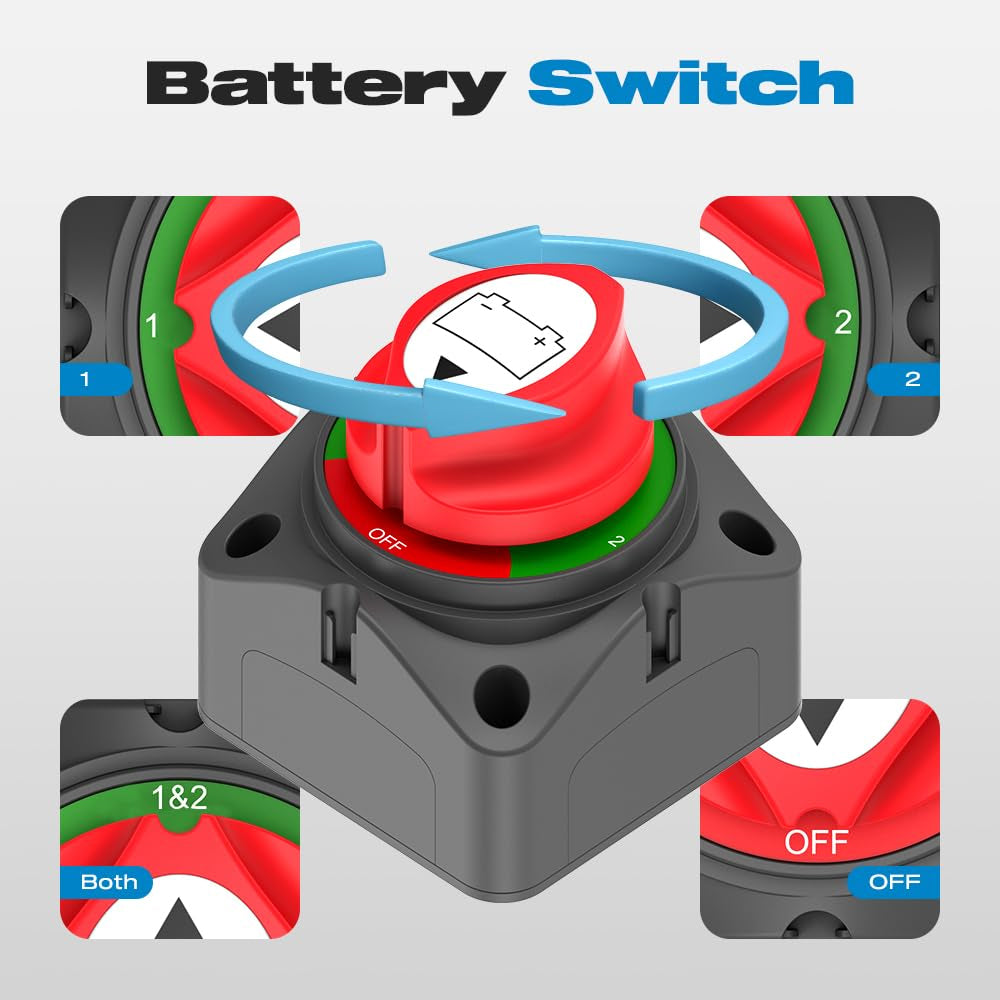

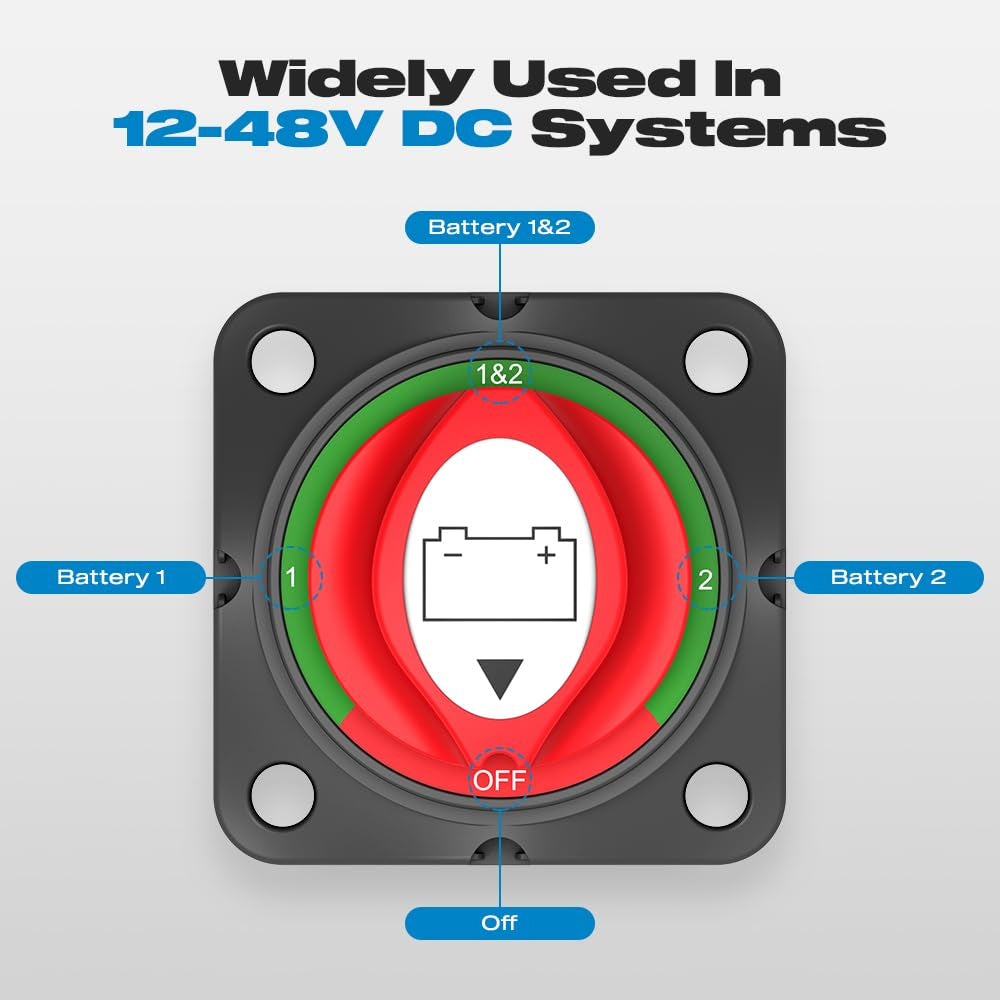

Four-Position Selection: This 12V battery disconnect switch features a 1-2-Both-Off four-position setting, allowing for individual or combined use of two batteries, or complete disconnection, supporting 200A continuous, 300A intermittent, and 1000A momentary usage.
High-Quality Material: Made from premium ABS plastic, this switch is equipped with copper terminal studs and nuts, with a rear cover that isolates terminals, enhancing durability and safety.
Safety Protection: This waterproof battery switch safely disconnects the battery, preventing excessive drain when vehicles or boats are not in use.
Wide Application: Suitable for isolating and protecting circuits in 12-48V systems, it can be used alone or locked together with other switches, extensively used in cars, boats, RVs, campers, travel trailers, trucks, ATVs, UTVs, battery banks, and other equipment.

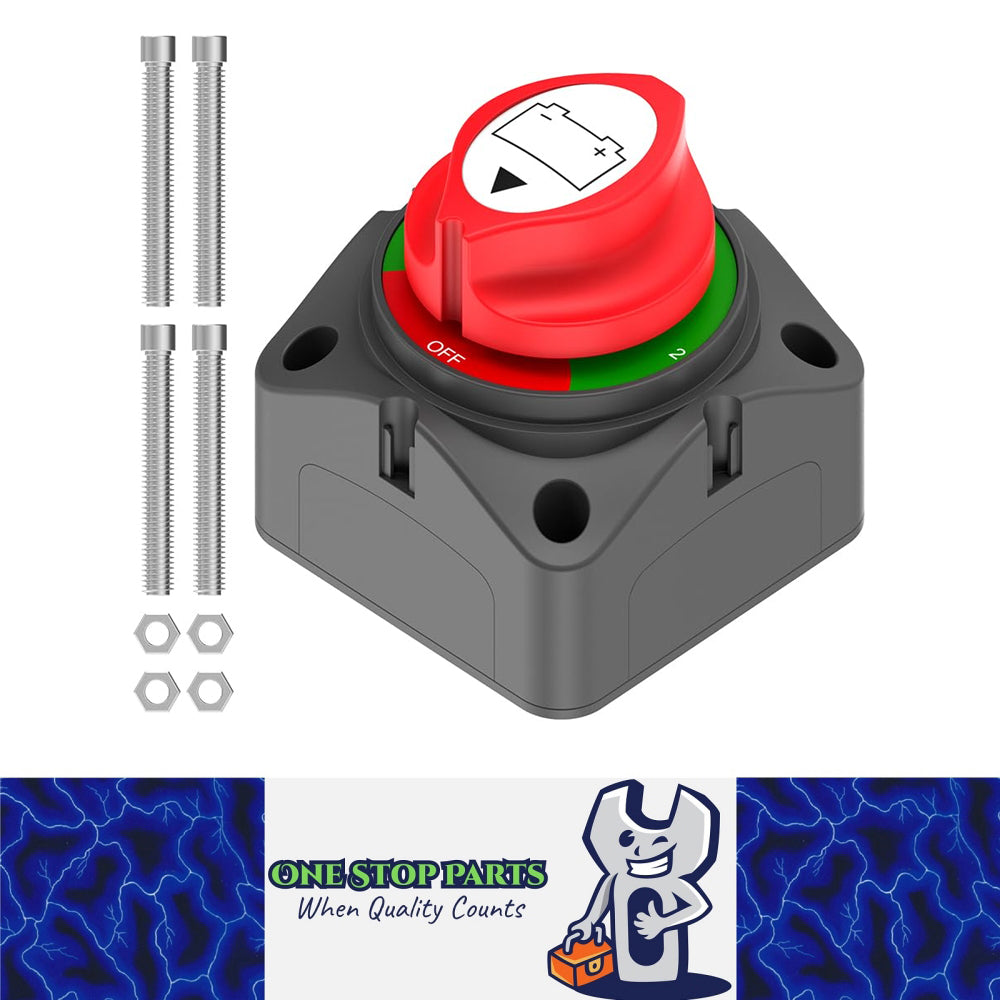

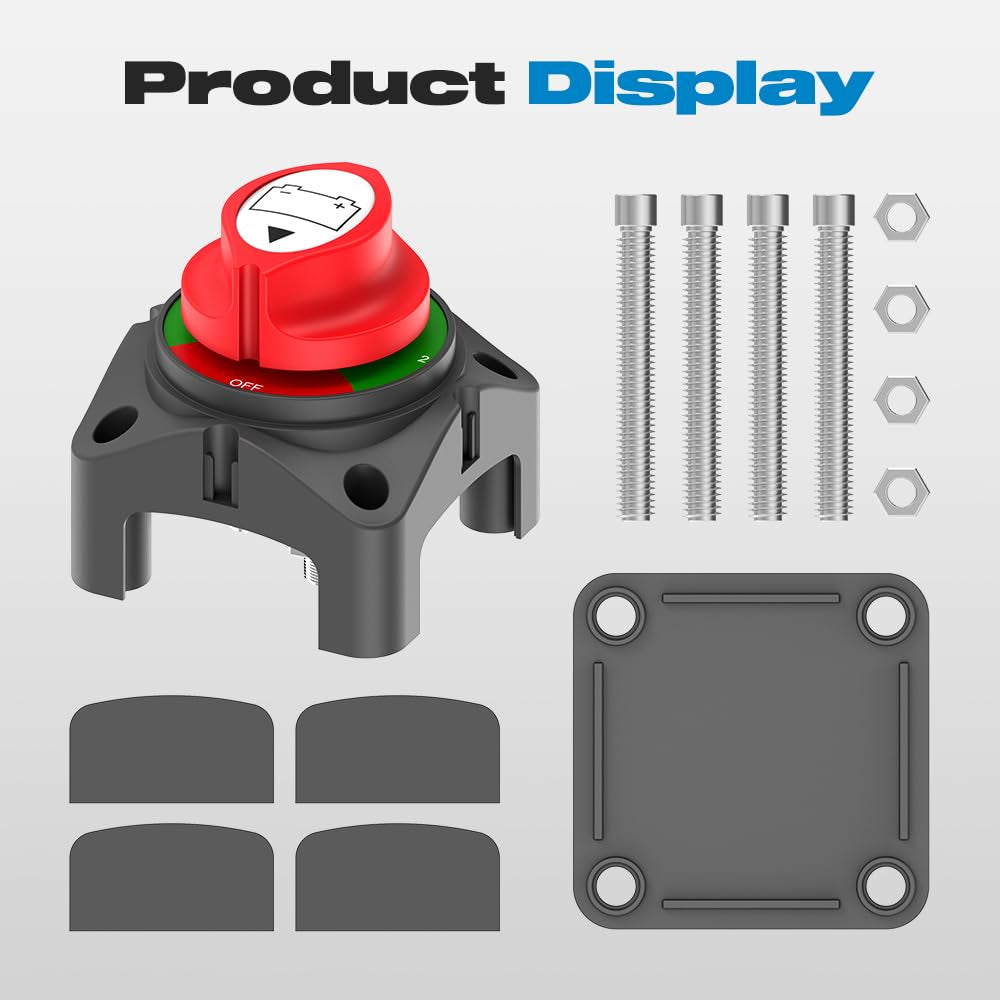

Complete Kit: The package includes 1 battery switch and 4 stainless steel mounting screws and nuts, providing everything needed to secure the switch.
Specifications
Current Rating: 200 Amps
Operating Voltage: 12 Volts
Contact Type: Normally Open
Connector Type: Clamp
Terminal: Screw
Circuit Type: 2-way
Actuator Type : Rotary
