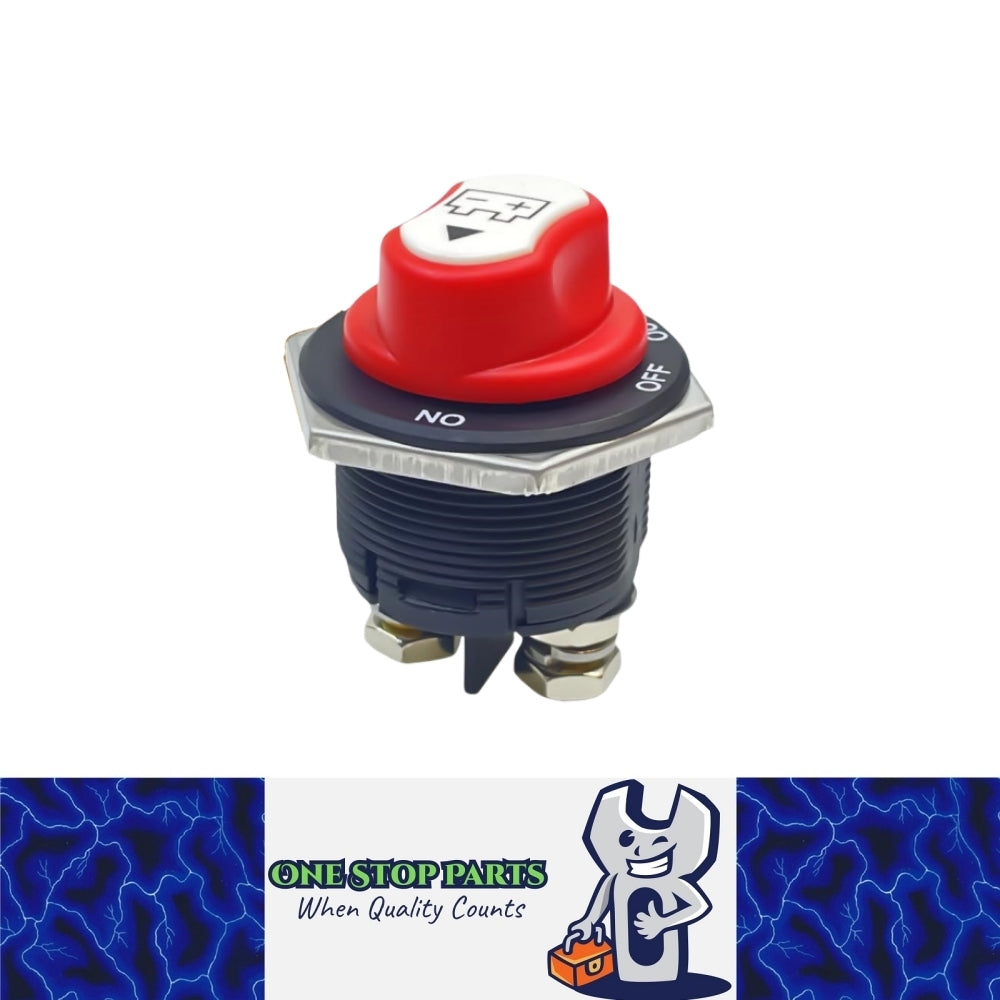

Here we have 12V 200Amp Heavy Duty Isolator Switch Battery Disconnect Switch. Widely used for Motorbikes, Cars, RVs, Truck, Caravan, Marine Boat, ATVs, UTVs, etc.
Heavy Duty: ABS plastic housing and premium metal terminal, is built to withstand harsh marine conditions and ensure safety. Ensure maximum strength and durability for long lasting usage.

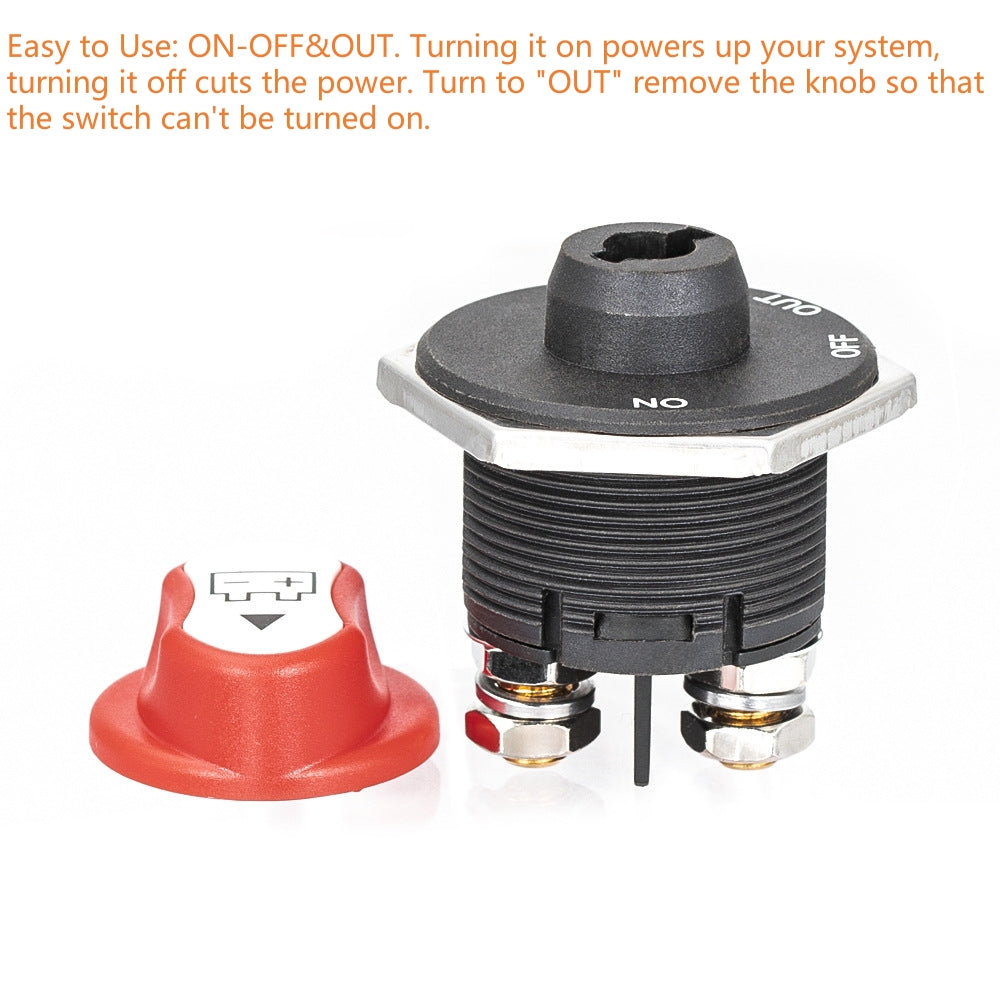

Easy to Use: ON-OFF&OUT. Turning it on powers up your system, turning it off cuts the power. Turn to "OUT" remove the knob so that the switch can't be turned on.

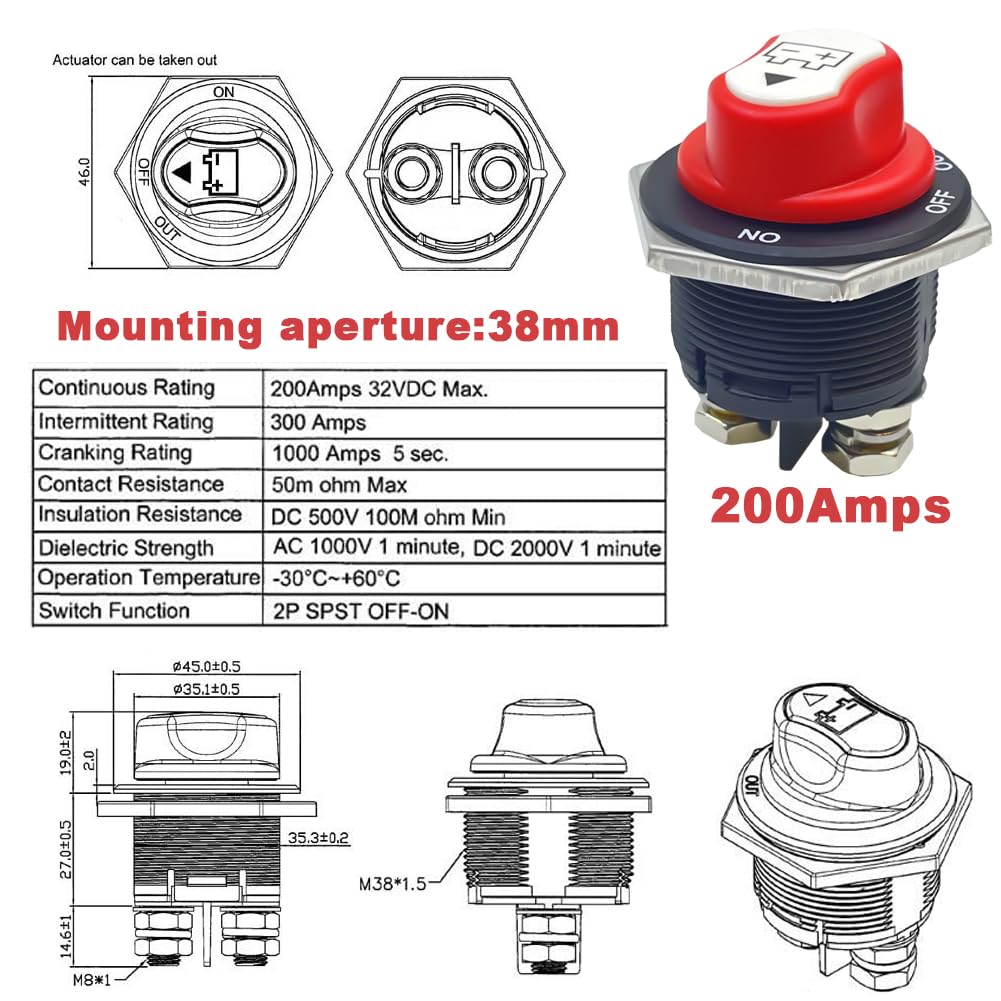

Specification:
Continuous rating: 200Amps 32VDC Max.
Intermittent rating: 300Amps.
Cranking rating: 1000 Amps 5 sec.
Contact resistance: 50m ohm.
Max insulation resistance: DC 500V 100M ohm.
Min dielectric strength: AC 1000V 1 minute, DC 2000V 1 minute.
Operation temperature: —30℃～ +60℃.
Quantity: 1 Piece
