About the item

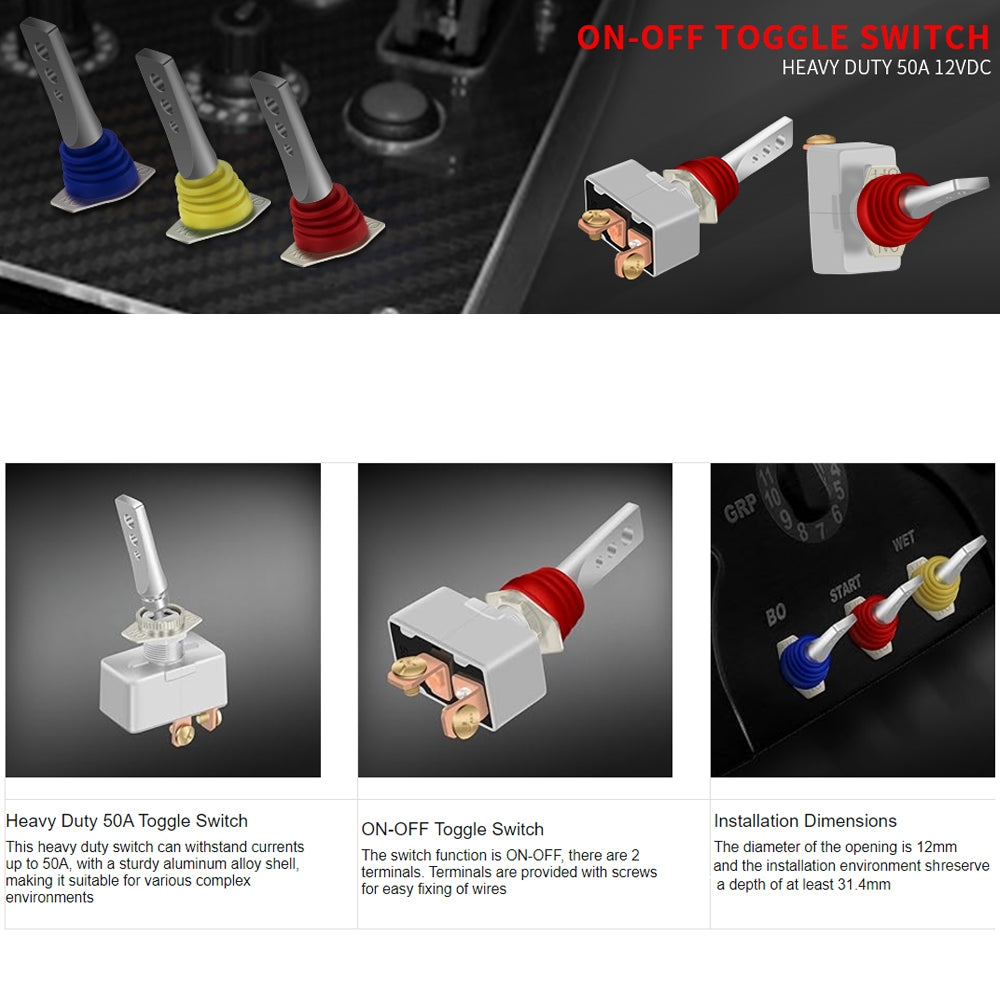

This heavy duty switch can withstand currents up to 50A, with a sturdy aluminum alloy shell, making it suitable for various complex environments.
The switch function is ON-OFF, there are 2 terminals. Terminals are provided with screws for easy fixing of wires.

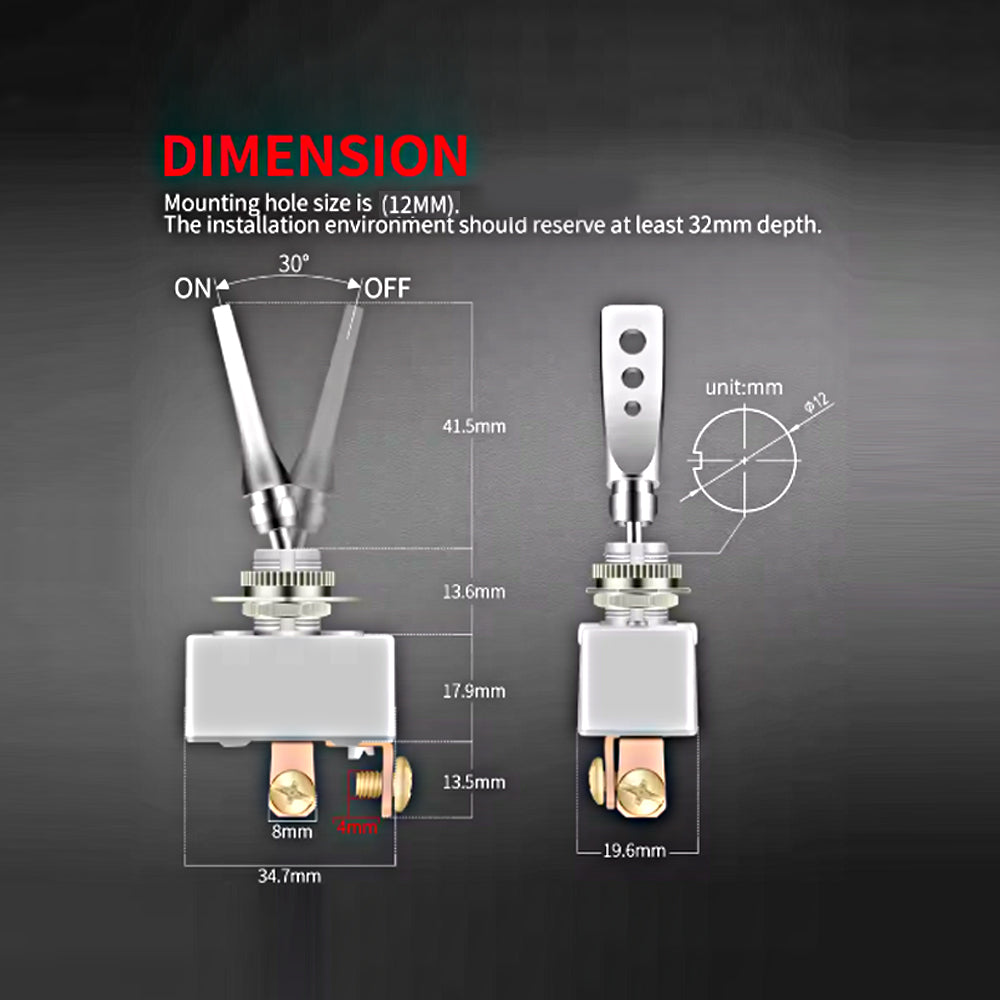

The diameter of the opening is 12mm , and the installation environment should reserve a depth of at least 31.4mm .
Speciflcation
Switch Type:Toggle Switch
Certification: CE
Is Smart Device: No
Rating：50A 12V DC
Contack R：50mΩ max
Insulation R：500V DC 100mΩ min
Connector Type: Screw
Dielectric Strength：1 Minute 1500V AC
Operating Temperature：-25℃~+85℃
Electrical Life：10,000 Cycles

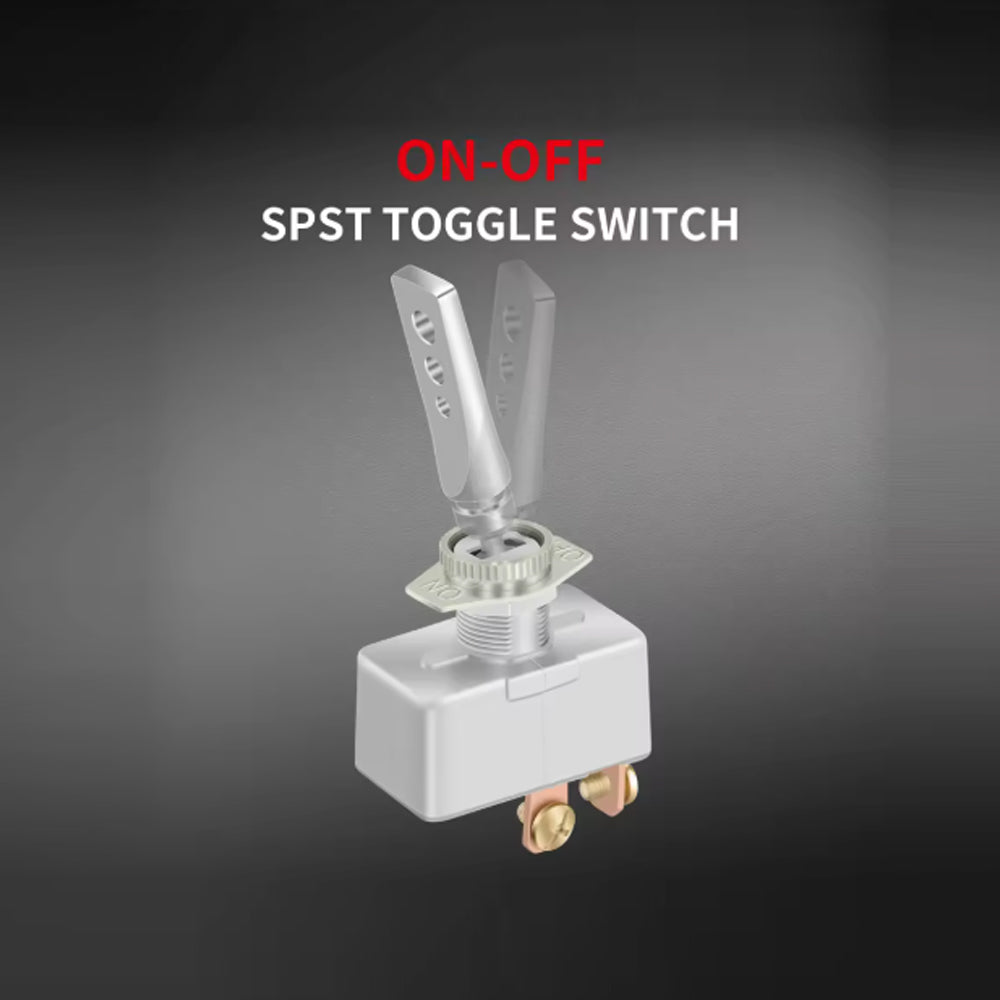

Function：SPST 2PIN ON-OFF

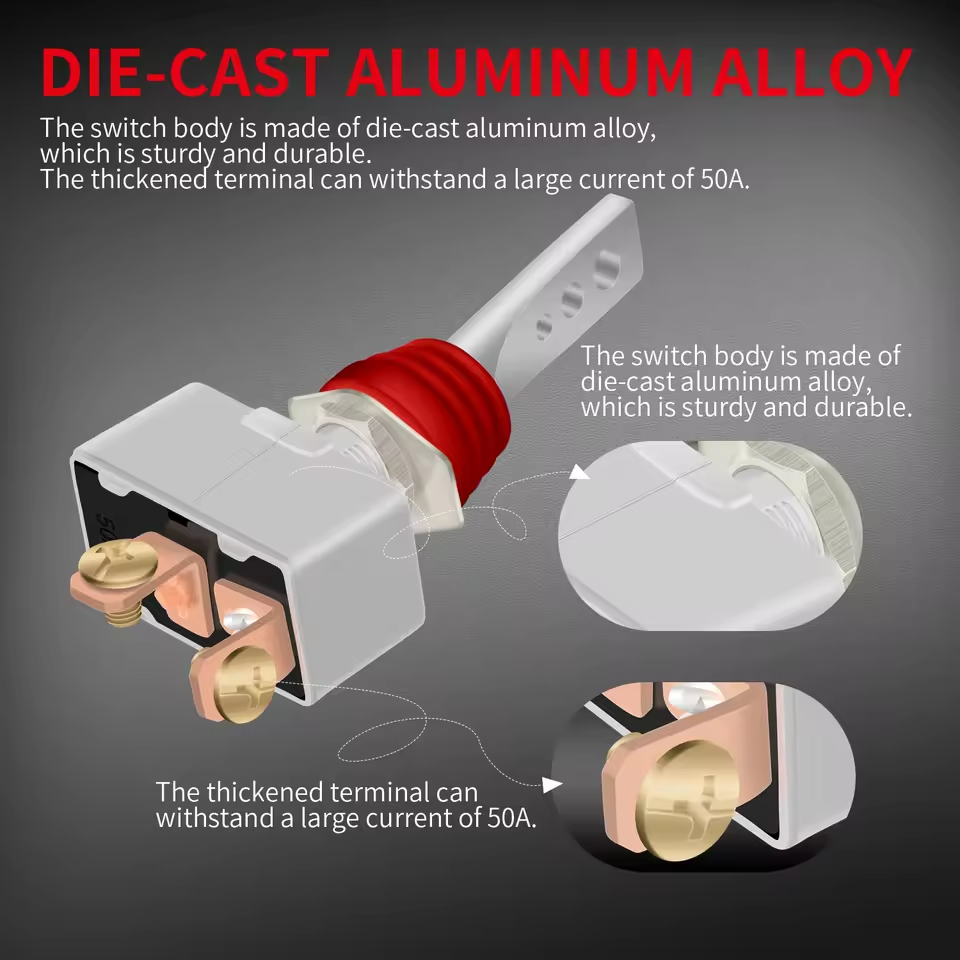

Material: Aluminum , aluminium alloy
Cover Color: random (yellow/red/black/blue)
Quantity: 2 pieces
