About the item
*Limit Switches Type: SPDT 3 Pin limit switch, 1 NO 1 NC design, rating: 6A 12V DC or 5A 250V / 120V AC.

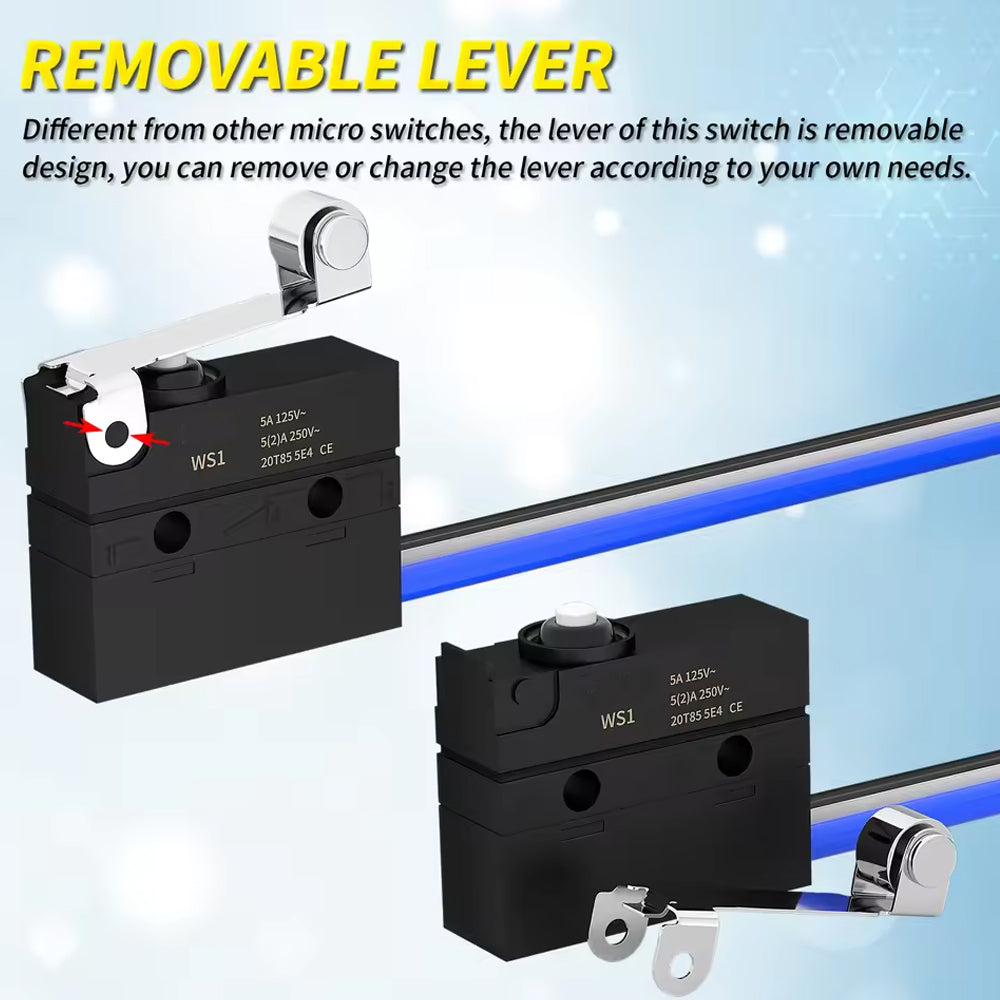

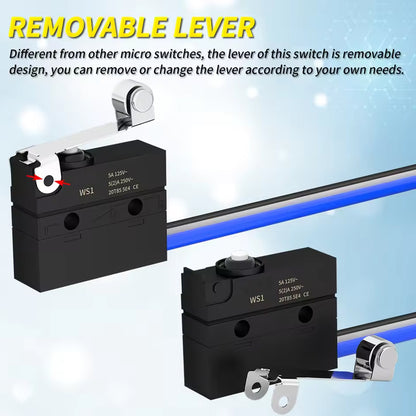

*Removable Lever: Micro switch with lever design, different from other microswitches, the lever of this microswitch is removable, you can remove or change the lever according to your own needs.

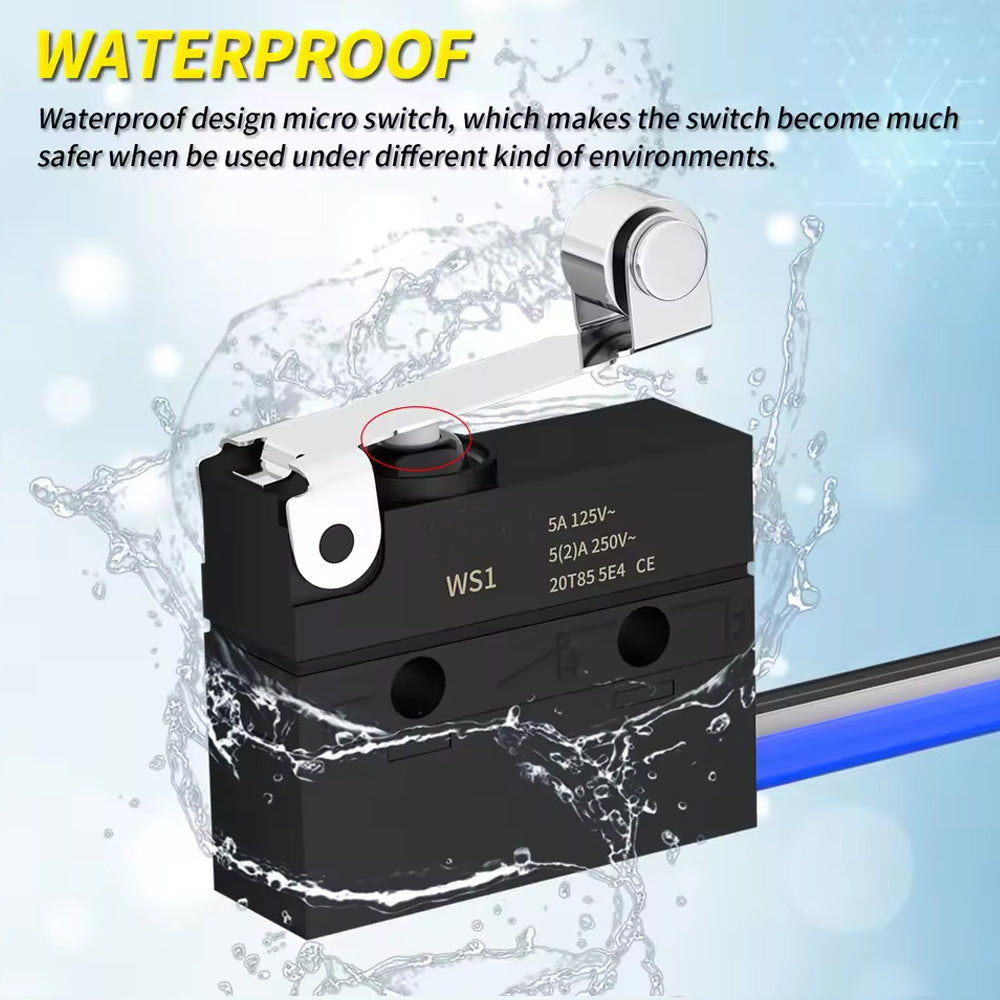

*Waterproof: This lever switch is IP67 waterproof design, which makes the micro switch become much safer when be used under different kind of environments.

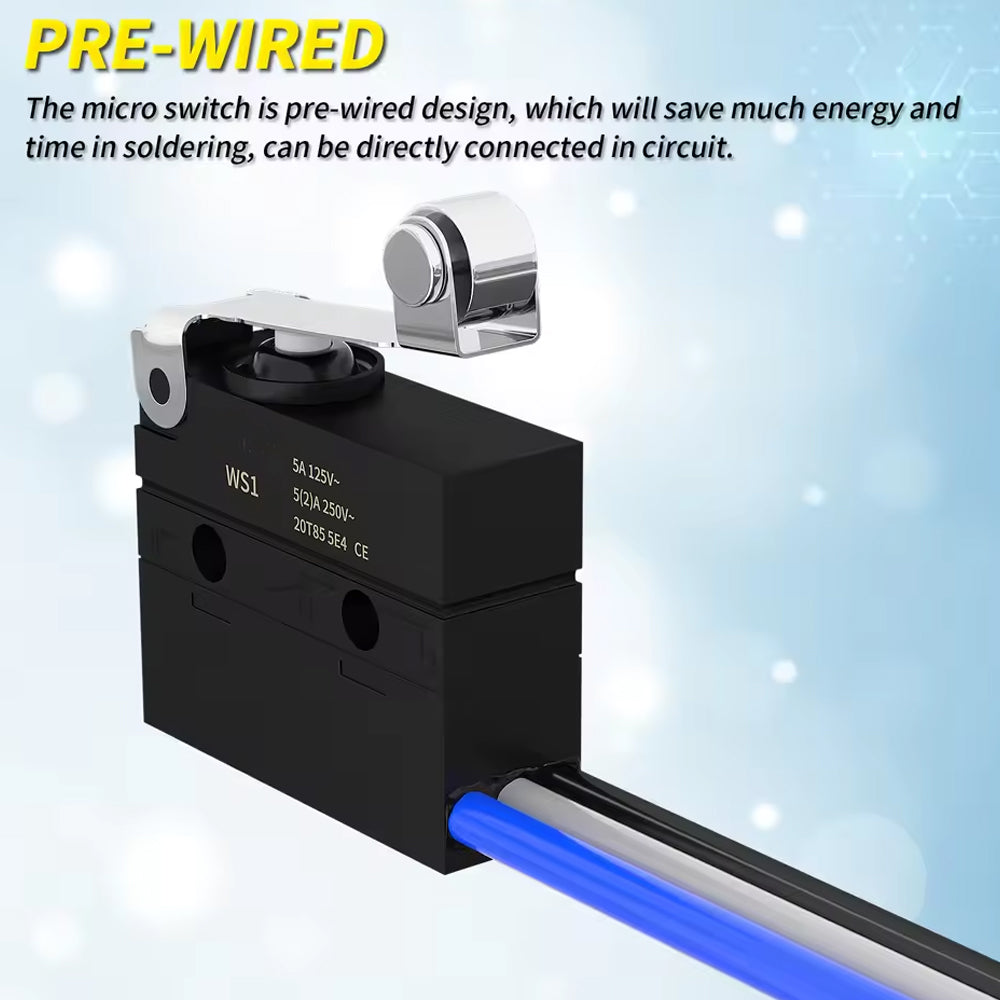

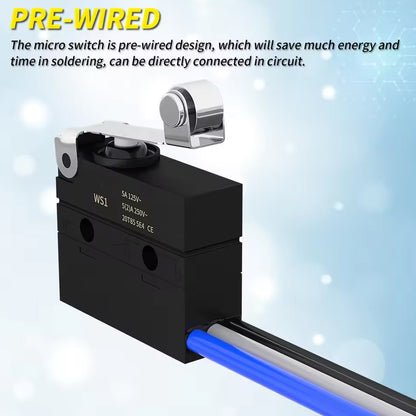

*Pre-wired: This micro on off switch is pre-wired design, which saves much energy and time to solder the switch, can be directly connected into the systems.
*Application: Due to its waterproof design, it will handle both indoor and outdoor use, suitable for cnc, household appliances, DIY appliances, etc.

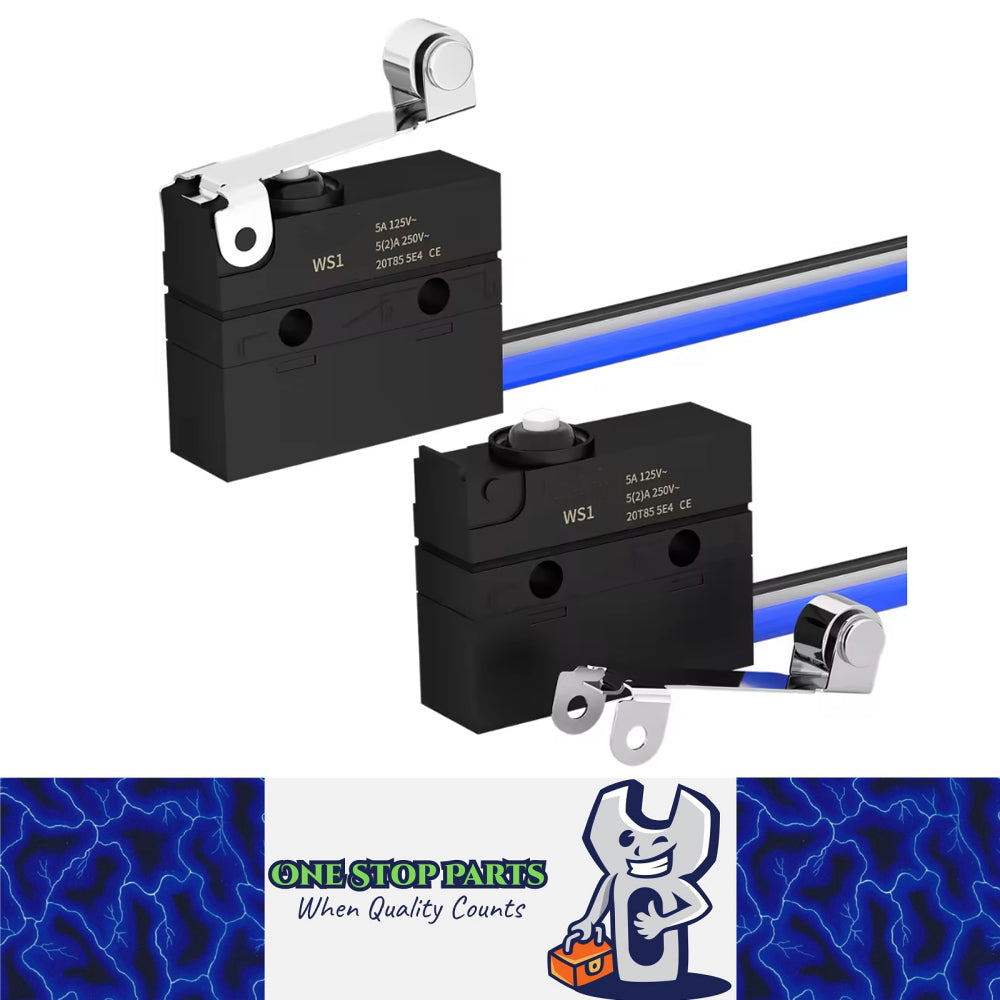

*Micro on off switch, SPDT 3 pin pre-wired design, with replaceable roller lever, cnc limit switch.
Specifications
Rating :5A 250V/ 120V AC or 6A 12V DC
Terminals :3 Pin
Feature: Replaceable Lever; Pre-wired
Lever Type :Roller Lever
Protection :IP67 Waterproof; Dustproof

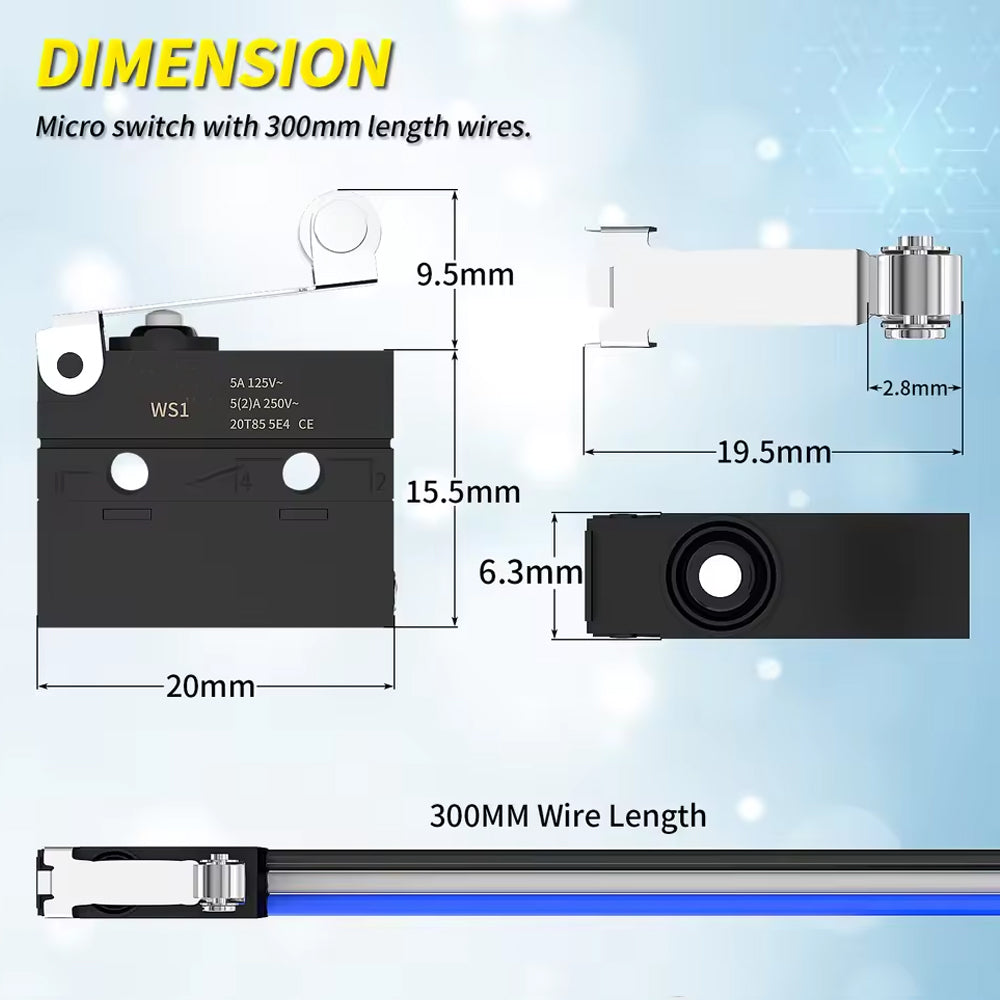

Dimension: 20mm x 6.3mm x 25mm (LxWxH)
Wire Length :300 MM
Package Includes
2 * Microswitch with Wires
2* Roller Lever
