About the item

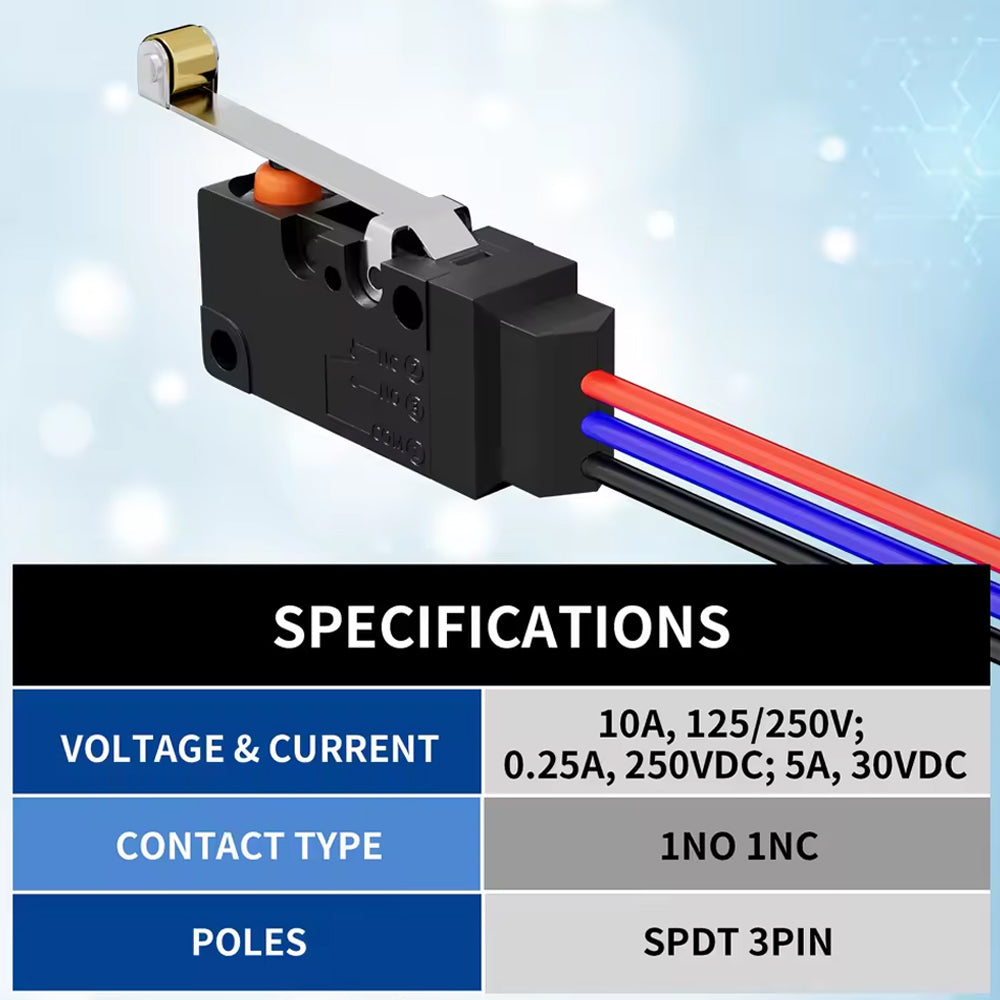

*Limit Switch Type: SPDT 3 Pin micro limit switch, 1 NO 1 NC design, rating: 10A, 125/250V; 0.25A, 250VDC; 5A, 30VDC.

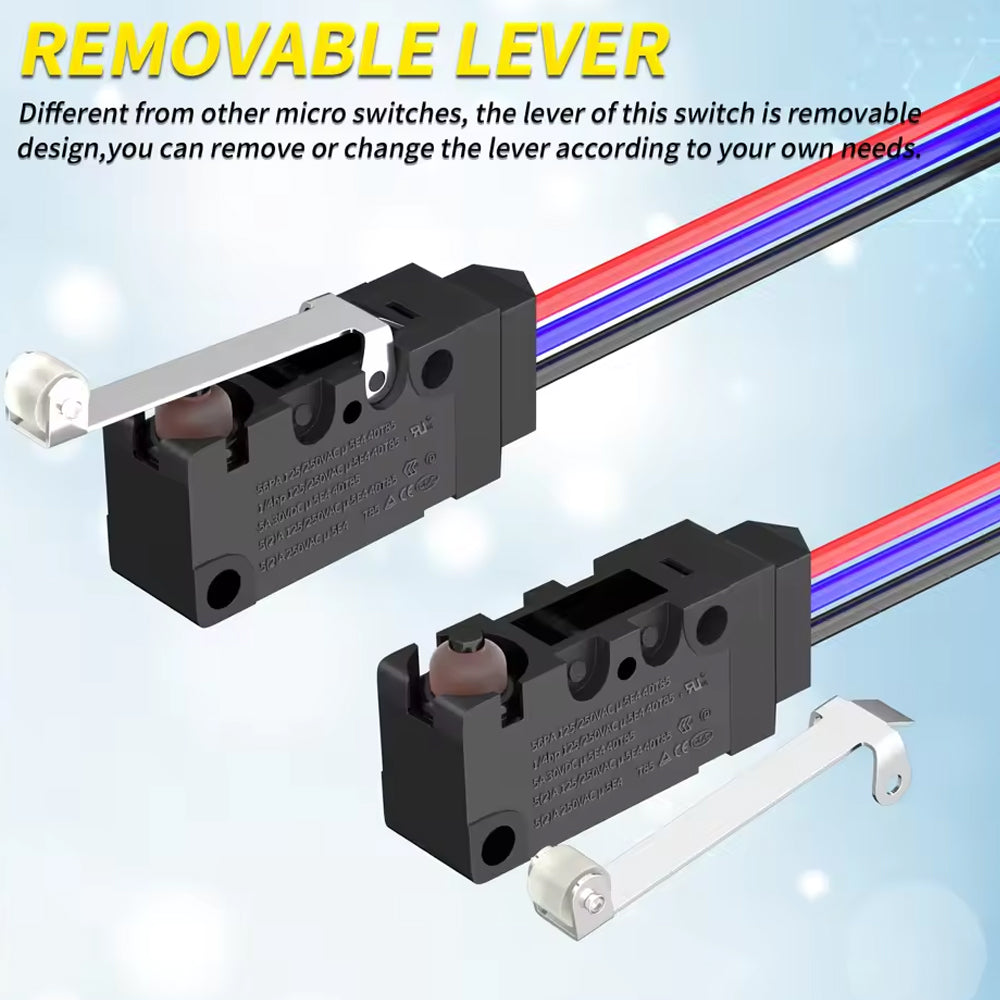

*Removable Roller Lever: Micro switch with long roller lever design, different from other microswitches, the lever of this microswitch is removable, you can remove or change the lever according to your own needs.

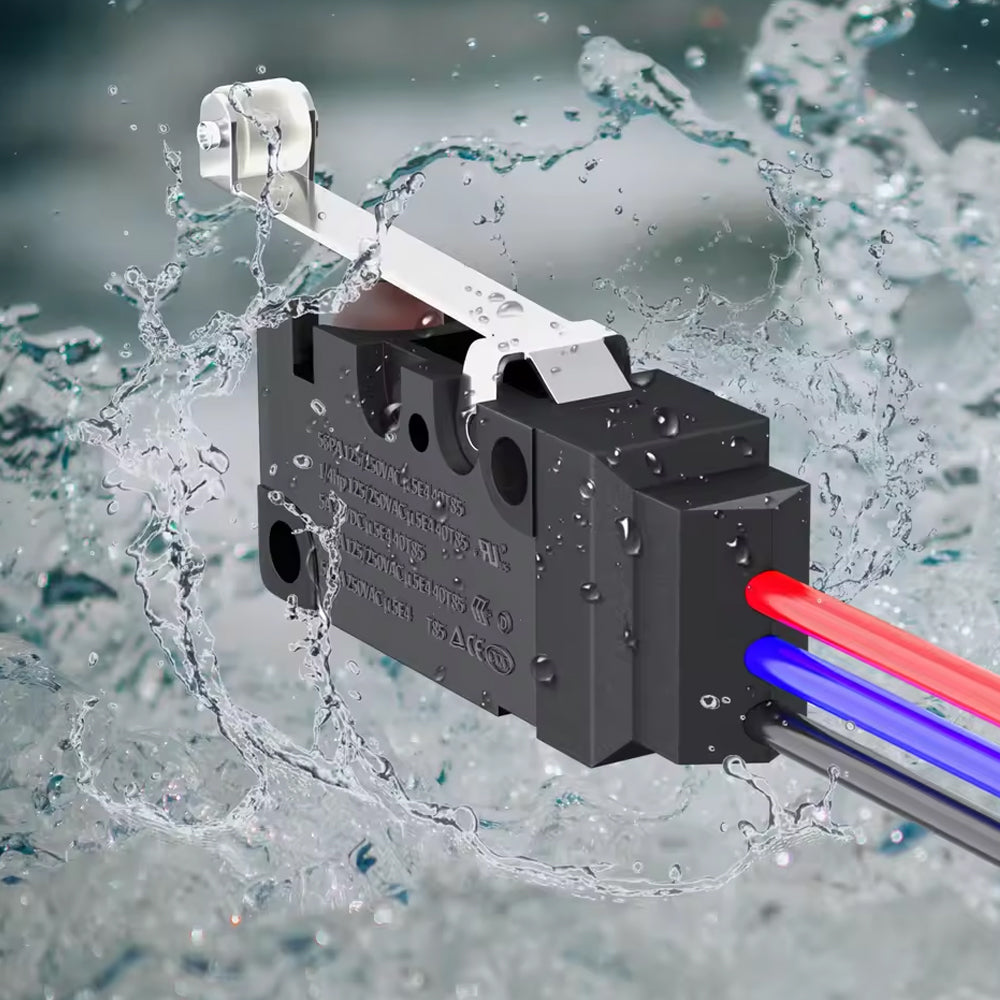

*Waterproof: This limit lever switch is IP67 waterproof design, which makes the micro switch become much safer when be used under different kind of environments.

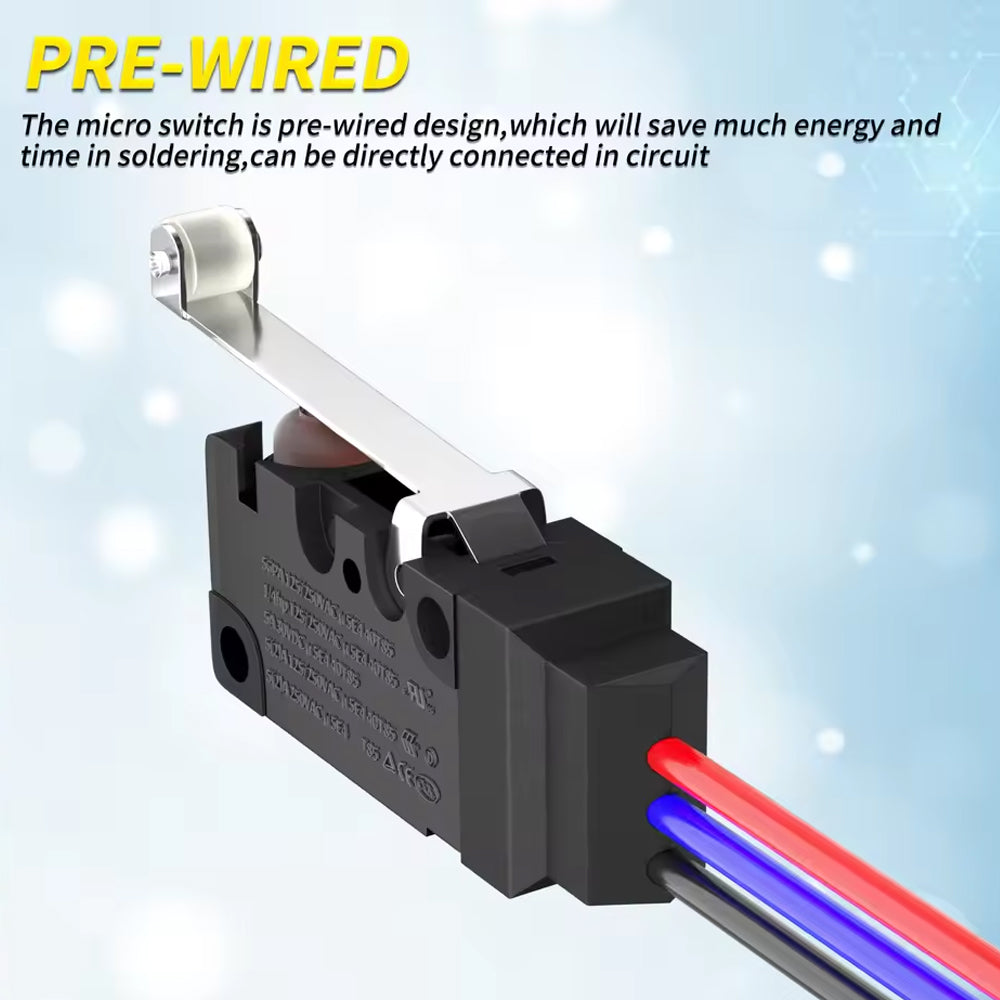

*Pre-wired: This micro momentary on off switch is pre-wired design, which saves much energy and time to solder the switch, can be directly connected into the systems.
*Application: Due to its waterproof design, it will handle both indoor and outdoor use, suitable for cnc, household appliances, DIY appliances, etc.
*Micro Switch with Lever
*Micro on off switch, SPDT 3 pin pre-wired design, with replaceable roller lever, cnc limit switch.
Specifications
Function :SPDT
Lever Type :Roller Lever
Rating :10A, 125/250V, 0.25A, 250VDC, 5A, 30VDC
Contact Type : 1 NO 1 NC Design
Protection :IP67 Waterproof; Dustproof

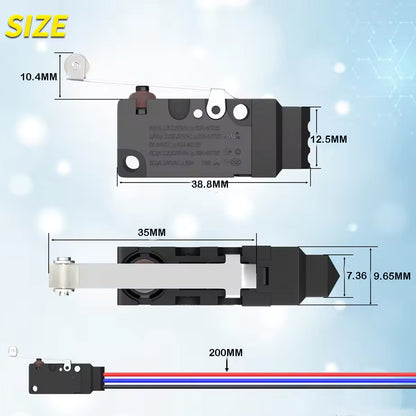

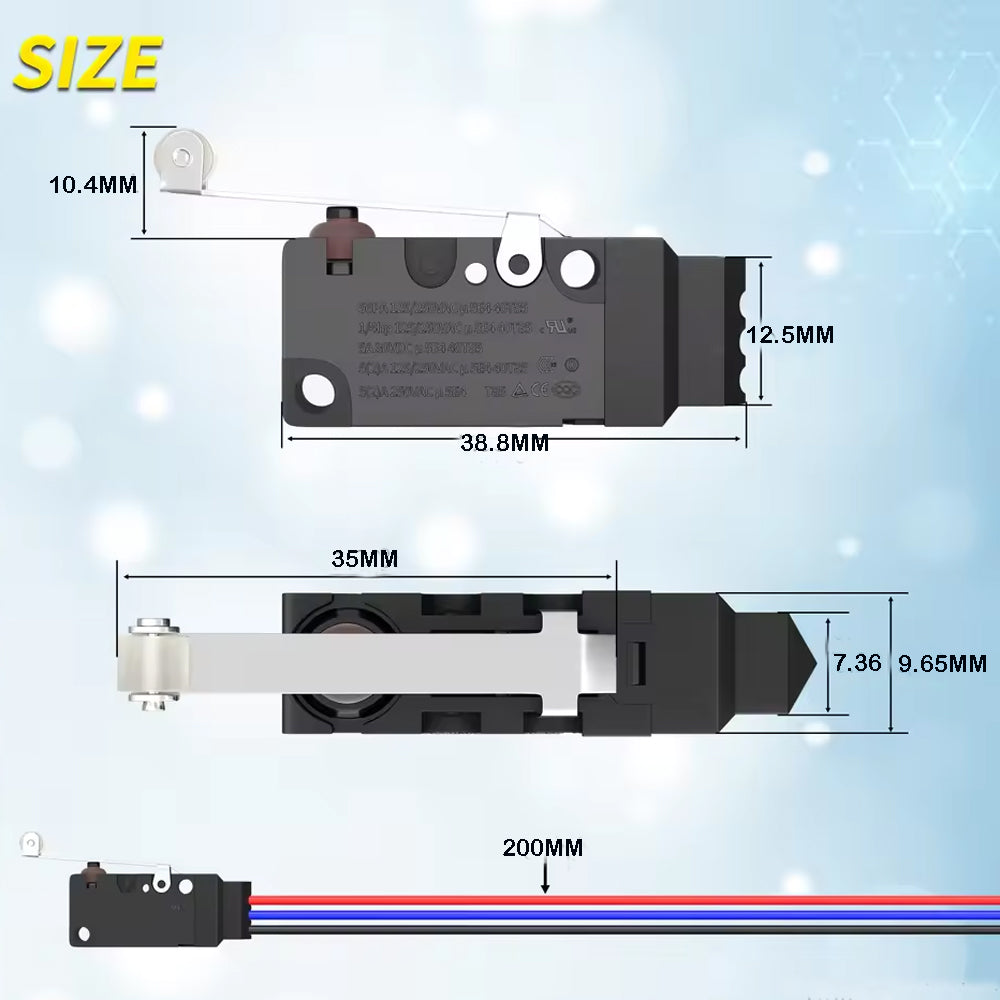

Wire Length :200MM
Package Includes

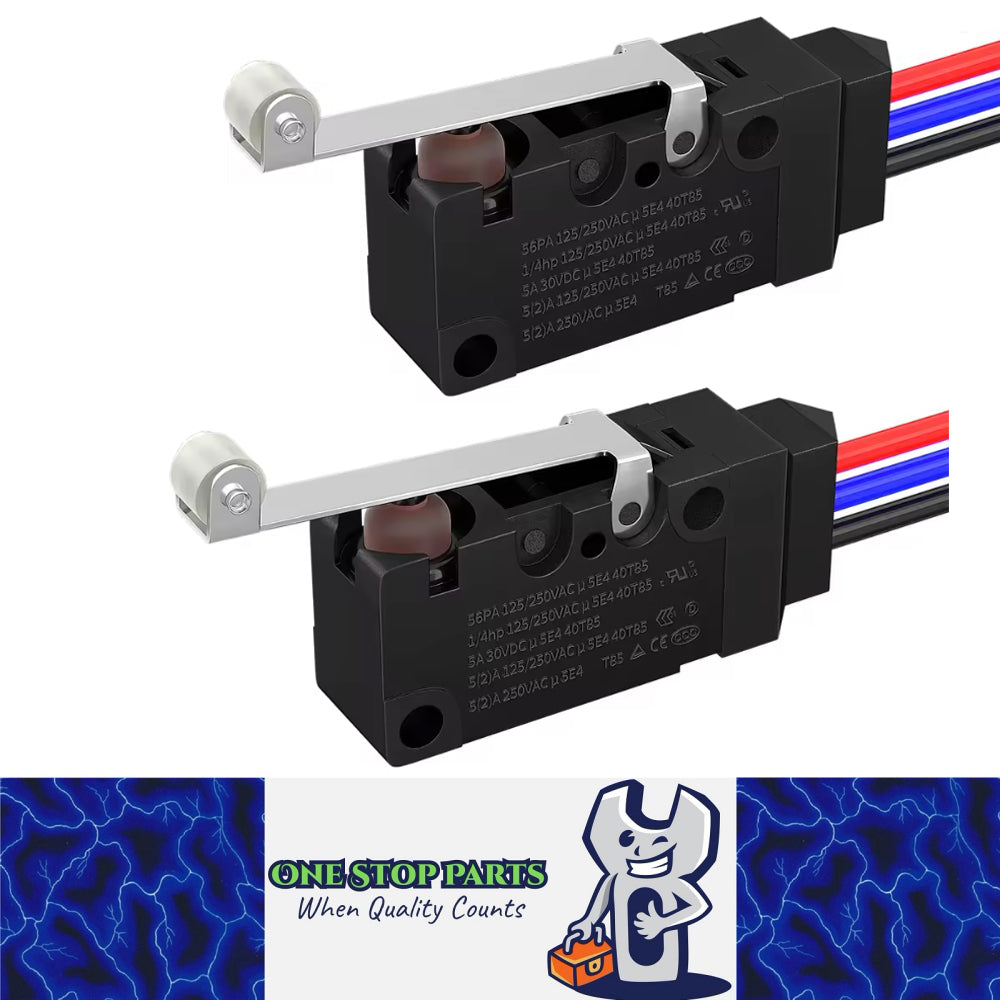

2 * Micro Switch with Pre-Wired
2* Roller Lever
