About this item
Product Information: This set of battery quick disconnect connector supports 175A，fits 4 AWG, 2 AWG, 1/0 AWG cable; voltage: 12-36V DC，max voltage: 600V

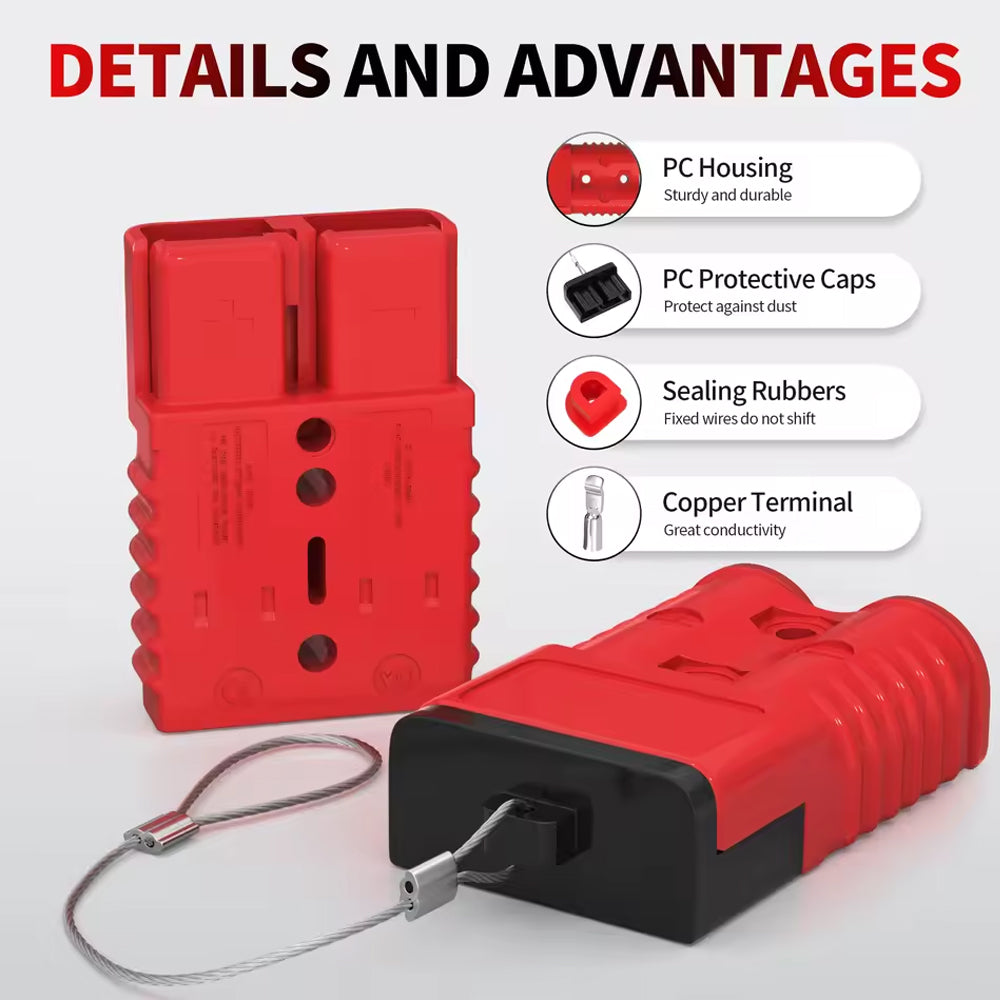

Quality: The wire harness plug is made of durable PC flame retardant material. The terminal pin adopts copper silver plating, which has good conductivity and ensures stable voltage and current, high temperature resistance and corrosion resistance

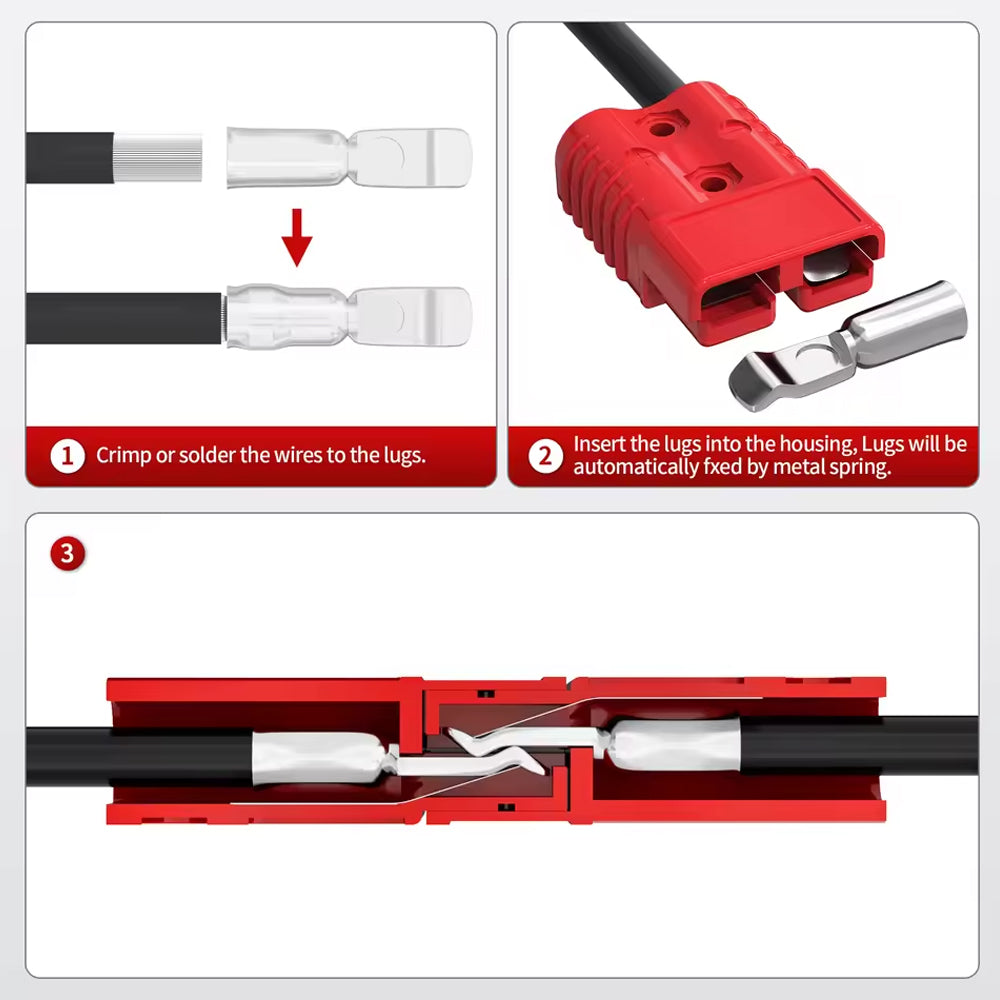

Installation: Simply insert the wires into the terminal pins, then solder or crimp them. Insert the terminal pins into the connector housing and lock into place
Wide Application: Battery cable connectors used in trucks, ATVs, RVs, winches, elevators, lifts, cranes, and trolling and outboard motors on boats and watercraft, as well as home and industrial applications such as lathes, chargers, and power inverters

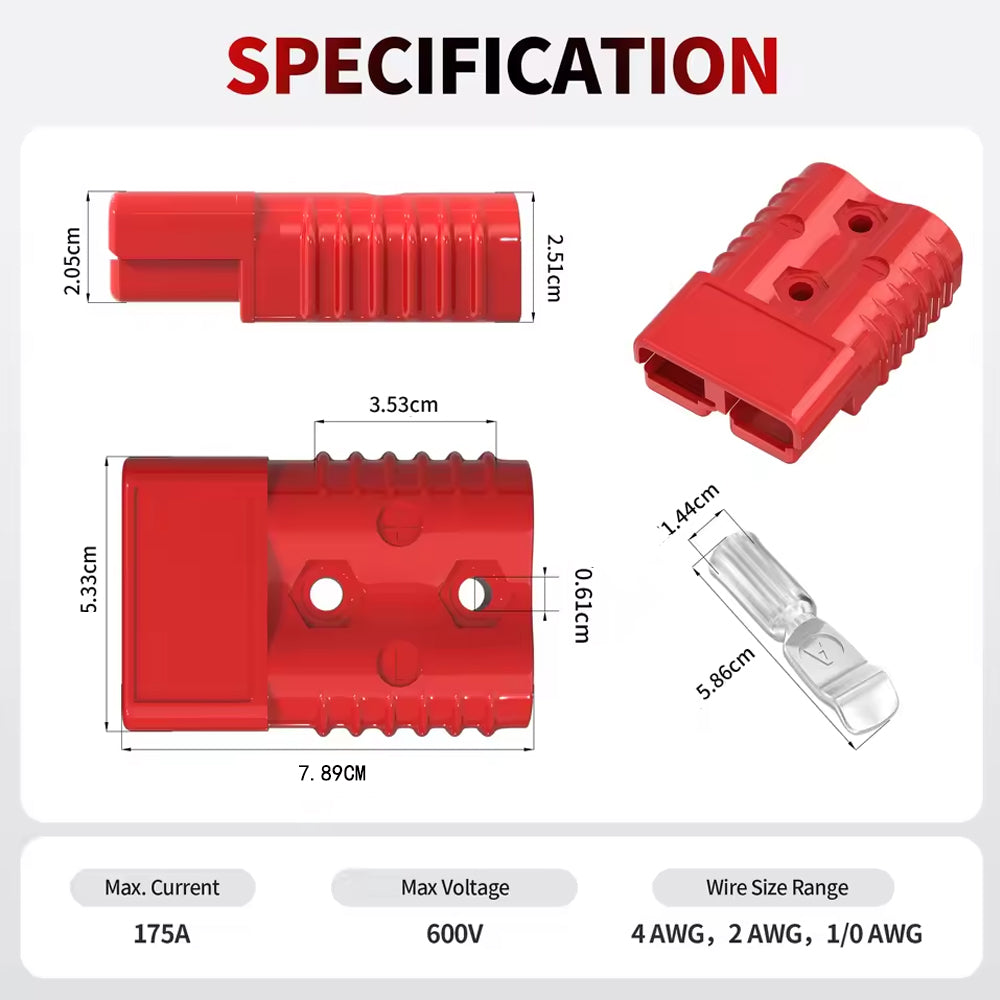

Specifications
Max Current: 175A
Max Voltage:600V
Wire Size Range:4,2,1/0 AWG
Contacts material: copper silver
Operating Temperature Range:-4°F-221°F / -20°C-105°C

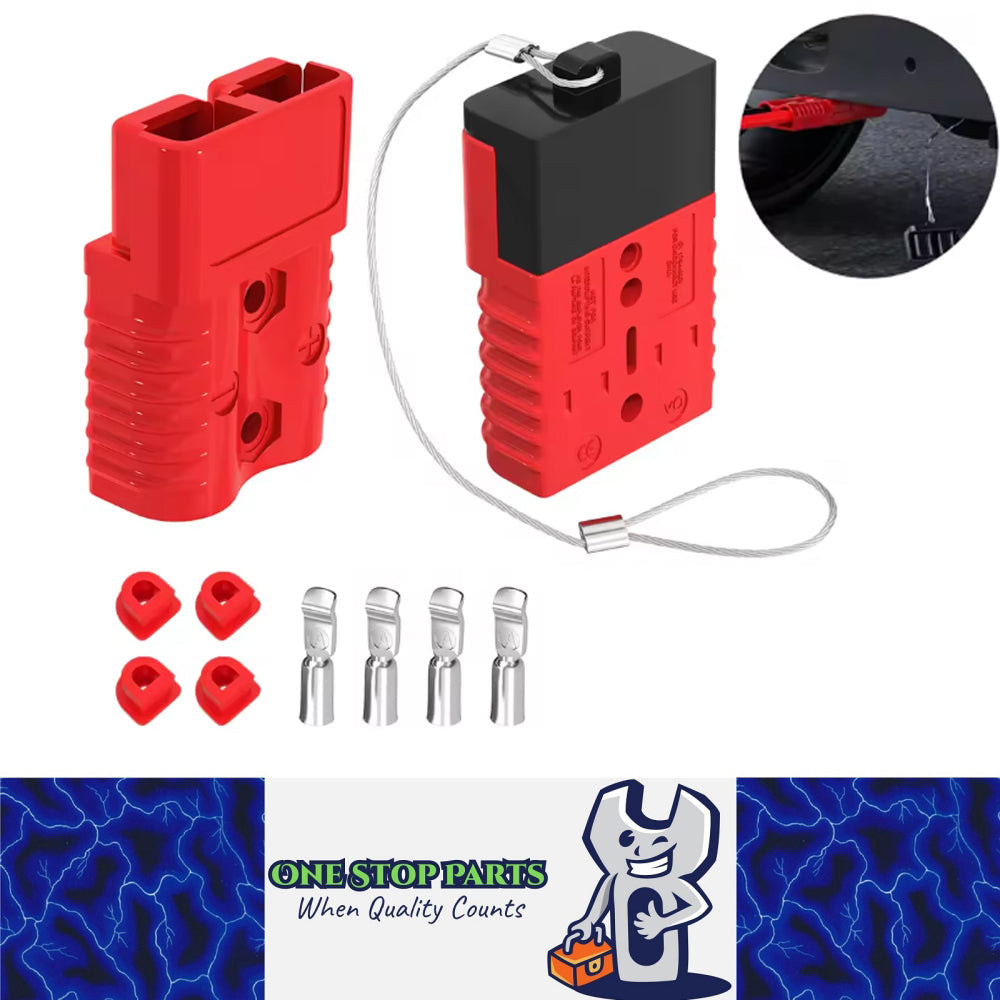

Package Include
2 x Red Anderson Sockets Plug
4 x terminals
4x sealed rubber
AS PICTURES SHOW
