About this item
Product: 2 pair of single stud terminal 12v junction block, includes a red positive power distribution block and a black negative power distribution block
Rating: The 12v battery junction block rated 250A when work in 12v circuit, and the battery bus bar junction block can work with MAX 48v power

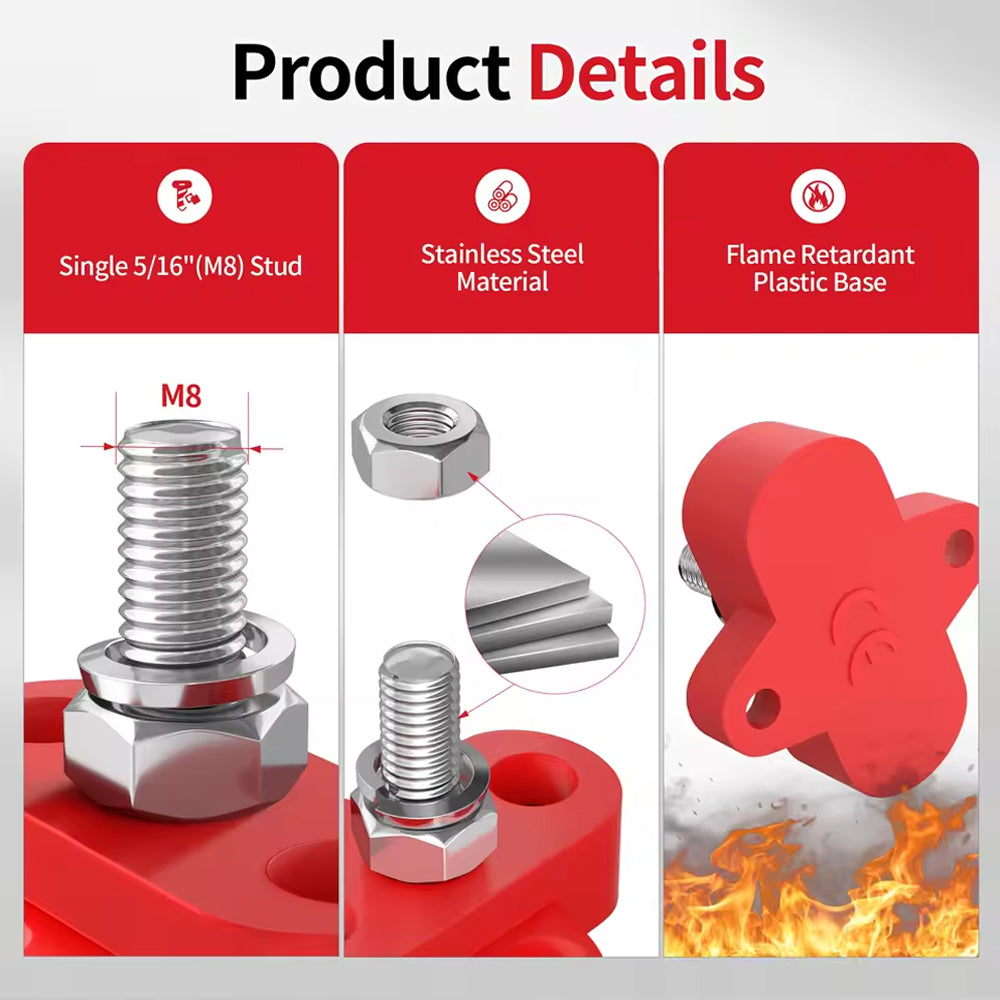

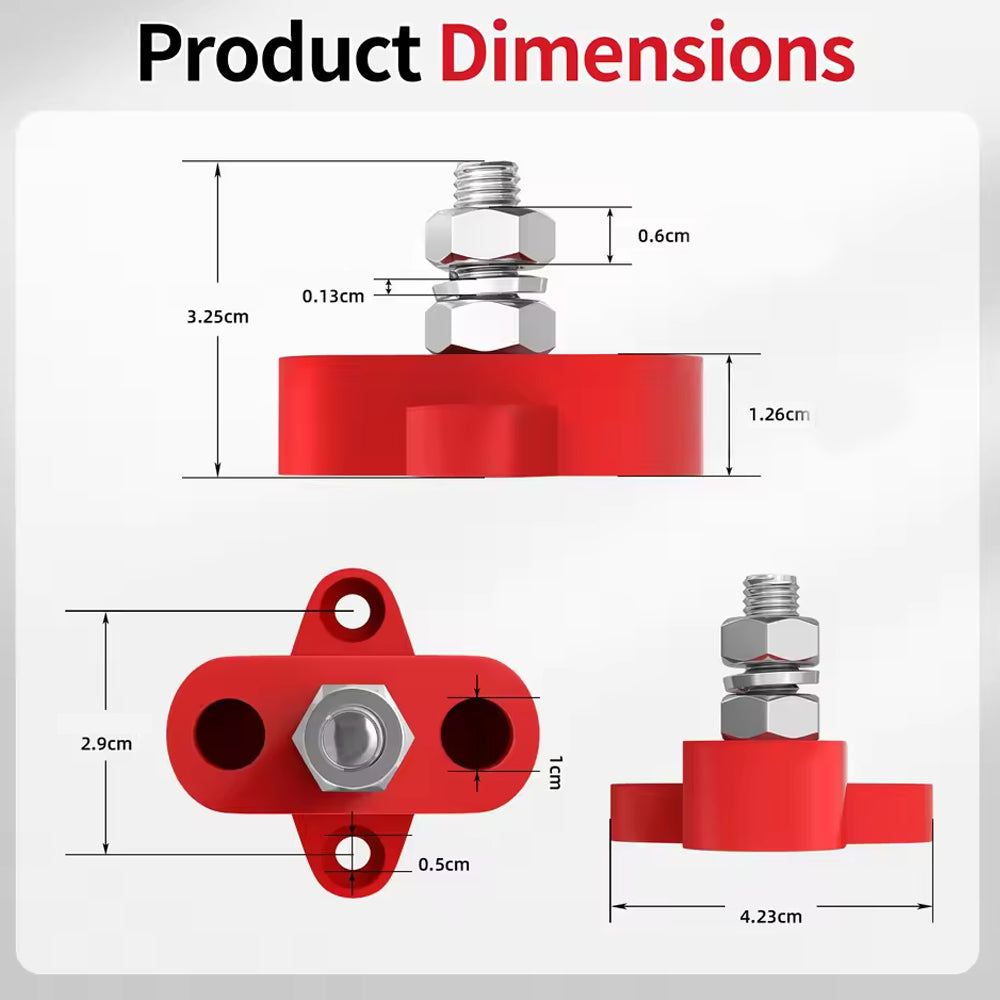

5/16" Stud Terminal: The battery post is single 5/16" (M8) stud terminal design, which makes the 12v bus bar terminal block be able to accept large size terminal connectors and wires
316 Stainless Steel Material: The Stud of the terminal post is made of high quality 316 stainless steel, which makes this 12v junction post have better corrosion risistance performance compared with 304 stainless steel made battery bus bar

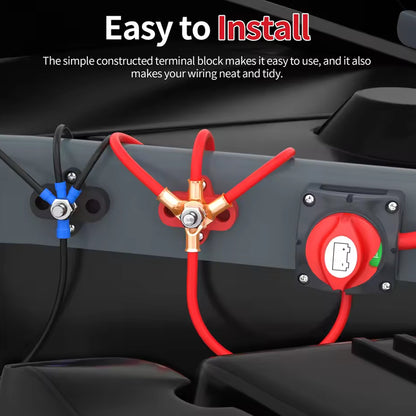

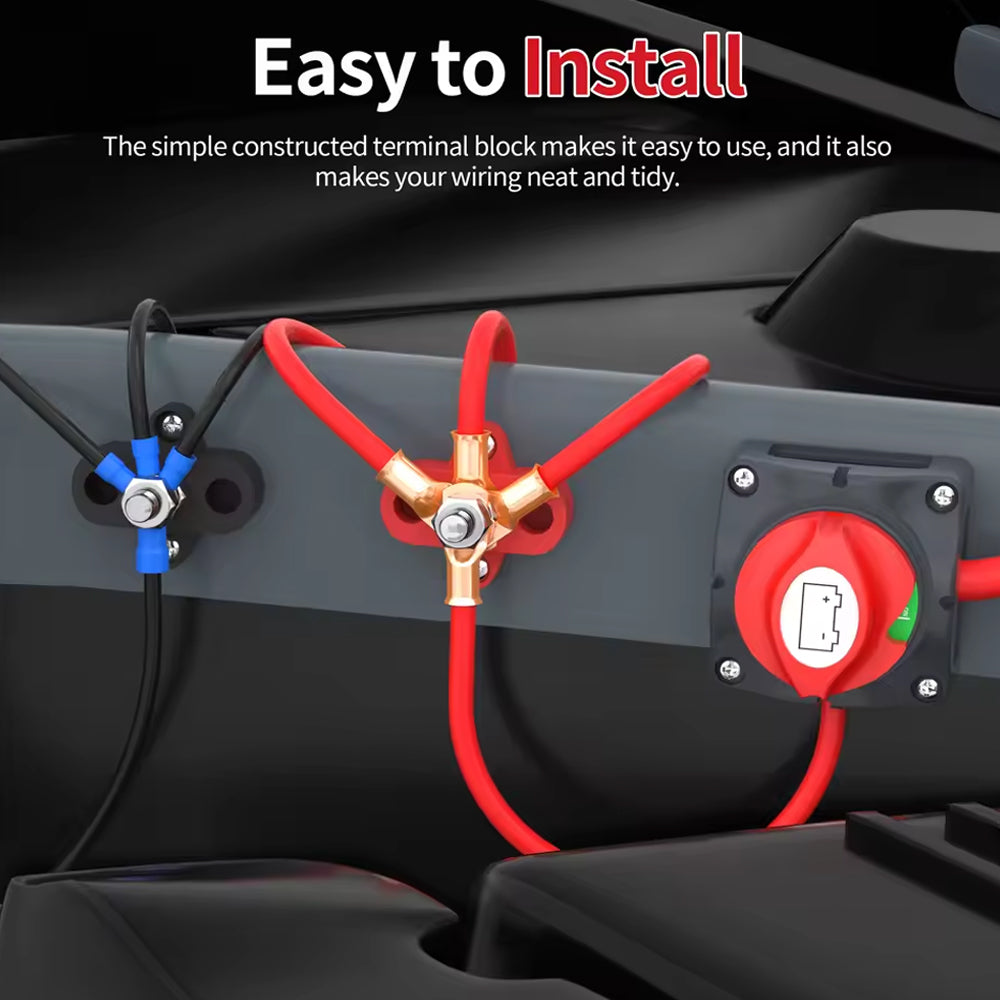

Wide Application: The Heavy Duty Insulated Junction Post Block aims to make the wiring of circuit become neat and tidy and prevent electric short circuit, it is suitable for automotive, car, truck, marine, boat, Solar Panel, etc
Voltage :Max 48V DC
Terminals : Single 5/16" (M8) Stud Terminal
Max Continuous Current : 250 AMP @ 12V
Material :Stainless Steel Terminal & Superior Nylon Base
Color : Positive Bus Bar - Red, Negative Bus Bar - Black
Features :Simple Construction & Easy to Use

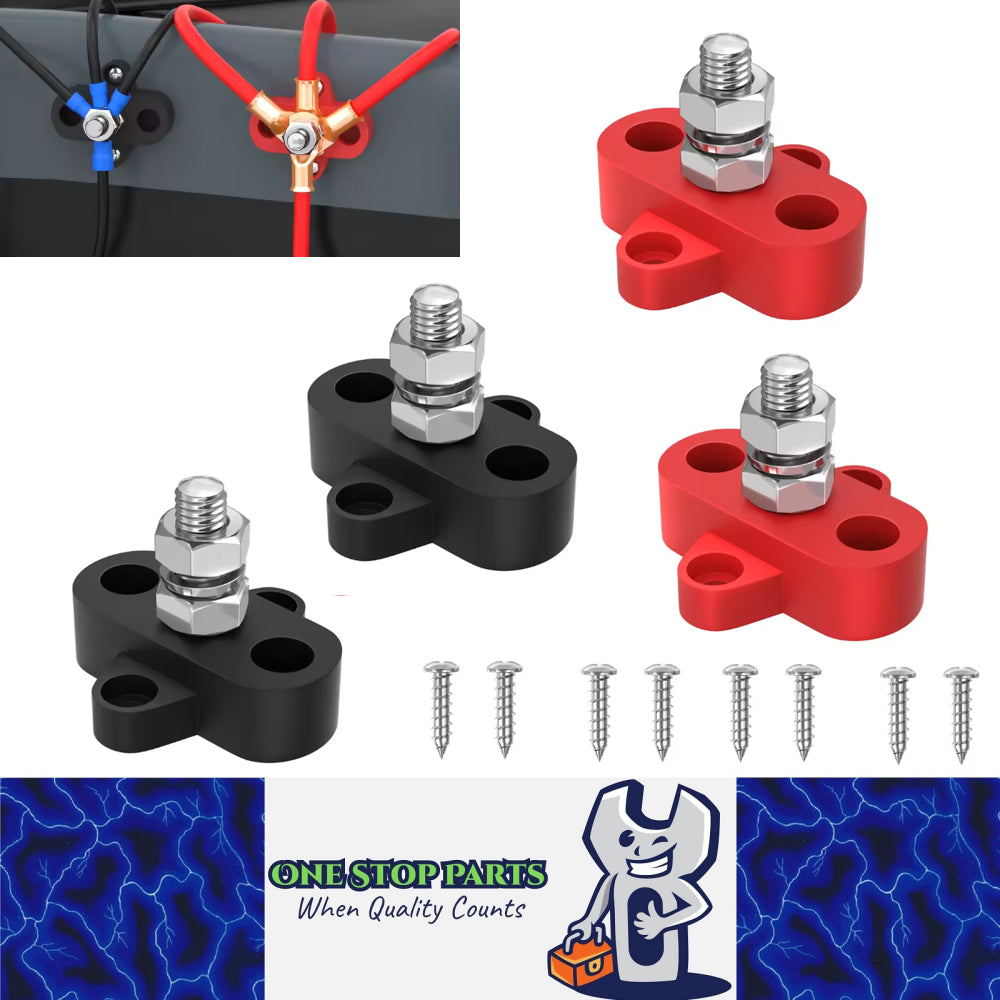

Package include
2 x Positive Bus Bar
2 x Ground Bus Bar
8 x Mounting Screws
