About the item
The portable diving diesel fuel pump has stable performance. Fully sealed, insulated. This product is small in size. Lightweight for easy installation and carrying.
Easy to connect with any faucet or sprayer, filling 5 gallons jug, fish tank or any size of barrels in some minutes.Feel free to pump fresh, drinking,rain or even salt water from any pool, pond or sea.

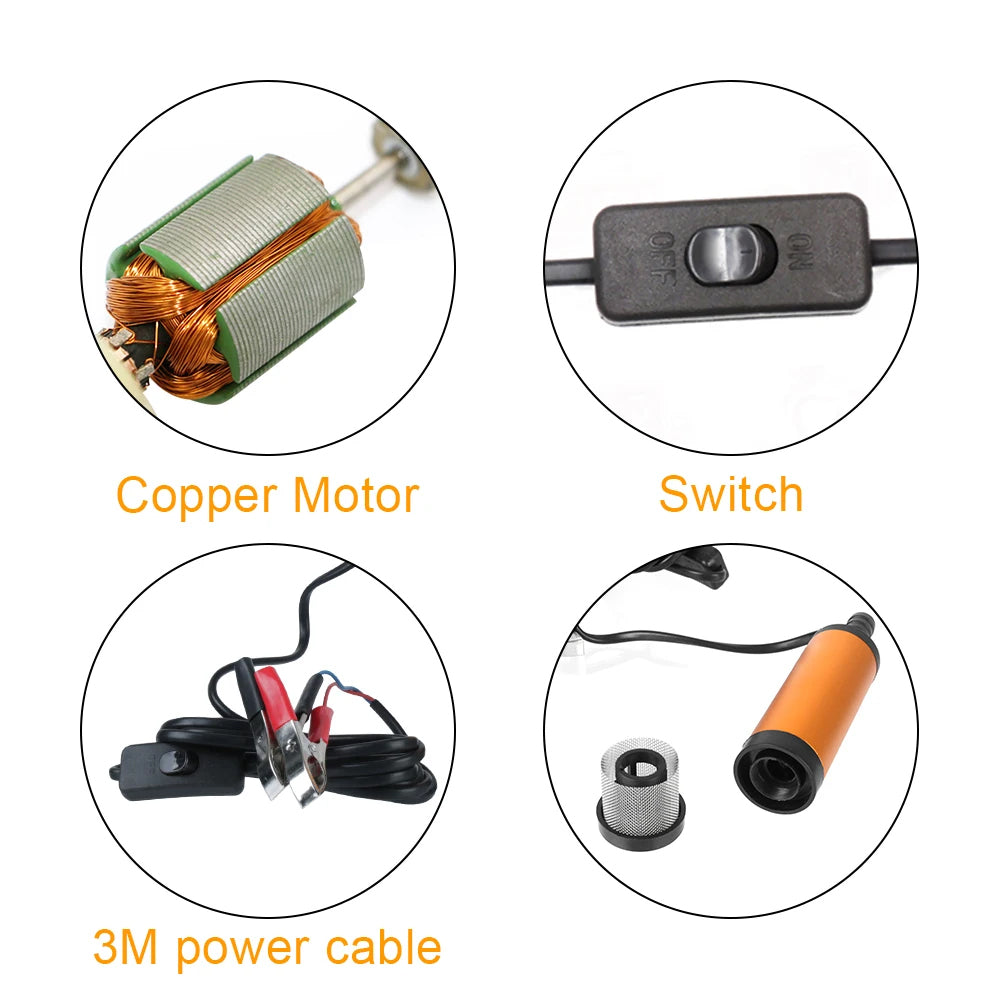

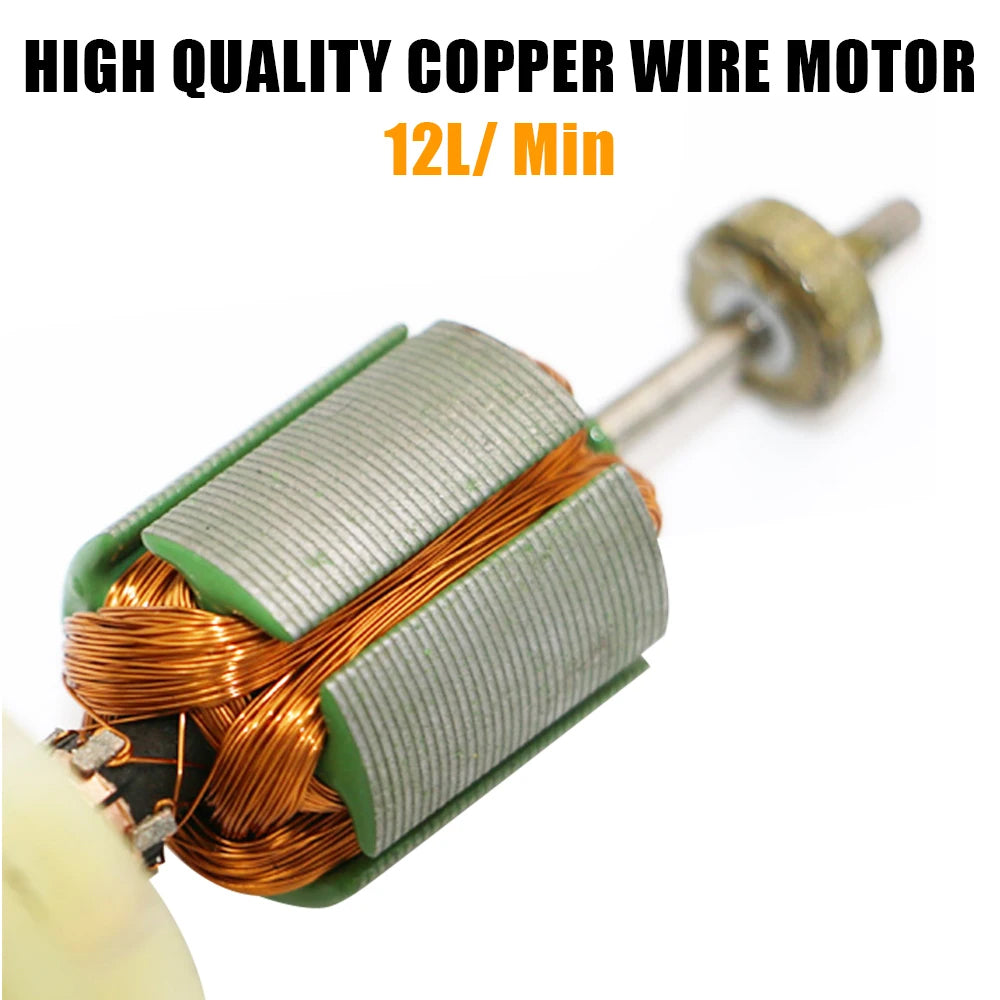

This pumping pump adopts DC12V motor with low noise and fast speed. Good sealing performance, multi-channel sealing to prevent leakage and prolong service life.
The oil pump adopts a stainless steel outer casing, which increases the thickness of the outer casing, makes the outer casing stronger and less deformable, and can effectively prevent the outer casing from being rusted and turbid.
The bottom filter of the pump has a stainless steel filter to make the extracted diesel (or water) cleaner. The bottom filter is threaded for easy removal, repair and replacement. Can achieve the purpose of reuse.

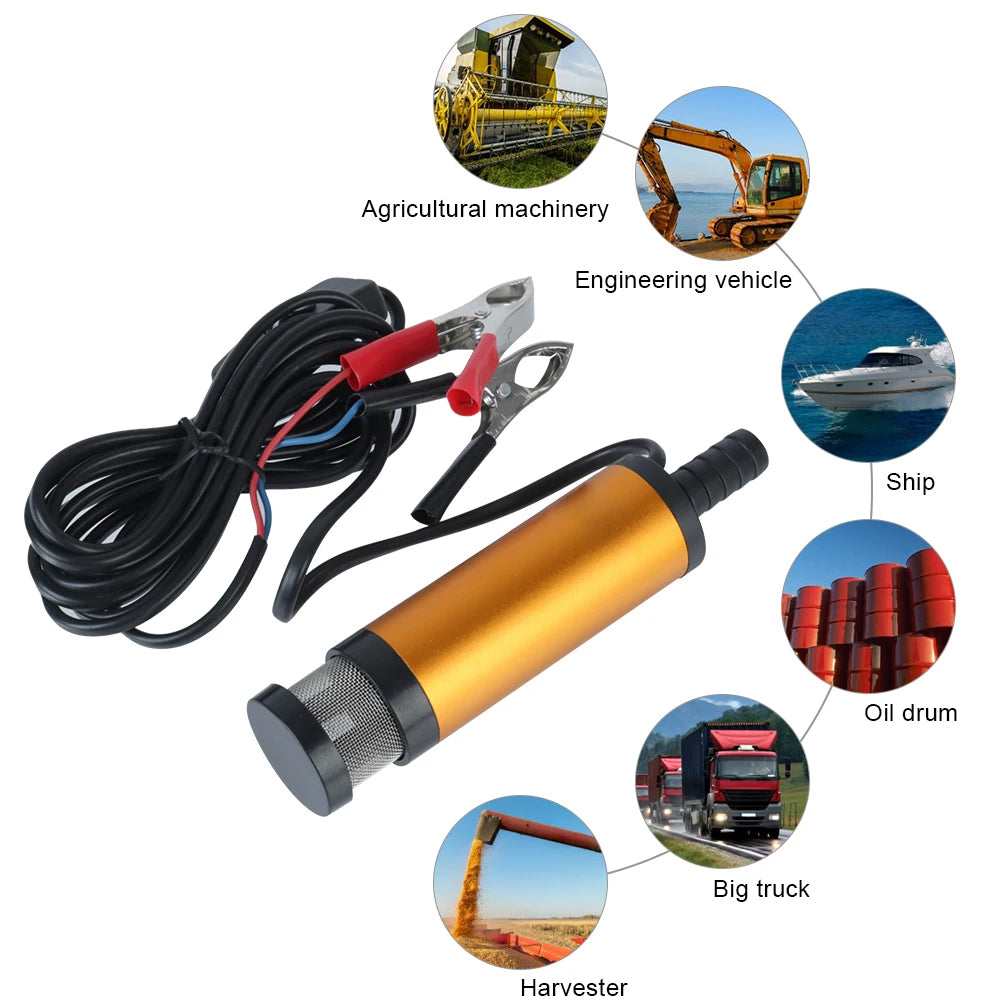

It is suitable for harvesters, large-scale agricultural machinery, construction machinery, large-wheel tractors and other fields that are inconvenient to refuel in the field and equipment and machinery that cannot reach the gas station.
Specifications

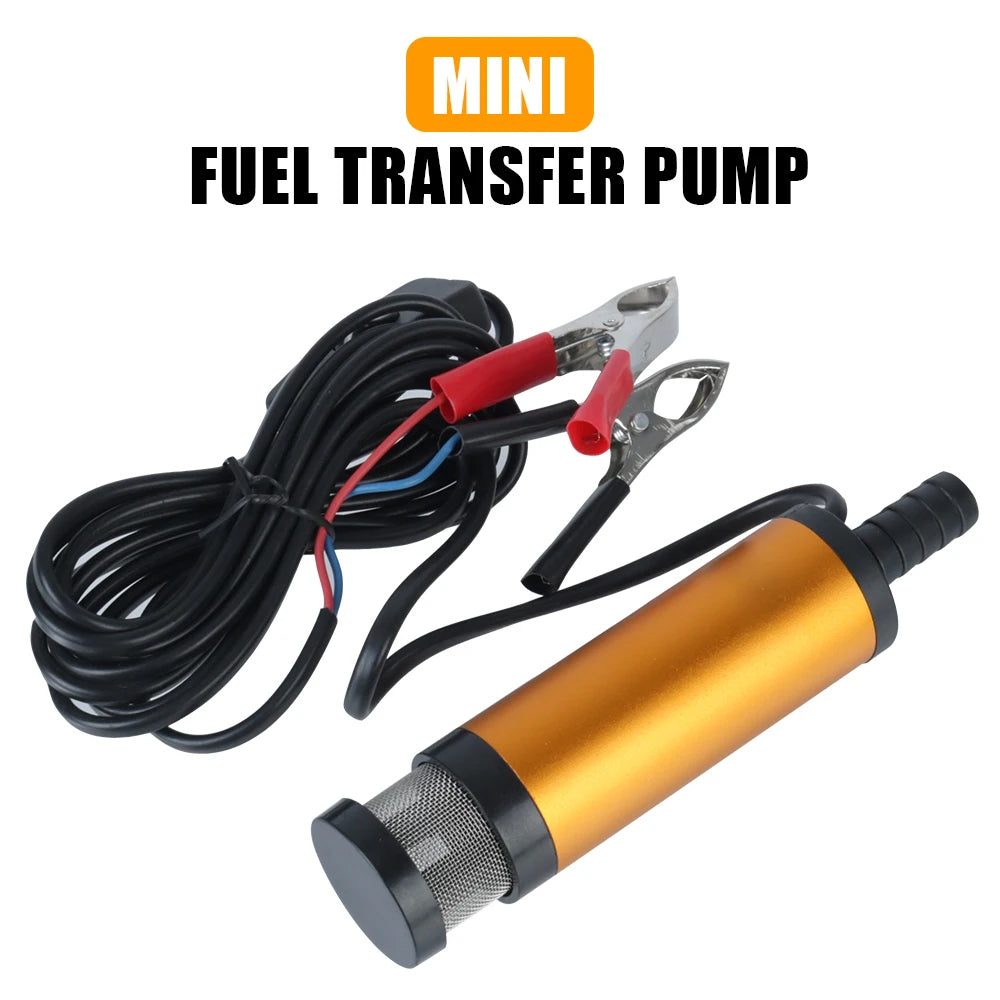

Name: Oil Transfer Pump
Voltage: 12V/24V DC
Working Current: 12V---1.8A
Working Current: 24V---0.8A
Flow: 12L/Min

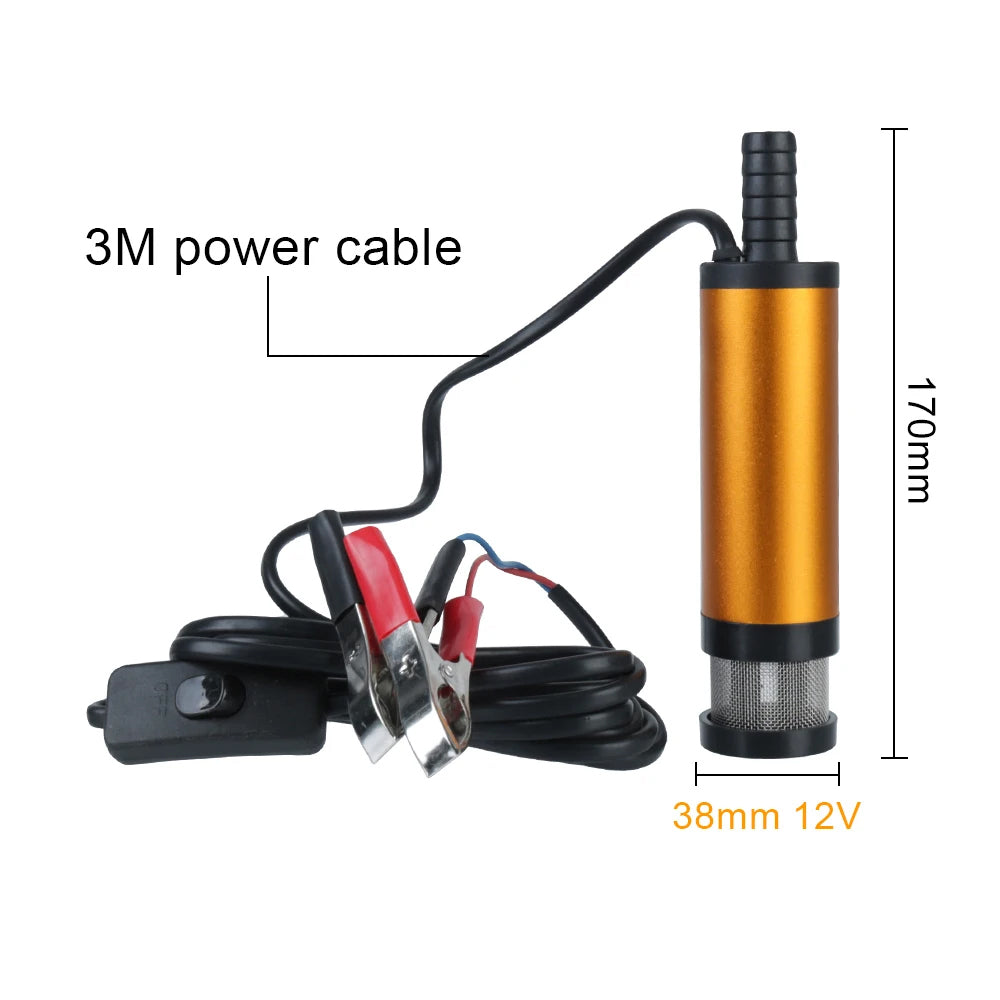

Outer diameter: 38MM
Flow Speed: 38MM for 12L
The tubing diameter: 16MM
Wire lenght: 3M
Motor Racing Speed: 8500r/Min
the oil outlet hose is self-provided
Material:Stainless steel
Package Include
1 x Oil Transfer Pump
1 x User Manual
Note:
*When the diesel oil pump work, first of all, the clean diesel pump should be put in the diesel oil drum, not allowing no load operation.
*Pumps for corrosion protection, can not be used to transport chemicals liquid. Strictly prohibit the transfer of gasoline, alcohol and other flammable liquids.

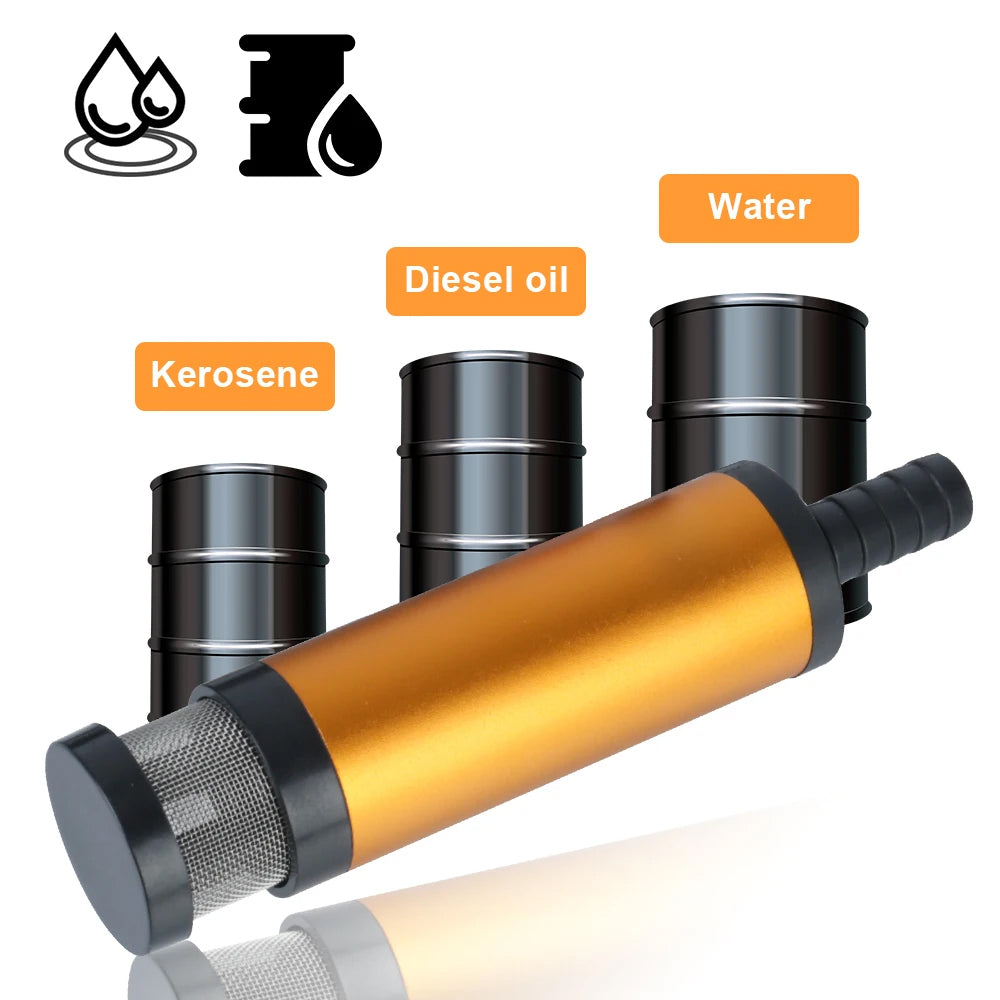

*Pumps for diesel, kerosene, water. Prohibited transportation of gasoline, alcohol and other flammable liquids.

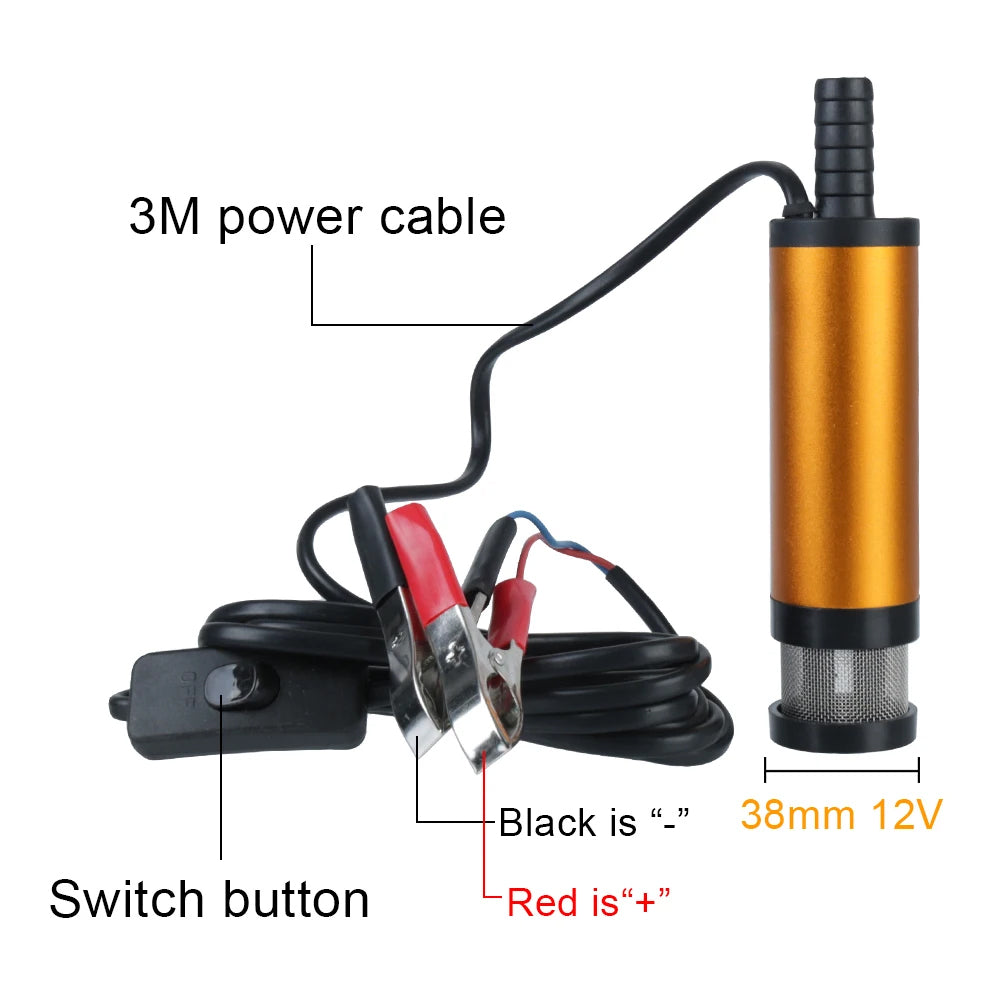

*Correctly connect the positive and negative poles of the power supply.Do not make change the anode and cathode of battery clamp. Must be fully immersed in the bottom of the pump in the use of liquid. Continuous working time is not more than 30 minutes.
*After the pump is used, the pump should be taken out of the oil (or water) in time.
