About the item
Features
*The handle is ergonomically designed with comfortable press keys, great Press feeling and easy operation. And the high quality makes it be worn hardly.
*This timing device with 12V working voltage is suitable for cars, motorcycles and all gasoline engines of two strokes or four strokes.
*Capable of testing the ignition timing scale on the engine flywheel or belt pulley intuitively to adjust appropriately.
*Able to detect the automotive knock suppression control system and vacuum advance angle control system, change its advance angle with the speed change.
*It is able to reset the ignition timing under the normal wear of the engine for a long time, the regular replacement of timing belt and belt pulley, the decrease of cylinder pressure.
*Ignition timing directly affects the normal operation of the engine. It will cause the engine start-up failure if the worst come to the worst. If too early, the engine speeds up and produces "GA, GA" like metal knocking with large starting resistance, difficult engine rotation, power reduction and idling instability, trembling. If too late, it will cause difficult start-up or insufficient power, thus accelerated oil consumption and engine abrasion.
Specification
Material: ABS
Working temperature: 0-40 Celsius
Trigger point: High voltage coil No. 1 spark plug
Input voltage: 12V
Speed: 200-10000r/min
Notice

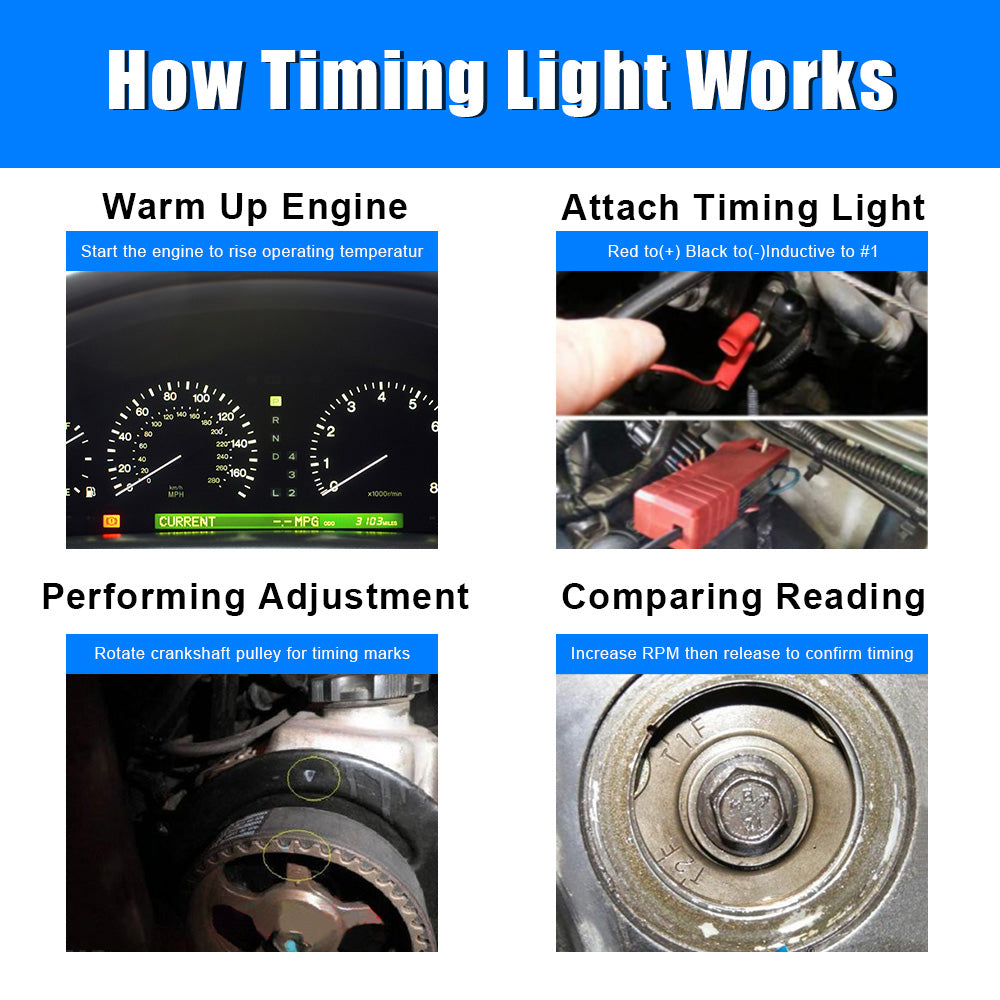

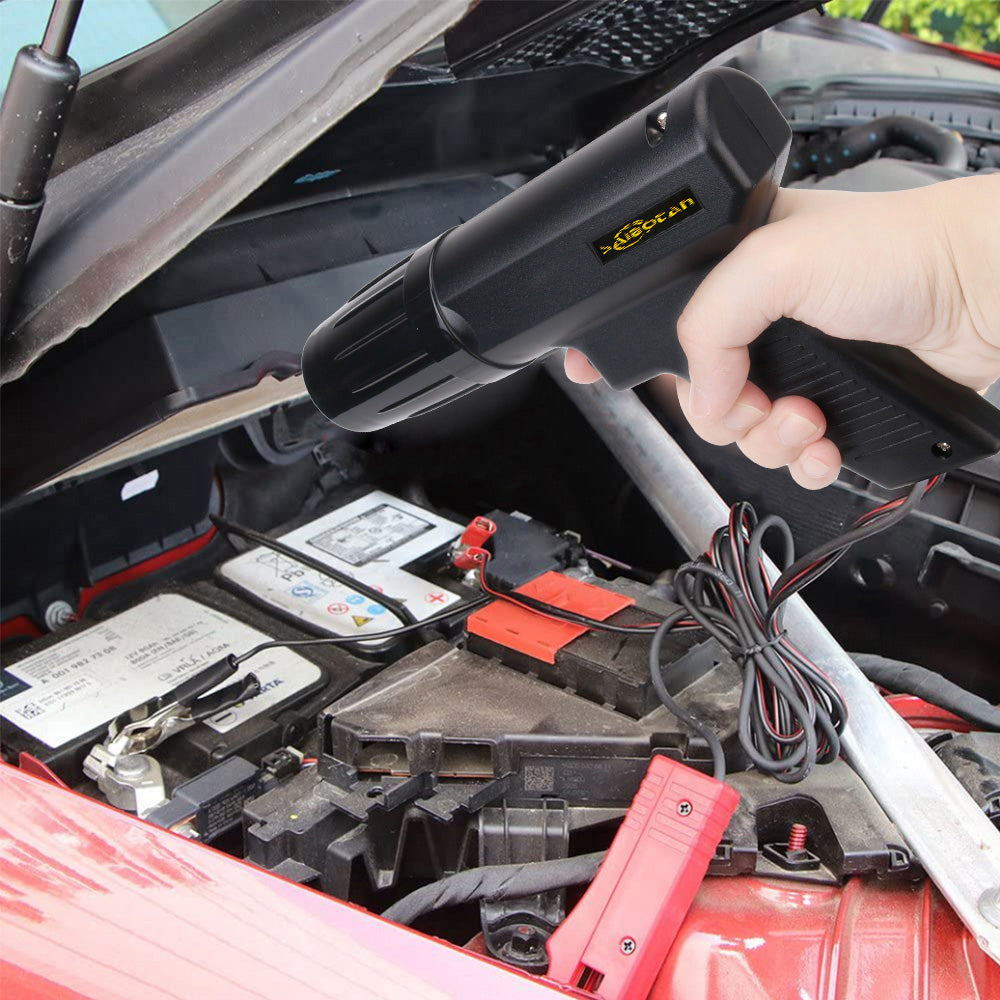

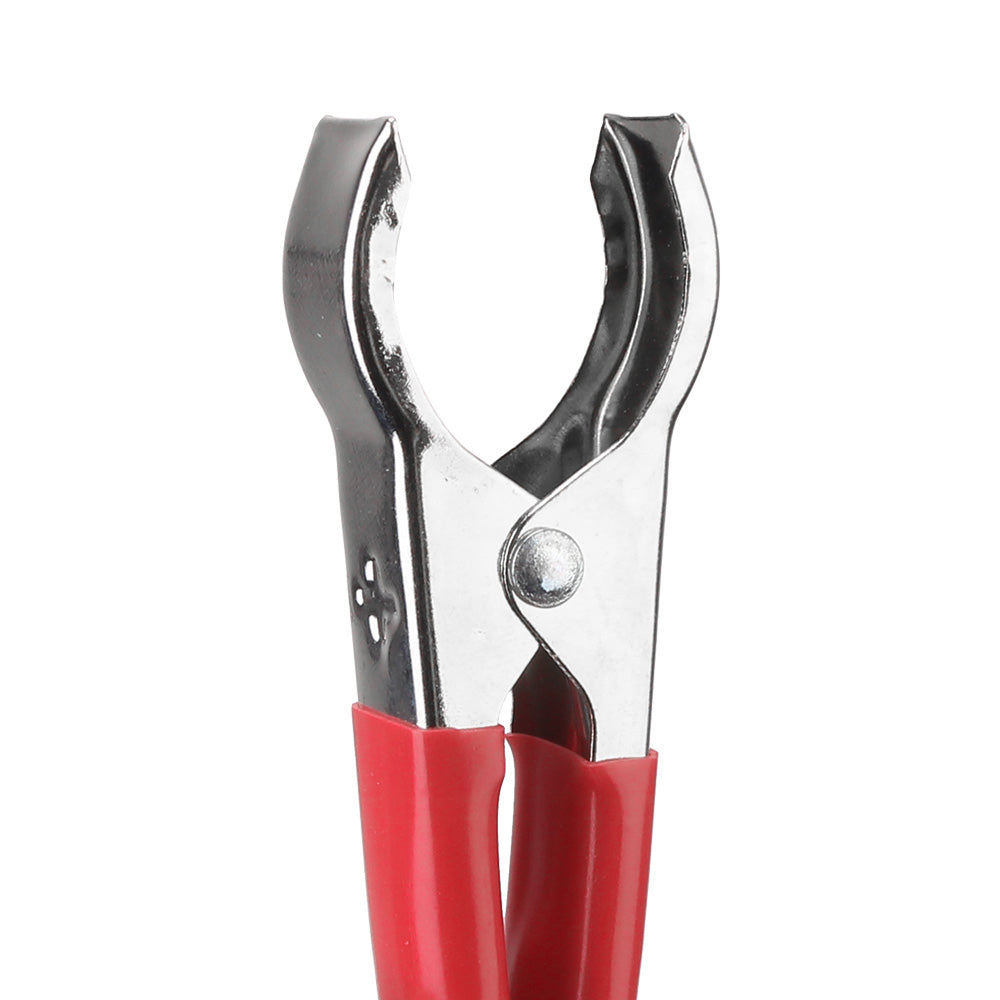

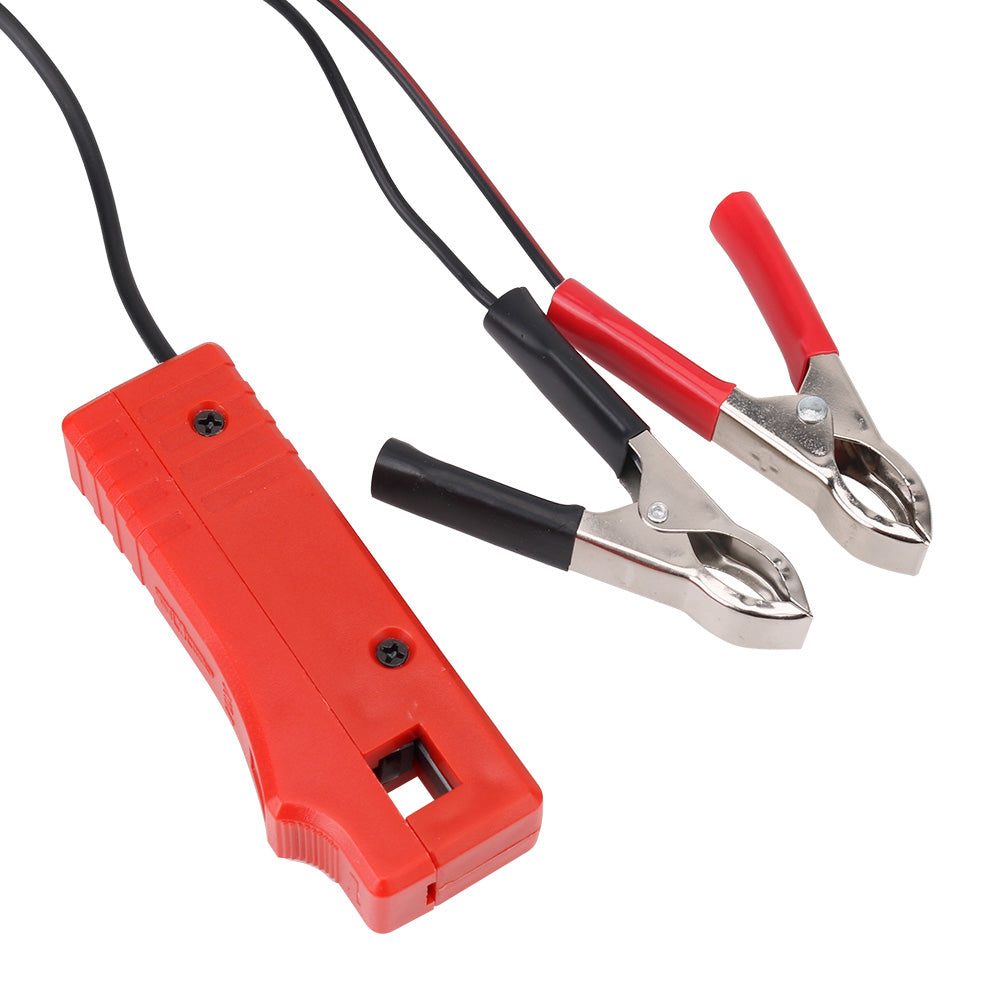

The power supply is 12V with red connecting to positive and black to negative. Don't get it wrong. The high voltage wire induction clamp is clamped on the high voltage line of cylinder with the arrow on the induction clamp pointing to the direction of the spark plug for normal working.
Only the above package content, other products are not included.
Package Include

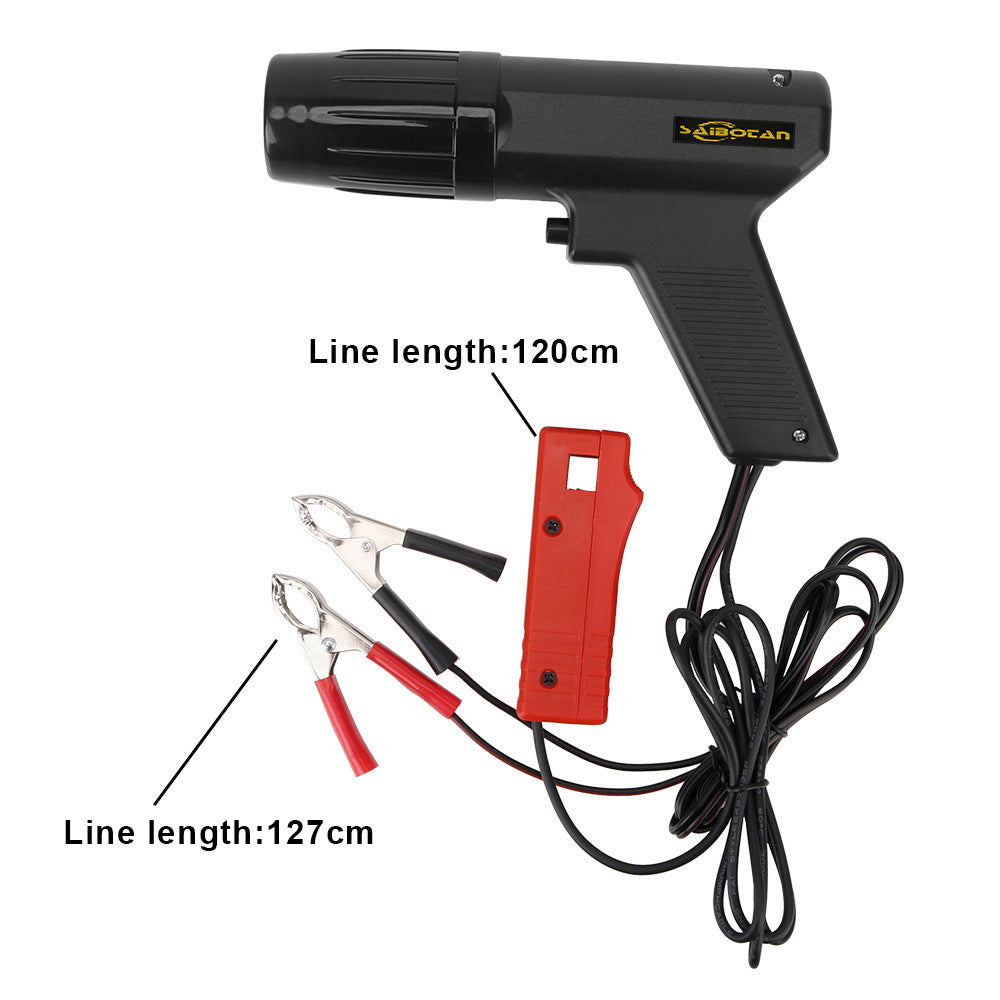

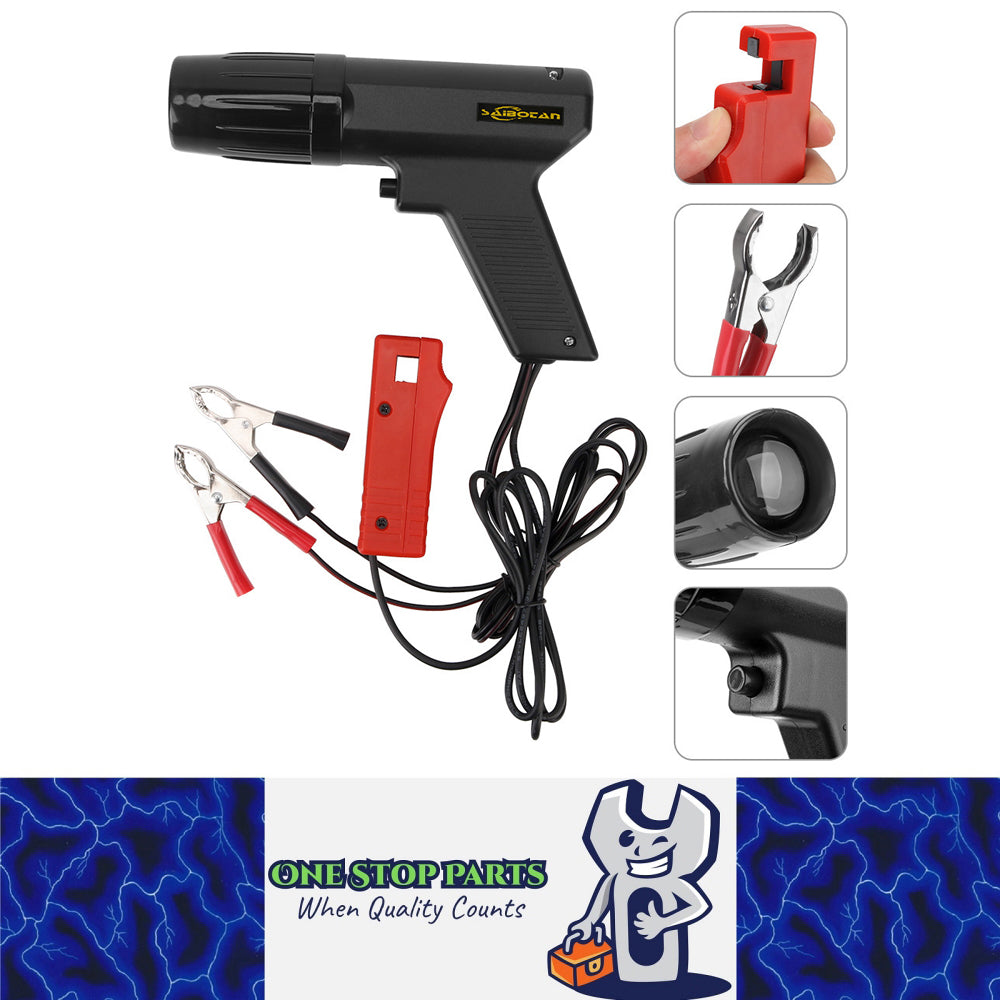

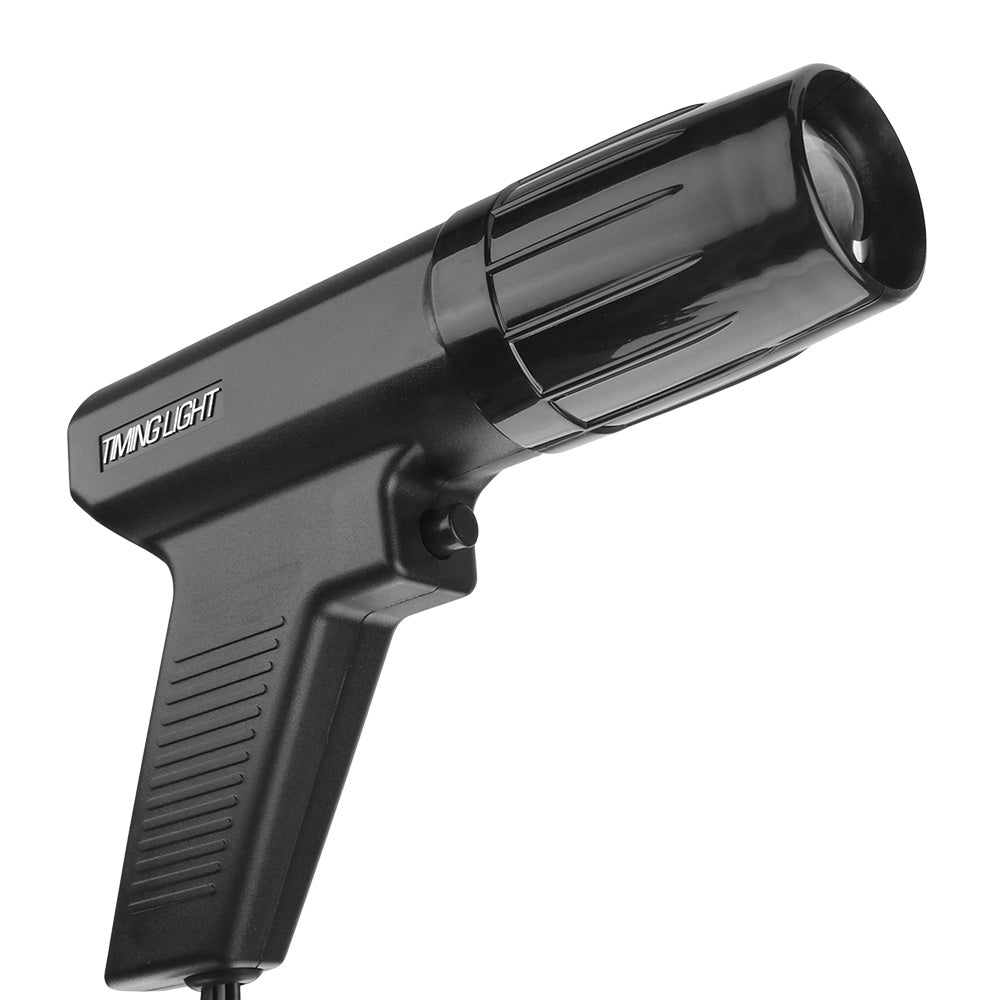

1 Set x Ignition Timing Device
