12v 4wd Dual Battery Kit

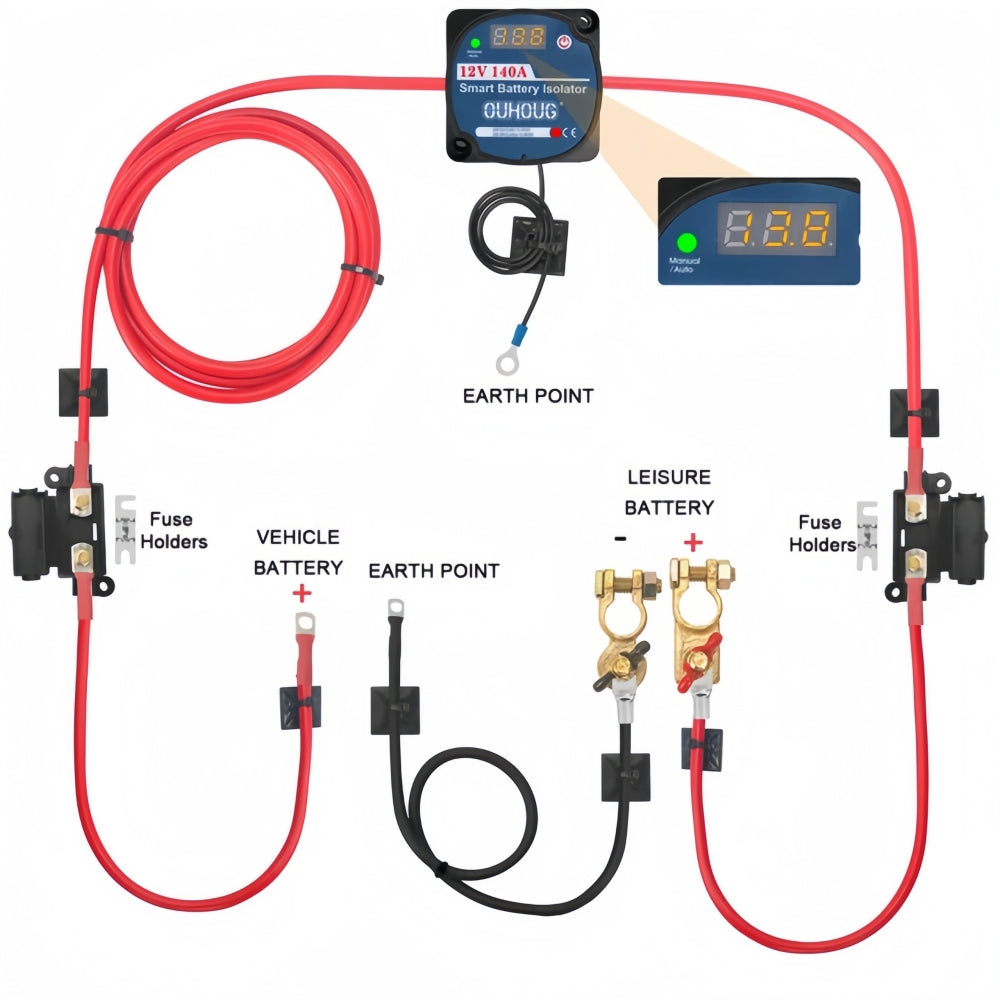

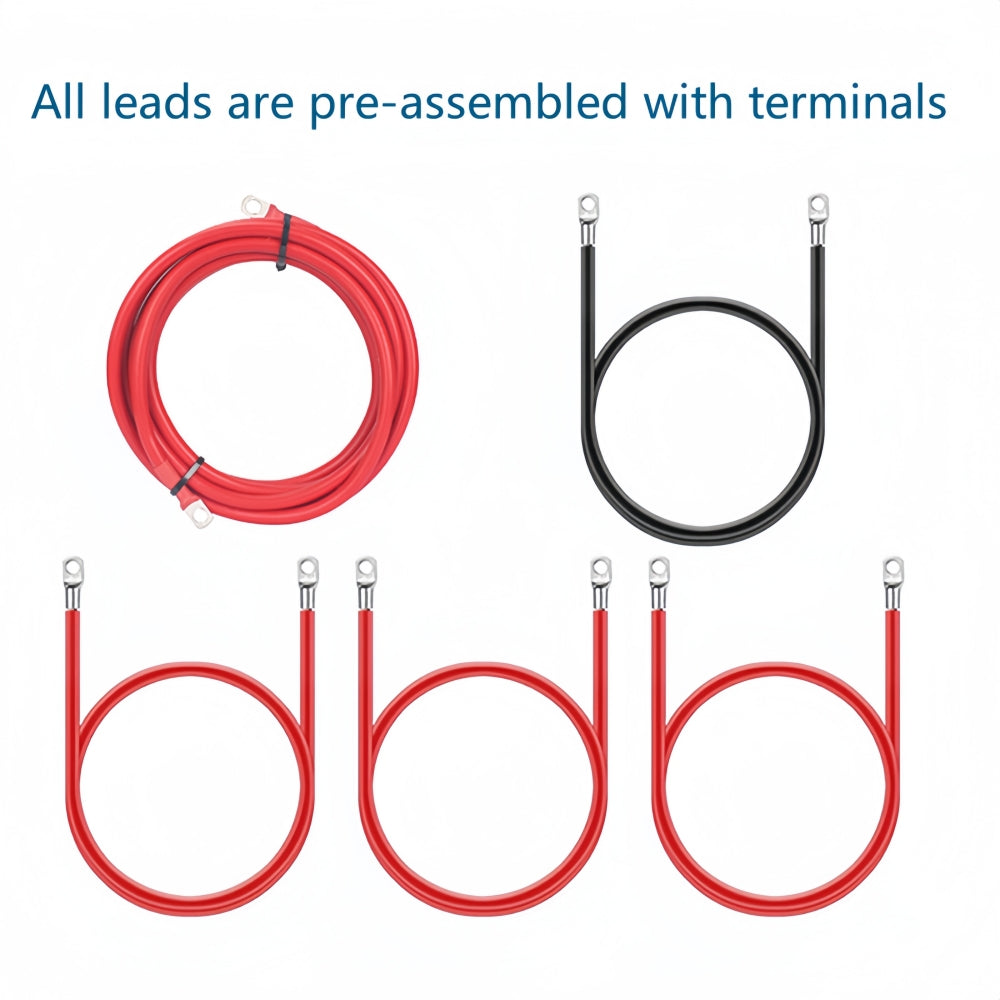

This listing is our 5 Meter Kit The 5 meters of Red cable supplied in this kit are made up of the 4 separate leads which is pre-assembled with terminals as described, we have a 3 Meter and 7 Meter and 10 Meter Kit also available in our eBay store.

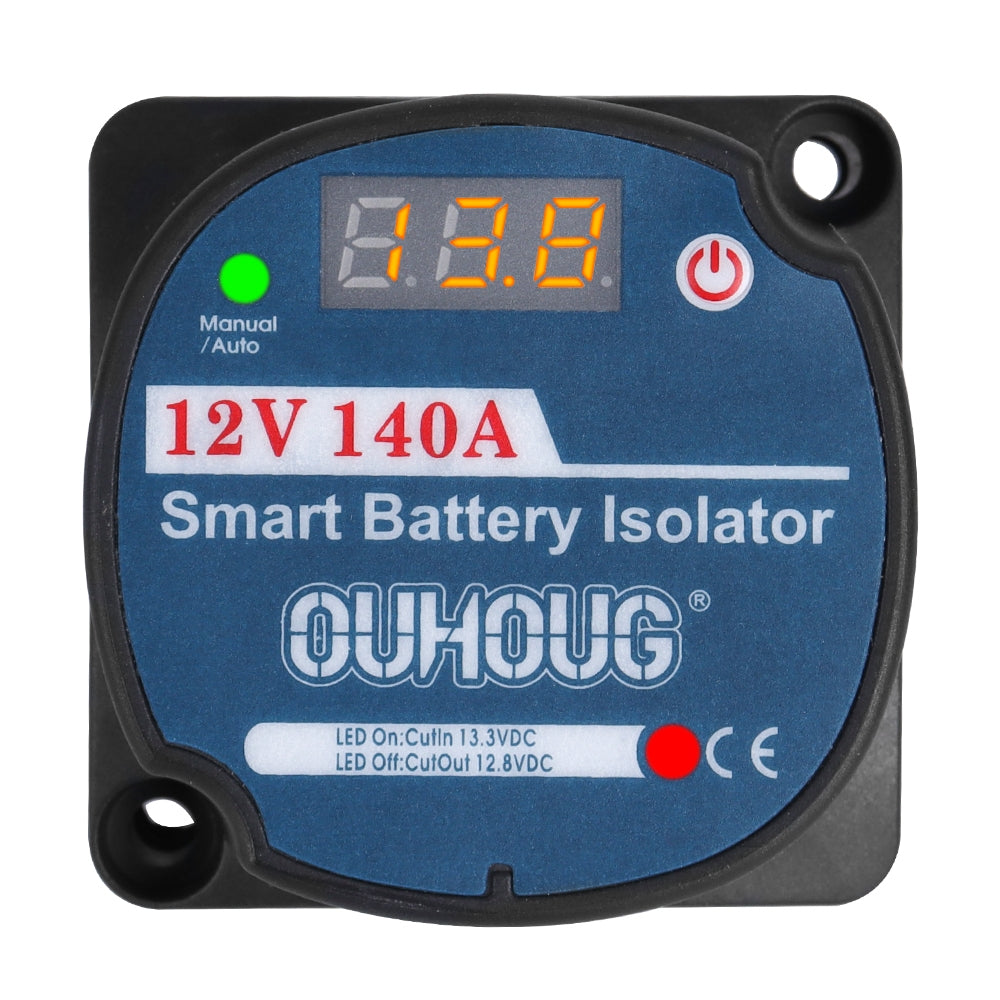

Intelligent Voltage Sensitive Relay VSR 12V 140A Dual Battery Split Charge Campers Campervan 4wd and Marine
SMART BATTERY ISOLATOR INSTRUCTIONS:
Dual Battery Isolators / Voltage Sensitive Relays have been specifically designed for a wide variety of 12V applications.

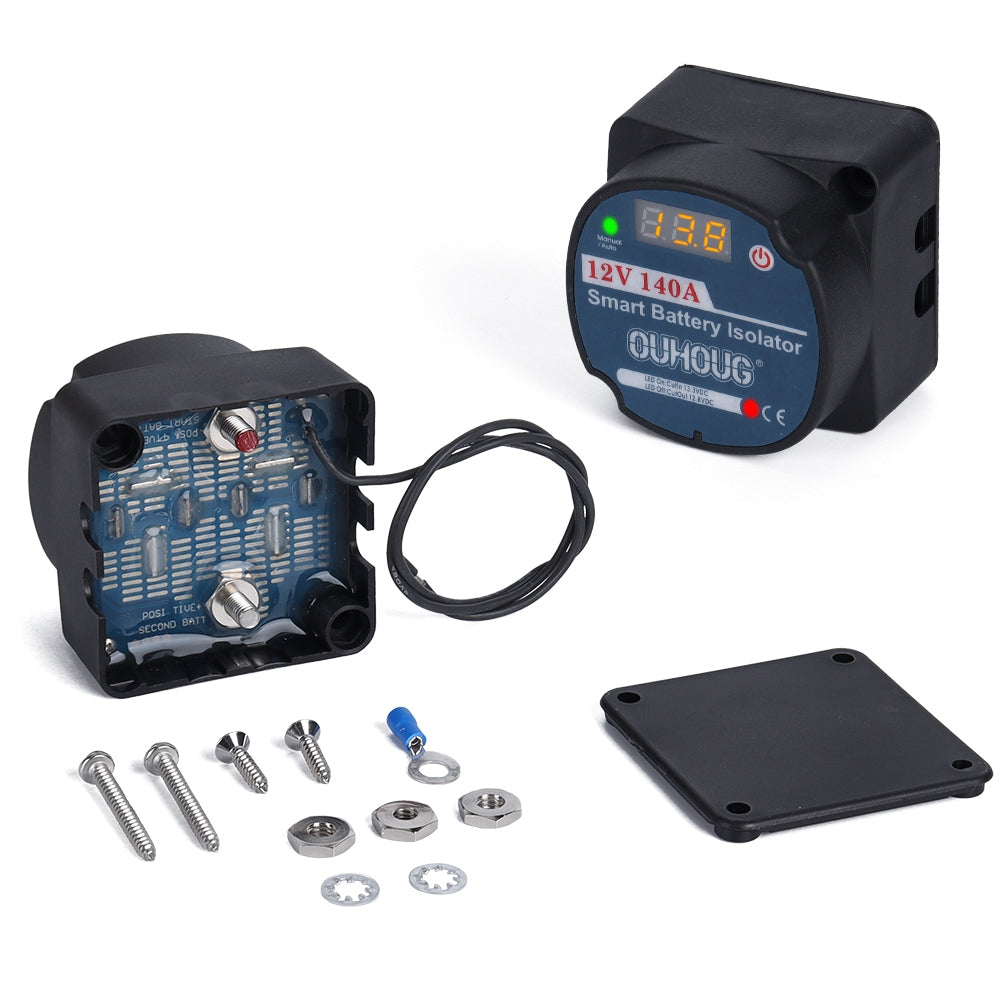

Dual Battery lsolators sense the input voltage generated and automatically connect/disconnect the appliance or circuit at pre-set voltages, eliminating the possibility of discharging the primary starting battery. Constructed with a weatherproof body (IP65) and durable silver tipped contacts.
Dual Battery Isolators also feature surge protection and a L.E.D indicator designed to alert the user when the unit is engaged.

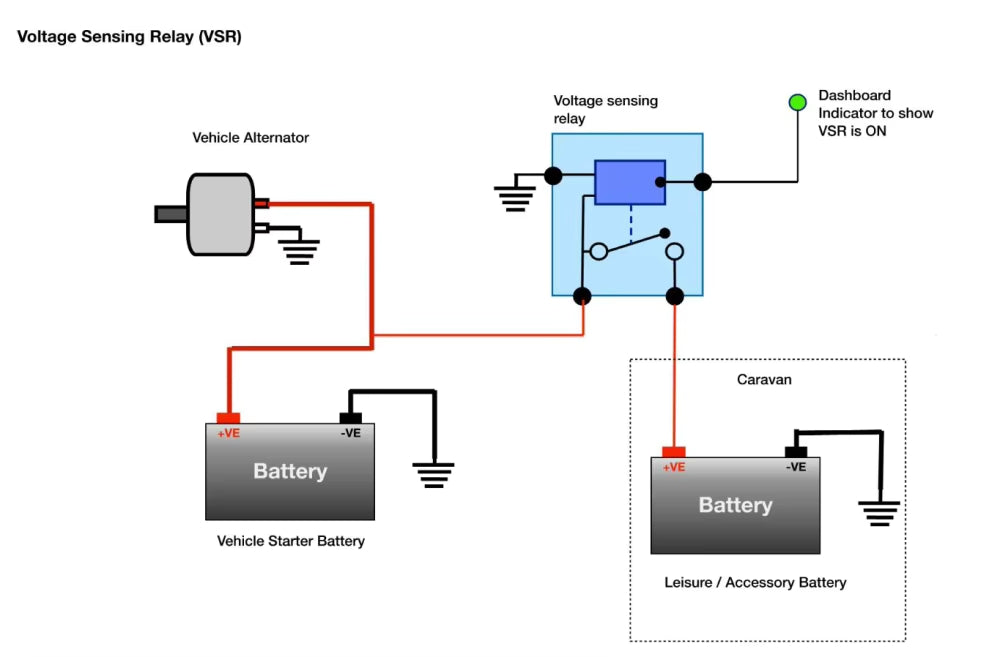

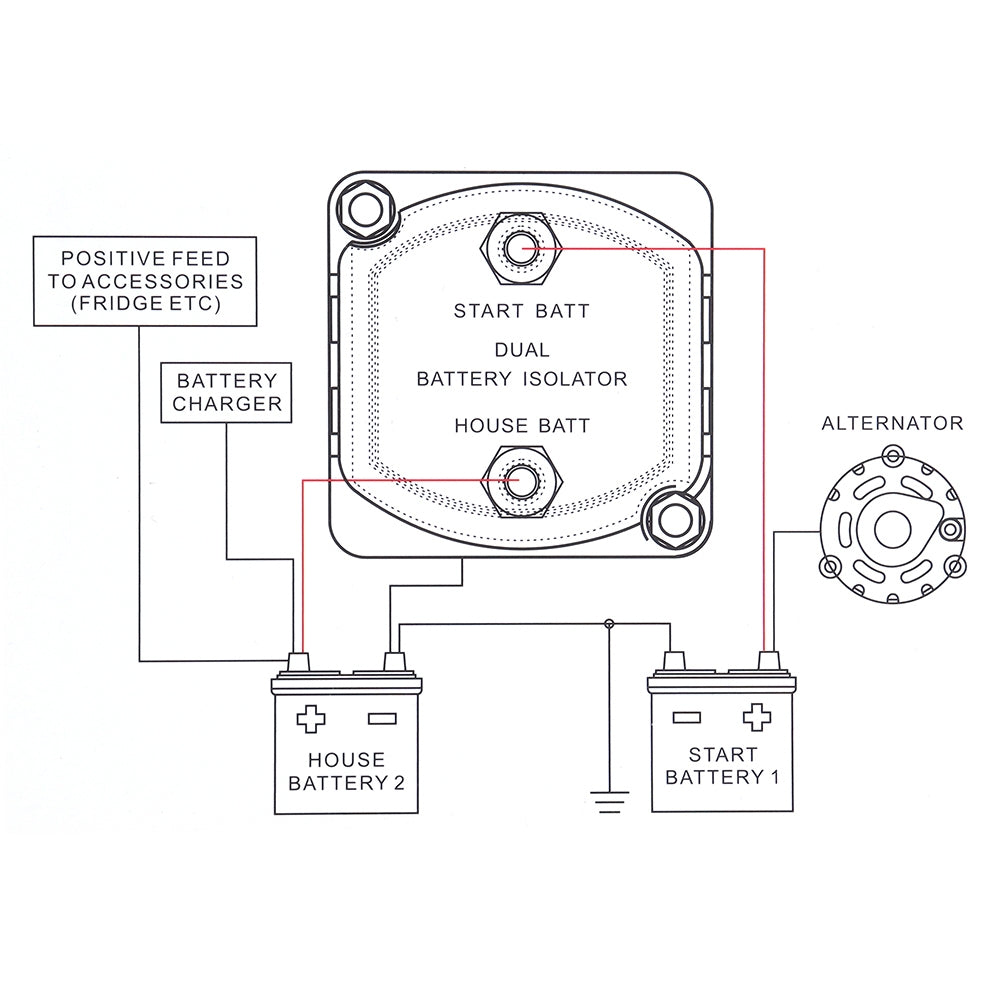

Dual Battery Isolators are ideal for dual battery set-ups as they enable two batteries to be charged at the same time and then isolates the batteries from each other when the vehicle is turned off, ensuring your starting battery is always charged and ready to go.
FEATURES:
- Designed for dual battery systems
- Suitable for most 12V charging systems- Surge protection
- Easy to install
- Automatically sensing voltage level of main battery
- Cut In Voltage: 13.3V
- Cut Out voltage: 12.8V
Notes:
VSR maybe provided in different colour than shown at different times, also battery terminals may vary depending on batch.

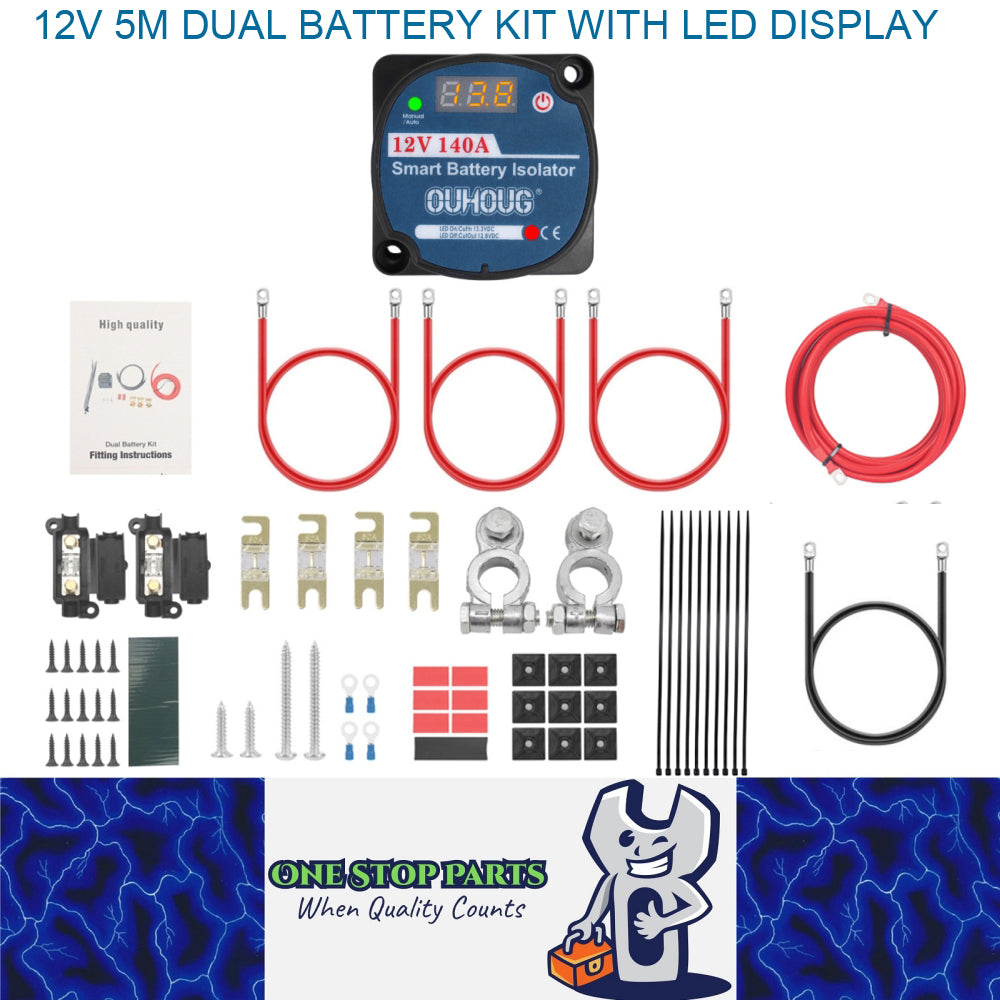

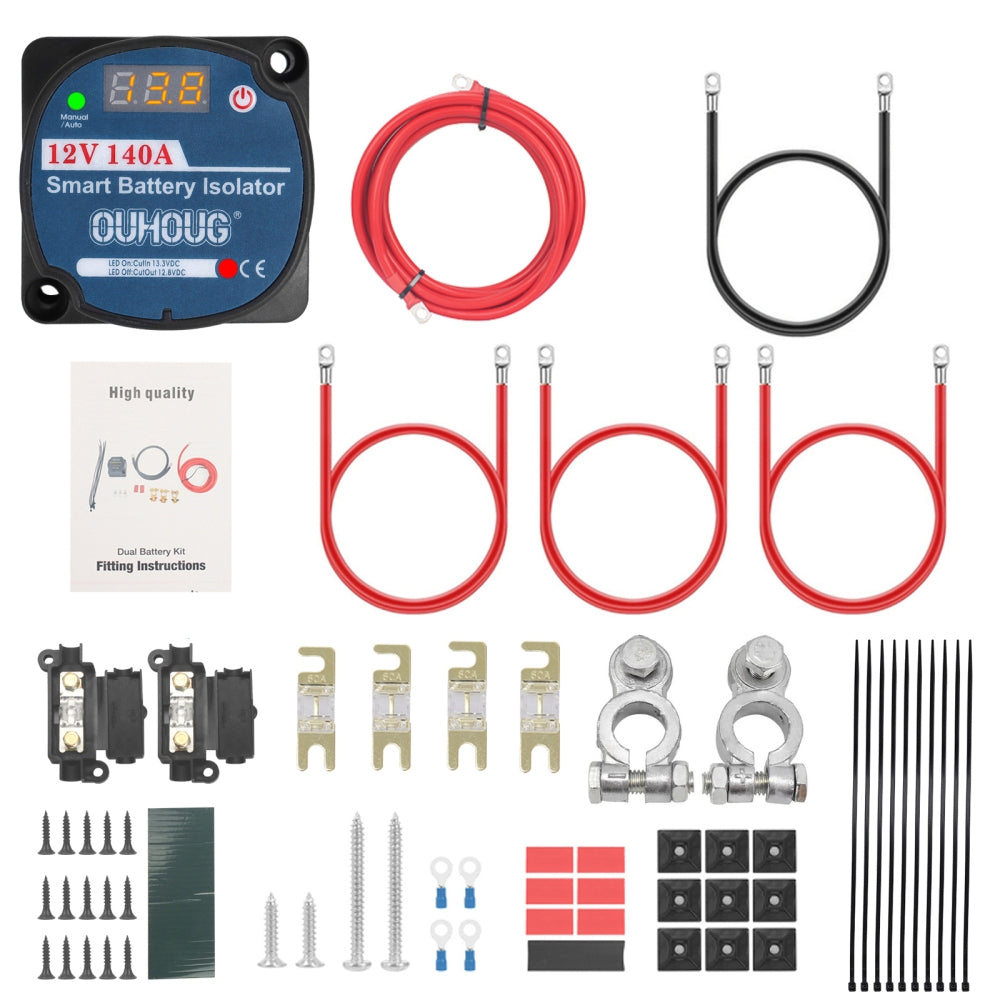

Package Includes:
*12v 140amp Intelligent Voltage sense Split Charge Relay
*1 x 4 metre red 70amp Relay to fuse holder lead (Lead terminals pre-crimped)
*2 x 250mm red 70amp cable from Battery to fuse holder leads (Lead terminals pre-crimped)
*1 x 500mm red 70amp cable Relay to fuse holder lead (Lead terminals pre-crimped)
*1 metre 70amp of Black earth cable (Lead terminals pre-crimped)

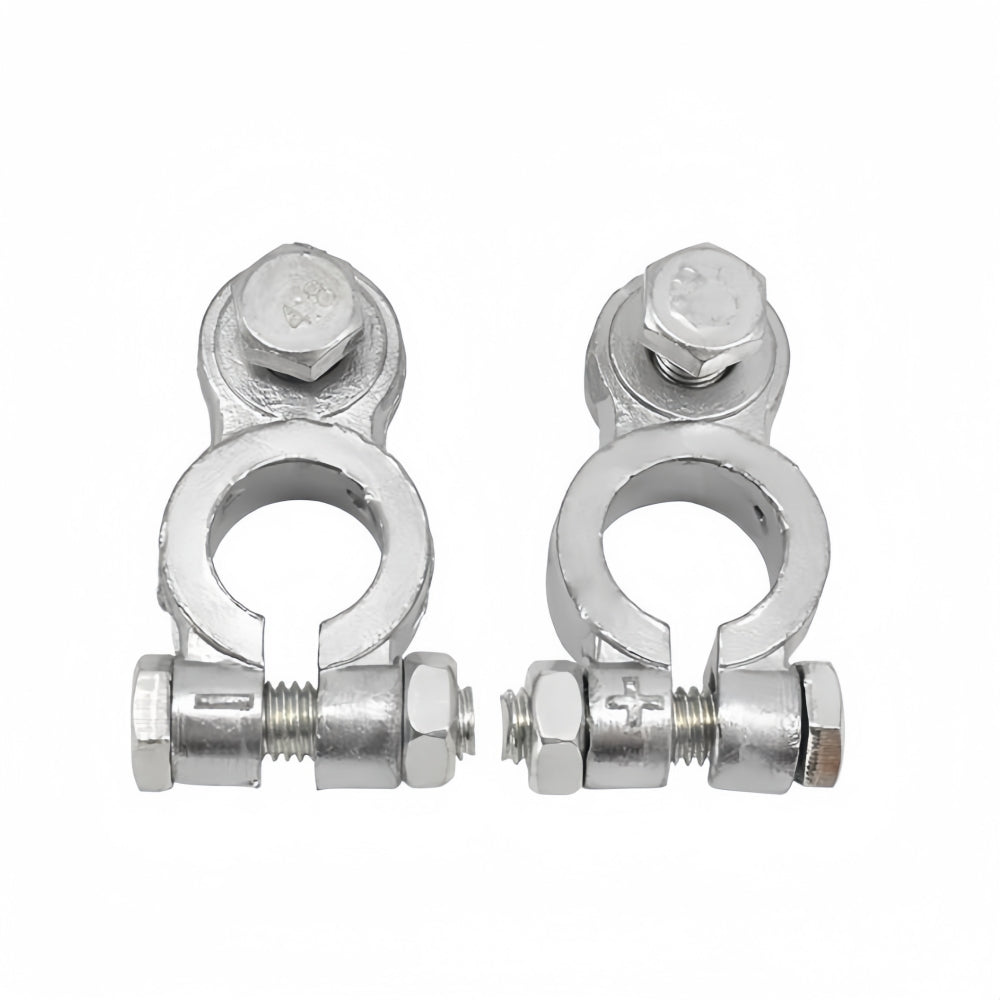

*1 Pair 8mm Post Type Battery Terminals

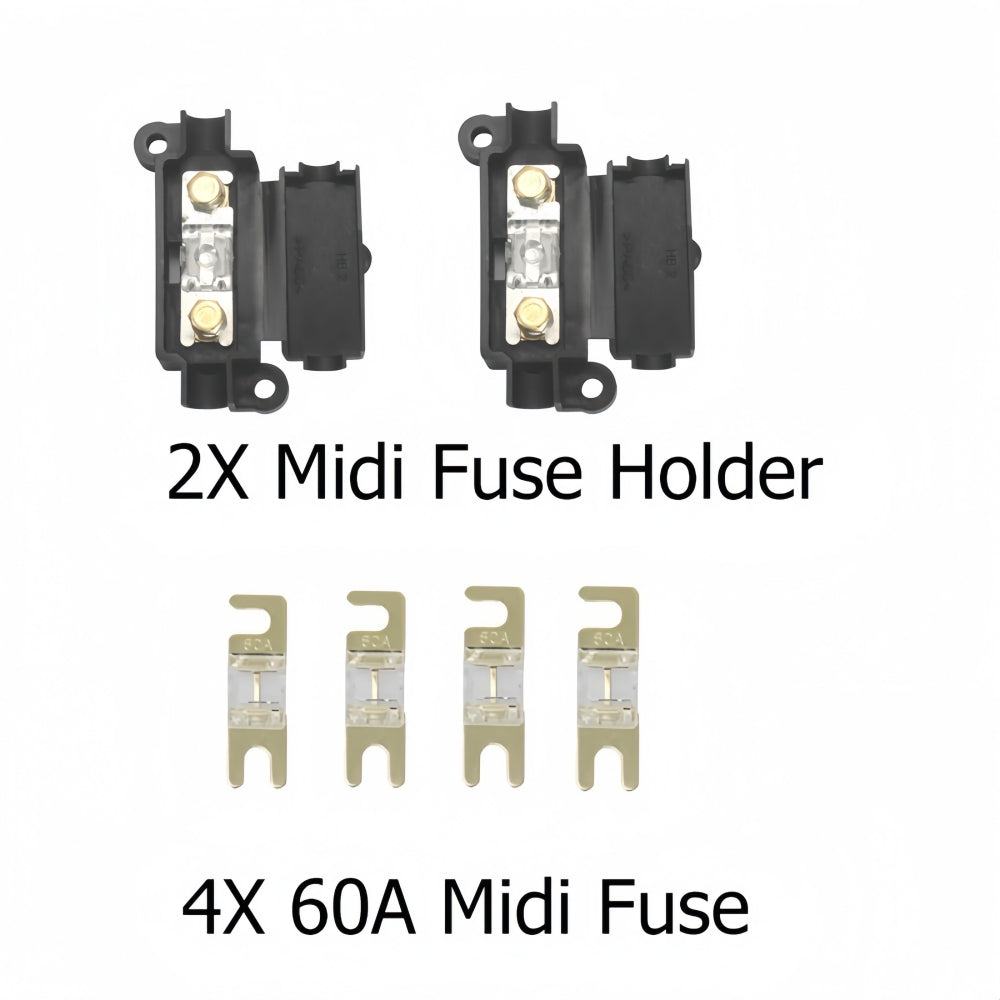

*2 x MTA MIDI Fuse holders
*4 x 60A MTA MIDI Fuses including 2 spares.
*Red & Black Heat shrink to protect all the connections.
*10 x Cable ties
*10 x adhesive cable tie fixings base to keep everything tidy.
*15 x fixing screws
*Easy to understand Fitting Instructions
