12V Car Dual Push Button Switch for Toyota LED Light Bar and Driving Light

About the item

*Type: Backlit dual push button switch with wire kit, 12V Dual ON/OFF button 2 in 1 design, LED light bar and driving light symbol.

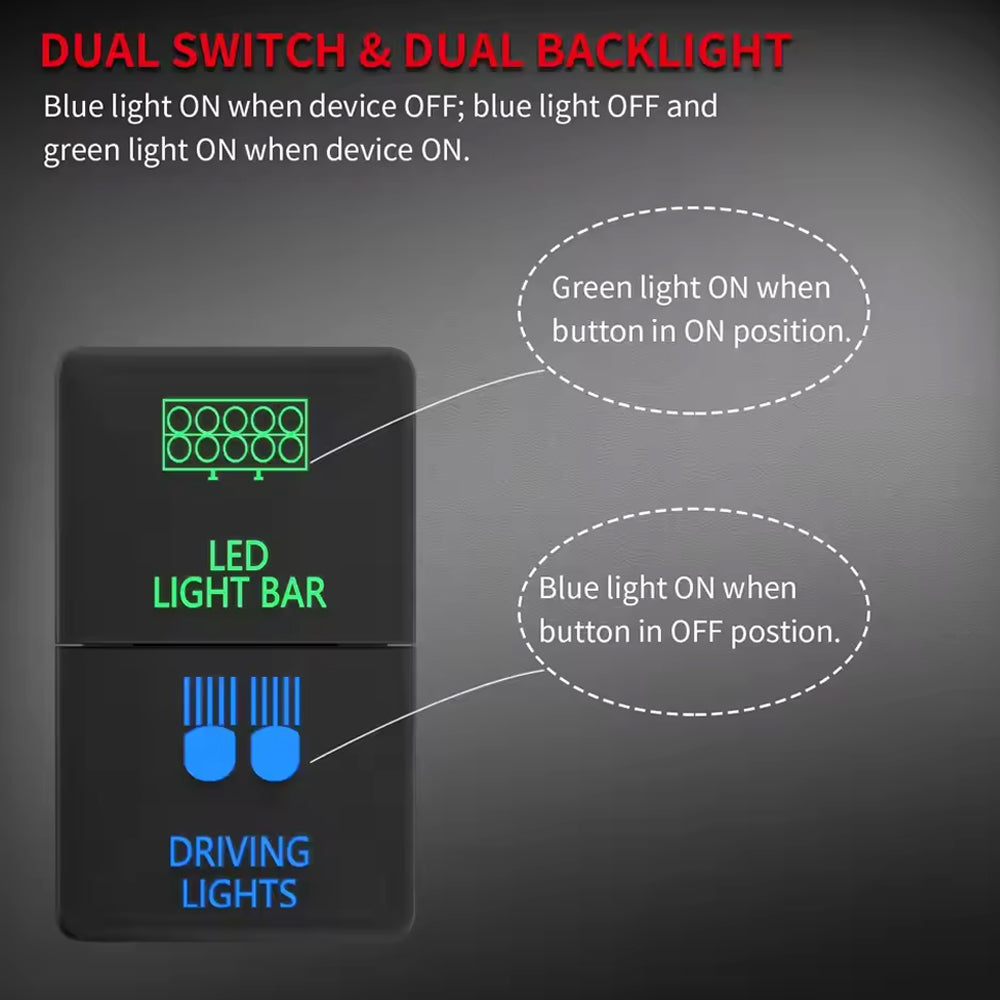

*Feature: Dual color backlit pushbutton, buttons lit blue light when dash light on, and lit green light when switch on.

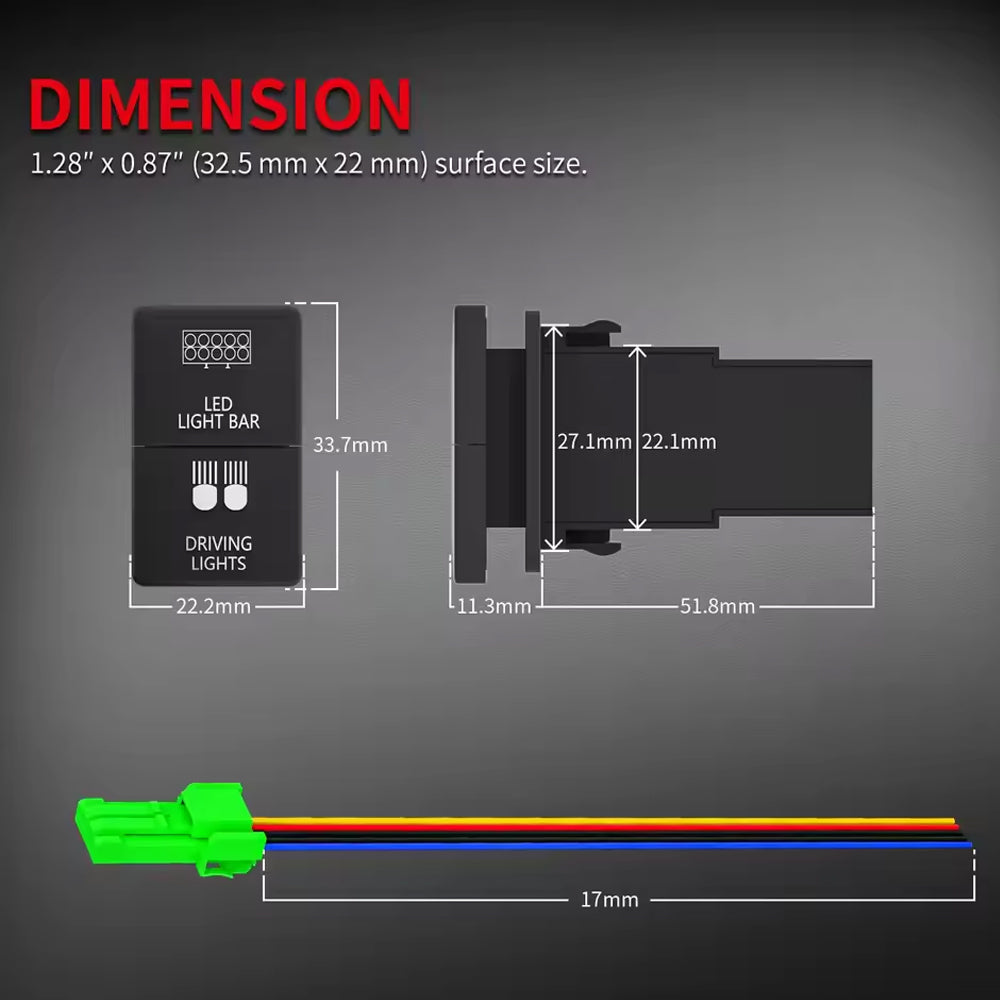

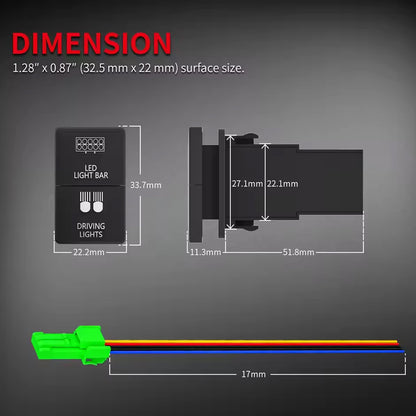

*Surface size: Suitable for Toyota vehicles with 1.28″ x 0.87″ (32.5 mm x 22 mm) surface size.

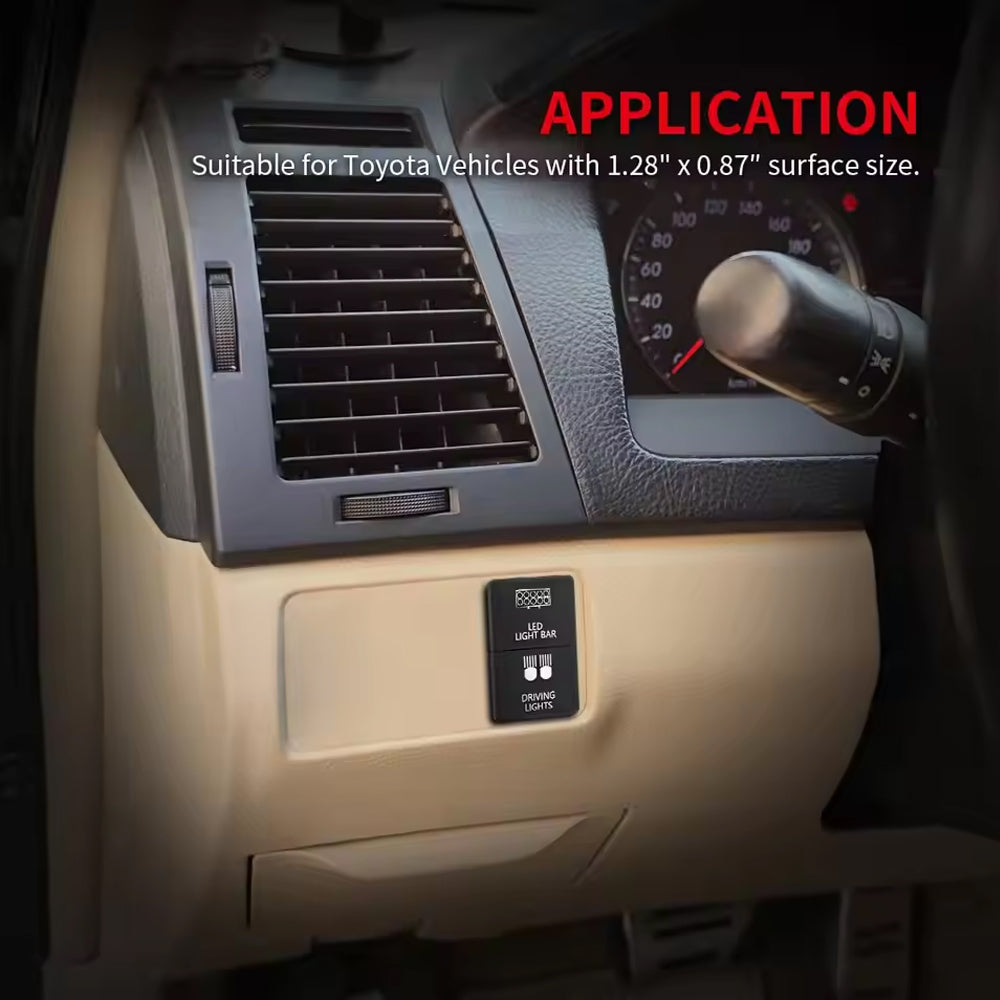

*Application: This push button switch is mainly for Toyota vehicles, suitable for Sequoia 2008-ON, Highlander 2008-ON, Tacoma 2012-ON (Center Console ONLY), Tundra 2008-ON, 4Runner 2010-ON, RAV4 2008-ON, Yaris 2008-ON.

*Please note: this switch must be used with relays.

Speciflcations

Function: 2 ON/OFF Button

Backlight: Blue & Green

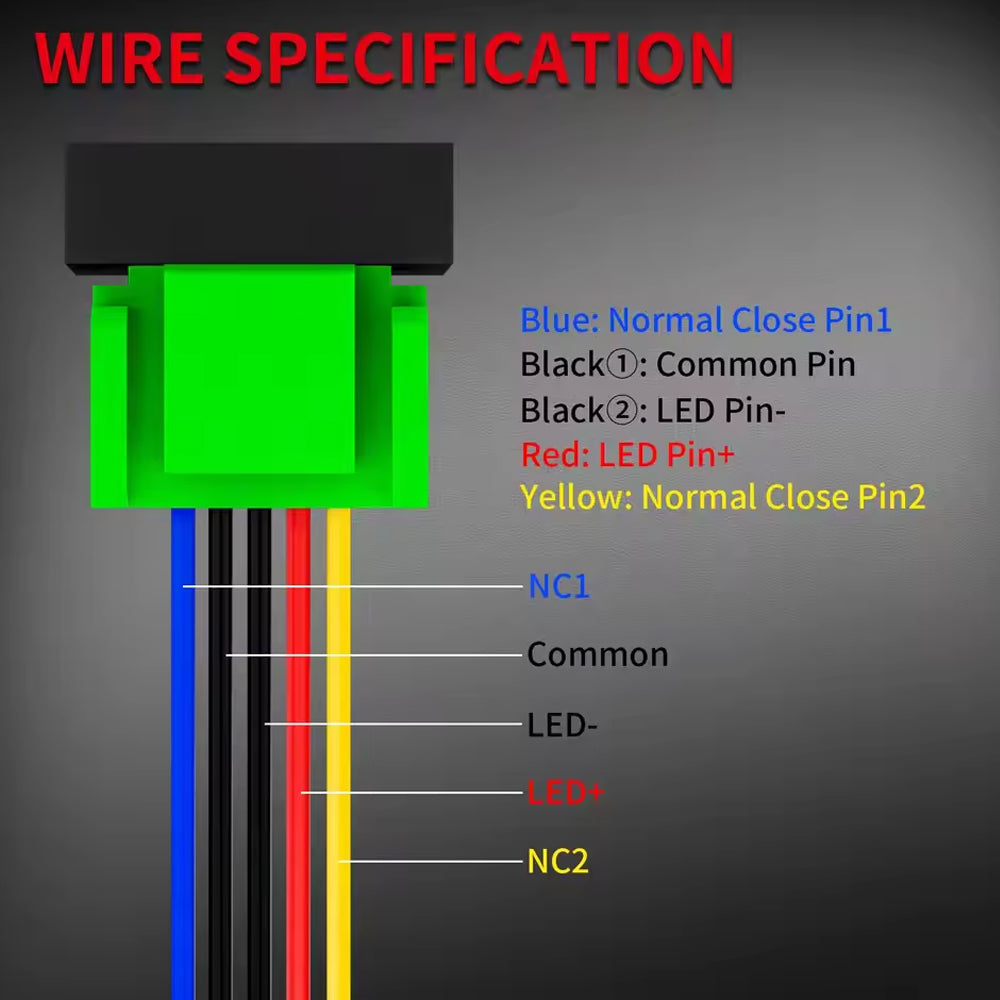

Terminal: 5 Pin

Suitable Surface Size: 32.5 mm x 22 mm

Package Includes

1 * Push Button Switch

1 * Wiring Harness

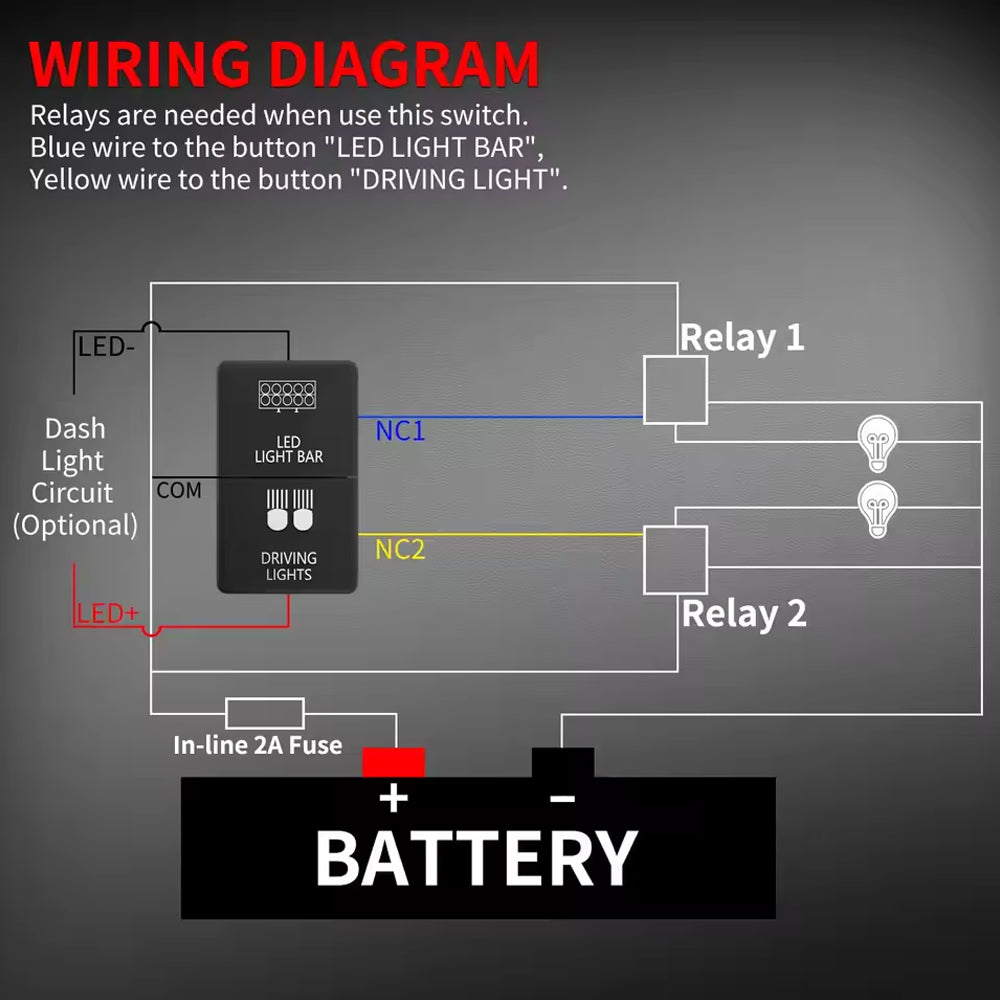

1 * Wiring Diagram
