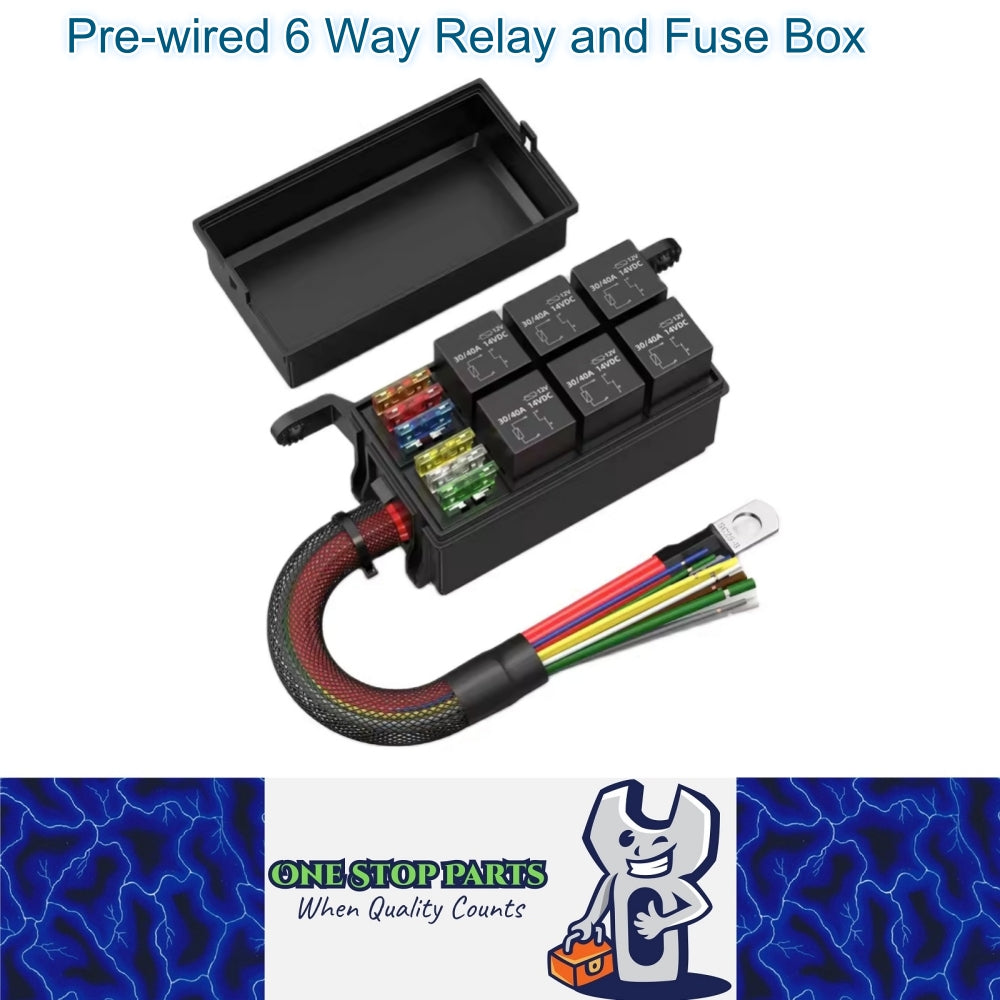

Here we have on offer is 12V 6 Way Relay Box 12AWG Pre-wired 6 Slot Fuse Block ATC/ATO Fuse Relay Holder .

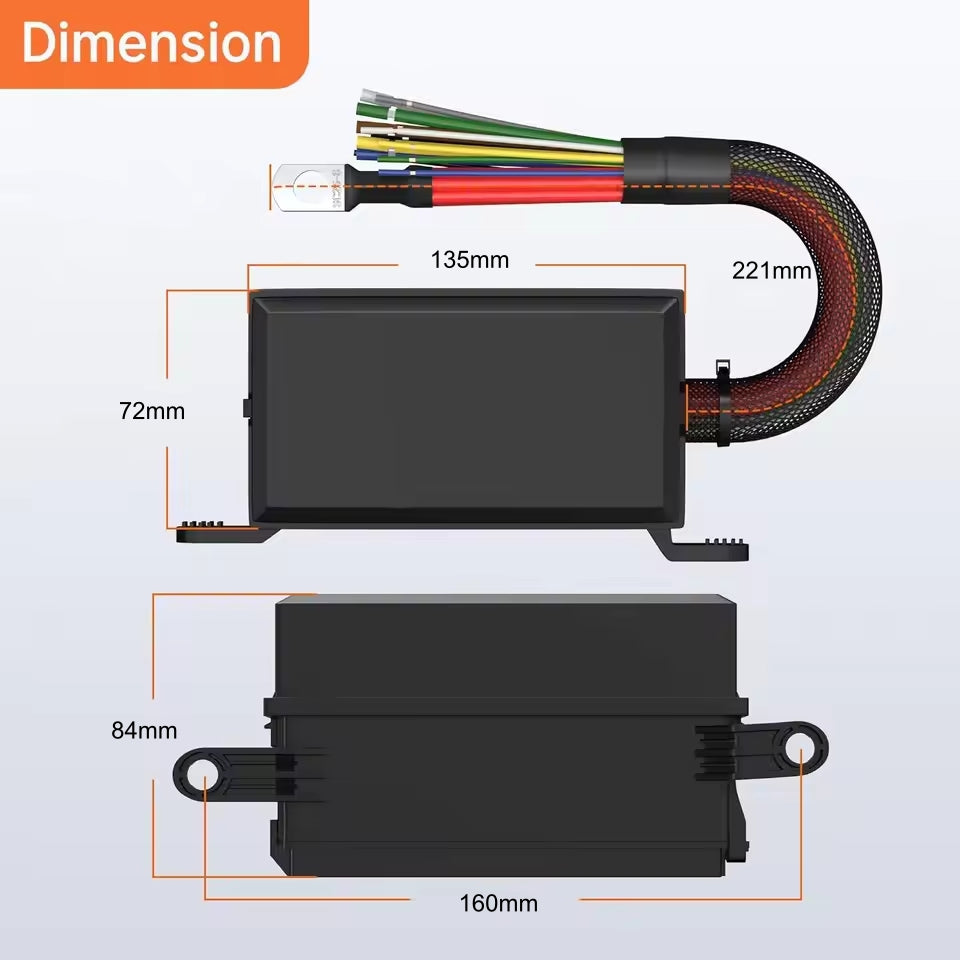

Overall Length: 135 x 72 x 84mm
This Box includes:
6 Way Relay Holder
6 x 4pin 12V 30/40A Relay
6 Way Fuse Holder
6 x Standard Blade Fuse (5A, 10A, 15A, 20A, 25A, 30A)
221mm 12AWG Pre-Wired

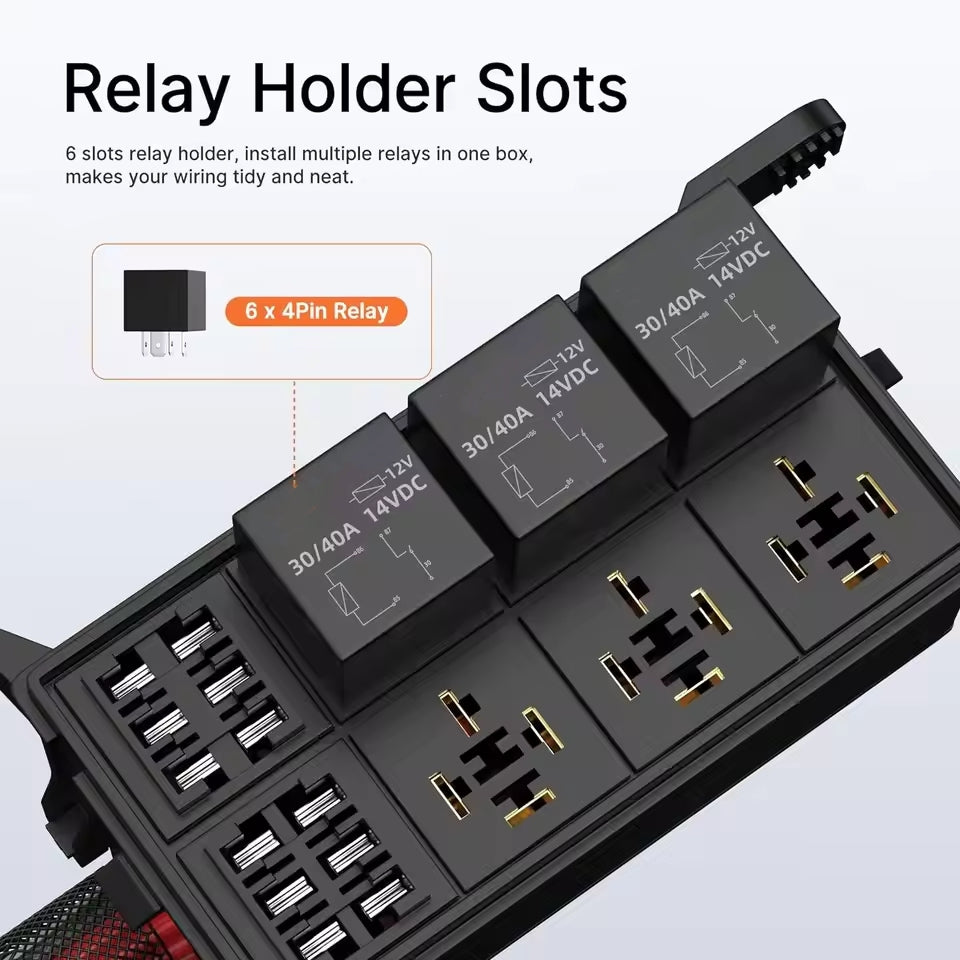

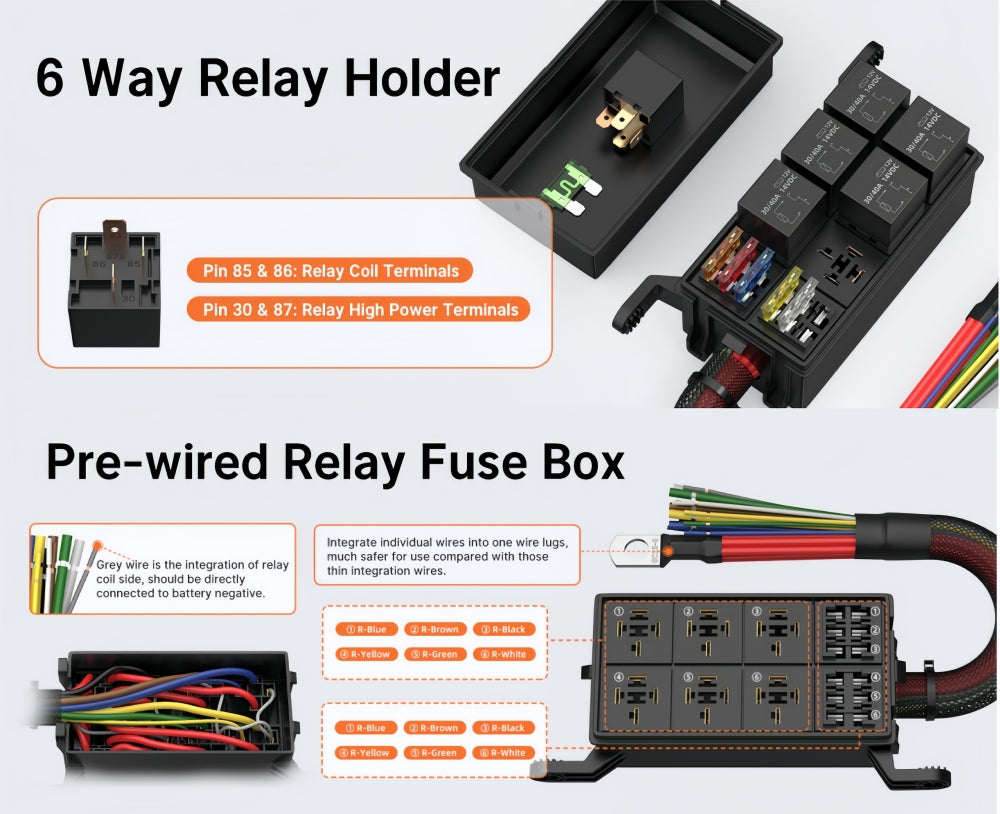

【Relay Box】 - This 12v relay box includes total 6 available slots for connecting, can make 6 relays connected neatly and tidily in one box, which also makes it easy to replace when one of the relays break down.

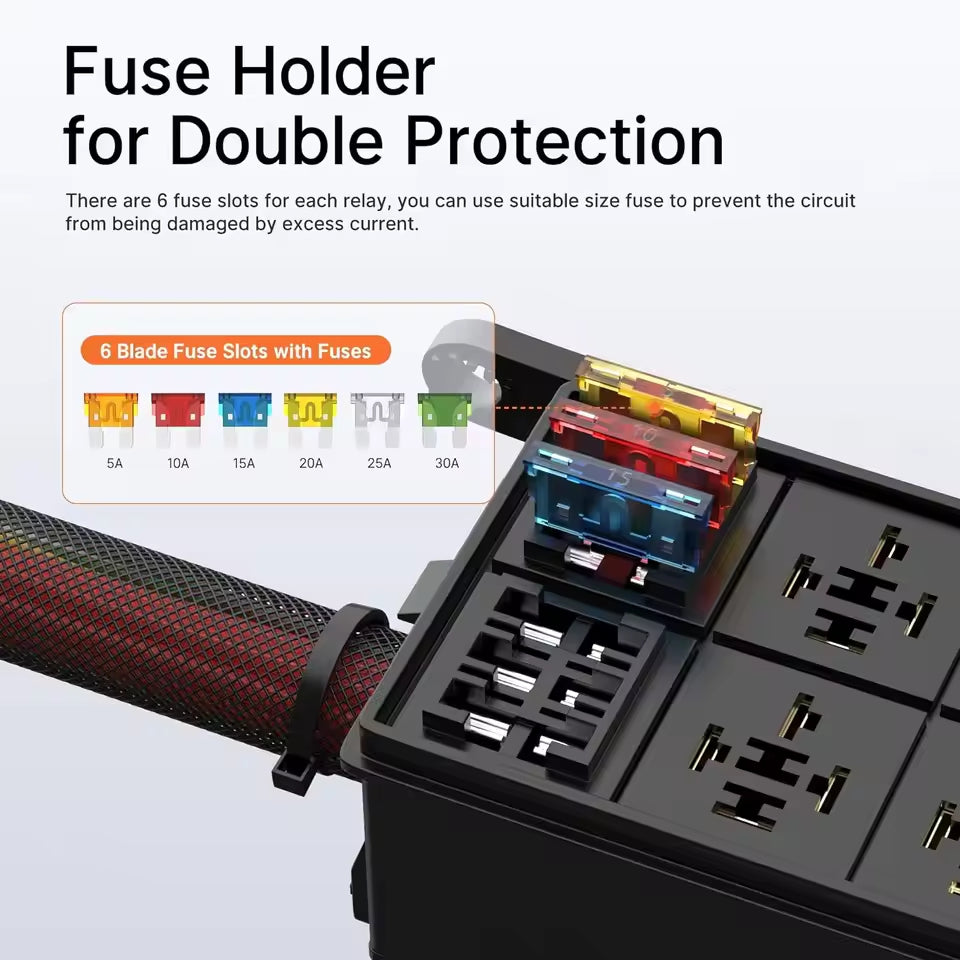

【Fuse Block】 - This relay block also includes 6 fuse slots for relays, you can add suitable size fuse to corresponding circuit to protect the device from being damaged by excess current, which provides double protection to your circuits.

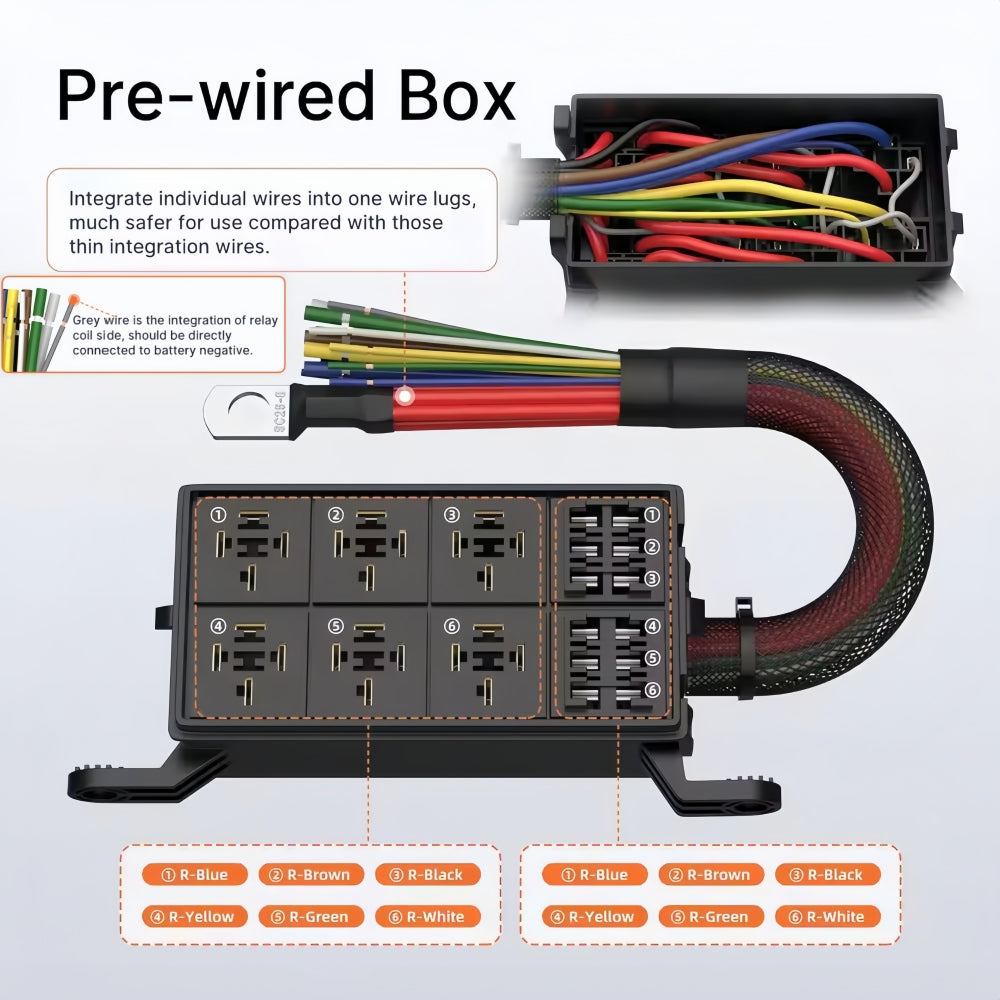

【Pre-wired】 - This relay fuse box is pre-wired design, and the wires are connected in different colors for easily clarify and connect the wires. In addition, the wires at relay high power side are 12 awg wires, which makes the whole box much safer for large current use.
【Waterproof & Dustproof】 - This fuse relay block includes upper cover and bottom cover for use, which can block out most dust or splashing water from entering the box, enhances the security level when use.
【Application】 - The relay holder with fuse aims to make the wiring clean and tidy, which is suitable for 12V use, capable of automotive, car, truck, marine boat, etc.
Quantity: 1 Box
