About this item
Marine fuse block waterproof 6 way ATO/ATC marine fuse panel. 12v - 36v automotive fuse block, rated max 100A continuous current, and max 30A per way.

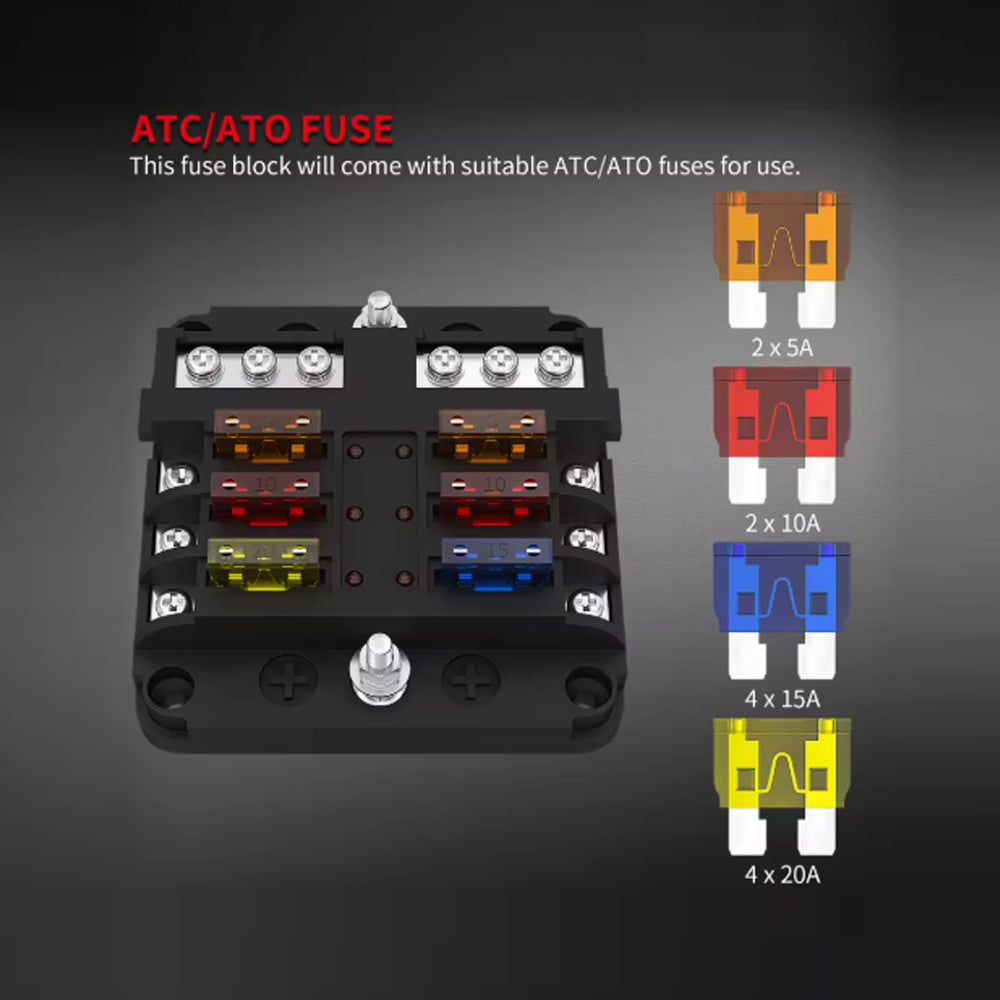

【Blade Fuse Box】- This marine fuse box 12v will come with suitable blade fuses for use, includes 2X5A, 2X10A, 4X15A and 4X20A fuses, total 12 pieces of fuses.

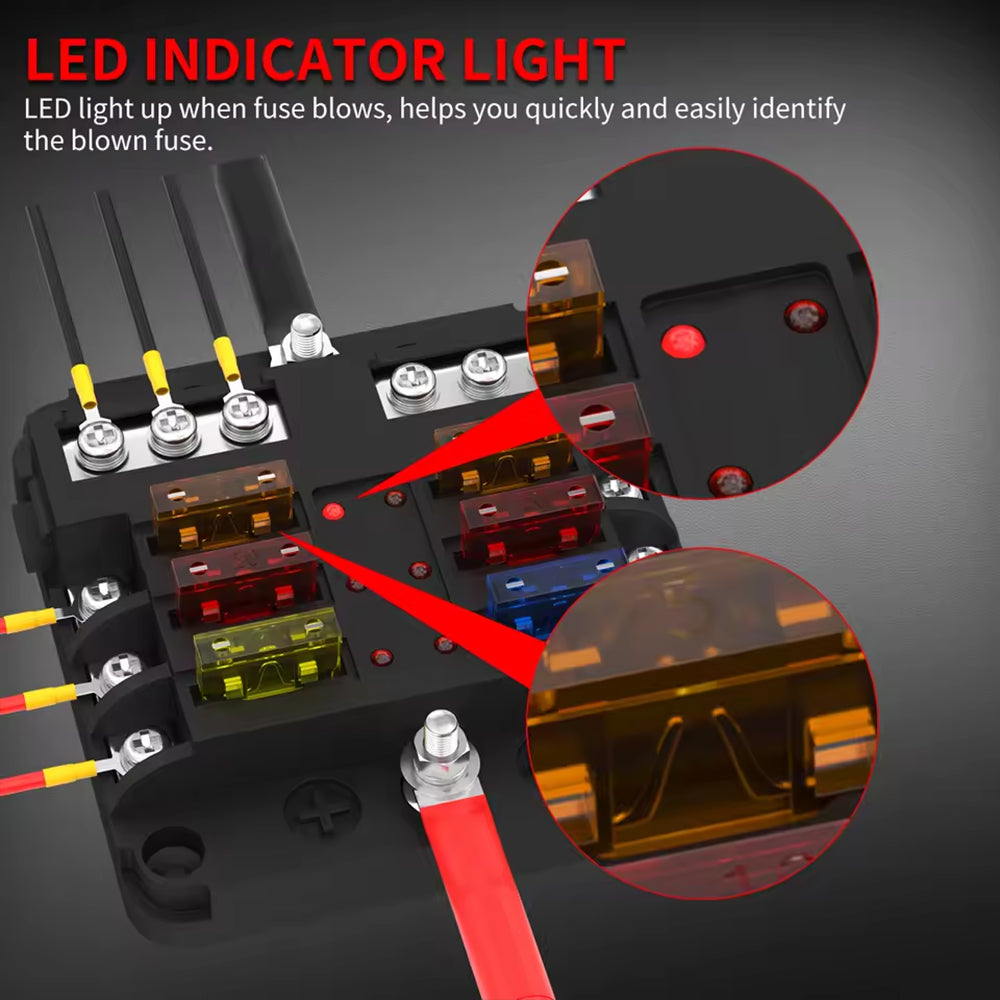

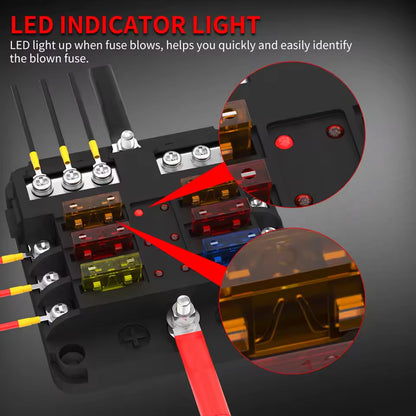

【LED Indicator】 - This 12v fuse block is led indicator light design, LED light up when fuse blows, helps you quickly and easily identify the blown fuse.

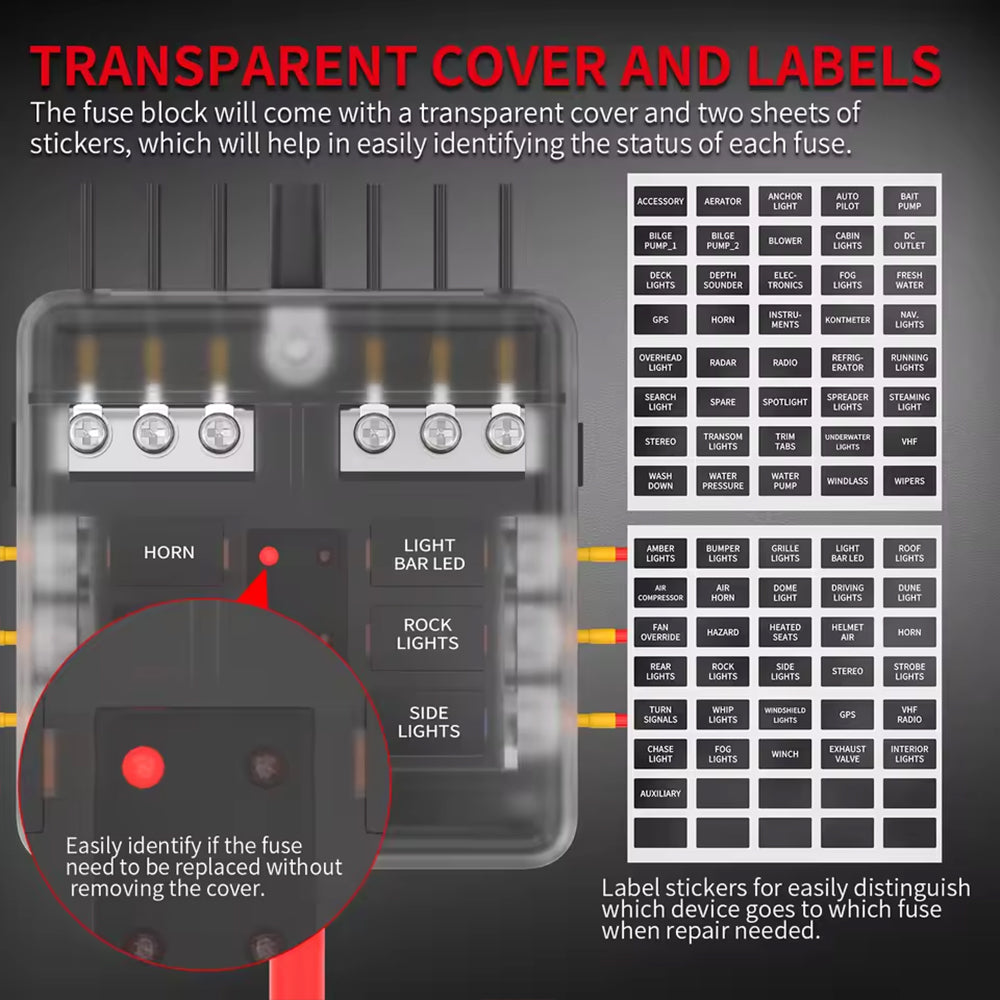

【Label Sticker】 - The fuse block 12 volt automotive will come with a transparent cover and two sheets of stickers, which will help in easily identifying the status of each fuse.
【Application】 - The 12 volt fuse block aims to protect the branch circuits, as well as makes the wiring tidy and neat, prevent the device from being damaged by short circuit or continuous overload.
Specifications
Fuse Type: ATC/ATO Fuse
Number of Fuse Slots: 6
Voltage: 12 - 36 Volt DC
Total Max Continuous Current Rating: 100A
Max Current Rating Per Way: 30A
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

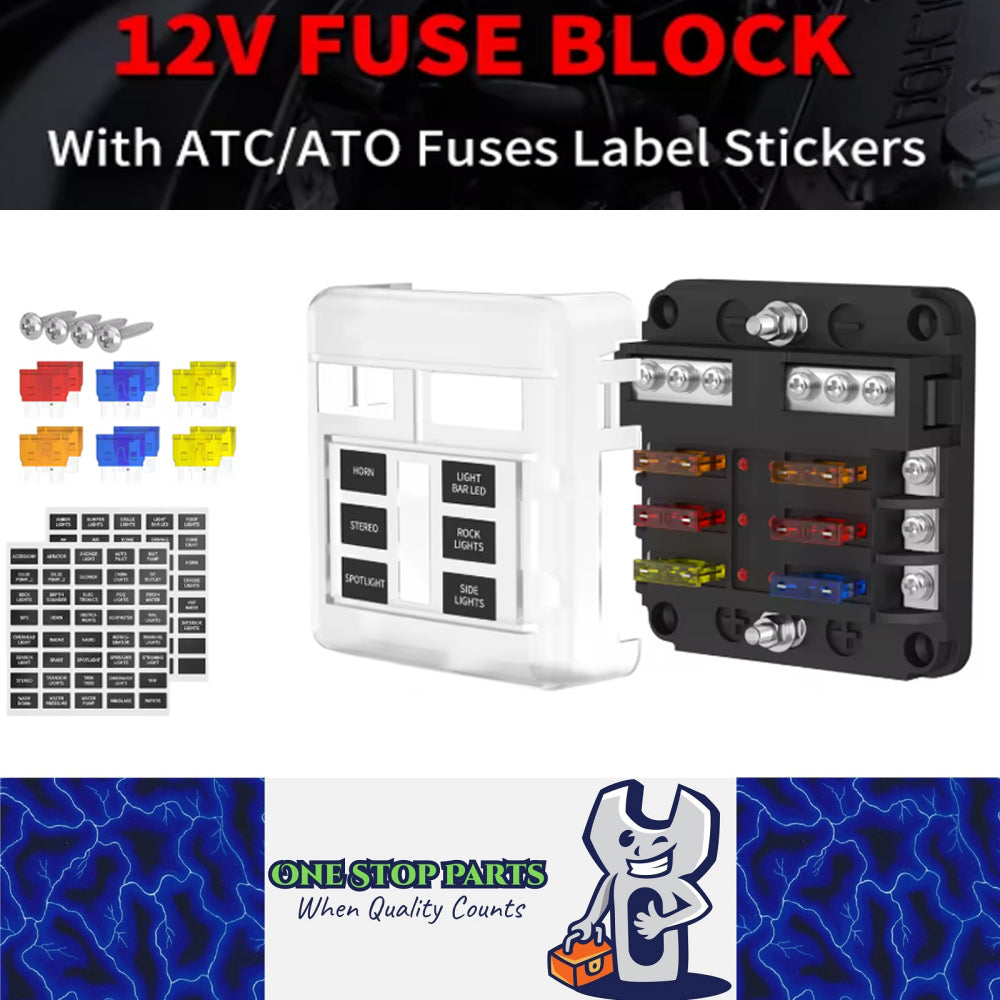

PACKAGE INCLUDES
1 x 12V Fuse Block with Cover
12 x Blade Fuses (2x5A, 2x10A, 4x15A, 4x20A)
2 x Label Stickers
1 x set of Mounting Hardwares
