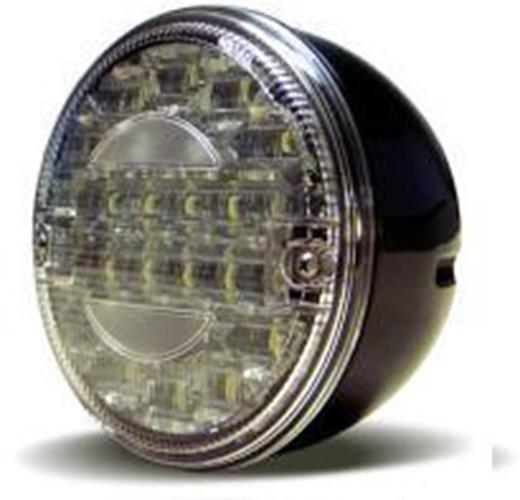

Here we offer what is called a Hamburger light, this lamp offers Reverse illumination.
Lamp can be used on either 12v or 24v vehicle applications, lamp is auto sensing and will offer the same light output on either voltage being supplied.

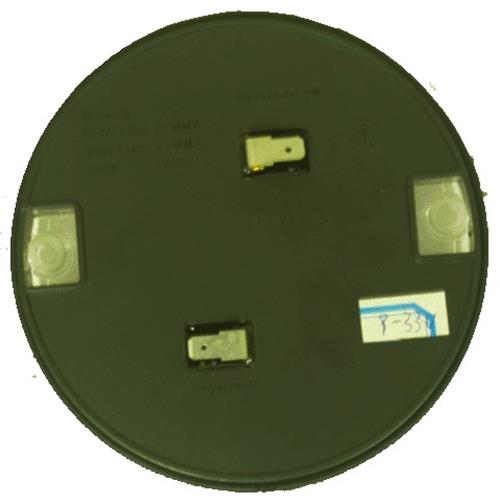

2 male spade terminals on the rear of the module being:
1 x Negative terminal for Earth.
1 x Positive for Reverse.
Led module has E-Mark and is compliant with ADR regulations.

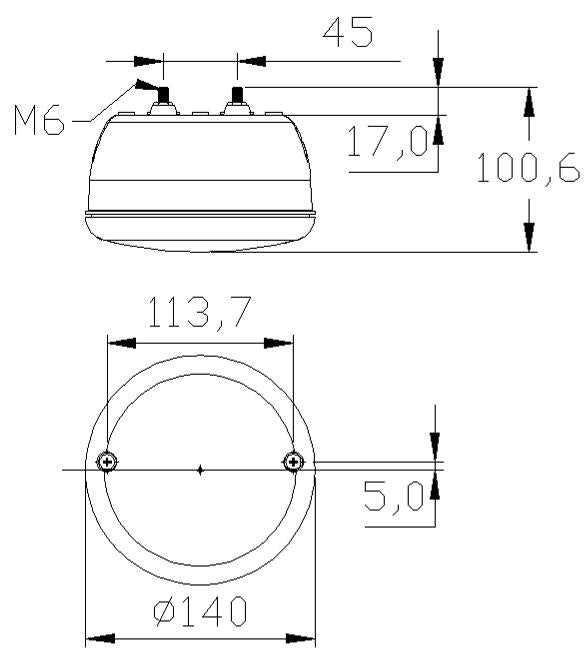

Dimensions:
140mm Diameter.
100mm Deep.
2 x Bolt hole mount on rear which are 45mm apart.

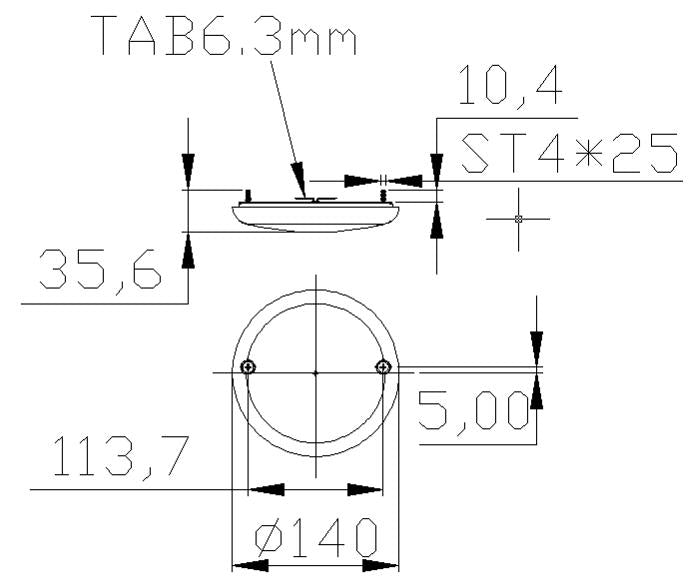

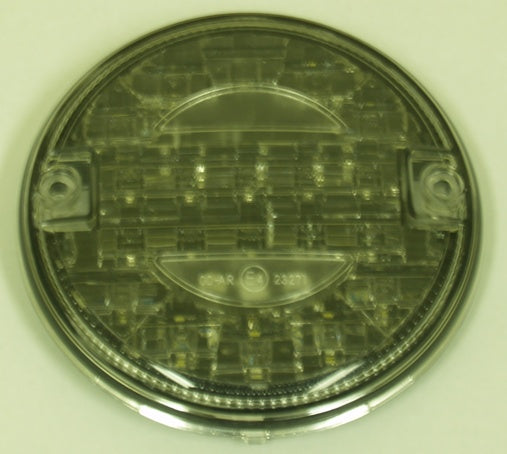

Lens module unscrews from the base which offers ample space within to hide connections etc, rear mounting bolts can be removed so you can also affix the light using screws etc from the inside of lamp to mount to the body of your vehicle, like for most caravans where you dont have access inside enabling you to use nut/bolt mount set up.
