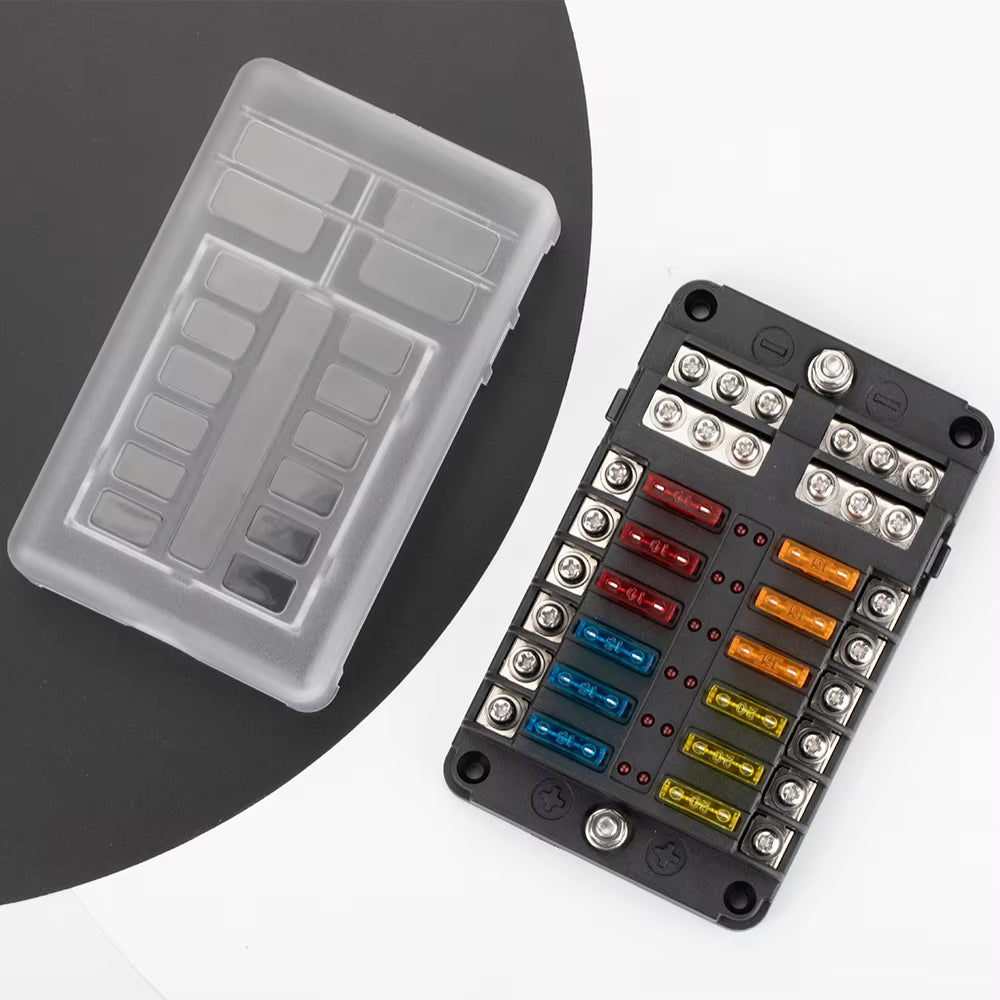

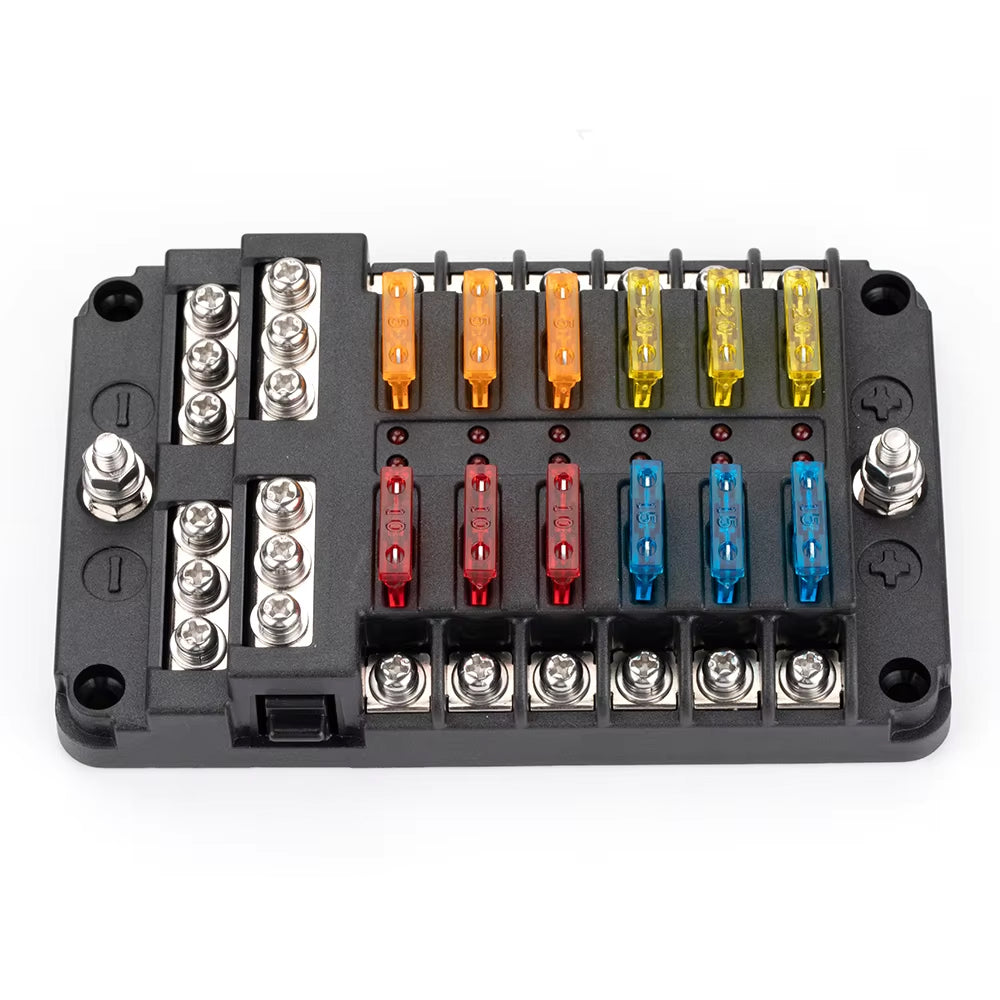

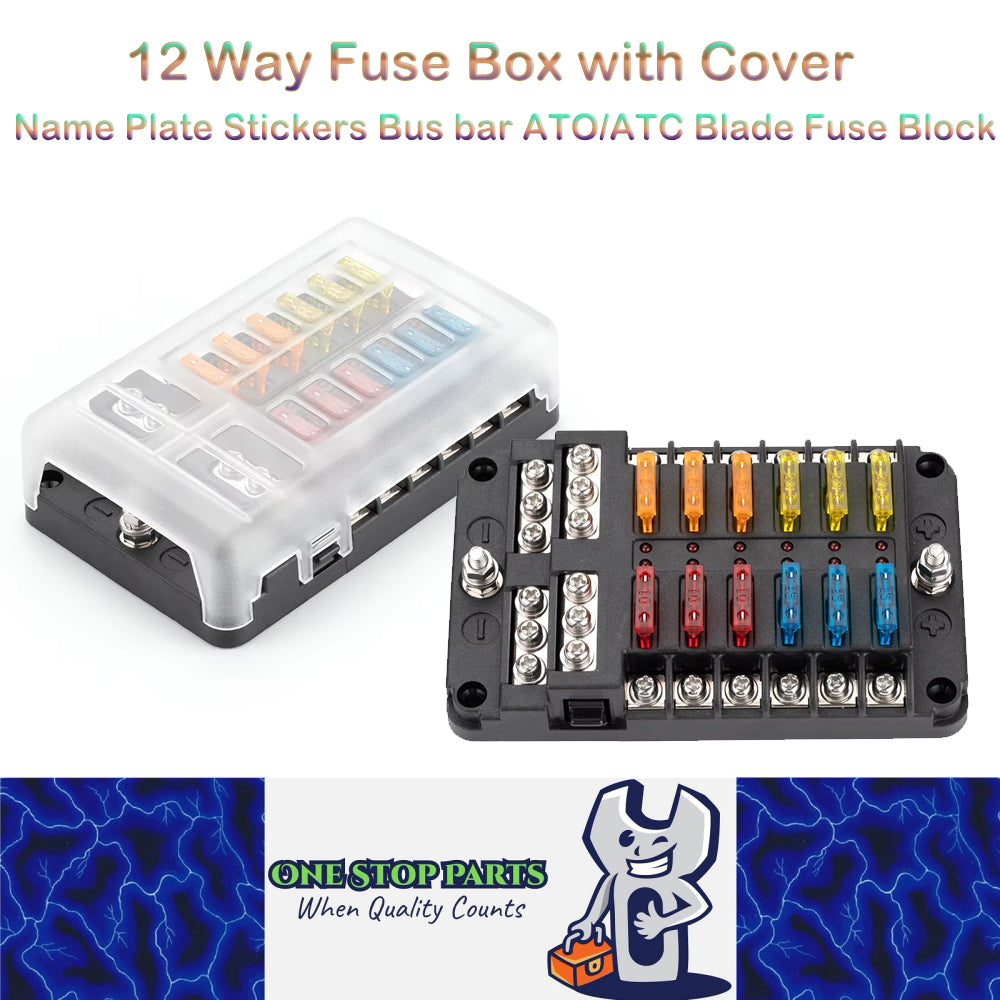

12 Way Fuse Box with Cover Name Plate Stickers Bus bar ATO/ATC Blade Fuse Block

About this item

1. the product adopts PBT anti-fire material

2. all bus and fuse clips are nickel-plated copper with corrosion resistance

3. all fasteners are stainless steel.

Specifications

Net weight: 279g

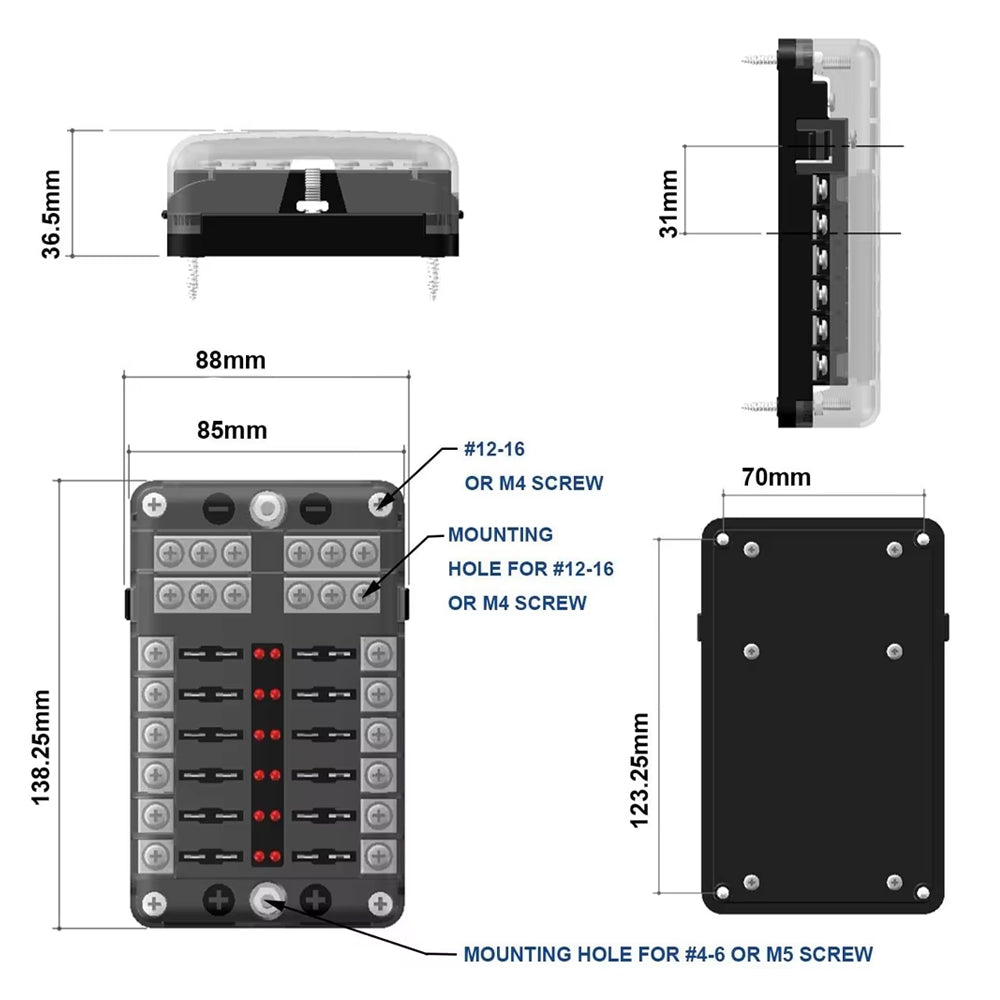

Size: 138.25*85*36.5mm

Input rated voltage: 32V

input rated current: 100A

output maximum current: each circuit is 30A

Main thread terminal: M5 threaded stud

Single thread terminal: M4 threaded stud

indicator light: when the red LED light is on, it means the fuse has been disconnected, and it needs to be replaced in time to continue running

scope of product installation: it can be used on cars, houses, RVS, buses, yachts, boats, etc

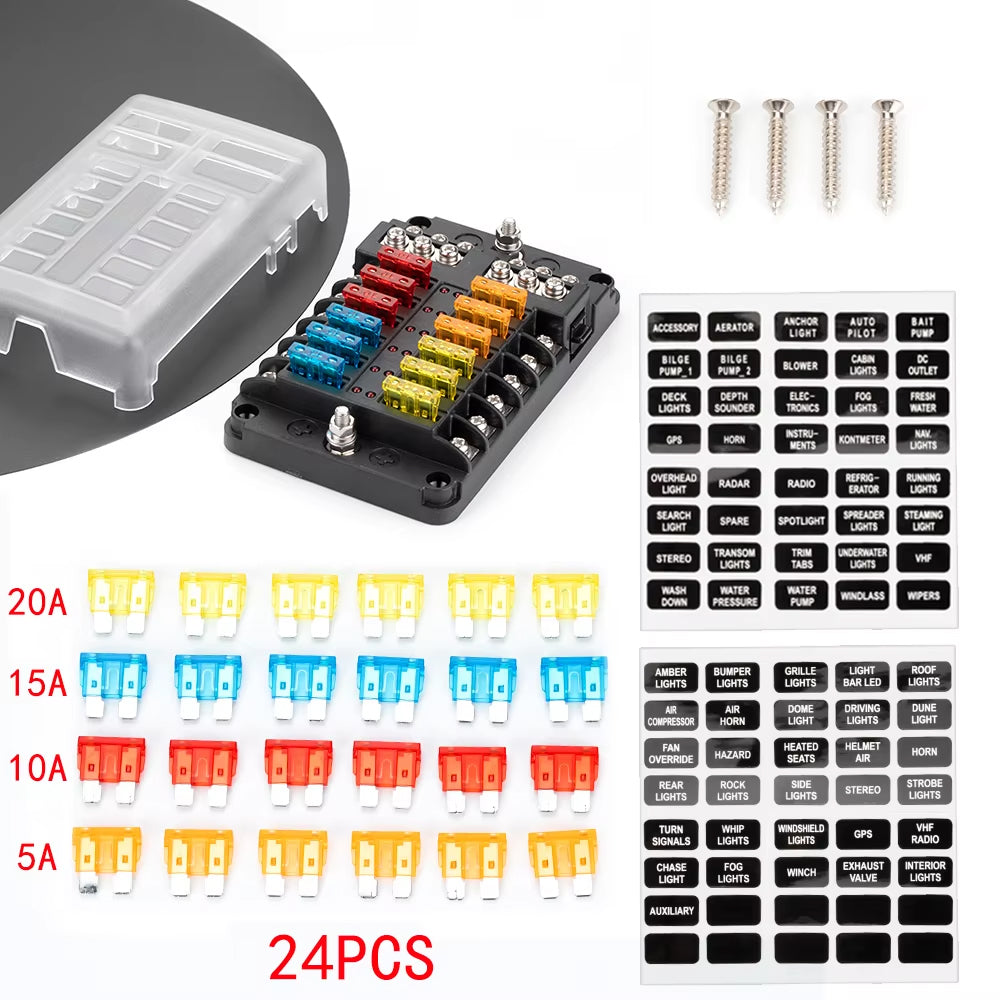

PACKAGE INCLUDES

sticker X1

Self-tapping screw *4

20A fuse *6

15A fuse *6

10A fuse *6

5A fuse *6
