About the item
Features
*Application - wiring in advance, which allows you to control 8 groups of LED lights and accessories together, and no longer takes up extra space. High sensitivity, stability and strong antinterference ability. You easily install them in 12V and 24V vehicles. It is suitable for different types of cars, off-road vehicles, pickup trucks, etc. Various switches for controlling the general electric equipment in the vehicle: headlights and this panel can be installed on the instrument panel, instrument panel, central console, gear seat, overhead sunglasses frame, A-pillar in the vehicle, etc.
*Specification - 8 groups of switch panels, so that you can externally control 8 groups of LED lights and accessories together, without taking up additional space. High sensitivity, stability and strong antinterference ability. Customize self-adhesive labels to help you determine each button according to your specific needs.
*Safety - the circuit breaker adopts 80A reset, over current protection, reverse polarity protection and thermal protection. Meet the requirements of vehicle safety specifications.
Control box
*Fixing method: bracket locking

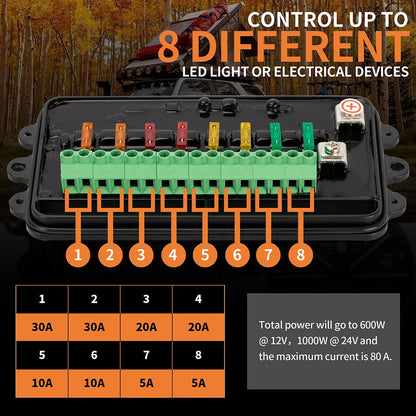

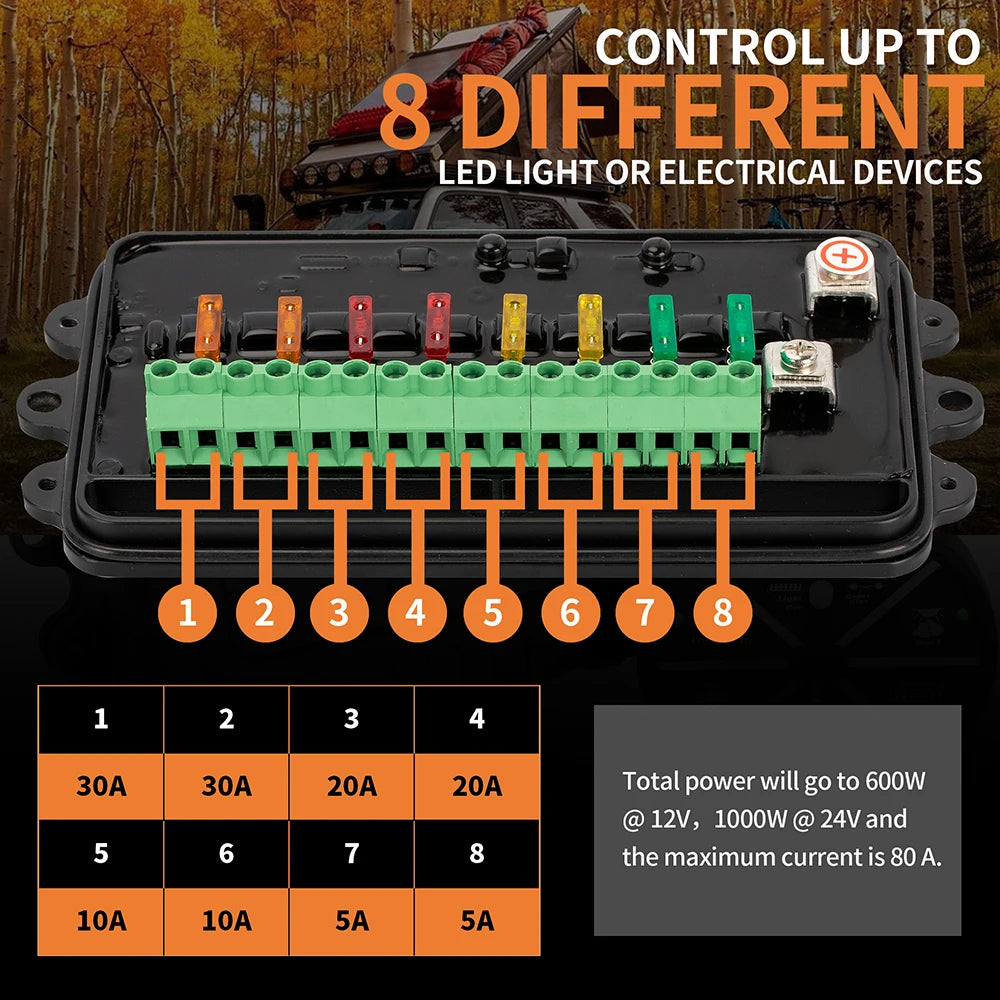

*Maximum carrying current:
*30A- 2 channels
*20A - 2 channels
*10A -- 2channels
*5A - 2 channels
*Eachdircuit shall not exceed telimited maximum curent, and the overall power shall not exceed 80A
RF controller:

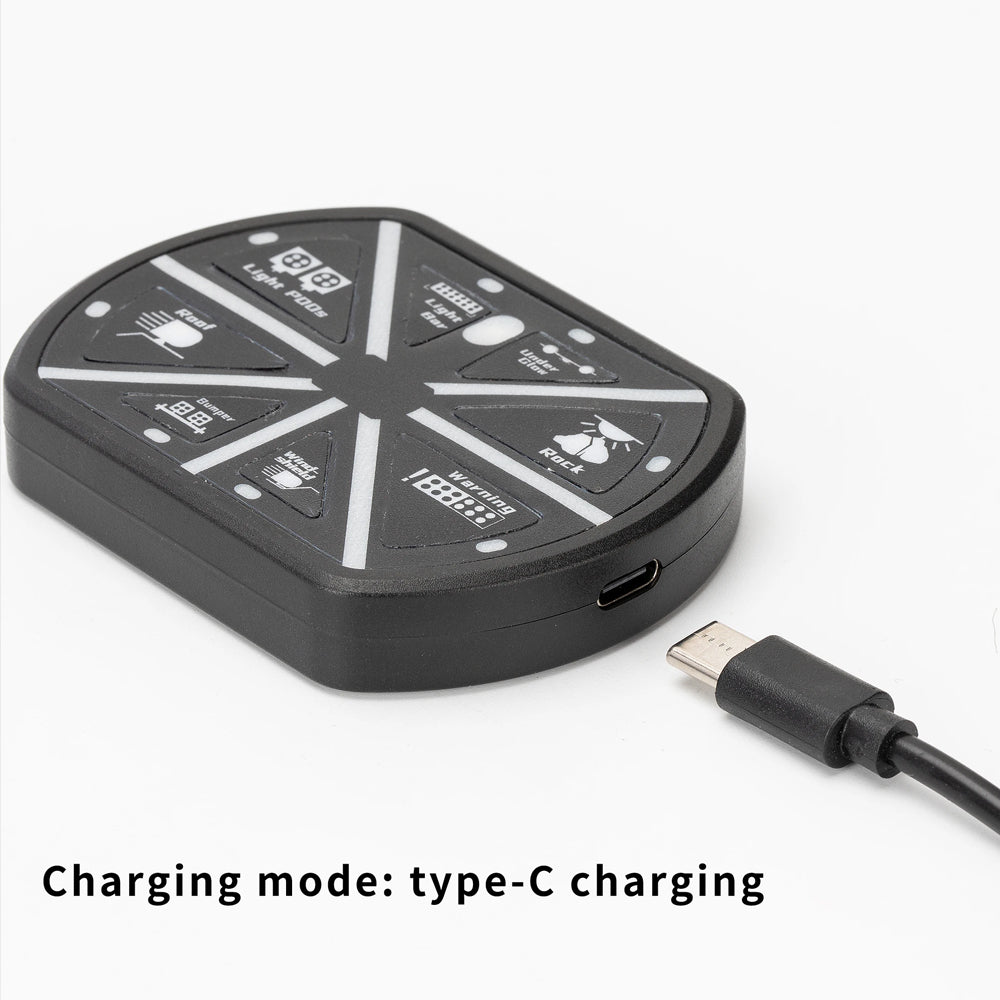

*Charging mode: type-C charging
*Charging indicator light: red flashes, blue is on, and the battery is full
*Standby time: 1000h
*Battery capacity: 300mAh
*Frequency matching mode: within one minute after the integrated controller is powered on, press the fifth key counter clockwise of the controller for 5 times. When the fifth fuse indicator of the control gold flashes, the frequency matching is completed.
*The white button in the middle is all on / all off, and the backlight is on after long press.

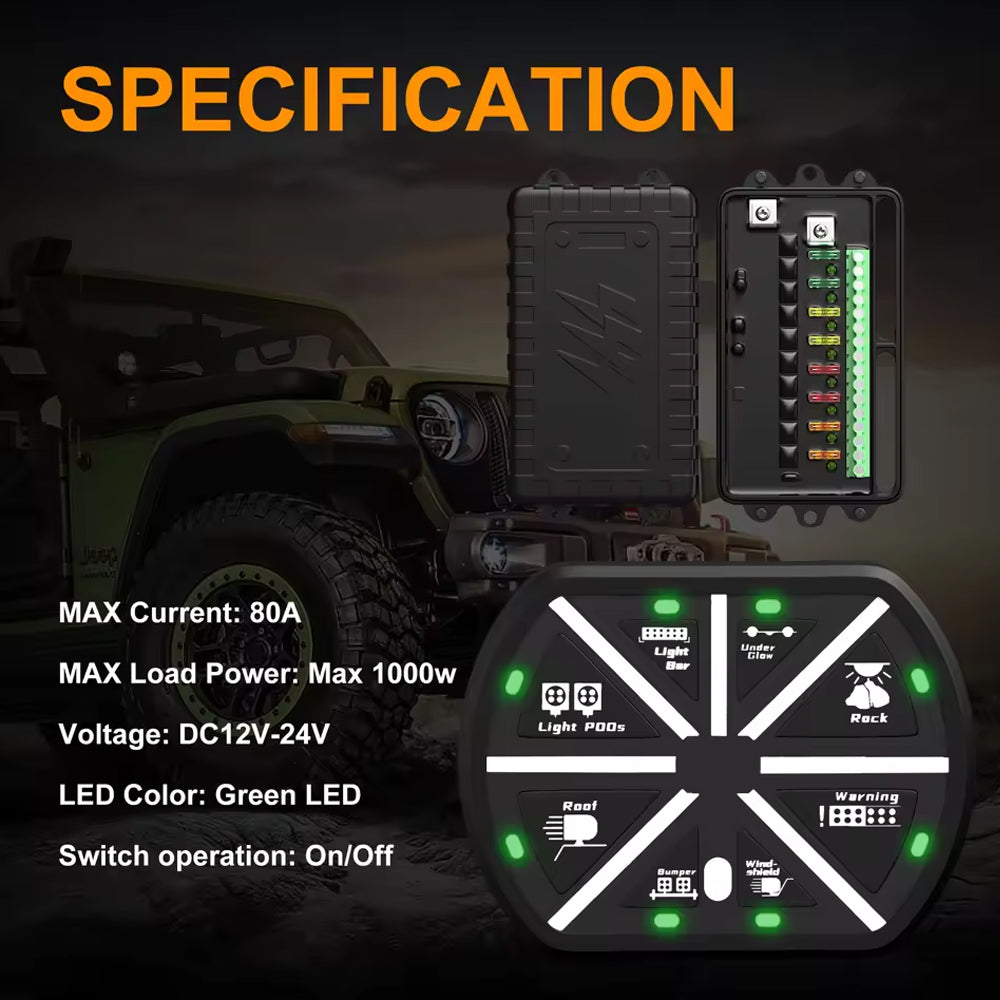

Specification
MAX current: 80A
MAX Load Power: Max 1000w
Voltage: DC12V-24V
LED color: Green LED
Switch operation: On - Off
Application: For car light
Packing Size: 25 X 20 X 7 CM

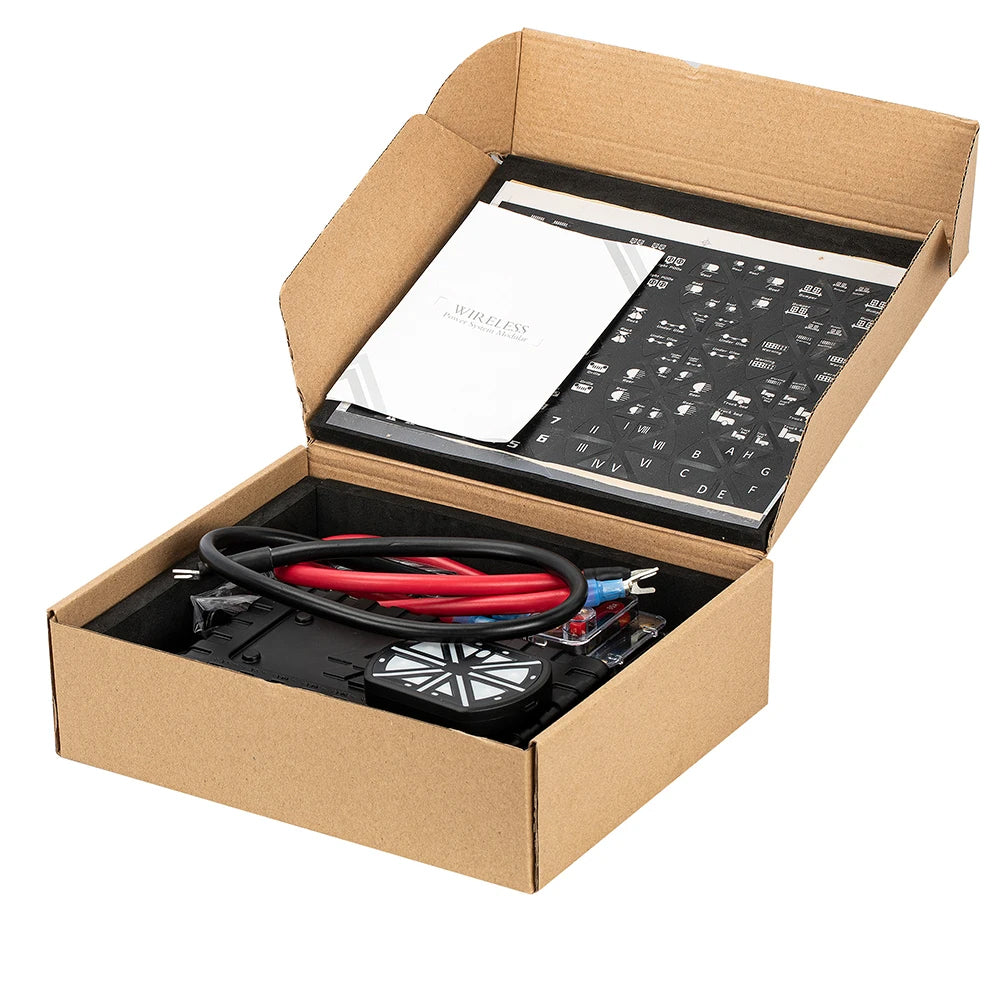

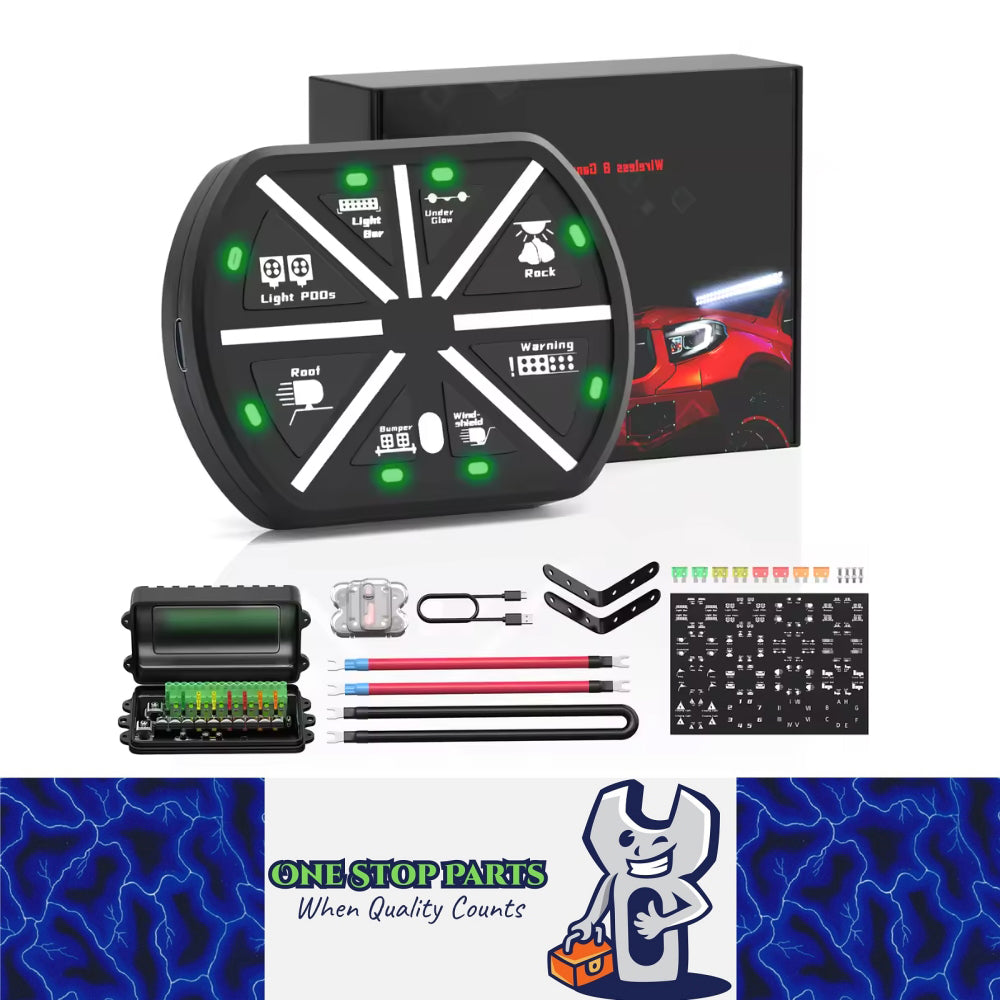

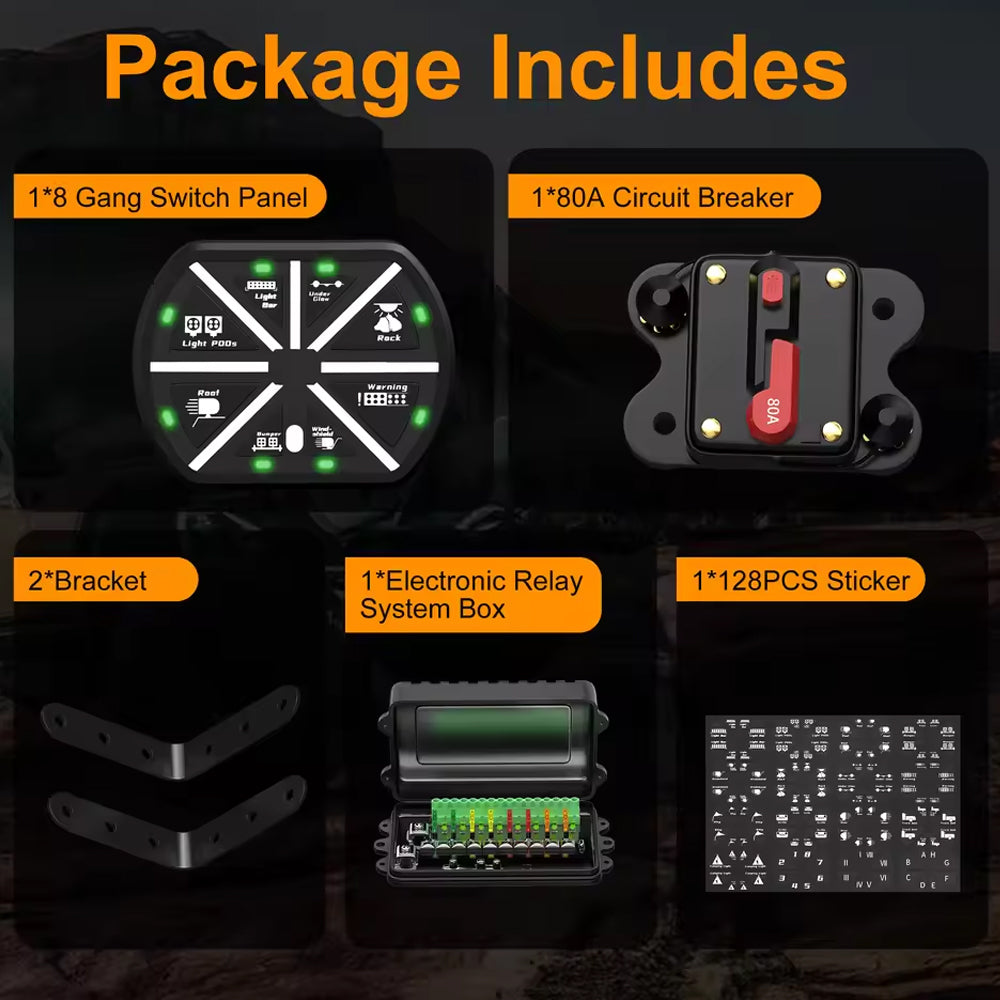

Packing Includes
1* 8 Gang Switch Panel
1* 80A Circuit Breaker
2* Bracket
1* Electronic Relay System Box

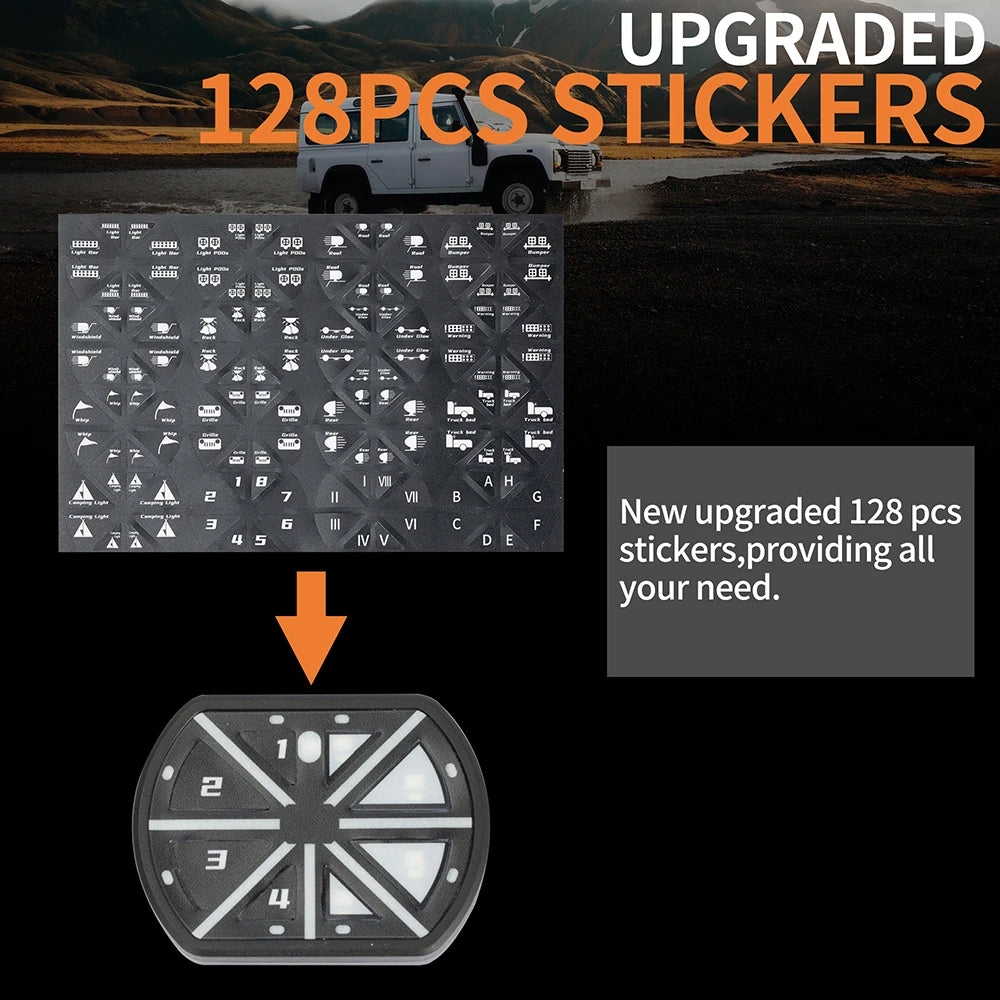

1* 128PCS Sticker
