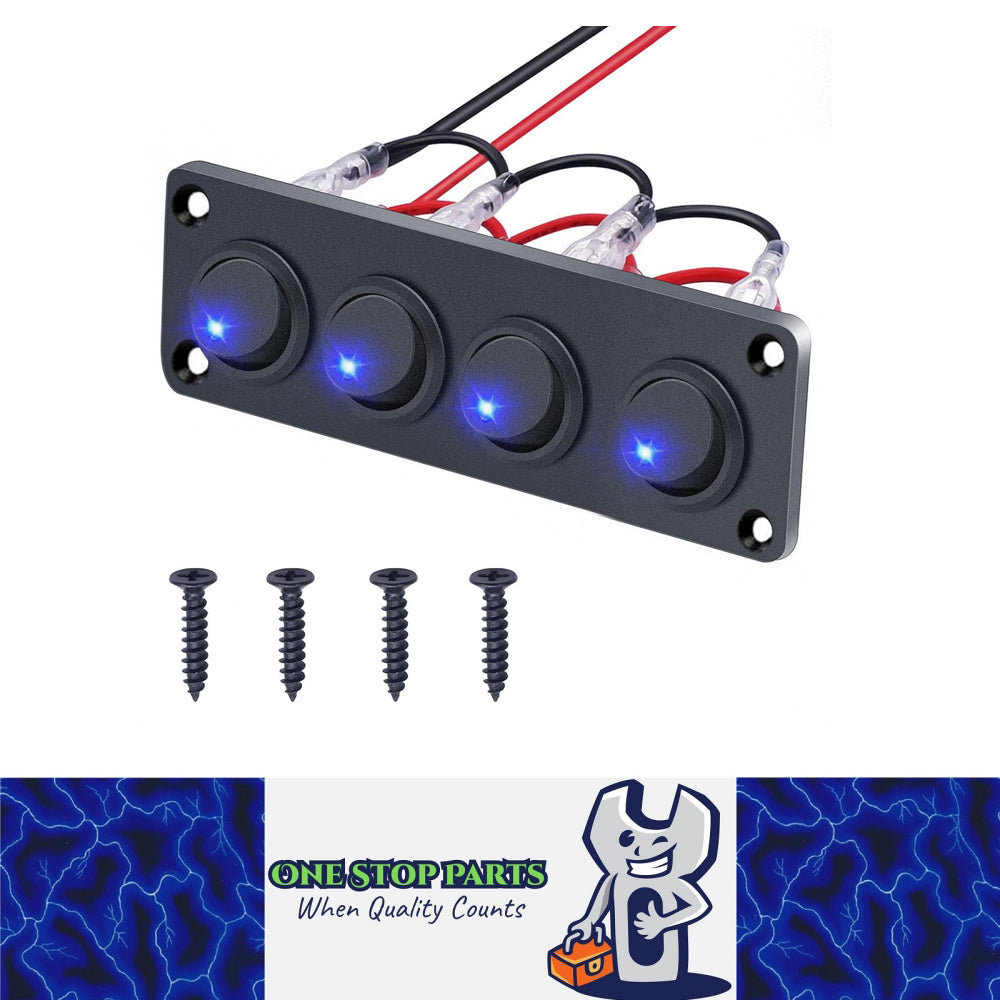

Here we have 12/24V 4 x Rocker Button Switches on Panel with Blue LED Light Pre Wired with Screws.
【Unique Design】:This rocker switch panel can be turned on and off freely. Rating: 20A/12V DC, 10A/24V DC; SPST: ON-OFF 2 poles; LED color: blue.

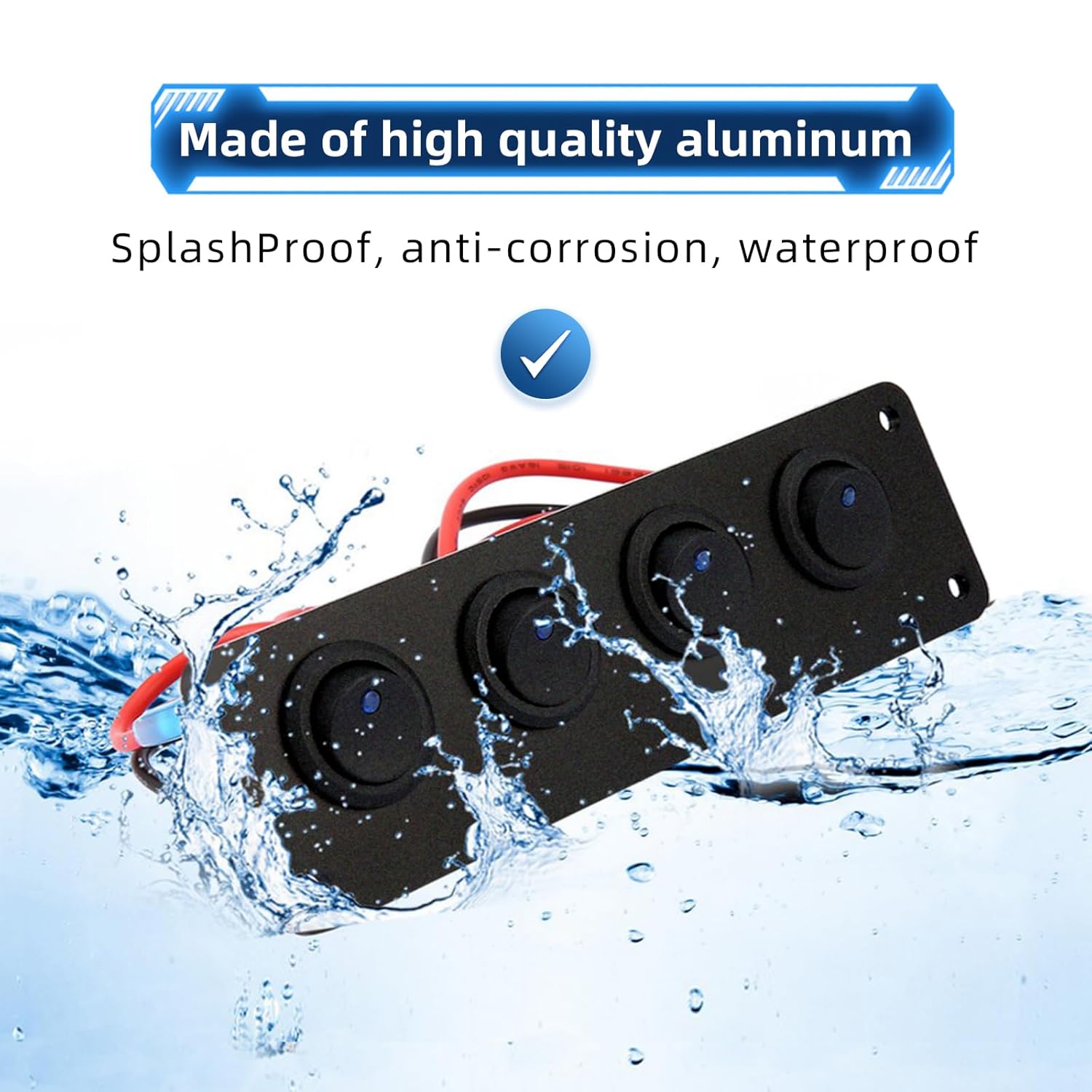

【Aluminum Panel Switch】:The rocker switch panel is made of a high-quality aluminum plate, which is dustproof, wear-resistant, corrosion-resistant, and more sturdy than a plastic switch panel. Waterproof, it can be used on the boat without worrying about damage.

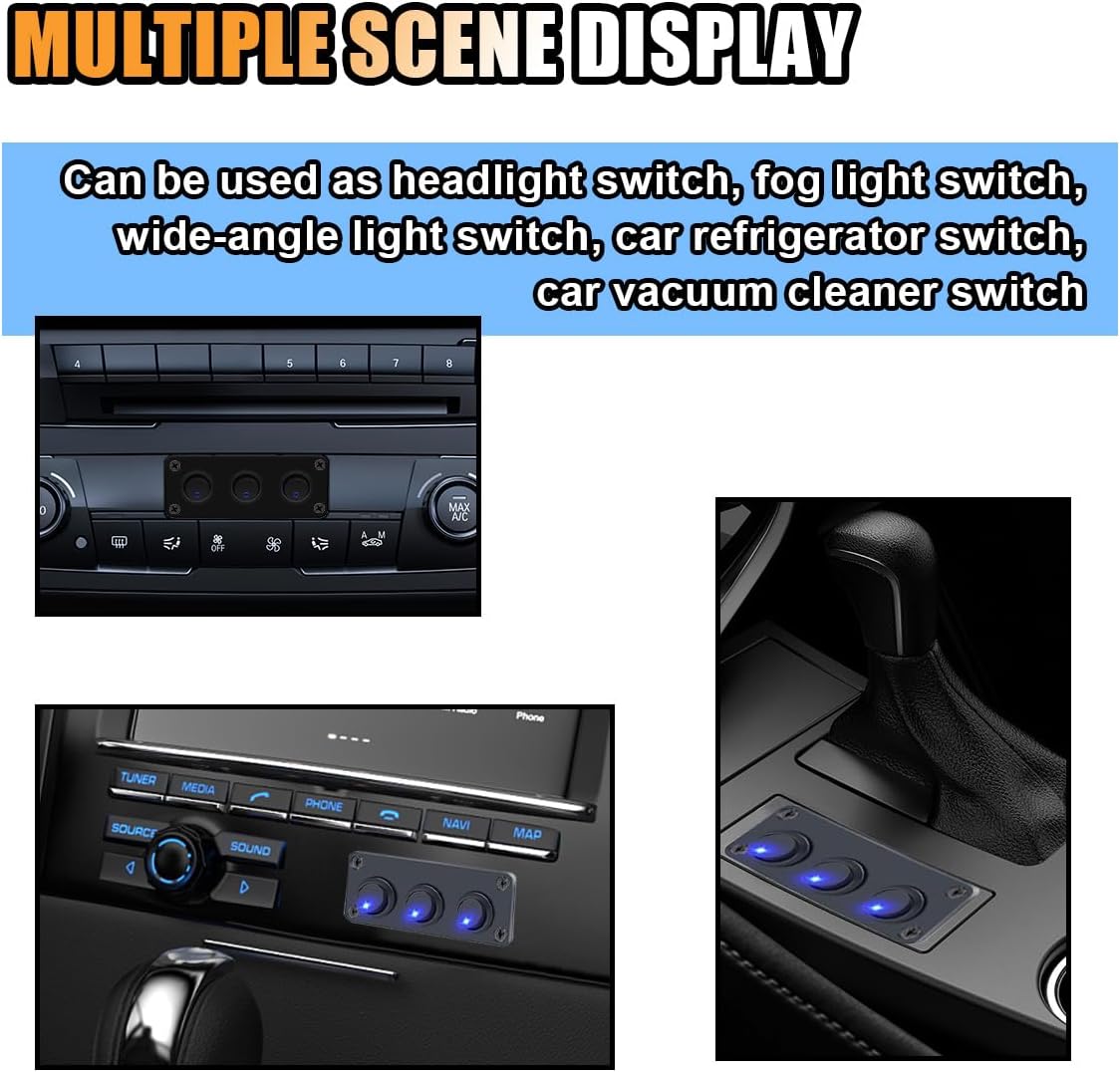

【Widely Application】:The switche suit cars, boats, yachts, RVs, buses, and trucks. It can also be used as a headlight switch, fog light switch, broad vision light switch, car refrigerator switch, power supply for car exterior equipment, power supply for cell phones, tablet PCs, and other home appliances modifications.

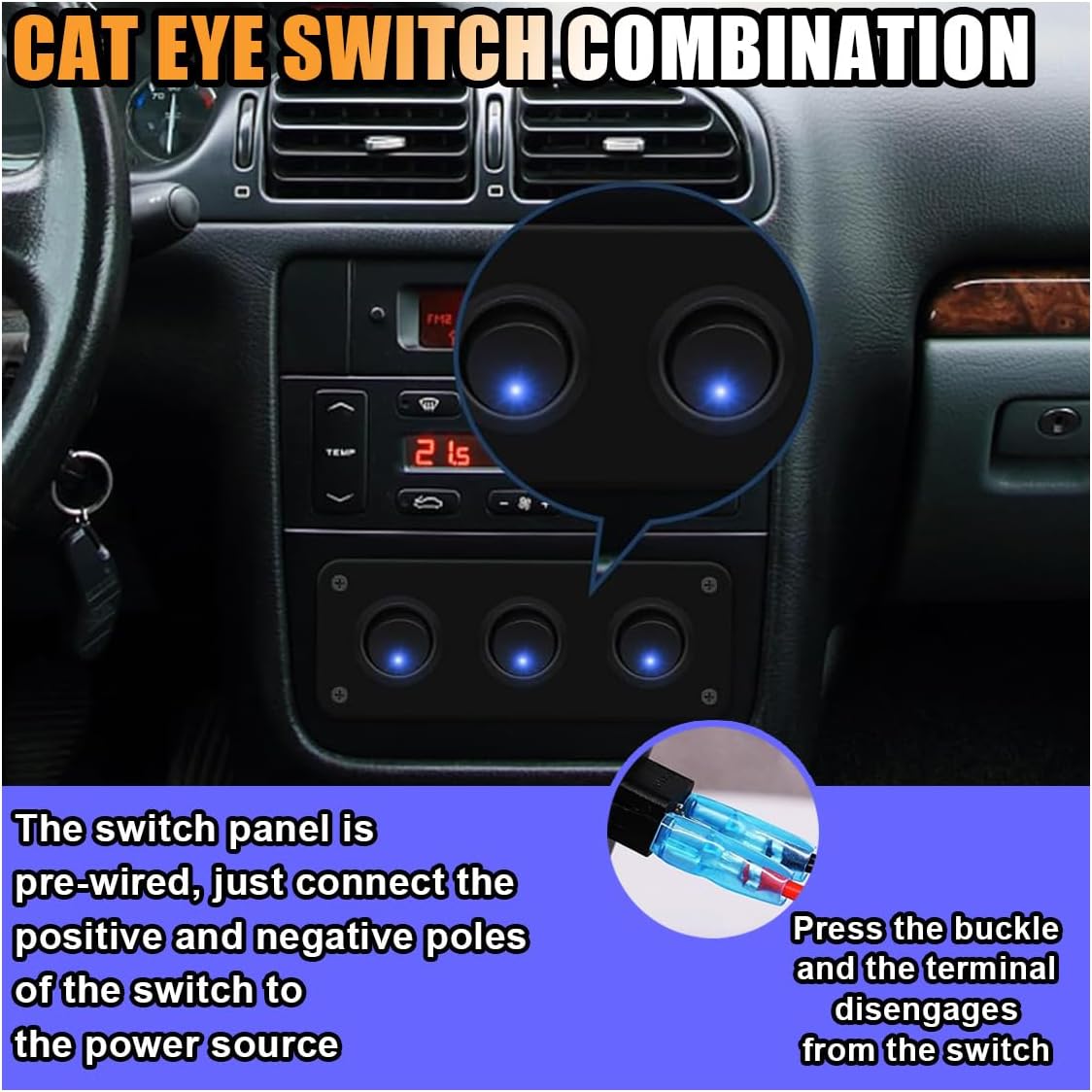

【Easy to Use】:It can be DIY installed or replaced directly on the original panel. The copper foot connects to the negative battery terminal, the next foot connects to the positive battery terminal, and the last foot connects to the positive terminal of the device. The 12V switch panel is equipped with a lock-hole slot.
Specifications:

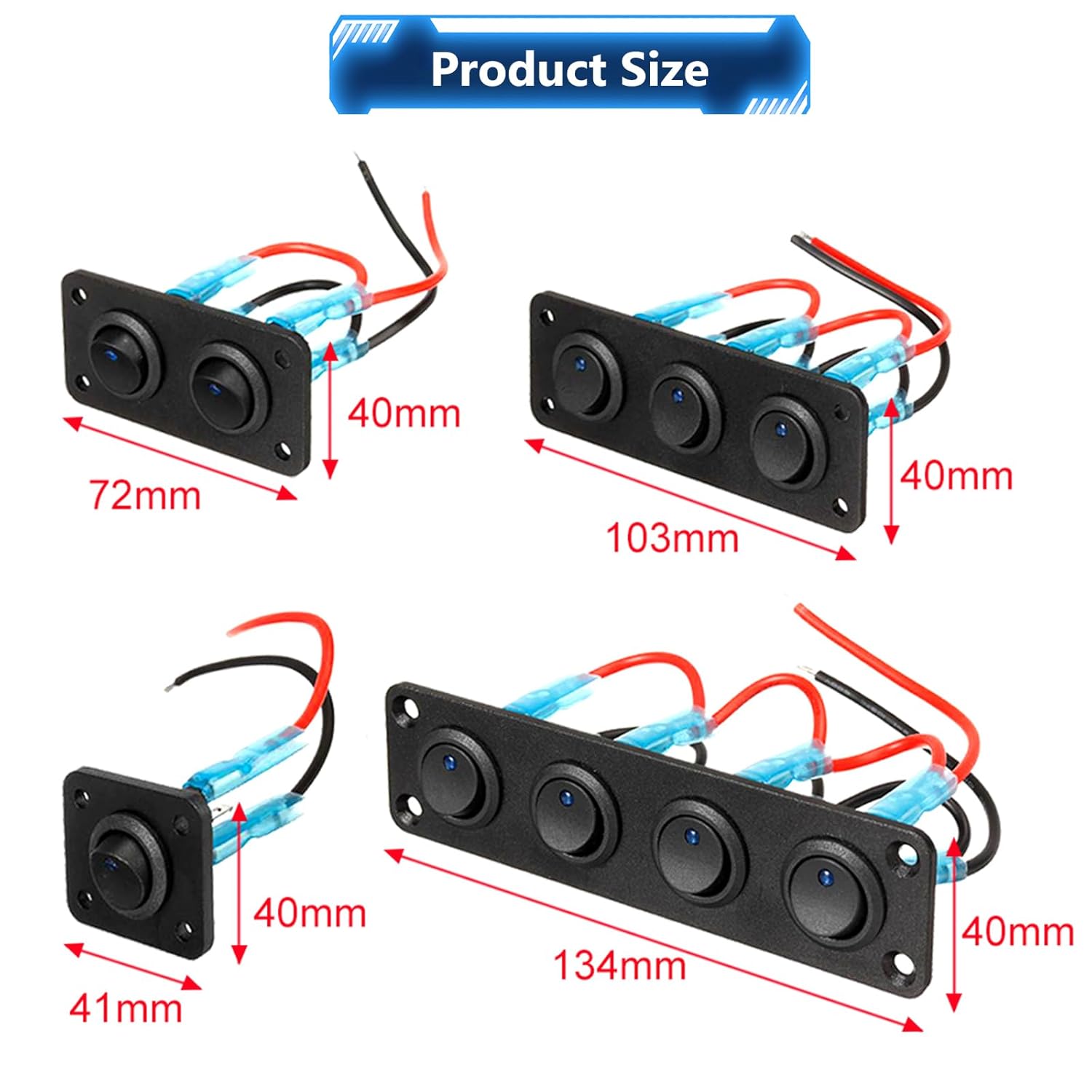

Surface Face Size: 134x40mm
Mounting Hole Centres: (WxH) 122.5x28.5mm
Switch Type: Mini Rocker Switch ON-OFF SPST
Switches: ABS + electrical components
Panel: Aircraft Aluminium
LED Colour: Blue
Rating: 20A/12V DC, 10A/24V DC

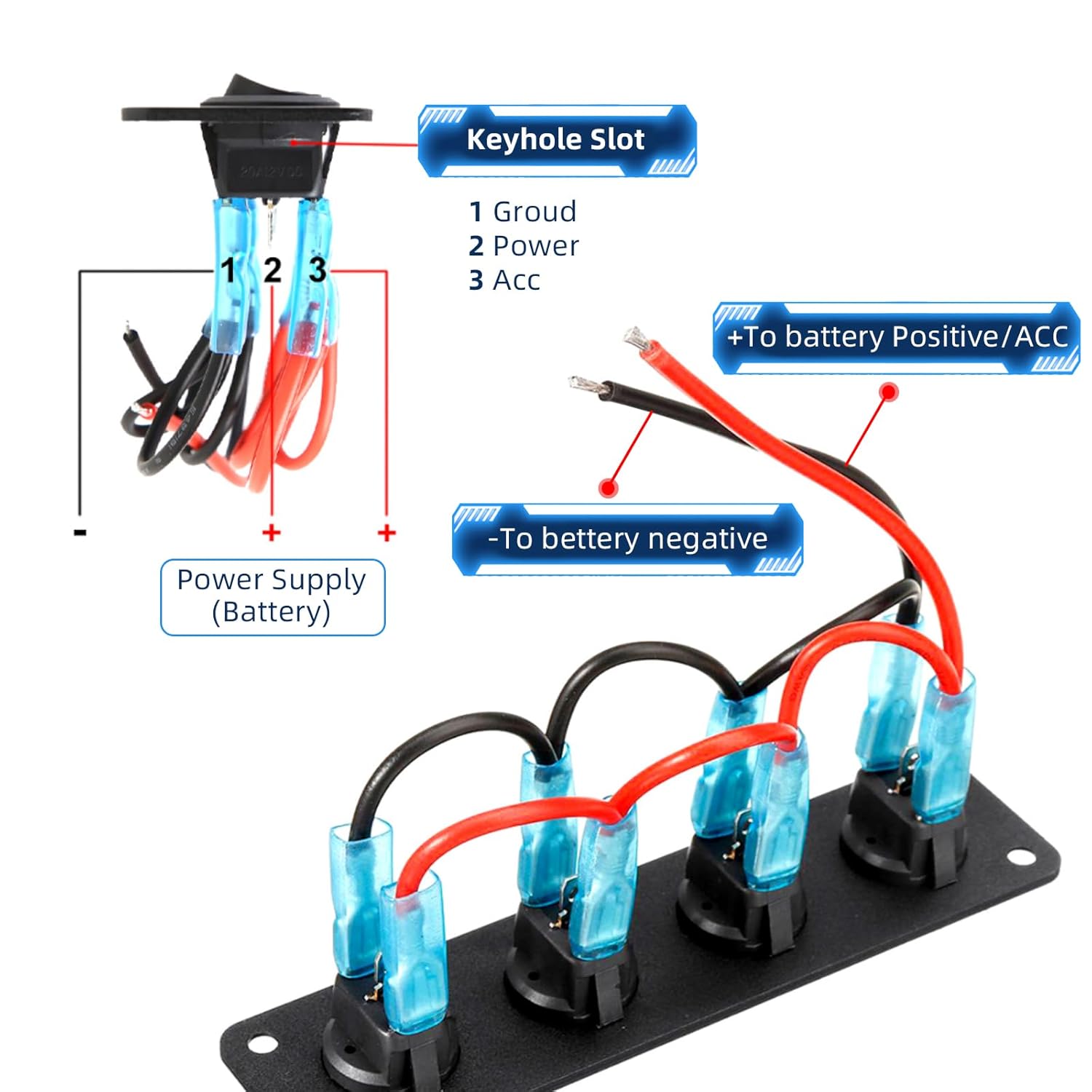

WIRING:
Red - Positive
Black - Negative
Spare Terminal - Switching Wire (Accessory/Relay)
Package Includes: 1pc 4-gang rocker switch panel with pre-wired wiring harness and 4pcs screws .
