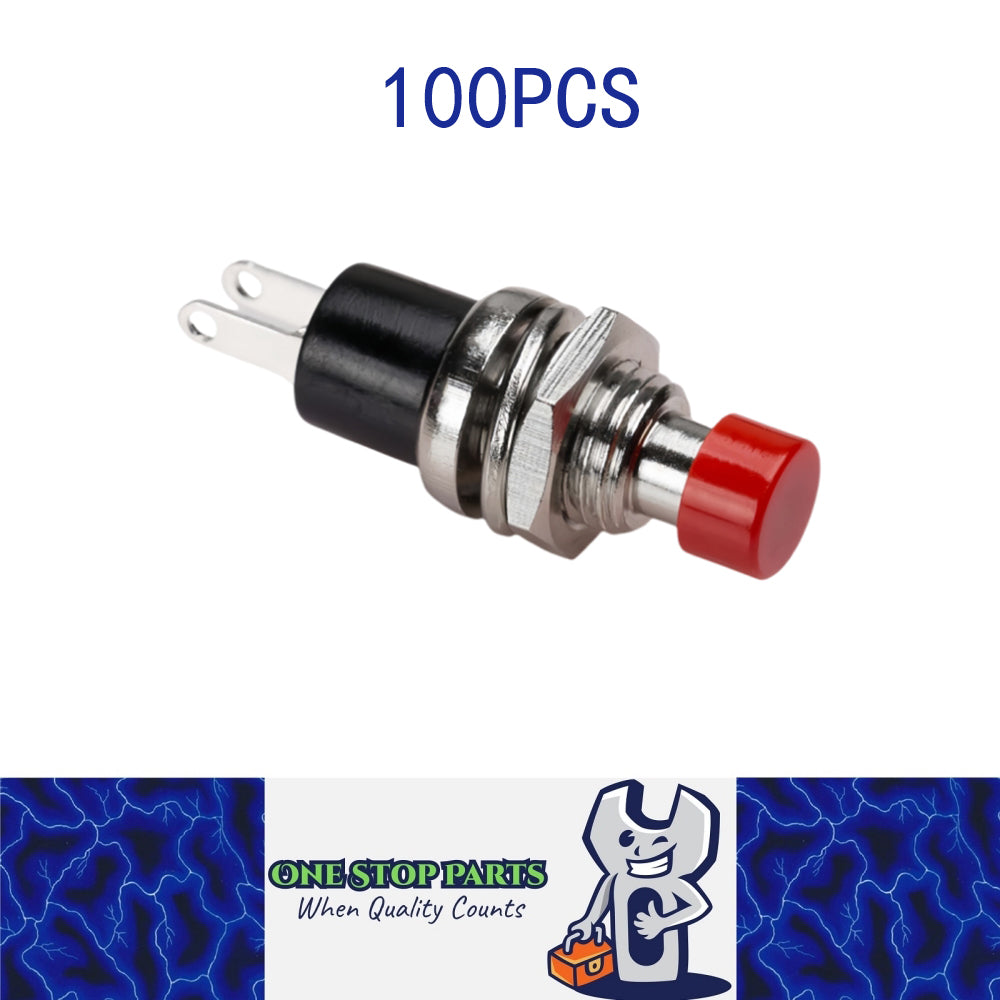

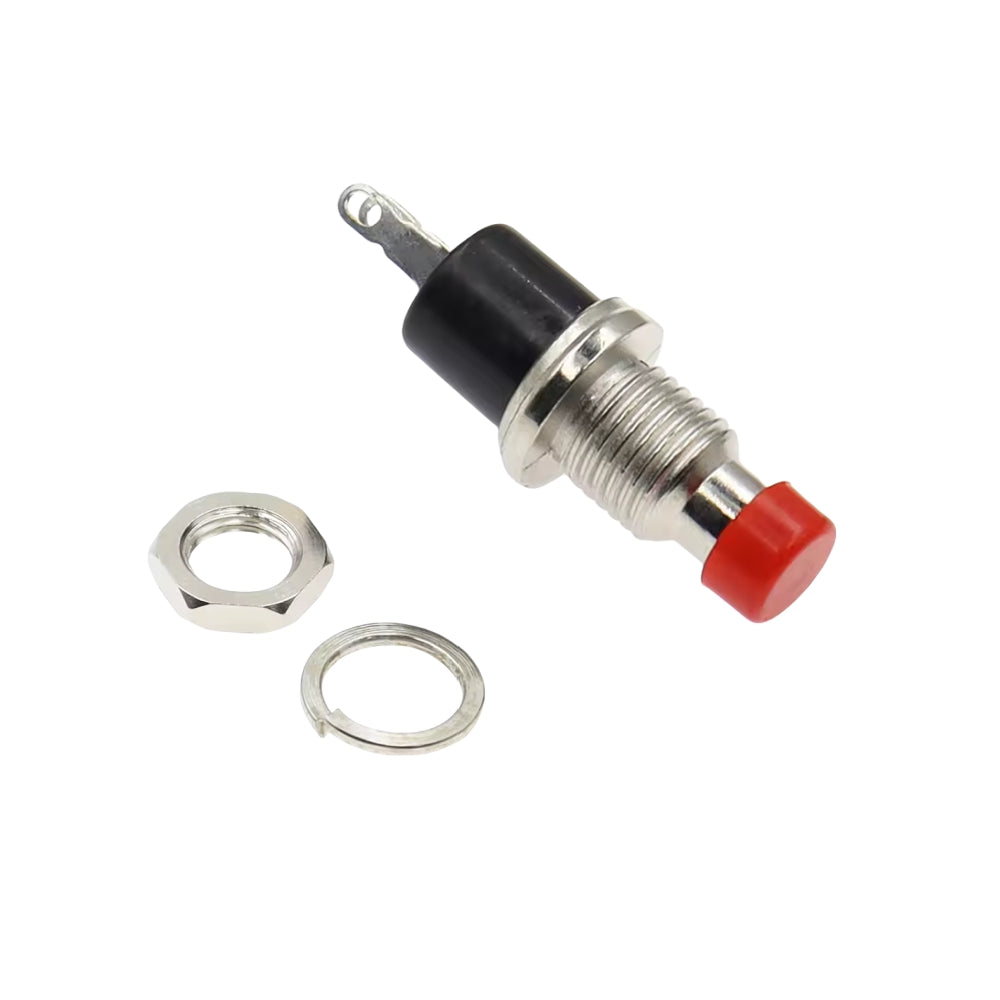

100 x Red Push Button Switches 7mm ON/OFF Self Reset Panel Momentary Switches

Here we have 100 x Red Push Button Switches 7mm ON/OFF SPST Self Rest Panel Mount Momentary Switches .

This Metal Push Button Switch is widely used in industrial controlling circuits for controlling in electromagnetic starter, contactor, relay and other electric circuits,various manual DIY electronic products.

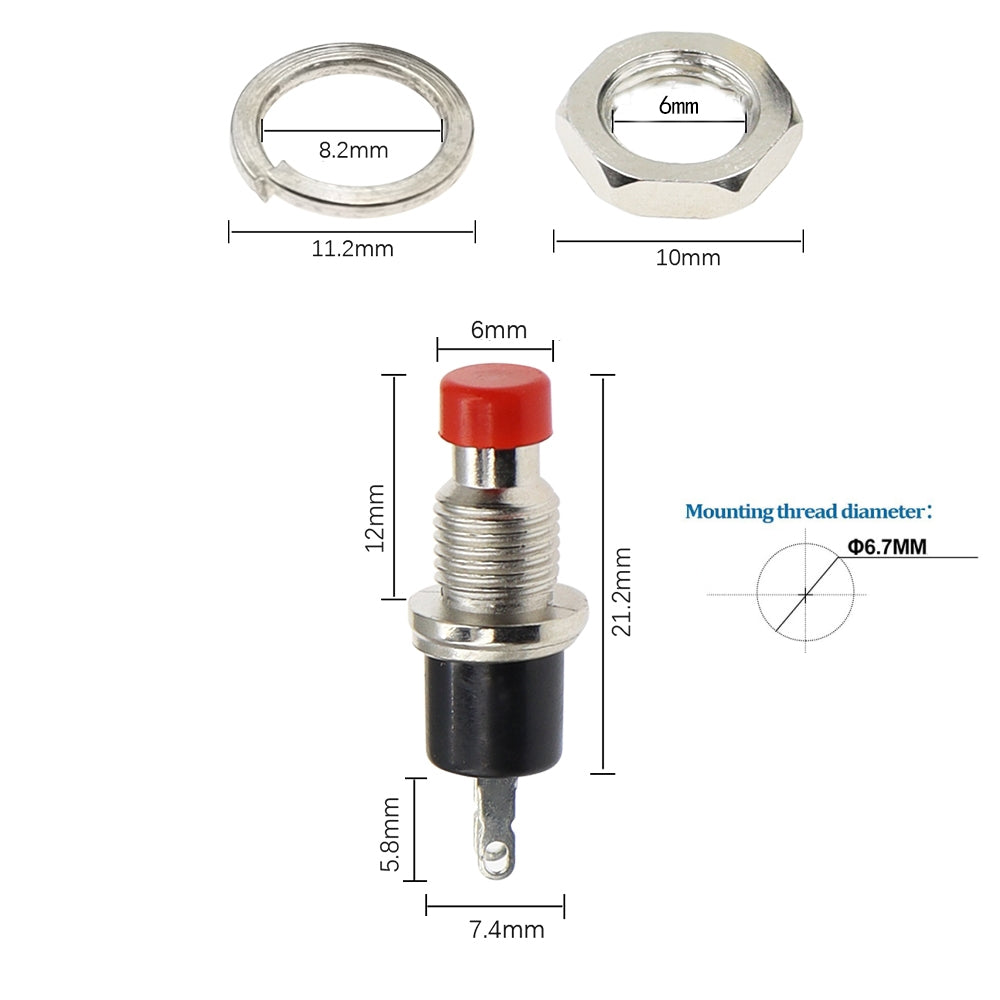

Button Diameter : 6mm

Mounting Thread Diameter : 7mm

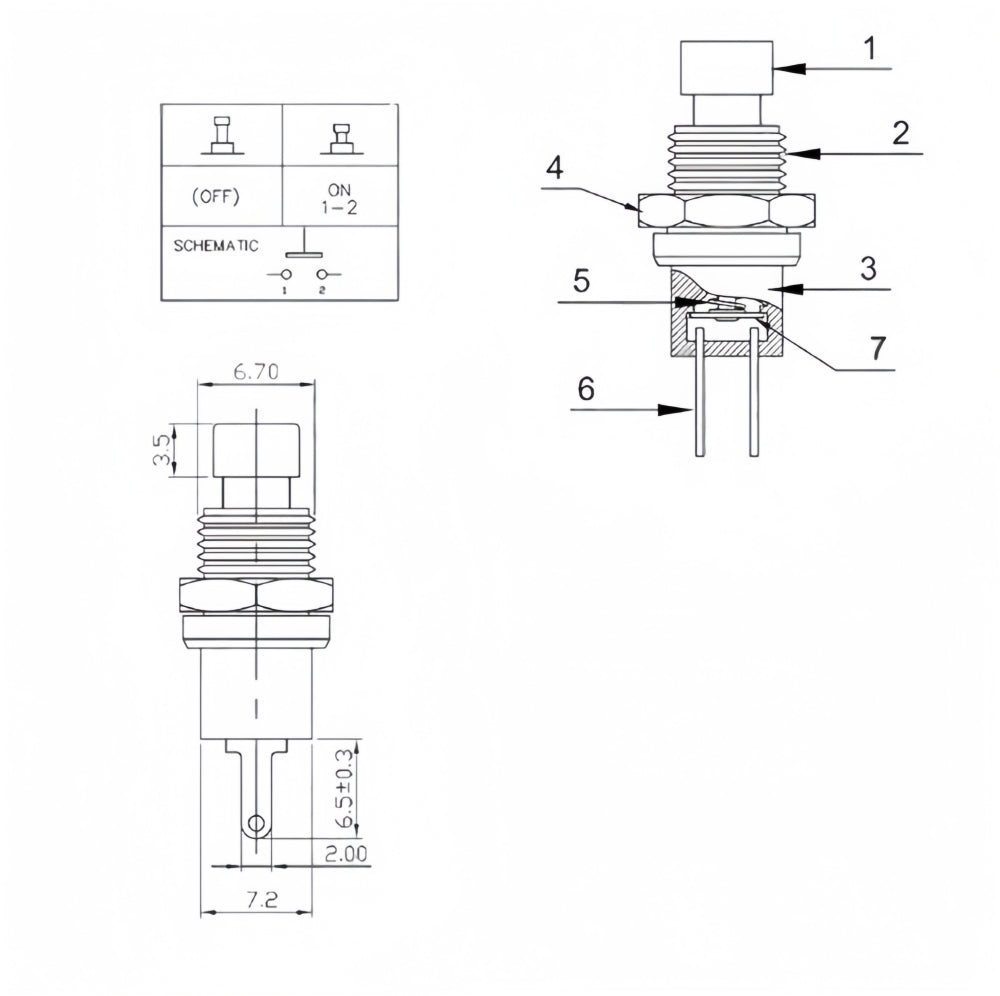

Total Size : 28 x 11mm (H* Max.D)

Wire Length: 20CM

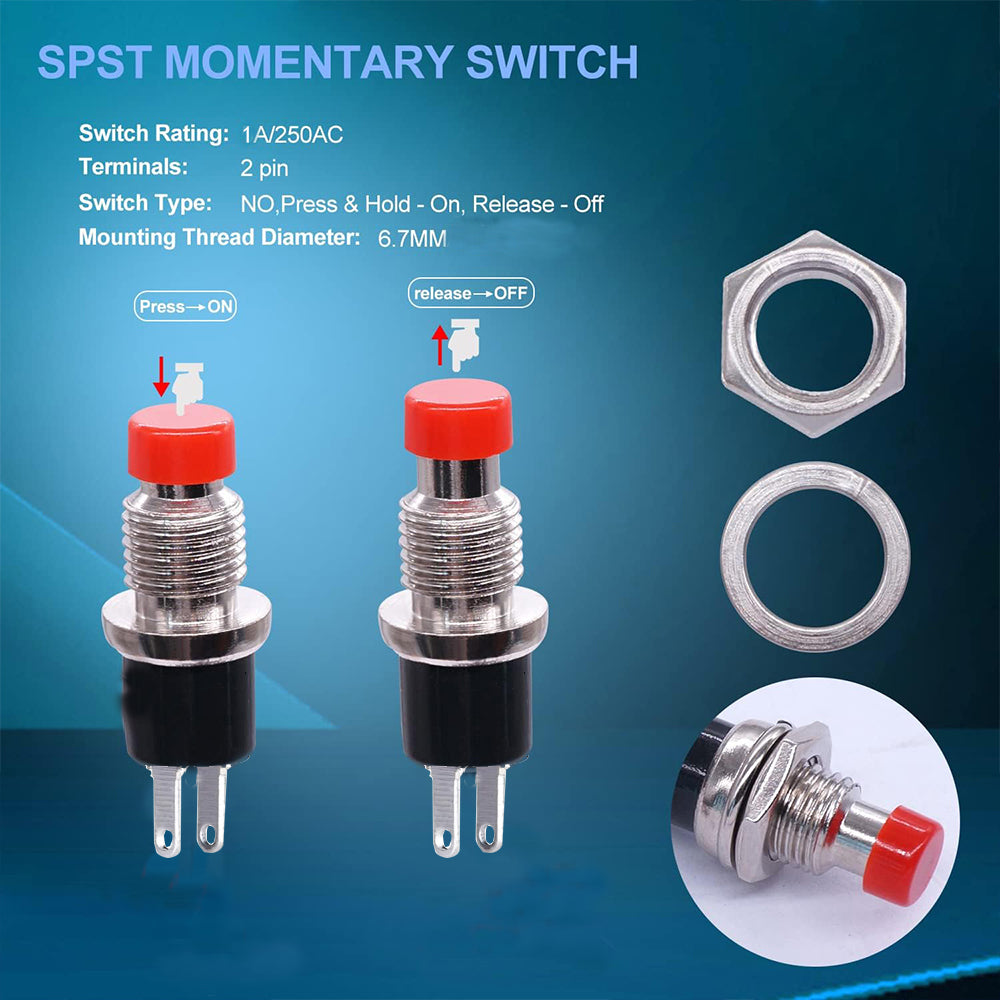

Action Type : Momentary

Contact Type: Normal Open

Poles: SPST

Pin Number : 2

Switch Rating : AC 250V / 1A; AC 125V, 3A

External Material : Plastic, Metal

Colour : Red

Quantity: 100pcs
