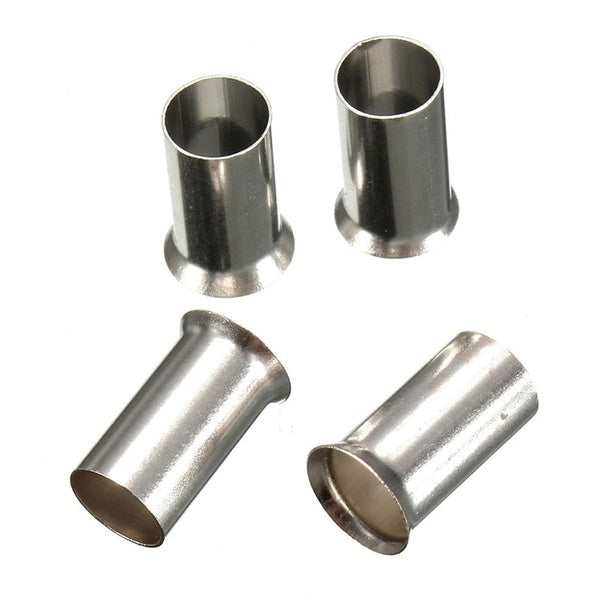

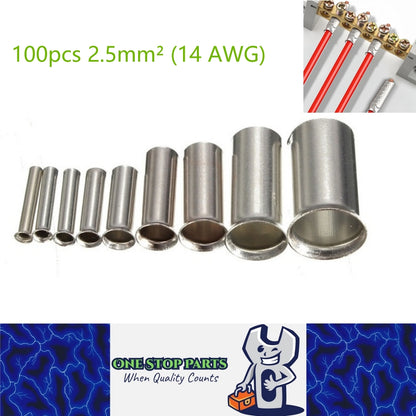

Here we have 100 x 2.5mm² (14 AWG) Copper Tinned Bare wire end Crimp Cable end strengthen connection (100pcs)
* These non-insulated butt connectors are a reliable and efficient solution for connecting wires in electrical circuits.
* These butt connectors are made of red copper and have been treated with a tin-plating process, providing excellent conductivity and long-lasting performance even in harsh environments.
* Simply strip the ends of the wires you want to connect, insert them into the connectors, and crimp the connectors using a crimping tool.
* Please ensure the wire size matches the connector size to avoid loose or poorly connected wires, which can be hazardous in certain applications.

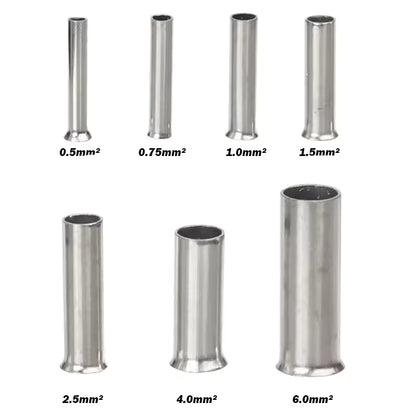

Model --------Wire Range-----------------Dimension(mm)
EN0508 --------0.5 mm² (22 A.W.G)---------L:8, D:1.3, C:1.0, W:1.7
EN7508 --------0.75mm² (20 A.W.G)--------L:8, D:1.5, C:1.2, W:1.9
EN1008 --------1.0 mm² (18 A.W.G)---------L:8, D:1.7, C:1.4, W:2.2
EN1508 --------1.5 mm² (16 A.W.G)---------L:8, D:2, C:1.7, W:2.5
EN2508 --------2.5 mm² (14 A.W.G)---------L:8, D:2.6, C:2.2, W:3.3
EN4009 --------4.0 mm² (12 A.W.G)---------L:9, D:3.2, C:2.8, W:3.9
EN6012 --------6.0 mm2 (10 A.W.G)---------L:12, D: 3.9, C:3.5, W:4.7
EN10-12 -------10.0 mm² (8 A.W.G)---------L:12, D:4.9, C:4.5, W:5.8
EN16-12 -------16.0 mm² (6 A.W.G)---------L:12, D:6.2, C:5.8, W:7.2

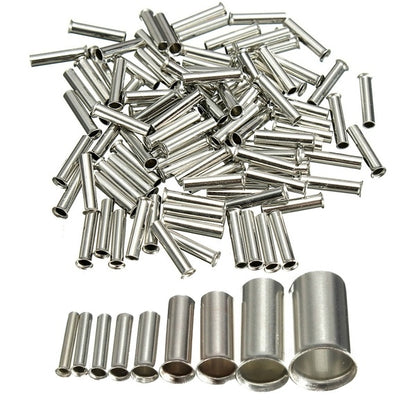

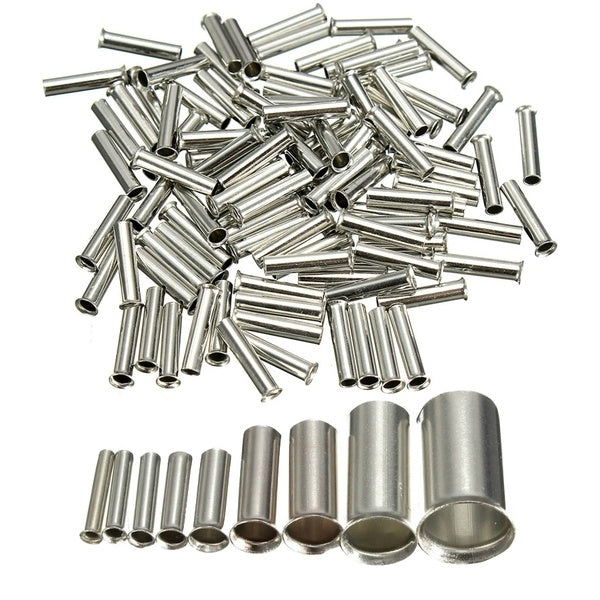

Quantity: 100pcs
