About the item

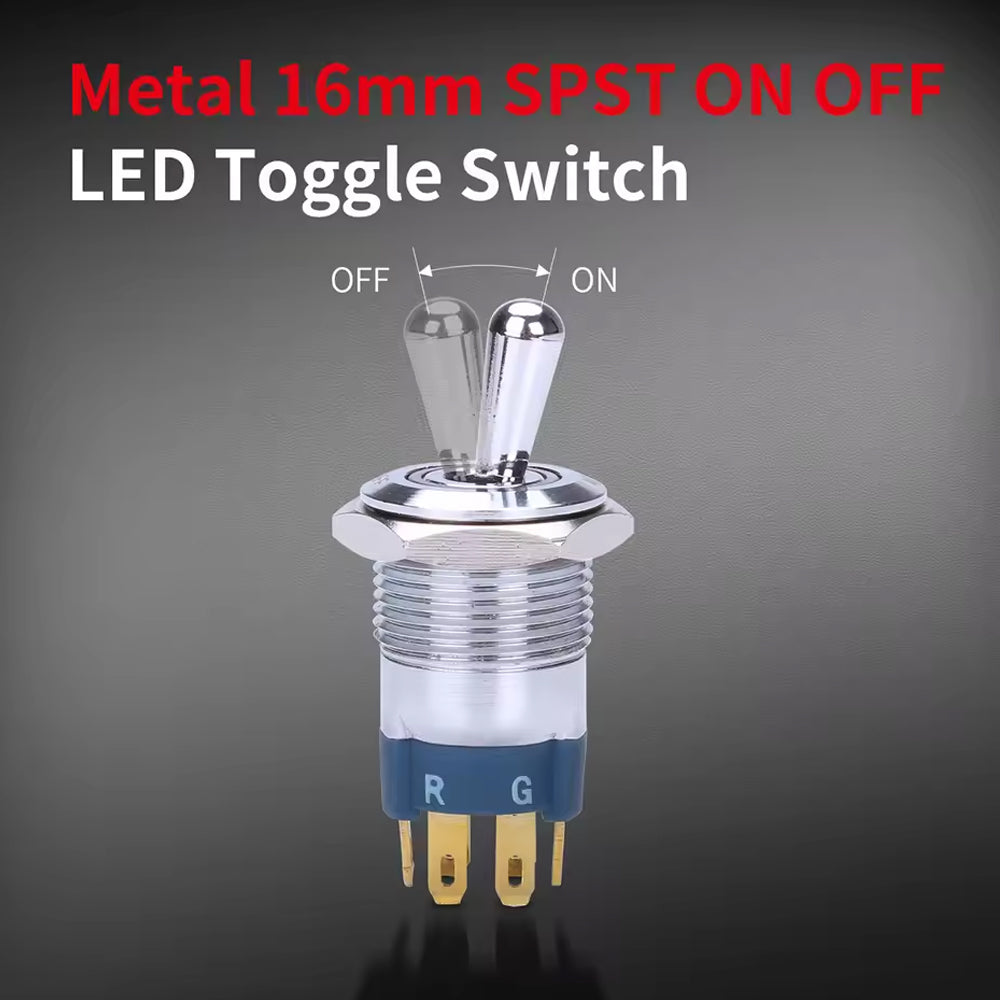

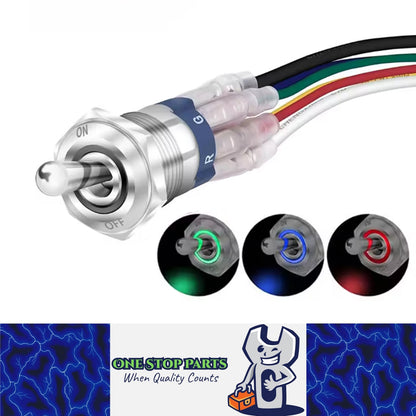

This is a unique SPST Lighted Toggle switch ON OFF(Push Button Switch Style) developed specifically for the pursuit of individuality and perfection in you.
16mm toggle switch panel mounting hole diameter design to achieve the most beautiful outlook, The chrome plated Bezel and Actuator makes it shine.
No need to cover a waterproof rubber boot, this toggle switch LED can reach IP67 waterproof switch.

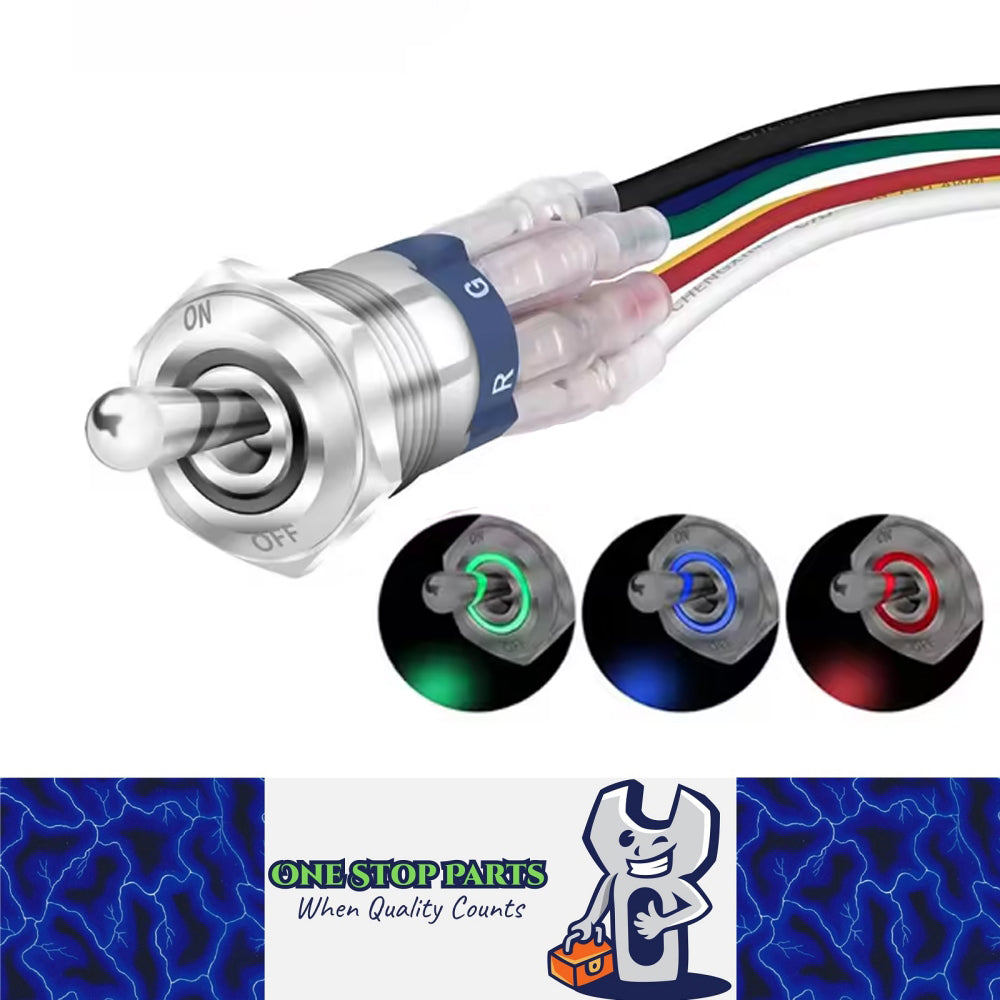

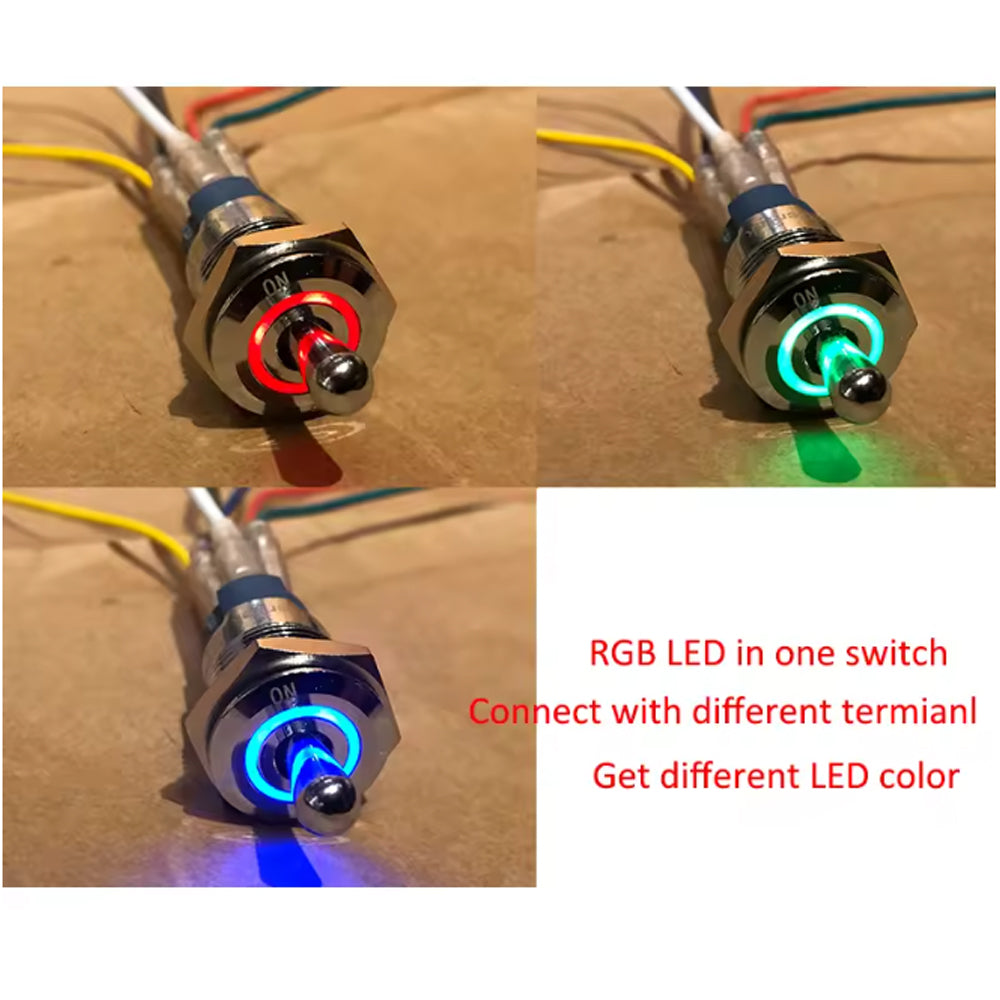

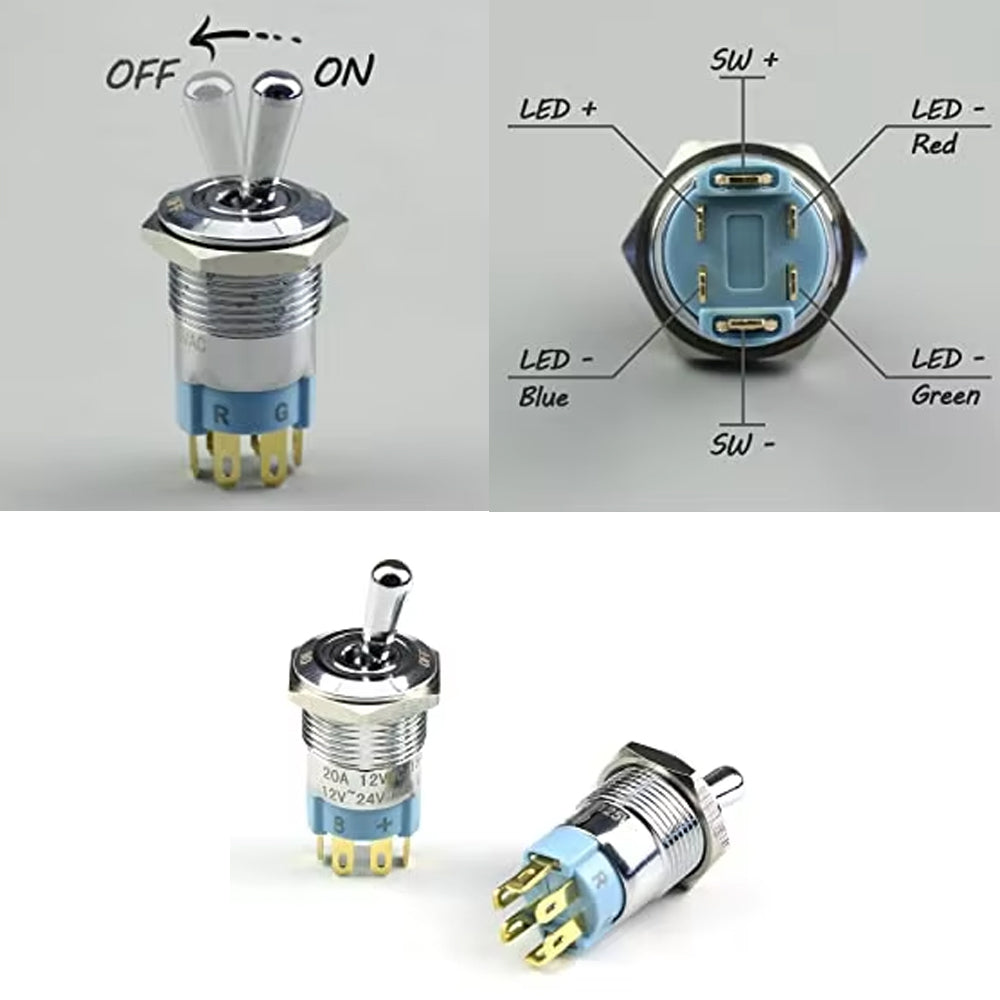

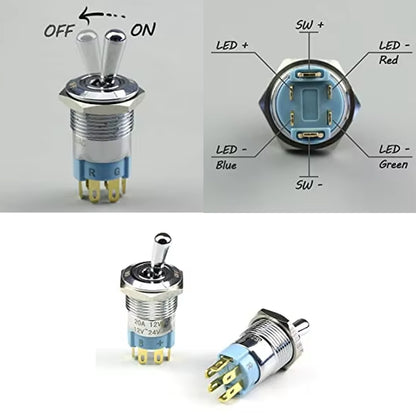

This spst toggle switch with 12V 24V RGB Triple LED designed toggle switch. Red, Green, Blue, Red+Green, Red+Blue, Green+Blue or Red+Green+Blue LED Colors for your choose.
Full gold plated terminals provide the best contact performance for the toggle switch, 20A 12VDC;15A 125VAC rating.
Speciflcation
Rating: 20A 12VDC; 15A 125VAC
Contact Resistance: ≤25mΩ
Insulated Resistance: ≥100MΩ
Operating Temperature: -25℃~+85℃
Electrical Life: ≥10,000 Cycles

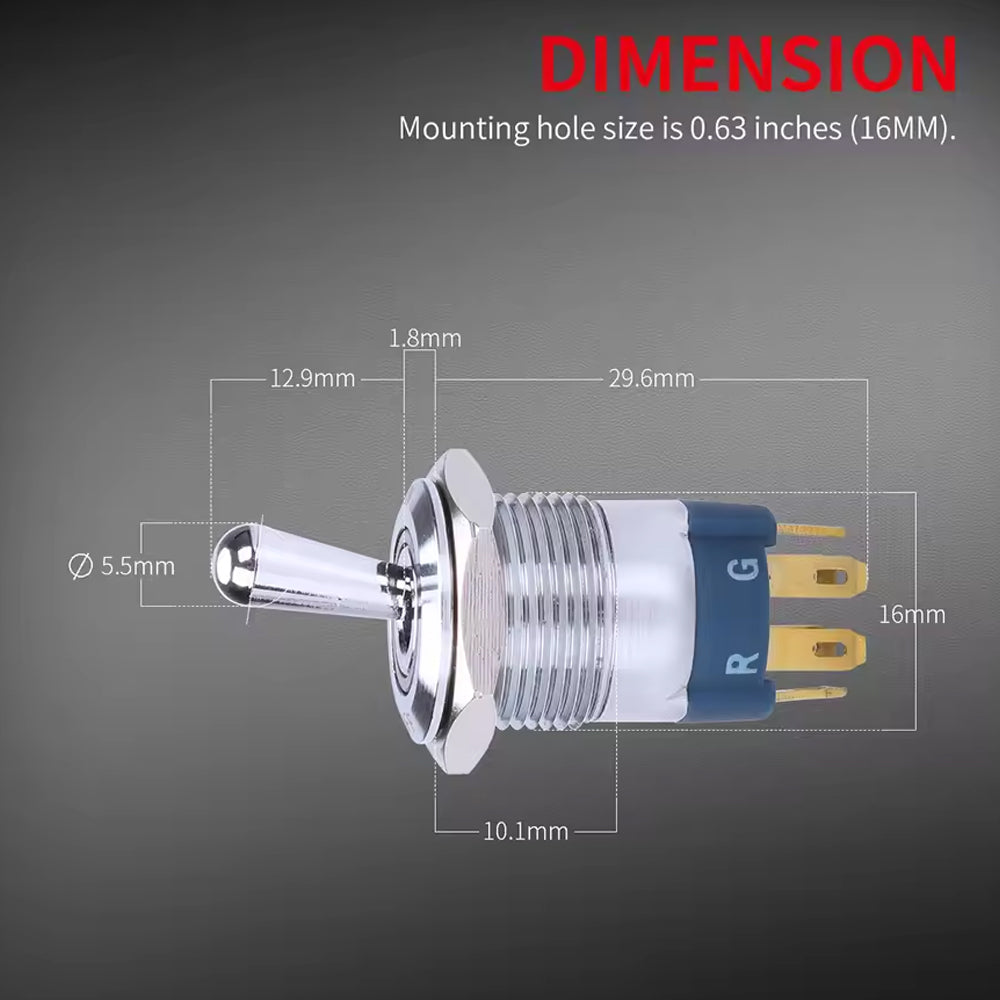

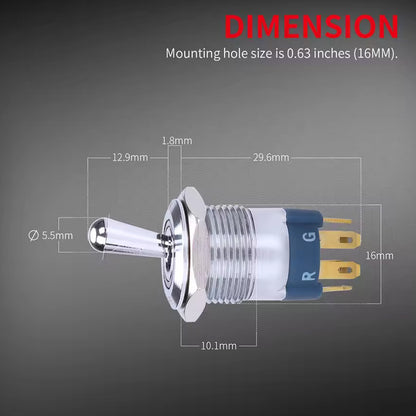

Mounting Size: 16mm Toggle switch
Panel Thickness: 8mm Max
Waterpoof Degree: IP67
LED Rating: 20mA
LED Endurance: ≥20,000 Hours
Package Includes
1 x RGB LED Toggle Switch
