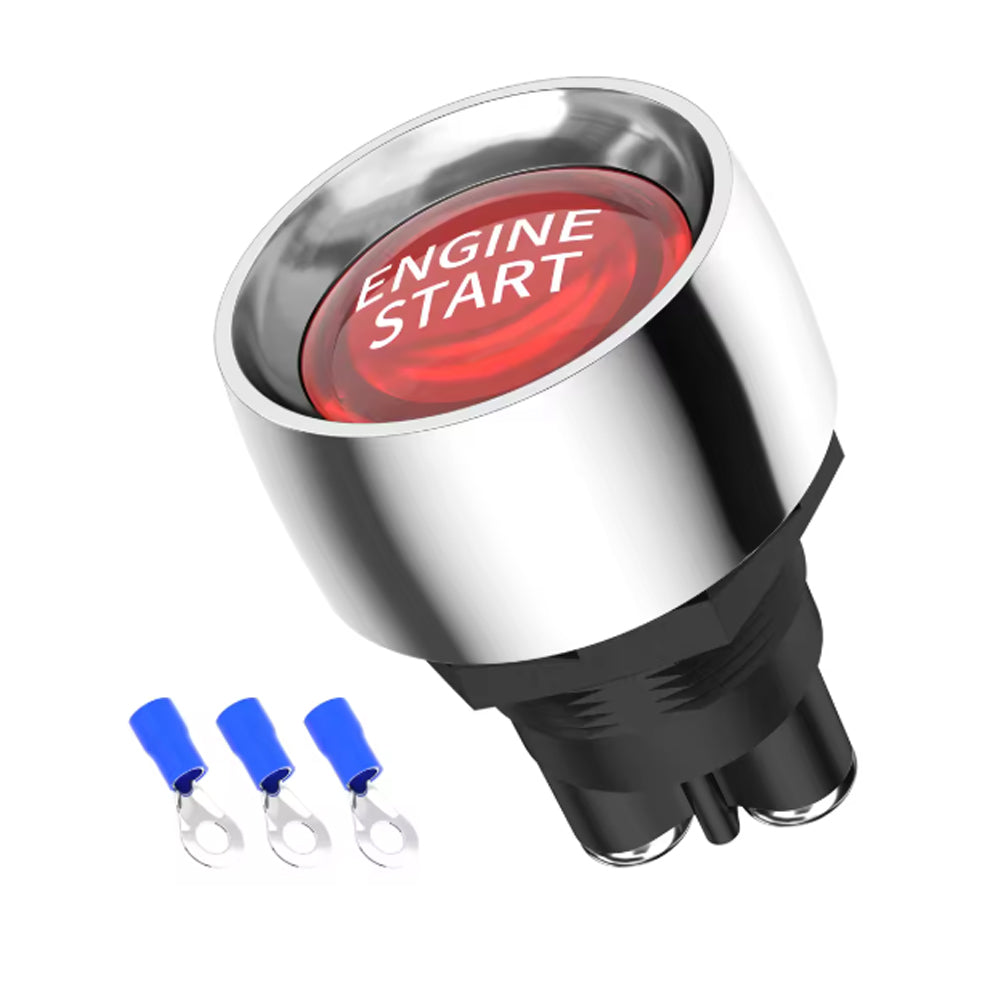

1 x Red Car Engine Start Ignition Switch 12V 50A 3 Pin SPST Push Button Switch

About the item

This engine start ignition switch is designed to connect and disconnect DC 12V 50A circuit at wil, and is generally applicable to all vehicles, racing vehicles, truck ships, RV

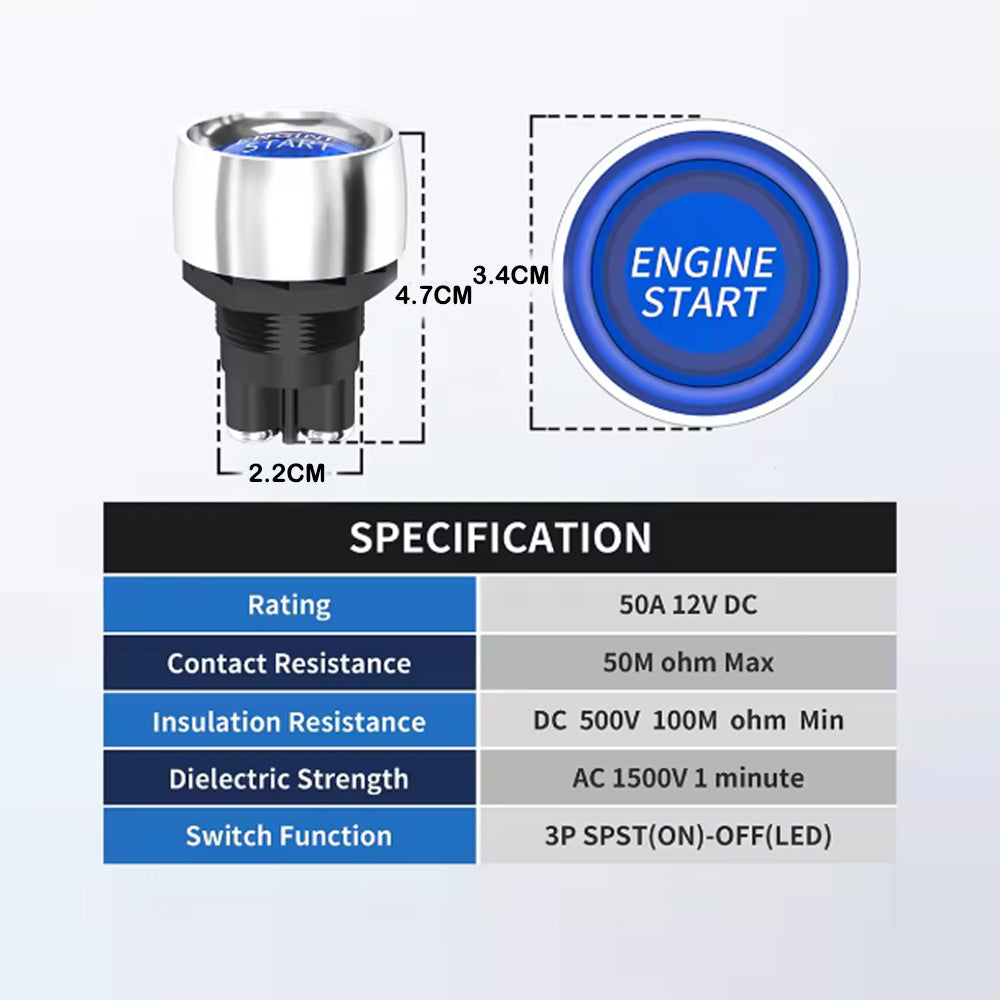

SPECIFICATION

Frame:Nylon 66 (94V-2),Black

Cover:ABS(94HB)

Terminals:Copper Alloy

Light Color: RED  (The blue displayed in our store you can purchase )

Size: 31 x 44mm

Life: 10,000 cycles circuit

LED:∅5 White diffuse

Size: 33x 46mm

Voltage: 12V-24V

Continuous Current: 50A MAX

Installation Diameter: 22MM

Operation Temperature : -25℃ ～+85℃

Insulation Resistance:  DC 500V 100M ohm Min

Contact Resistance:  50m ohm Max

Packing List

1 x Push Start Button

3 x Ring terminals
